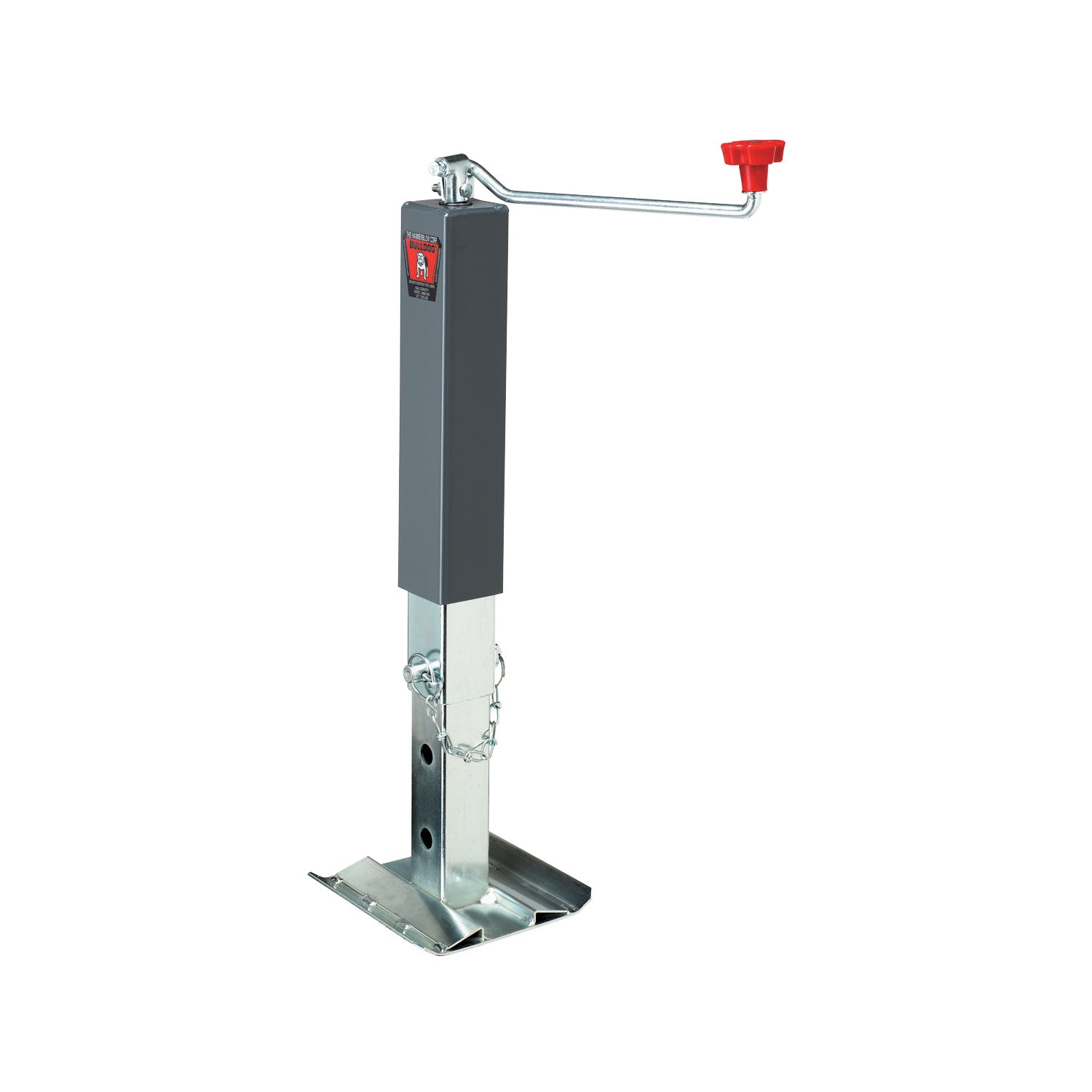

Bulldog 10,000 lbs Square Trailer Jack Topwind 10 Inch Lift Drop Leg with Footplate 180304

$189.99

SQUARE JACKS BULLDOG 10,000 lbs. support capacity square jacks “fills the gap” between 8,000 lbs. and 12,000 lbs. square jack product offerings. If the existing 8,000 lbs. support capacity square jacks are too small or the 12,000 lbs. support capacity square jacks are too big, look no further – your application and pricing requirements have been met! This is the highest quality and best performing jack available in the marketplace today, a total balance between capacity, speed, and effort.
Heavy-gauge 3" square tubing allows for direct weld  mounting wherever the application allows – no burn through

• Use the painted outer tube as the final finish or primer

• Zinc-plated inner tube and drop leg

• 4.7" Outer / inner tube overlap - results in optimal  side load performance

• Heavy-duty base, with reinforcement ribs, zero  water retention

• Patented screw nut stop - prevents screw and/or  nut damage when jack is fully extended

• Precision manufactured for long term  reliability and smooth, easy cranking

• Grease zerk for easy lubrication as needed

• Oil-impregnated bushing for improved  bearing and gear life

• Limited 5-year warranty

• ASABE Compliant

Specifications:

• Support Capacity: 10,000 lbs.

• Lift Capacity: 7,200 lbs.

• Retracted Bracket Height: 18.18"

• Extended Bracket Height: 38.31"

• Travel/Lift: 10"

• This Jack is intended to be welded on directly onto your application

• Drop Leg w/ heavy-duty base (Drop Leg offers 13.50" of additional adjustment)

• Handle included

• Handle Radius: 12"

• Topwind model - bushing in top cap,  eagle claw grip

• 3" Tubing width
