Bulldog 10x 10K Square Trailer Jack w/ 10" Lift Sidewind and Footplate
$3,343.99

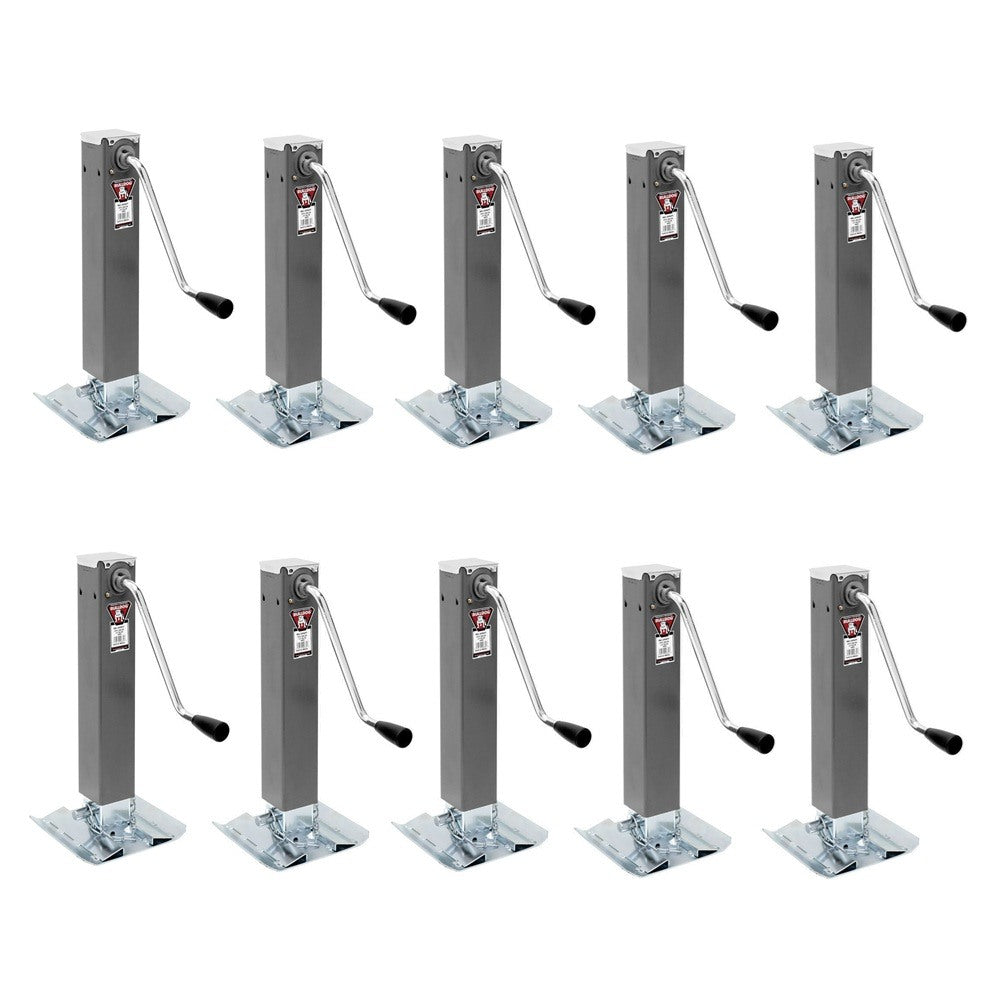

Bundle of 10 Bulldog 10,000-lb Sidewind Square Trailer Jacks with 10″ Lift & Footplate
Get unmatched lifting power and reliability with this 10-pack of Bulldog heavy-duty square trailer jacks. Each jack offers a 10,000 lb support capacity, 10″ of smooth sidewind lift, and a welded-on footplate—ideal for industrial, agricultural, and utility trailers. Outfit multiple trailers at once and keep maintenance time to a minimum.
Bundle Contents:
-

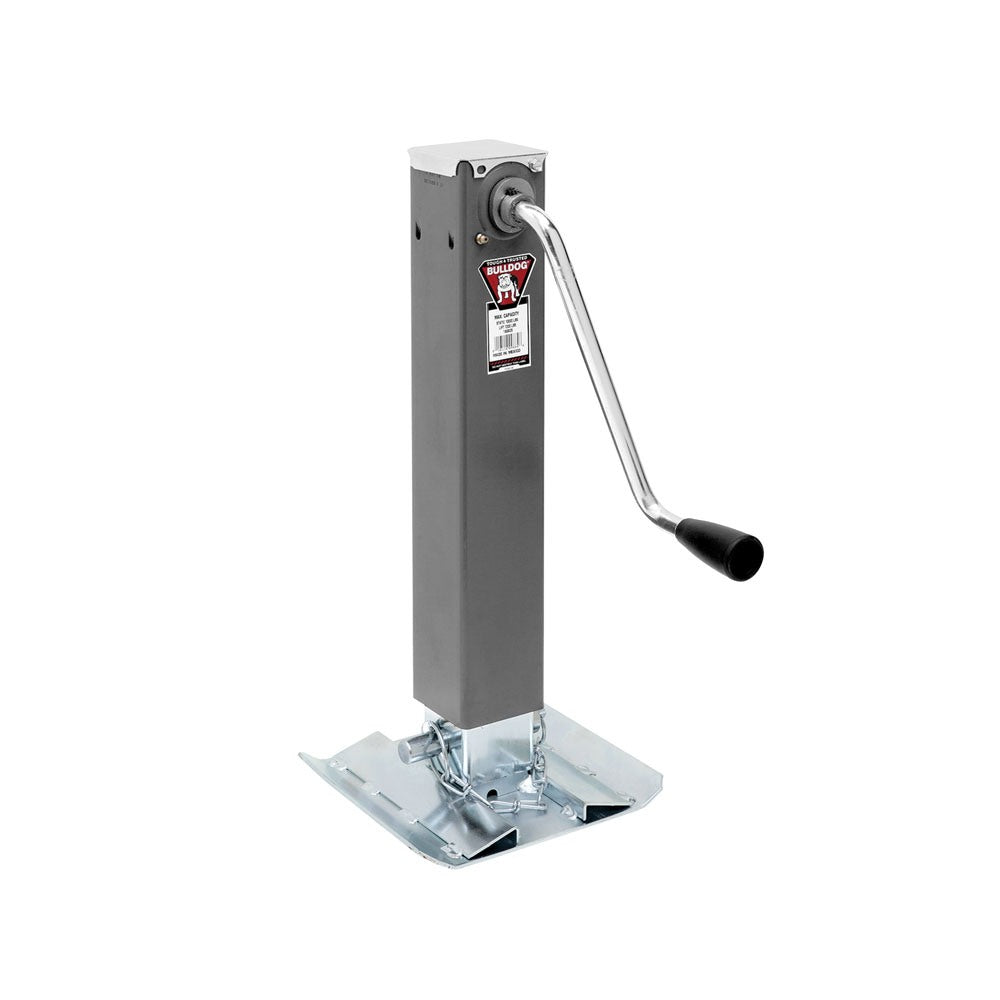

QTY (10): Square Trailer Jack, No Mount, 10,000 lbs. Support Capacity, Sidewind, Weld-On, 10 Inch Travel
- Heavy-gauge 3″ square tubing for direct weld mounting—no burn through
- Durable gray powdercoat finish; paintable outer tube for custom color
- Zinc-plated inner tube and drop leg for corrosion resistance
- Reinforced ribs prevent water retention and enhance strength
- Precision-manufactured for smooth cranking and long-term reliability
- Grease zerk and oil-impregnated bushing for improved gear life
- 1:1.86 gear ratio on sidewind handle for optimized lifting effort
Please verify compatibility with your trailer and perform regular lubrication and inspections to ensure peak performance.
| Specifications: | |
|---|---|
| Weight Capacity | 8001–10000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10000 LB |
| Lifting Load Capacity | 7200 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 3 Inch |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 19.93 Inch |
| Bracket-to-Bottom Clearance (Extended) | 40.05 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
Order today or call us at 877-869-6690 for expert advice and personalized service.
