Bulldog 10x 7K Round Pipe Mount Swivel Trailer Jack w/ 15" Lift Topwind and Pull Pin
$1,186.99

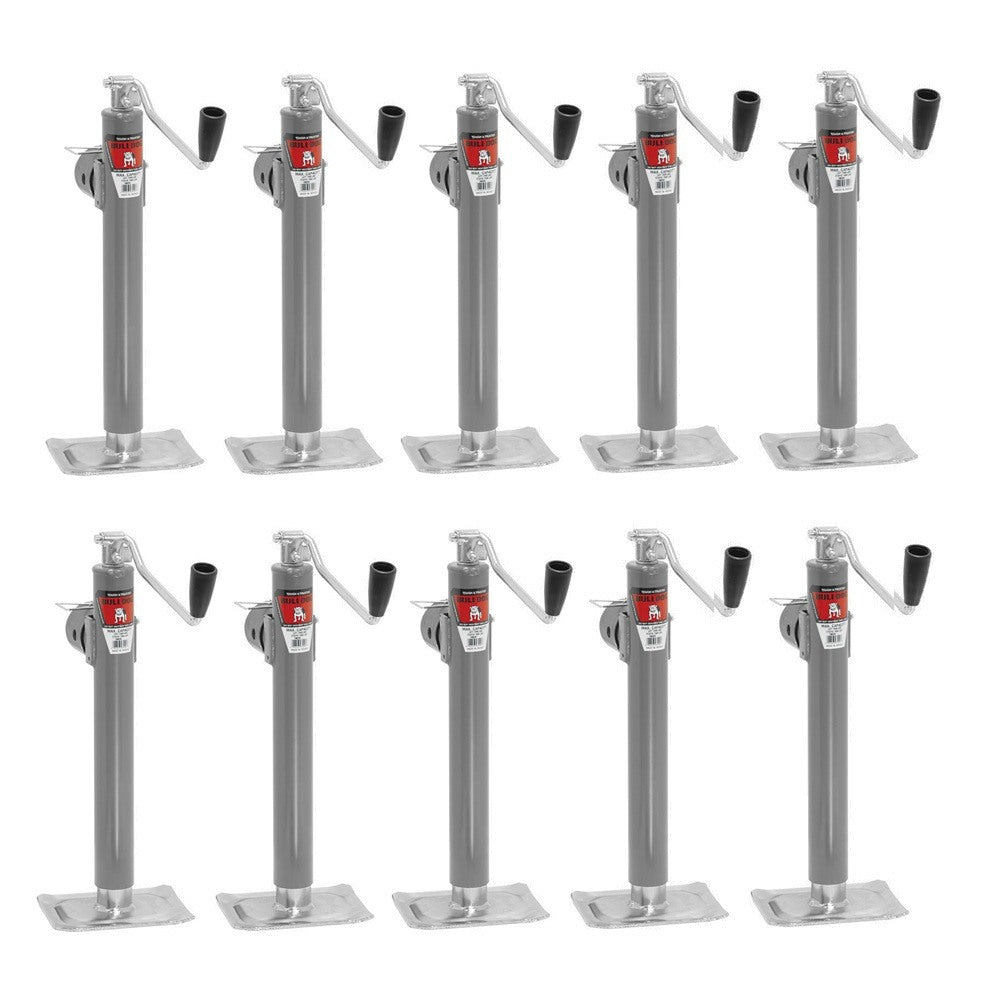

10-Pack Bulldog 7,000 lb Round Pipe-Mount Swivel Trailer Jack Bundle
Equip your fleet or trailer shop with ten industry-standard Bulldog 7,000 lb capacity round pipe-mount swivel jacks. Featuring a smooth topwind lift, precision-fitted parts, and a robust footplate, these jacks deliver reliable vertical and side-load performance for agricultural, commercial, horse, livestock, and utility trailers.
Bundle Contents:
-

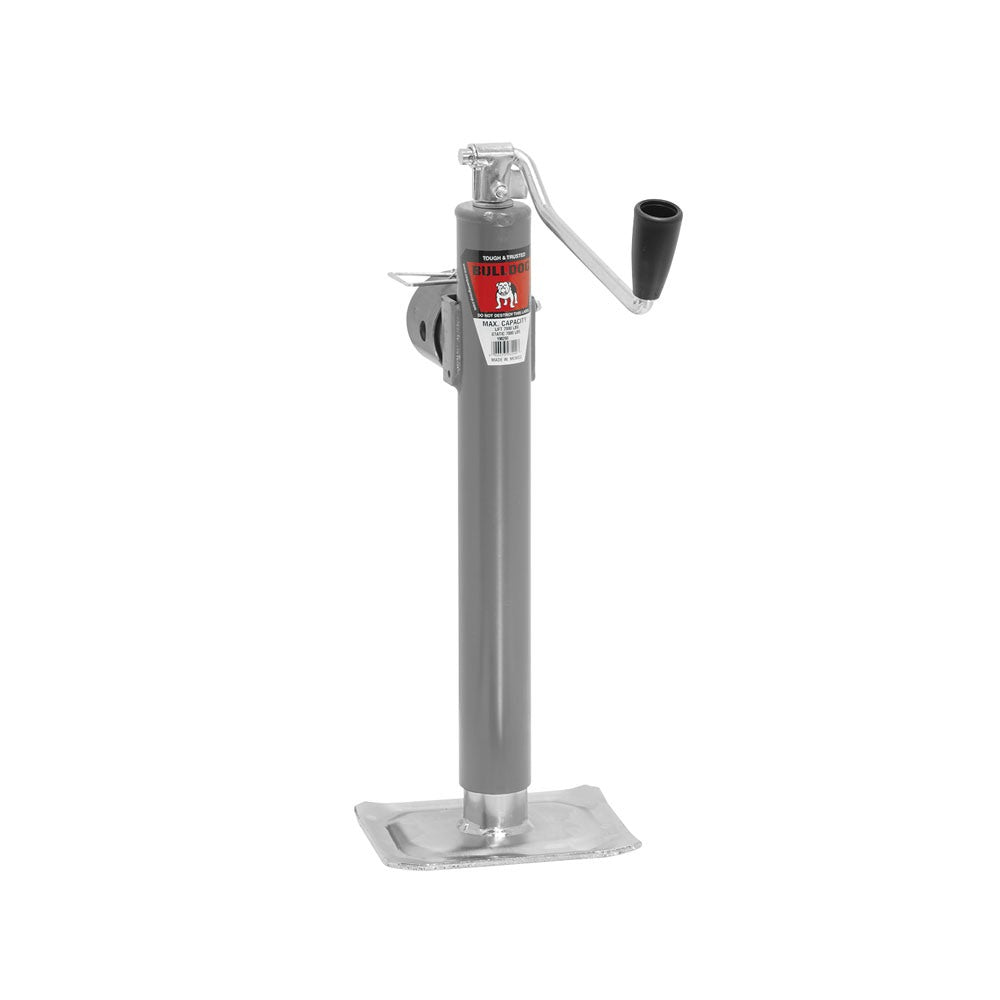

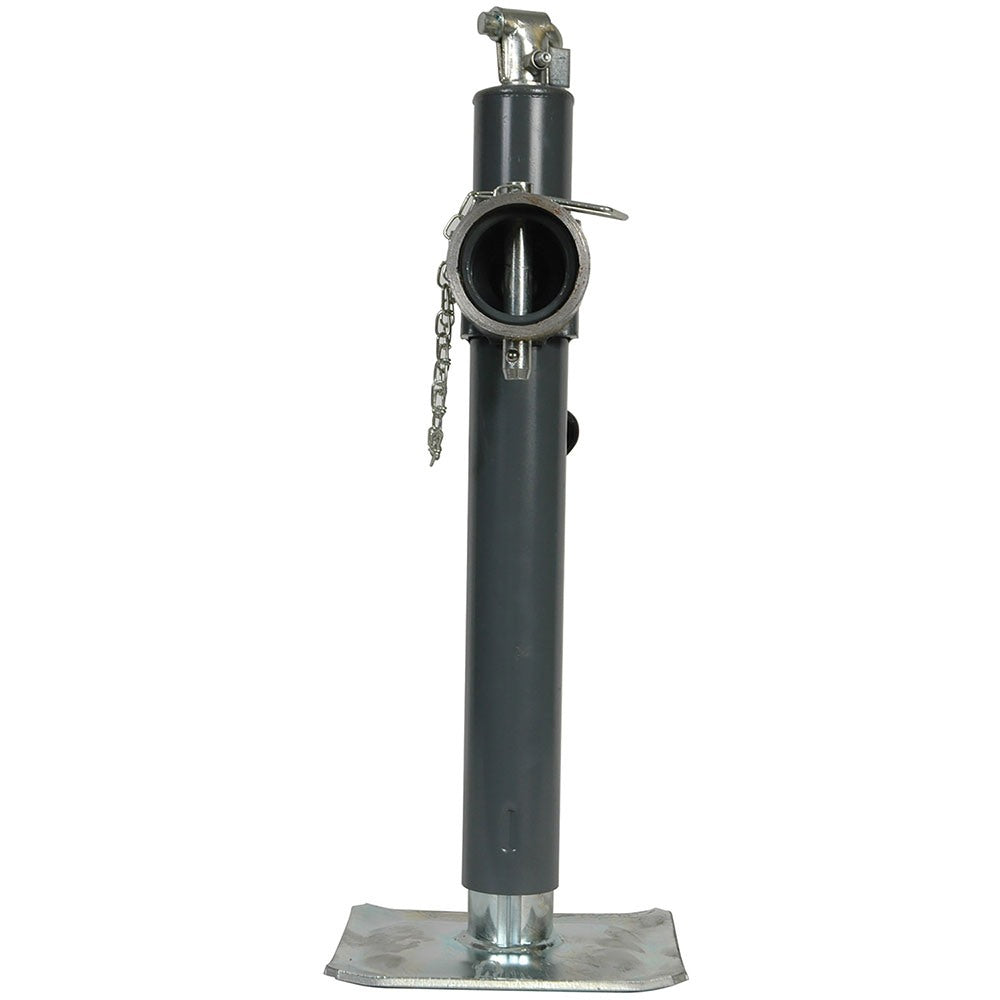

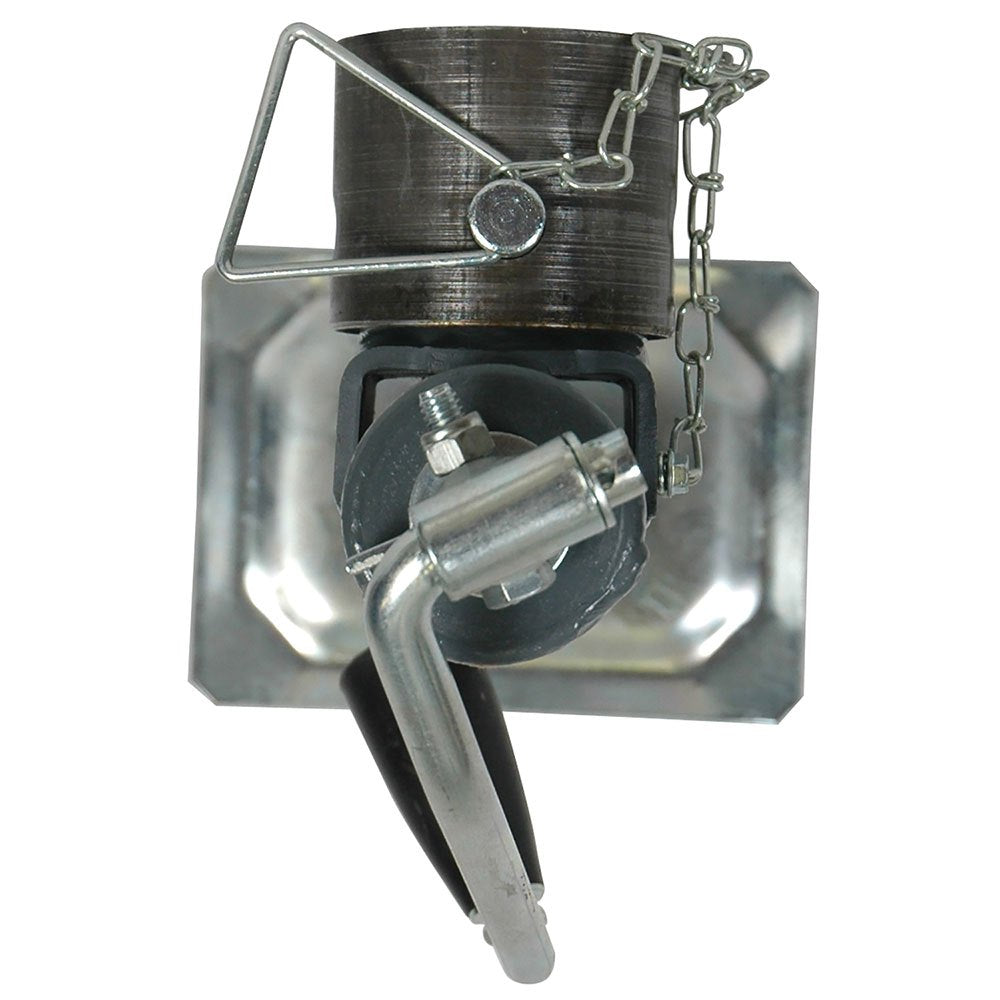

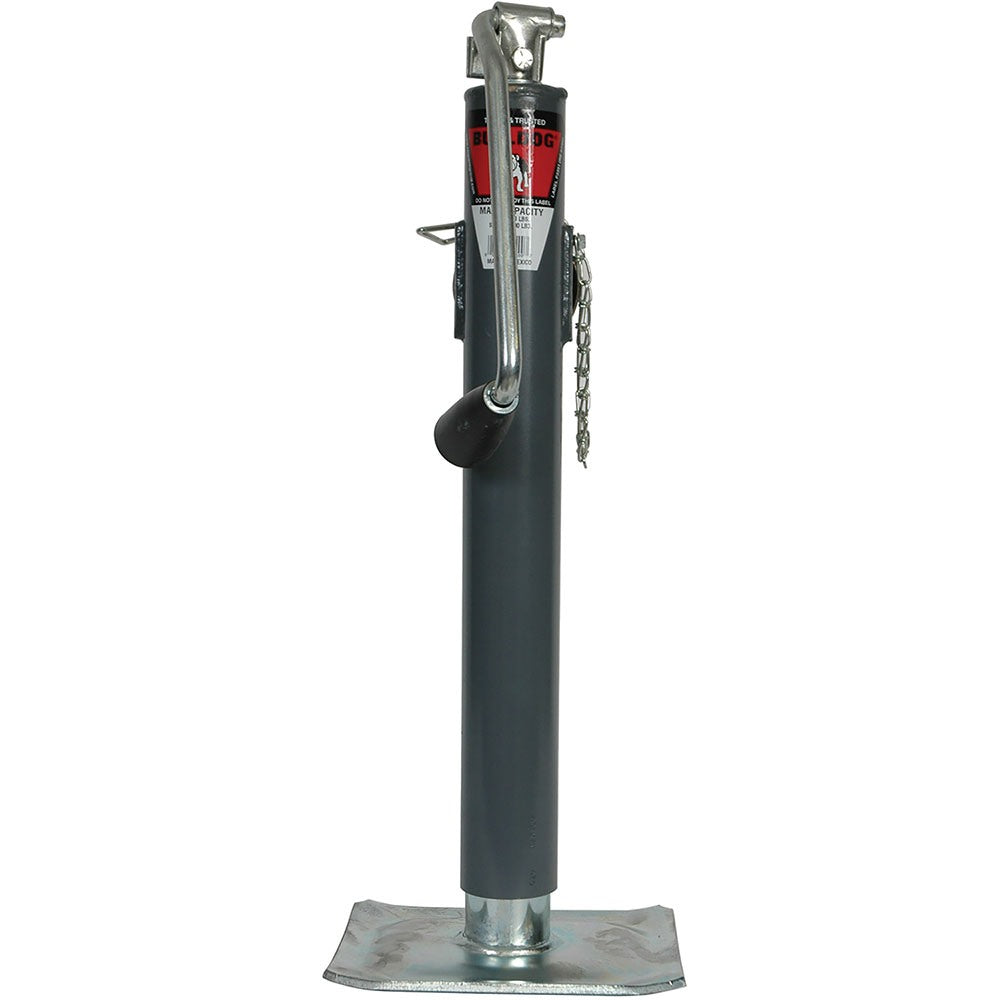

QTY (10): Round Trailer Jack, Side Mount, 7,000 lbs. Lift Capacity, Topwind, Weld-On, 15 Inch Travel
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long term use at rated loads
- Precision fitted parts for extra stability
- A-Frame models listed have grey painted outer and inner tubes – others have grey outer and clear zinc inner tubes
- Custom finishes available upon request
Always verify original equipment specifications and perform regular maintenance—lubricate moving parts, inspect welds, and tighten hardware to ensure safe operation.
| Specifications: | |
|---|---|
| Weight Capacity | 5,001–7,000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Round Jack |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 7,000 LB Static |
| Lifting Load Capacity | 7,000 LB Lift |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Swivel Type | Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Approx Bracket-to-Bottom Clearance (Retracted) | 16 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 31 Inch |
| Approx Bracket-to-Top Clearance | 4 Inch |
| Exact Retracted Clearance | 15.80 Inch |
| Exact Extended Clearance | 30.80 Inch |
| Exact Top Clearance | 4.25 Inch |
| Electric Lift | Non-Electric |
| Jack Shape | Round |
Order today or call us at 877-869-6690 for expert advice and personalized service.
