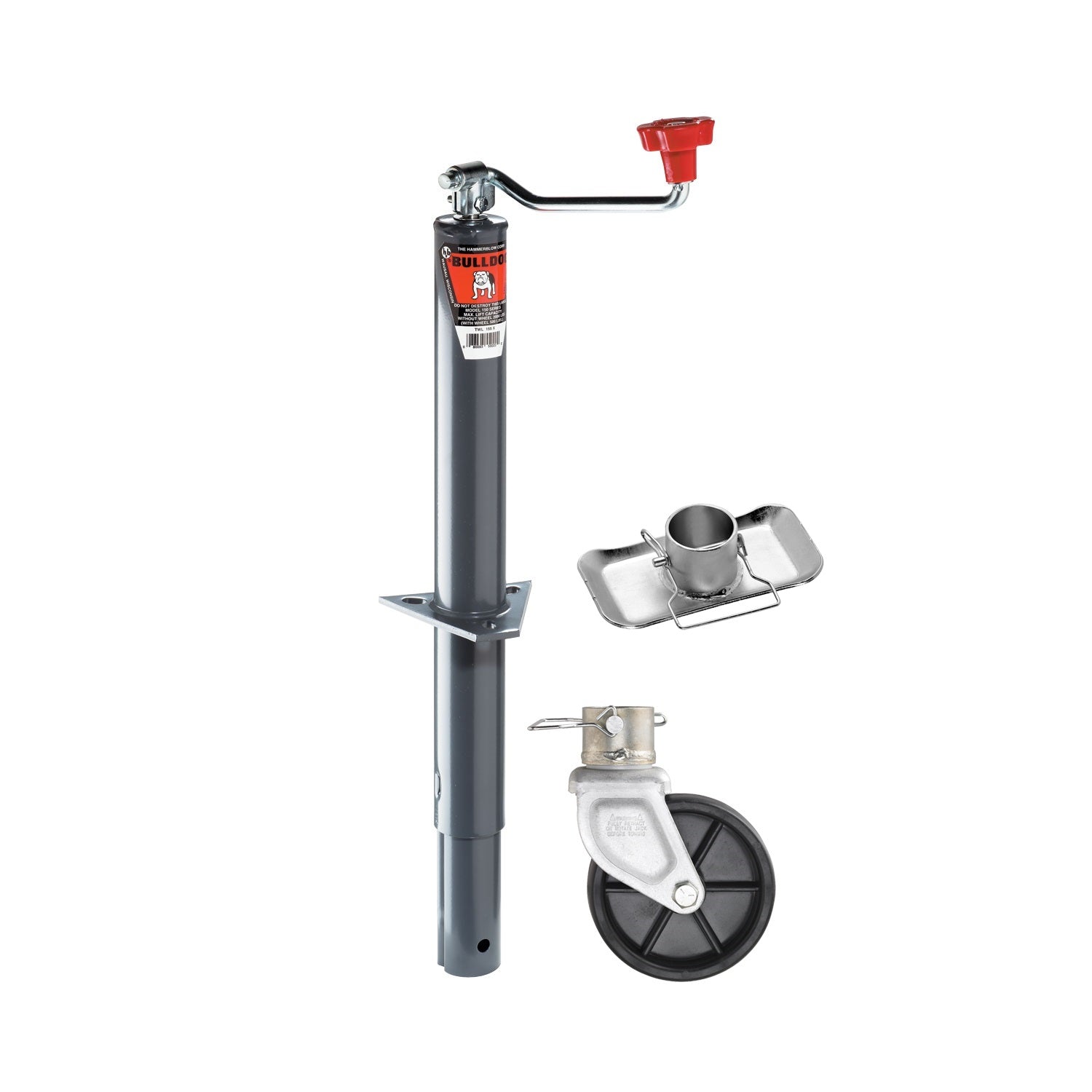

Bulldog 2000 Pound Round A-Frame Trailer Jack Topwind 15 Inch Lift with 6 Inch Wheel and 2 Inch Footplate Gray Powdercoat Fixed Leg 155022 1400700340 1400750340

$138.99

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Grey painted outer and inner tube

• Limited 5-year warranty



Specifications:

• Lift Capacity: 2,000 lbs.

• Retracted Bracket Height: 8.80"

• Extended Bracket Height: 23.80"

• Travel/Lift: 15"

• Clearance: 12.20" from bracket to top

• Weld-on/bolt-on bracket works with any standard A-Frame mount

• Handle Radius: 6.65"

• Inner tube diameter: 2"

• Outer tube diameter: 2-1/4"

• ​Footplate Specs

• Footplate Specs:
• Height: 2-1/10"
• Capacity: 5,000 lbs
• Wheel Specs
• 6" Plastic Caster Wheel Include
• Wheel Diameter: 6"
• Wheel Capacity: 1,200  lbs
