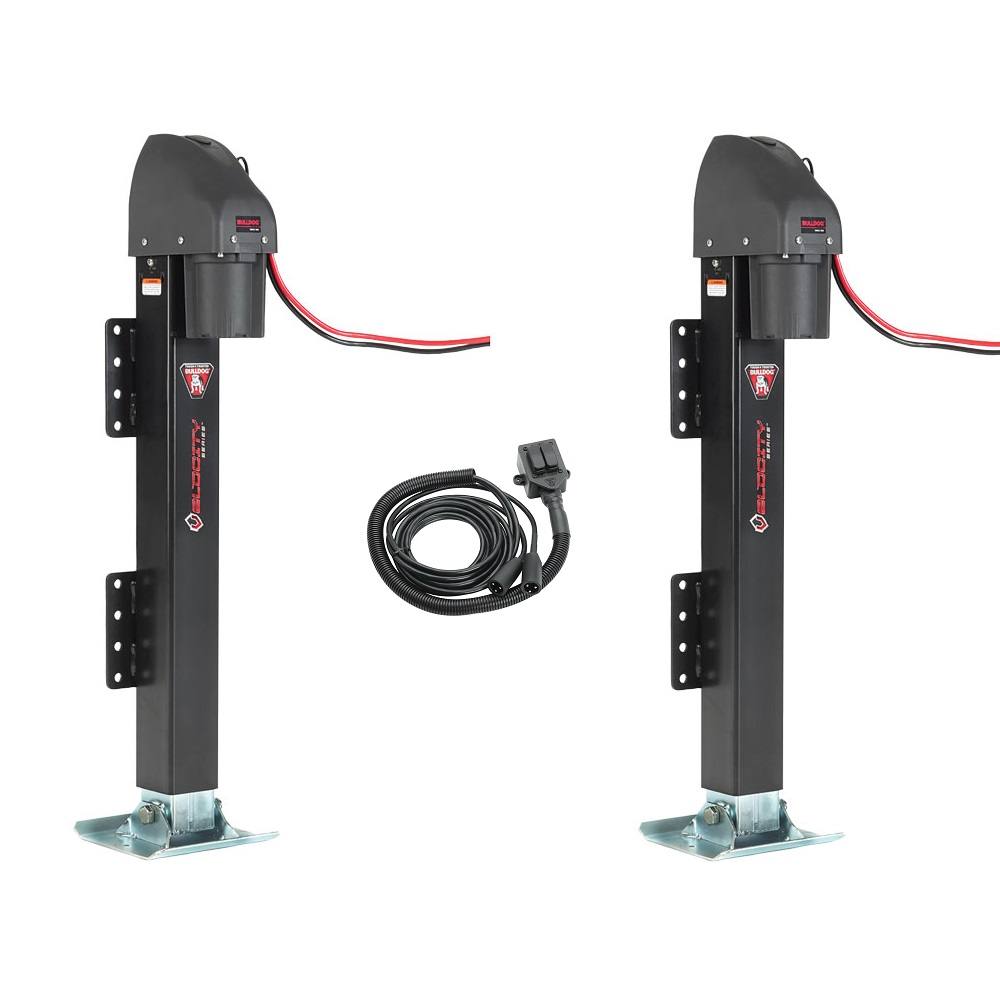

Bulldog 24000 Pound High-Speed Dual Electric Landing Gear Trailer Jack Set Velocity Series with Tandem Remote 24 Inch Lift 185400 x2 500379

$5,293.03

VELOCITY SERIES™ HIGH SPEED JACKS

• OEM and Aftermarket Industrial, Horse & Livestock, and RV Applications

• Mounts without welding and requires no hydraulic oil, hoses, or pumps

• Fully Powered – 24,000 lbs. capacity in tandem with Proprietary high-speed system

• 24” of travel

• Includes Tandem Remote

• Control two jacks with one control box

• Two switches for independent leveling

• case includes mounting holes for attaching to the trailer

• 10 ft leads, with connectors to plug into Velocity Series jack

• Resists corrosion with premium powder coat finish

• Manual override in case of power loss

• 5 year limited warranty

Specifications:

• Lift Capacity: 24,000 lbs., 12,000 lbs. per leg

• Retracted Bracket Height: 44.8"

• Extended Bracket Height: 69.1"

• Travel/Lift: 24"

• 12 Volt Motor - Lifts 20"/minute

• Drop Leg w/ heavy-duty base (Drop Leg offers 13.50" of additional adjustment)

• 10x10 footplate

• 4" Outer Tube

• Cylinder Diameter: 5 in. sq.

• 4" Outer Tube

• Approximate Travel Speed and Current Draw
• 31 Inches per minute at no load, per leg 15 amps
• 30 Inches per minute at 4,000 lbs. per leg, 40 amps
• 26 Inches per minute at 8,000 lbs. per leg, 65 amps
• 21 Inches per minute at 12,000 lbs. per leg, 100 amps
