Bulldog 24000 Pound Tandem Trailer Jack Set with Spring Return Drop Legs and Planetary Gearbox for Heavy-Duty Trailers 183816 182815 CS730300 1400920383
$1,262.99
2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.

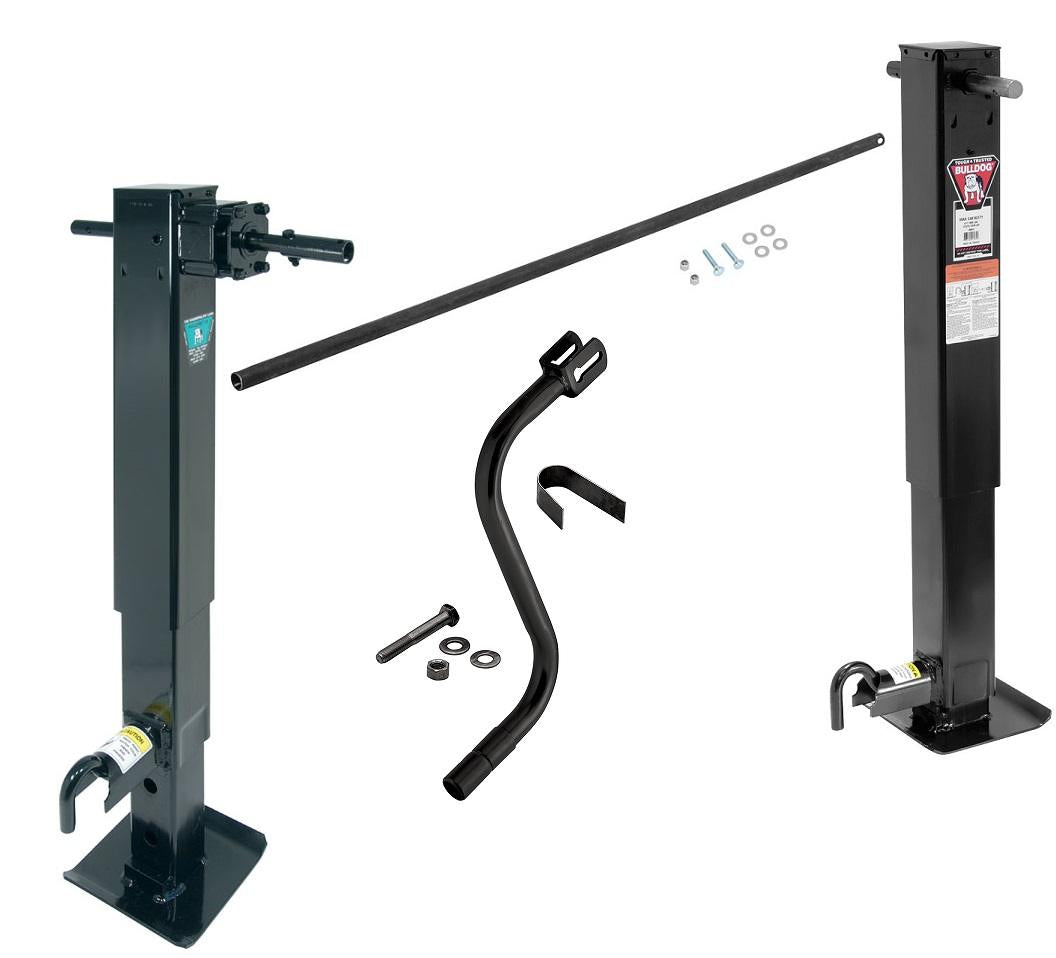

What's Included:

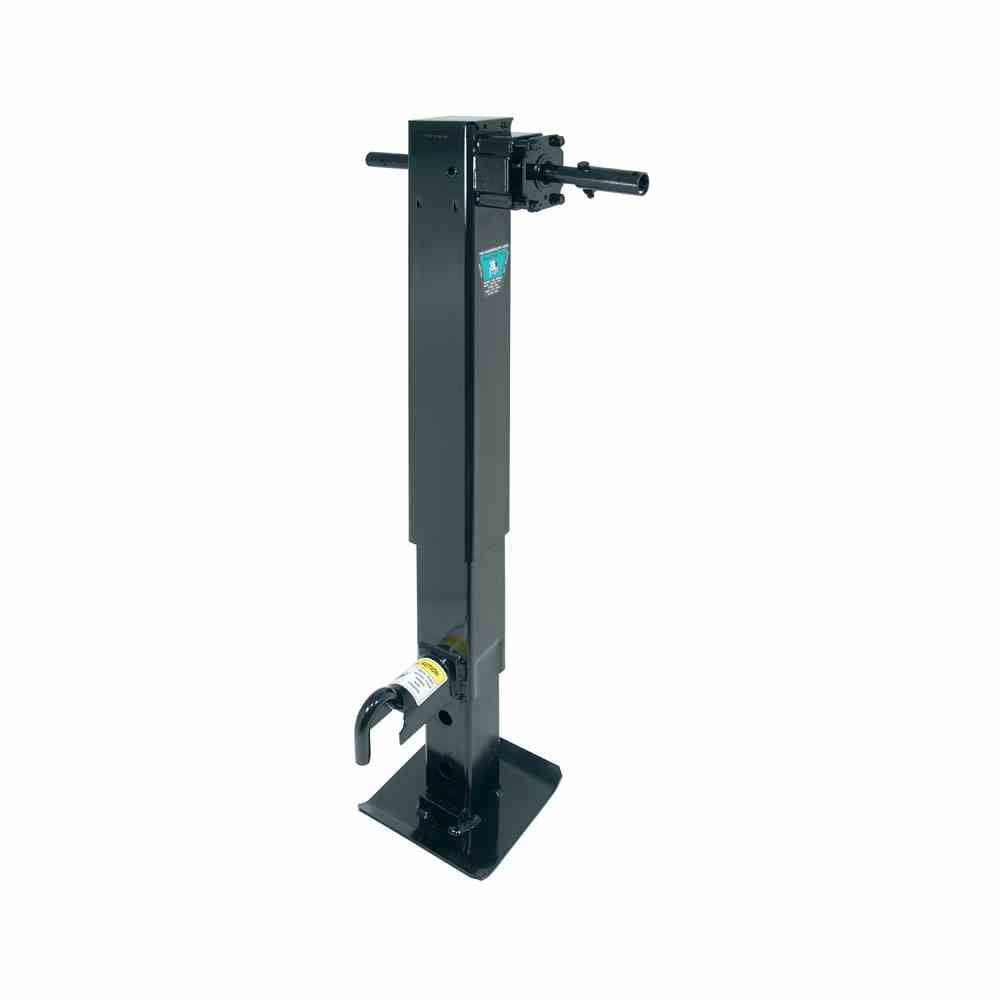

Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Planetary Gearbox 26" Lift

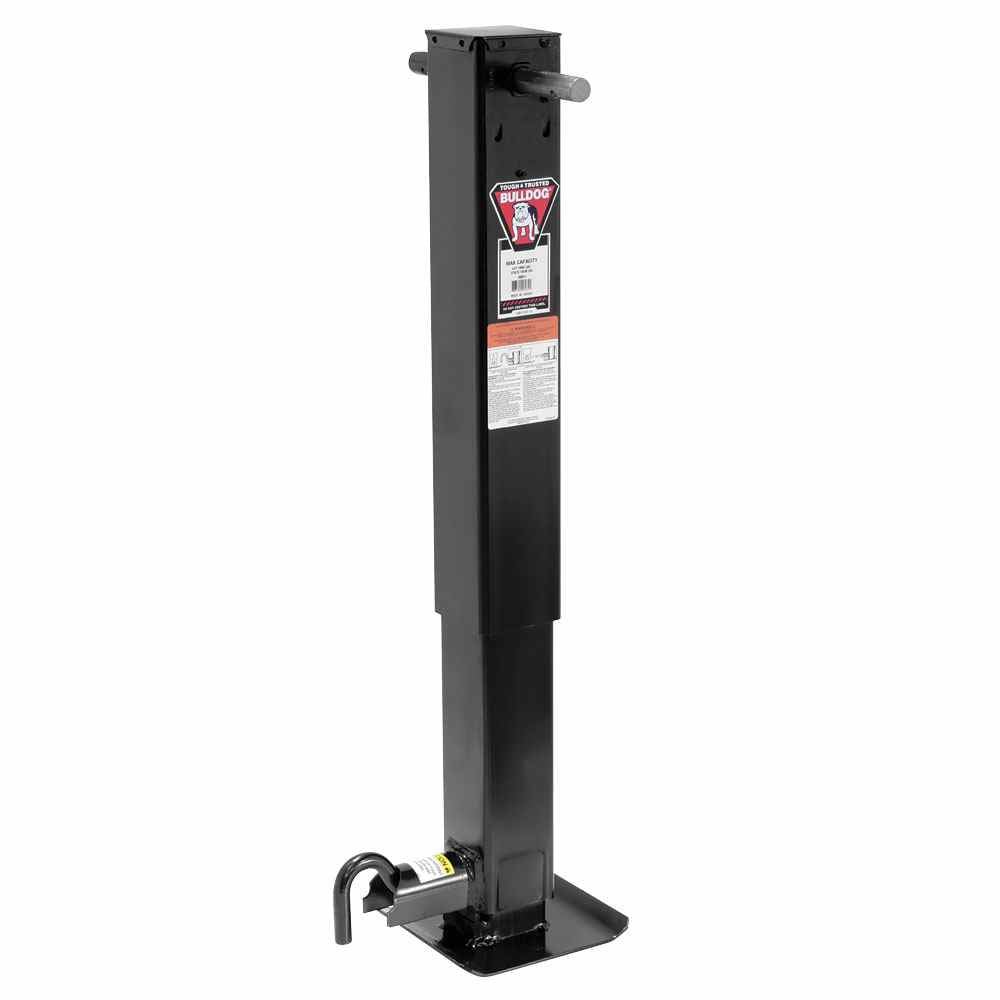

Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Spring Return

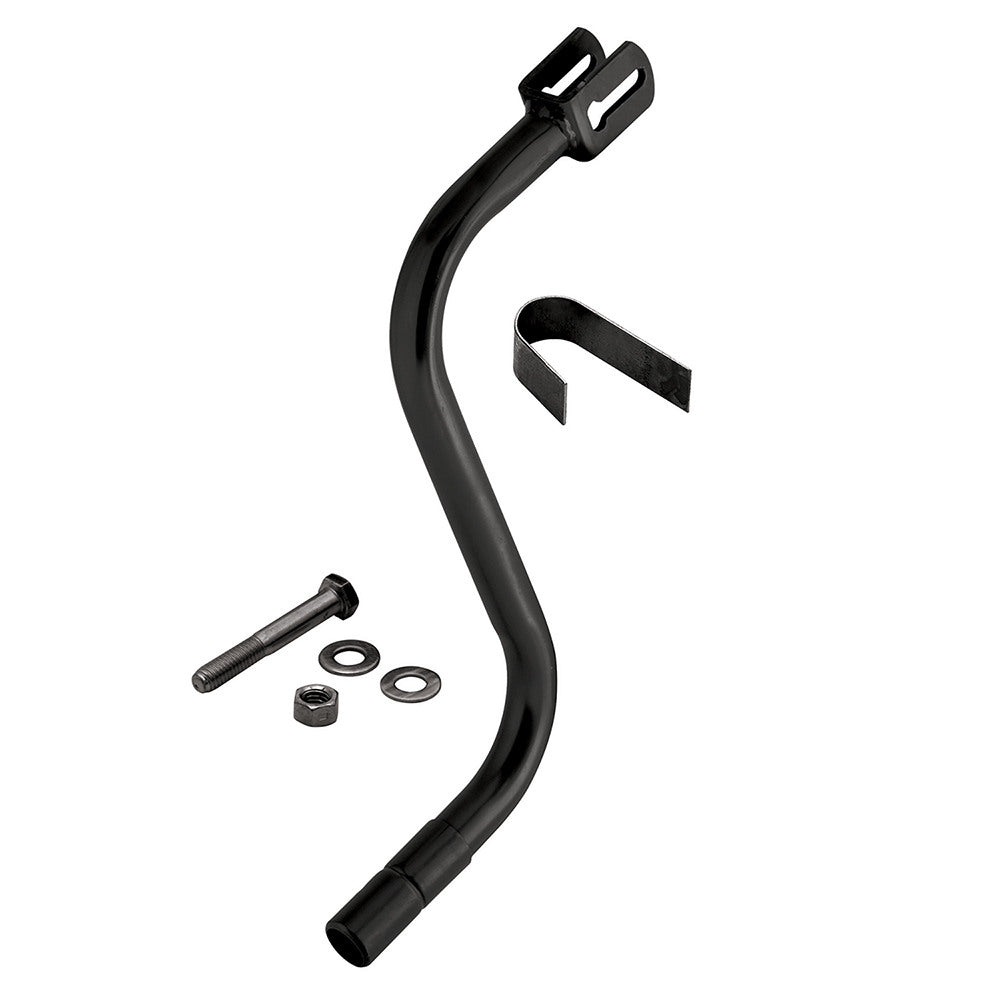

Crank Handle

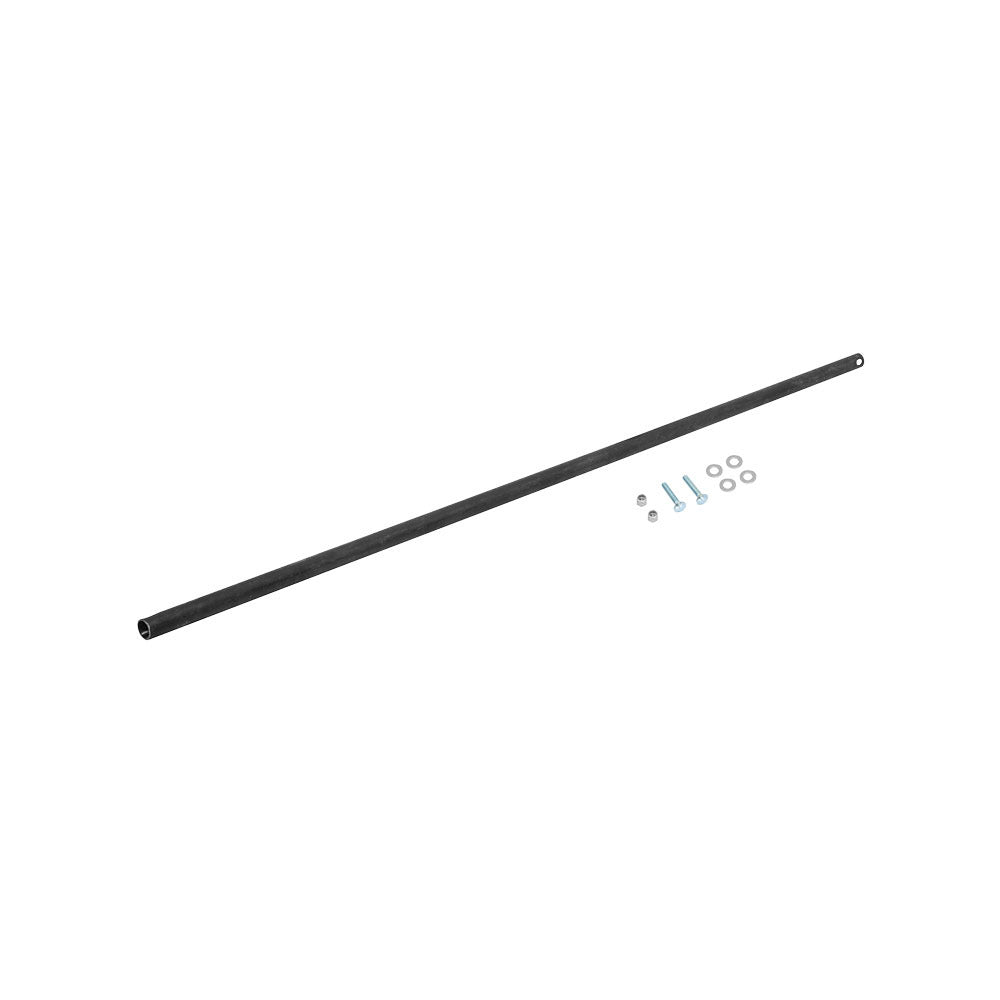

73" Cross Shaft (Can be cut torequired length)
2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.
BULLDOG’s 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting planetary gearbox 27 turns per 1" of travel. In high gear, the cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.
-
State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads
-
Designed for today’s standard agricultural, construction and industrial trailer applications.
-
User friendly design makes operation smooth and easy
-
Drop Leg increases overall extension
-
Engineered alloys for enhanced strength, stability and sideload capability
-
Painted outer tube, inner tube, and drop leg.
-
Planetary gearbox fits within the width profile of the jack’s outer tube, eliminating the need for spacers
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Height: 29.5"
-
Extended Height: 55.6"
-
Travel/Lift: 12.5"
-
Spring Return Drop Leg allows 13.5” of additional adjustment
-
Standard disc foot included Change Gears by pushing handle in and out
-
Drop Leg Pull Pin is on the front
-
Crank Sold Separately
-
4" Tubing width
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Height: 29.5"
-
Extended Height: 55.6"
-
Travel/Lift: 12.5"
-
Spring Return Drop Leg allows 13.5” of additional adjustment
-
Standard disc foot included
-
Drop Leg Pull Pin is on the front
-
4" Tubing width
