Bulldog 24K Electric Landing Gear Set Dual Single Speed Swivel Mount Trailer Jacks Manual Override Crank with Cross Shaft Tube 182524X2 1824200100 CS730300 005122X2
$1,697.77
Bulldog Swiveling Tandem 24K Dual Trailer Jacks Landing Gear

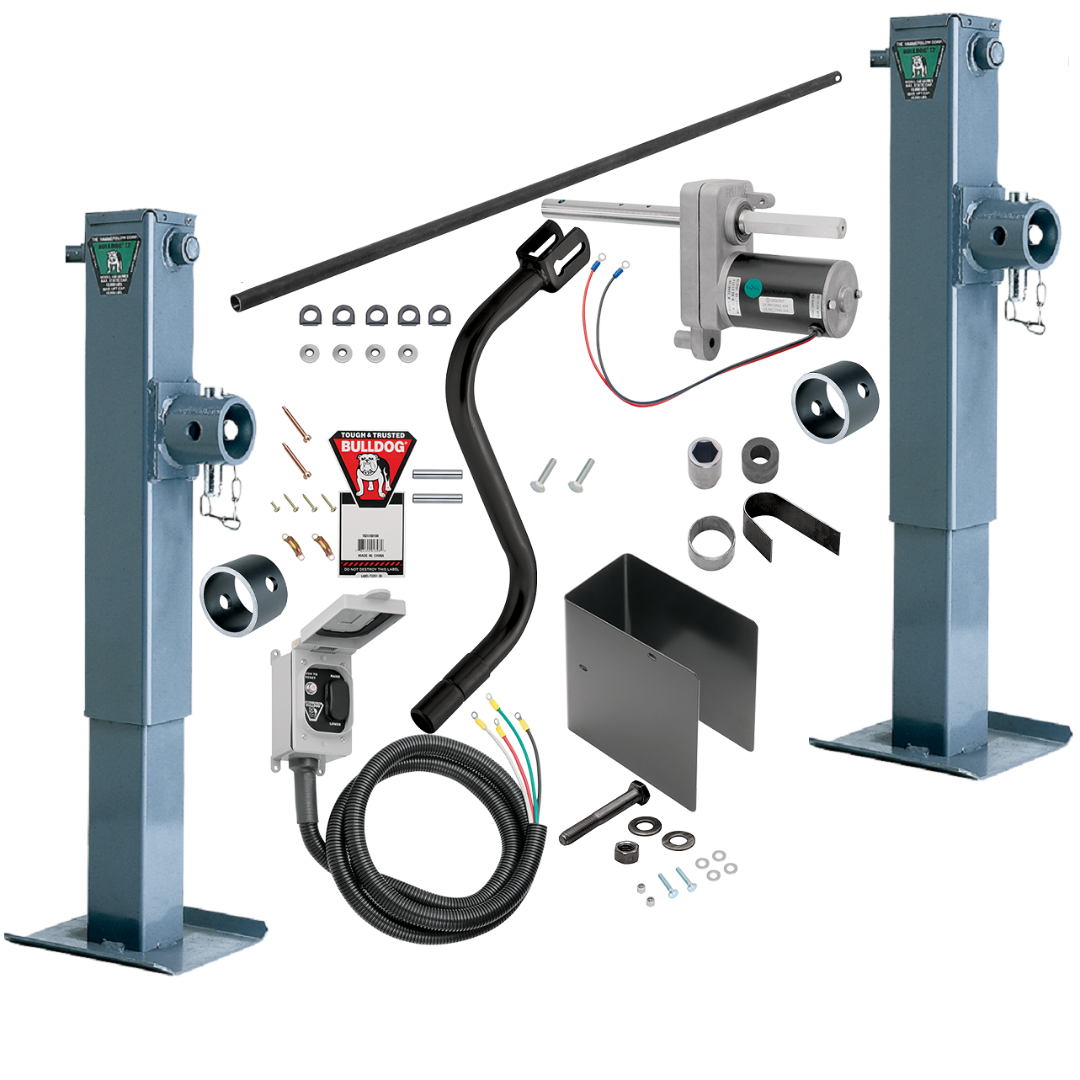

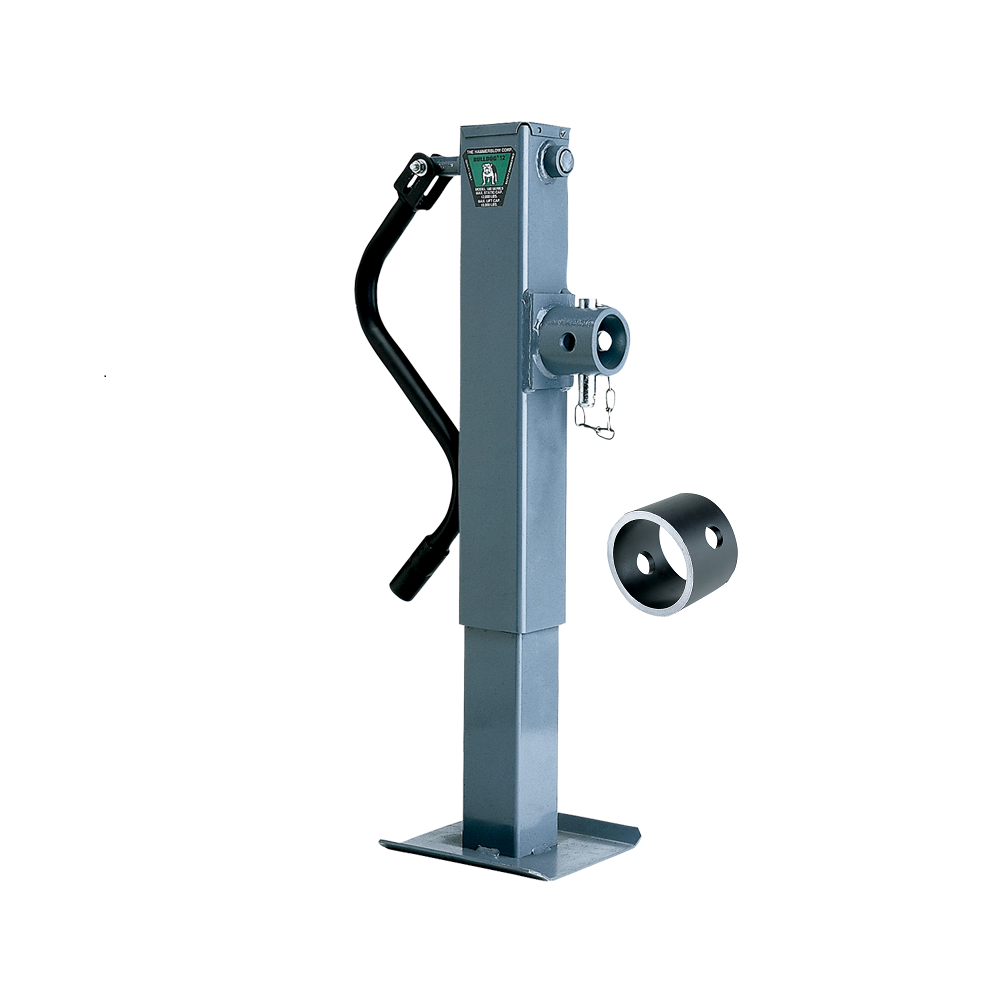

Upgrade your trailer setup with the Bulldog Landing Gear 2-Pack - 182524. This package includes fixed legs, pipe mounts, and swivel functionality, all connected by a crossdrive Crosshaft CS730300 and powered by the Bulldog Electric Motor. Ideal for a variety of trailers, this setup offers unparalleled convenience and performance.
Key Features:
- Swivel Functionality for flexible trailer operations.
- Included Tubular Pipe Mounts with a pin and chain for secure attachment.
- Constructed from 7-gauge alloy steel with 4" square tubing for durability.
- Manual Override Crank included for operation during power loss.
- Tandem operation enabled through a Crosshaft for single-side handling.
- Protective paint on the outer tube for corrosion resistance.
- Accessible gear box and grease fitting for easy maintenance.
- Fixed leg design eliminates the need for a drop leg or plunger pin.
- 12.5" screw travel for precise height adjustment.
- Sidewind models with a 1:1.5 gear ratio for efficient cranking.
Compliance and Specifications:
Meets ASABE S485 certification for quality and reliability.
- Bracket Height: 17" retracted, 29-1/2" extended, with a 10-1/8" clearance.
- Travel: 12-1/2".
- Combined Lift Capacities: 20,000 lbs manual, 15,000 lbs electric.
- Static Capacity: 24,000 lbs.

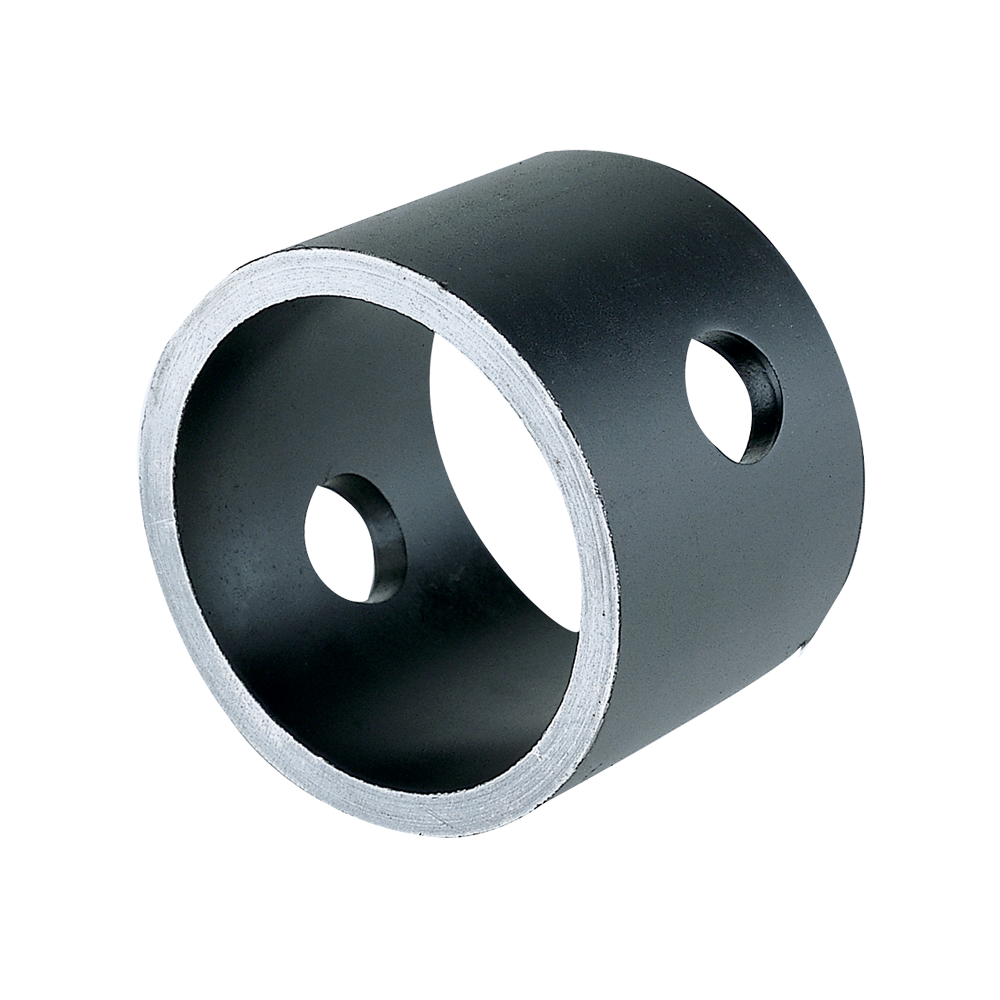

- Pipe Mount Diameter: 3-1/4" outside, 2-9/16" inside.
- Handle Radius: 13-1/2".
- Outer Tube: 4" wide, made of 7-gauge steel.
- 5-year warranty.

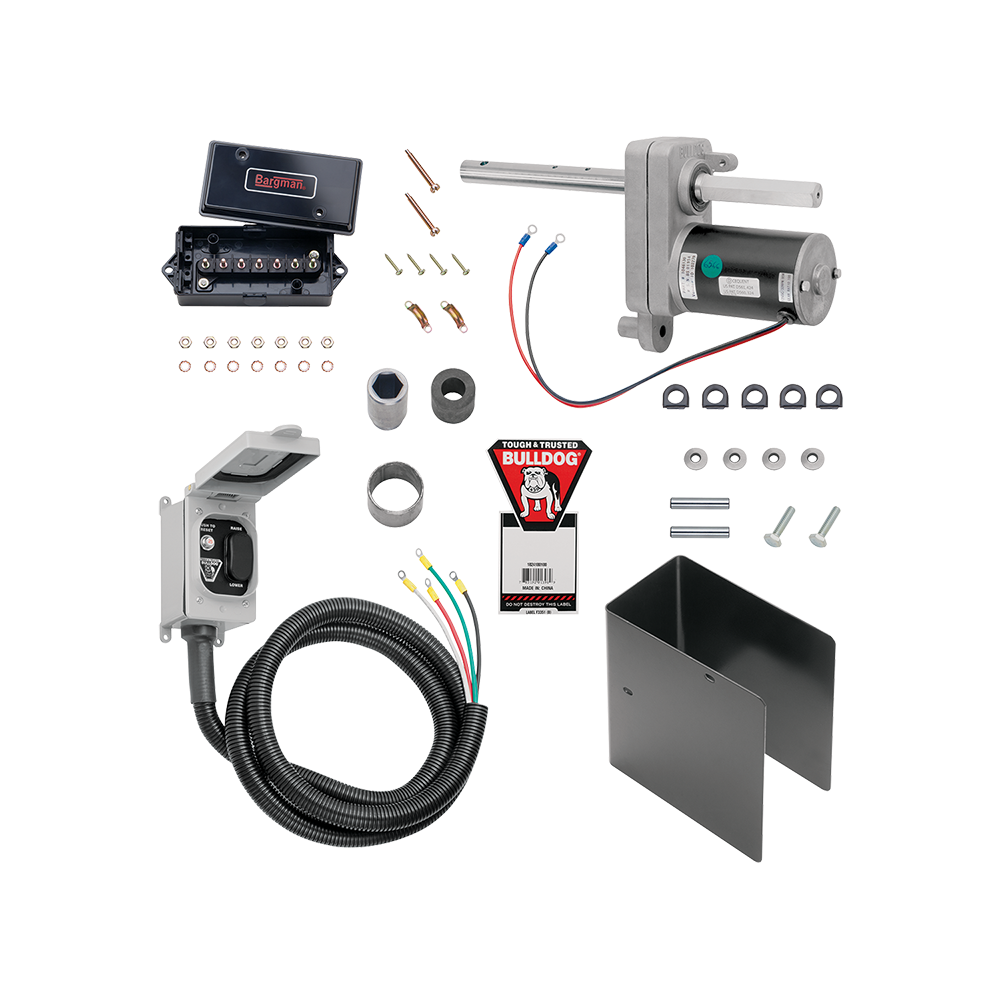

Bulldog Electric Motor Powered-Drive Kit - 1824200100:
This kit integrates seamlessly with Bulldog Jacks to ensure quiet, efficient, and swift operations. With a 7,500 lbs lift capacity per Jack, it is perfect for heavy-duty trailers.
Crosshaft Specifications:

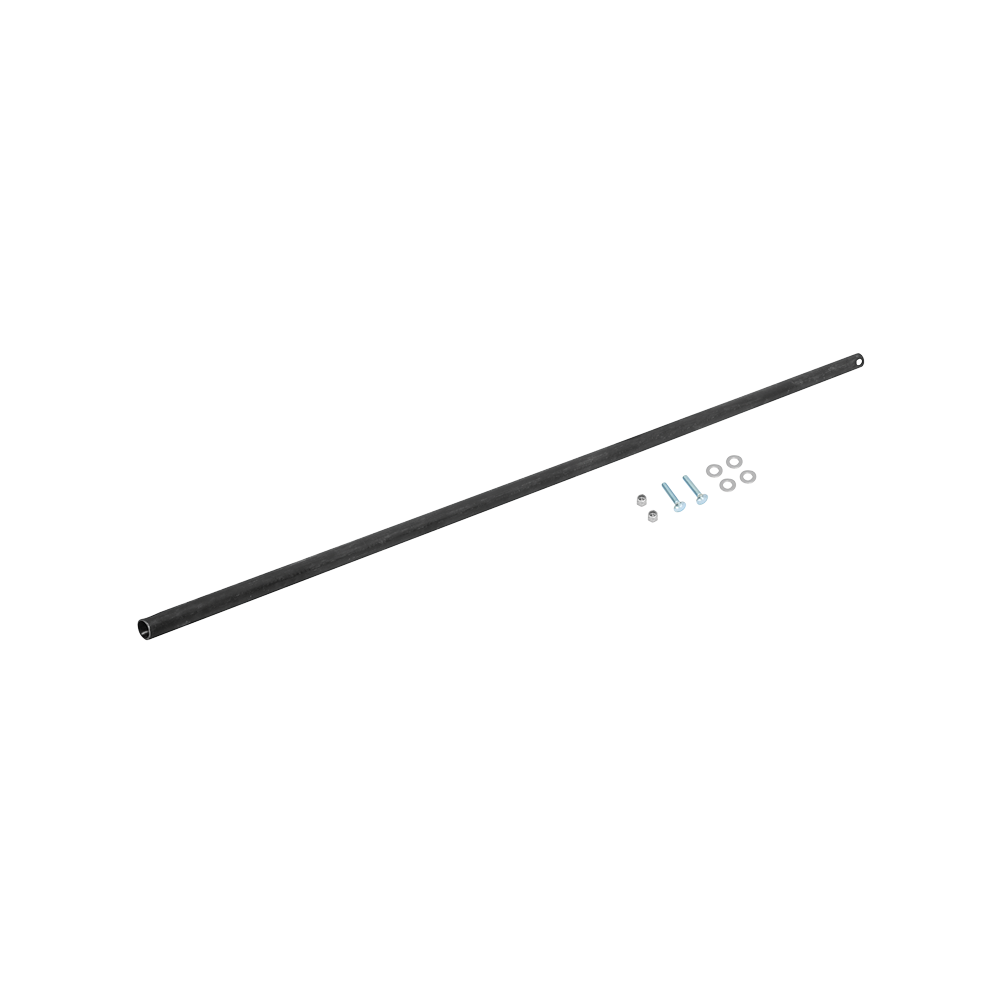

A 72-3/4" Trailer Jack Cross Shaft Tube allows tandem operation of both landing gear sides with customization for specific applications.
Contact us at 877-869-6690 to upgrade your trailer with the Bulldog Swiveling Tandem 24K Dual Trailer Jacks Landing Gear for unmatched performance and reliability.
