Bulldog 24K Electric Leveling Dual Motor Landing Gear Set Single Speed Trailer Jacks with Tandem Electric Motors Manual Override Crank 182500X2 1824200100X2 1400920383

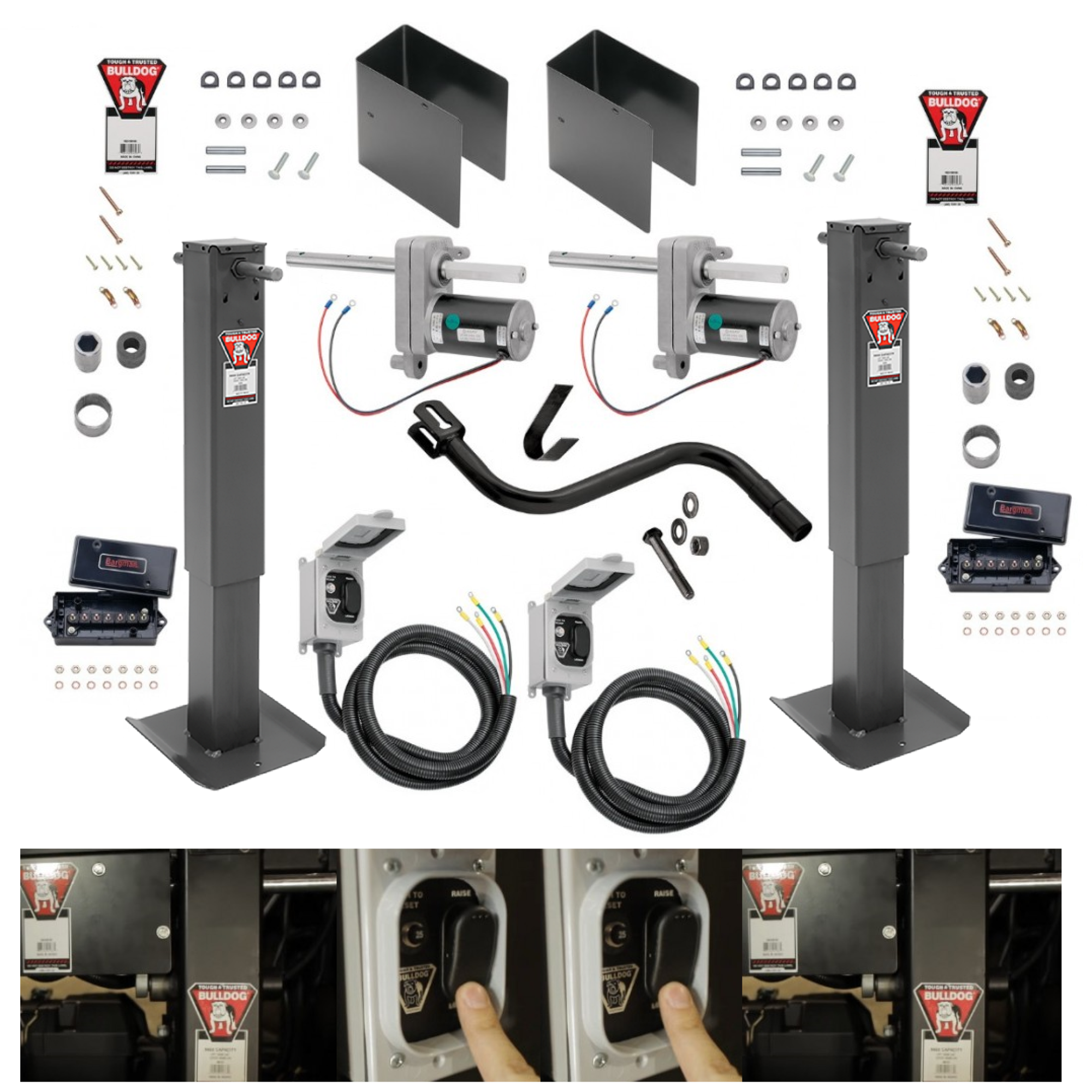

Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!

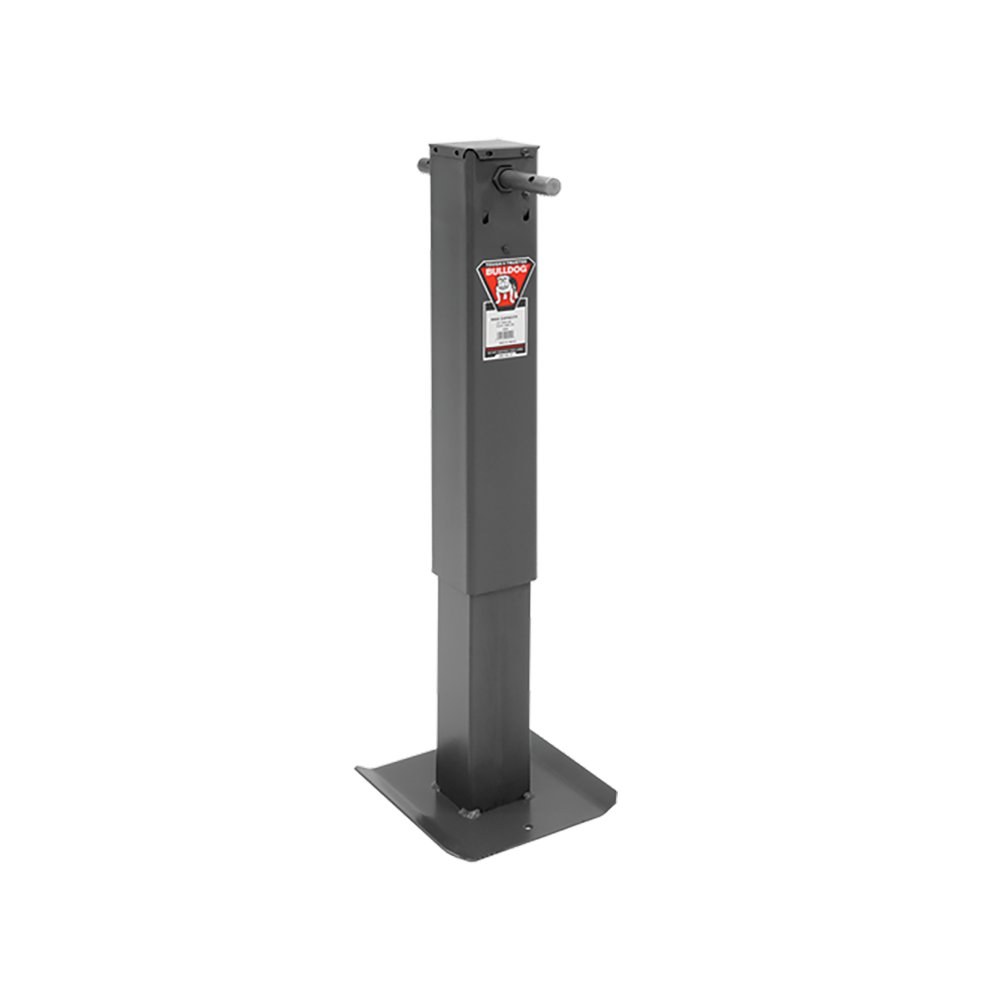

Introducing the Bulldog Landing Gear 2-Pack (182500) featuring Fixed Legs, complemented by the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). Designed for a wide range of trailers, this bundle provides an unparalleled combination of strength and efficiency, enhanced with a Manual Override Crank for convenience.

Please Note: Each jack comes with a separate motor requiring individual switches for operation. While both motors can be connected to the same battery, separate wiring is recommended for leveling jack functionality, avoiding a single switch configuration.

Key Features:

• Constructed with durable 4" square tubing made from 7-gauge alloy steel.
• Protective paint on outer tubes and fixed legs for corrosion resistance and longevity.
• 12.5" of screw travel for versatile adjustment.
• Durable powder coat finish for long-lasting protection.
• Sidewind model with a 1:1.5 gear ratio for smooth and efficient operation.

ASABE S485 Compliant: Bulldog products are certified for quality and reliability, meeting ASABE S485 standards.

Technical Specifications:

• Bracket Height from 27-3/8" retracted to 39-7/8" extended with a total lift of 12-1/2".
• 10,000 lbs manual and 7,500 lbs electric lift capacity per jack, with a combined static capacity of 24,000 lbs.
• Outer tube dimensions include a width of 4" made from 7-gauge steel.
• 5-year warranty for reliability and peace of mind.

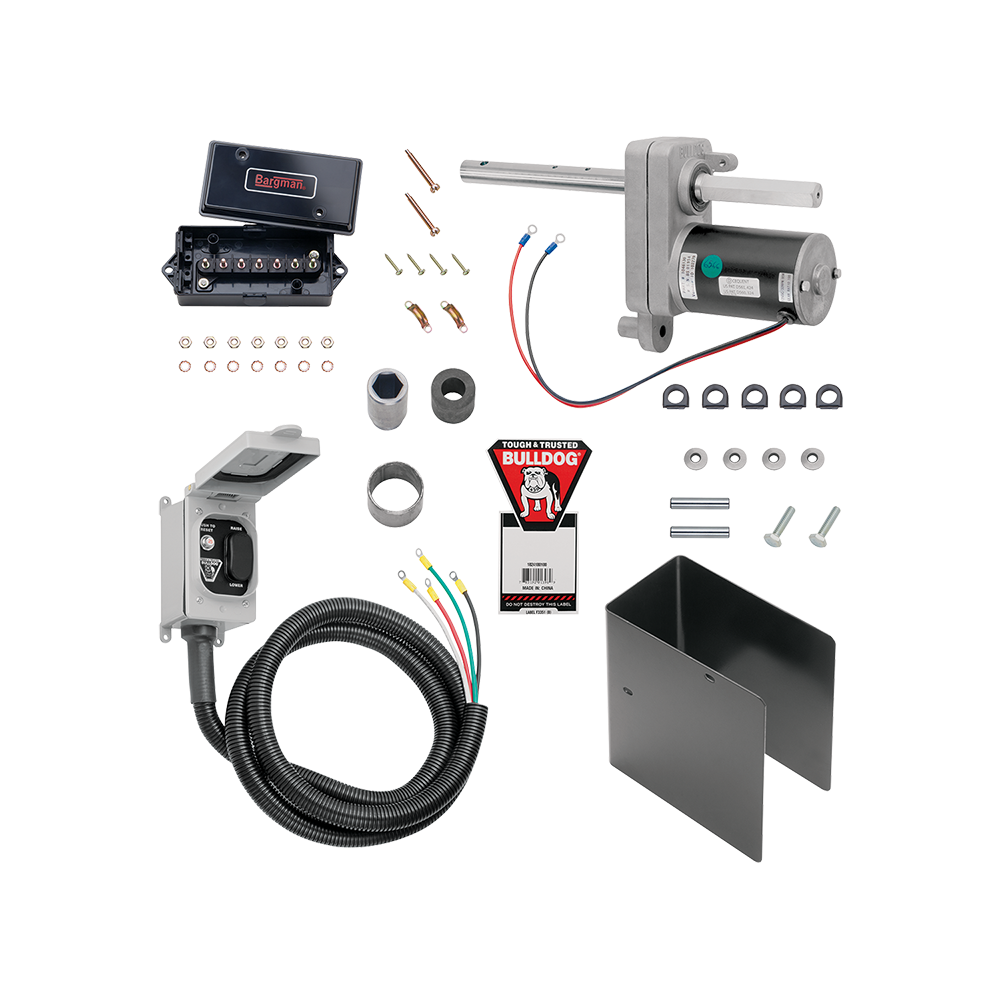

Bulldog Electric Motor Powered-Drive Kit 2-Pack:

• Enhance your Bulldog jacks with these kits for a quieter, more efficient lift.
• Suitable for Bulldog Single-Speed Landing Gears, ideal for heavy-duty trailers.
• Compact design for ease of use in tight spaces.
• Weatherproof components and maintenance-free operation.
• Manual operation option available for emergency use.

Kit Specifications:

• 12 volt DC motor power with a 7,500 lbs electric lift capacity per motor.
• Designed for Bulldog Single-Speed Landing Gears with a shaft size of 1".
• Dimensions of the power drive: 16-1/2" length x 3-1/8" width x 7-3/16" height.
• Limited 5-year warranty for long-term assurance.

Optimize your trailer operations with our Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle, the perfect blend of strength and convenience. Contact us at 877-869-6690 for inquiries or to order this exceptional lifting solution. Elevate your trailer's functionality with this superior performance bundle for a hassle-free experience.
