Bulldog 24K Landing Gear Set Dual Single Speed Trailer Jacks Spring Return with Manual Override Crank Cross Shaft Tube 182804 182805 CS730300

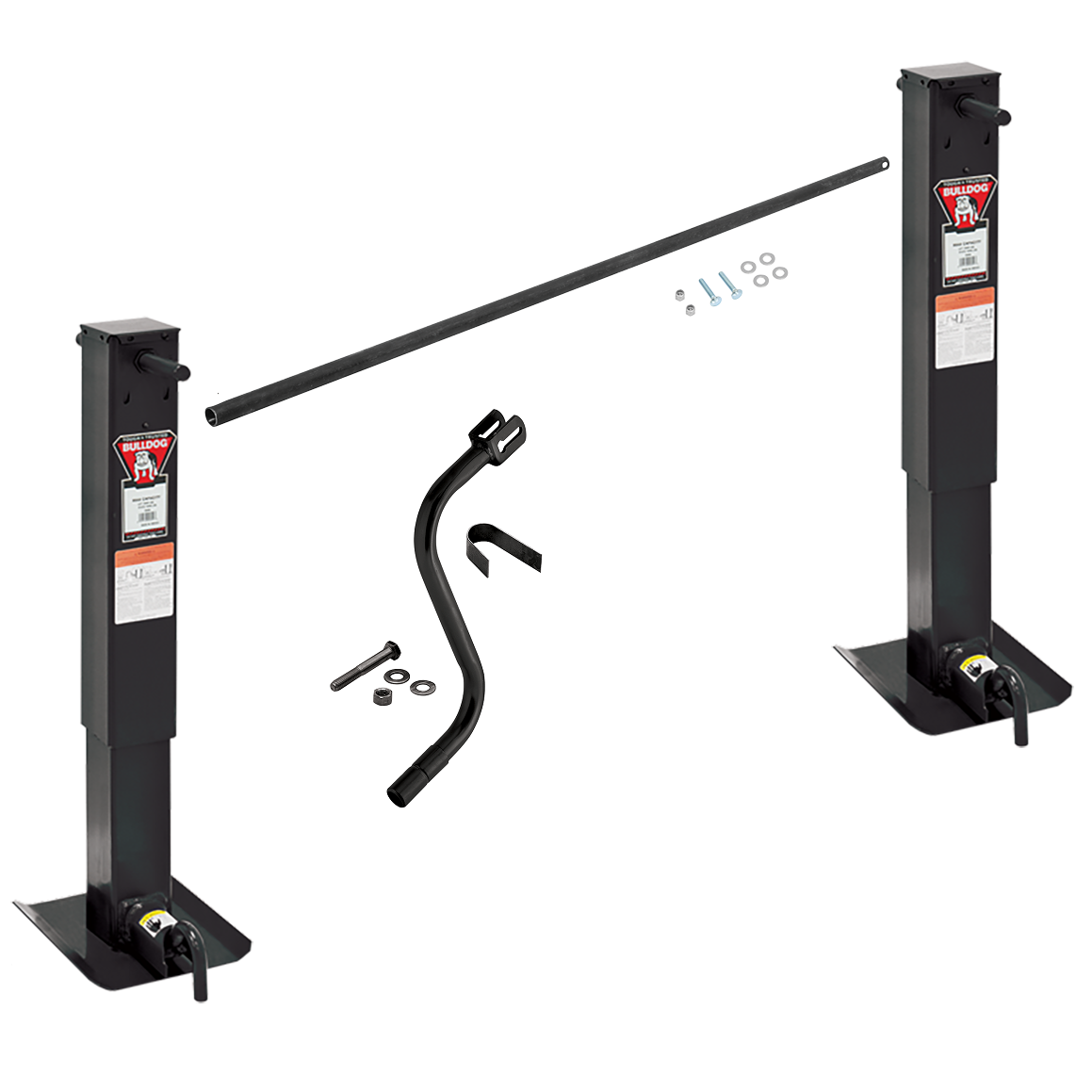

Bulldog Tandem 24K Dual Trailer Jacks Landing Gear with Crosshaft

Upgrade your trailer with the Bulldog Landing Gear 2-Pack - 182804 and 182805, featuring Spring Return Drop Legs and connected by a crossdrive crosshaft CS730300. This powerful set is the perfect solution for various trailer types, offering unmatched convenience and performance.

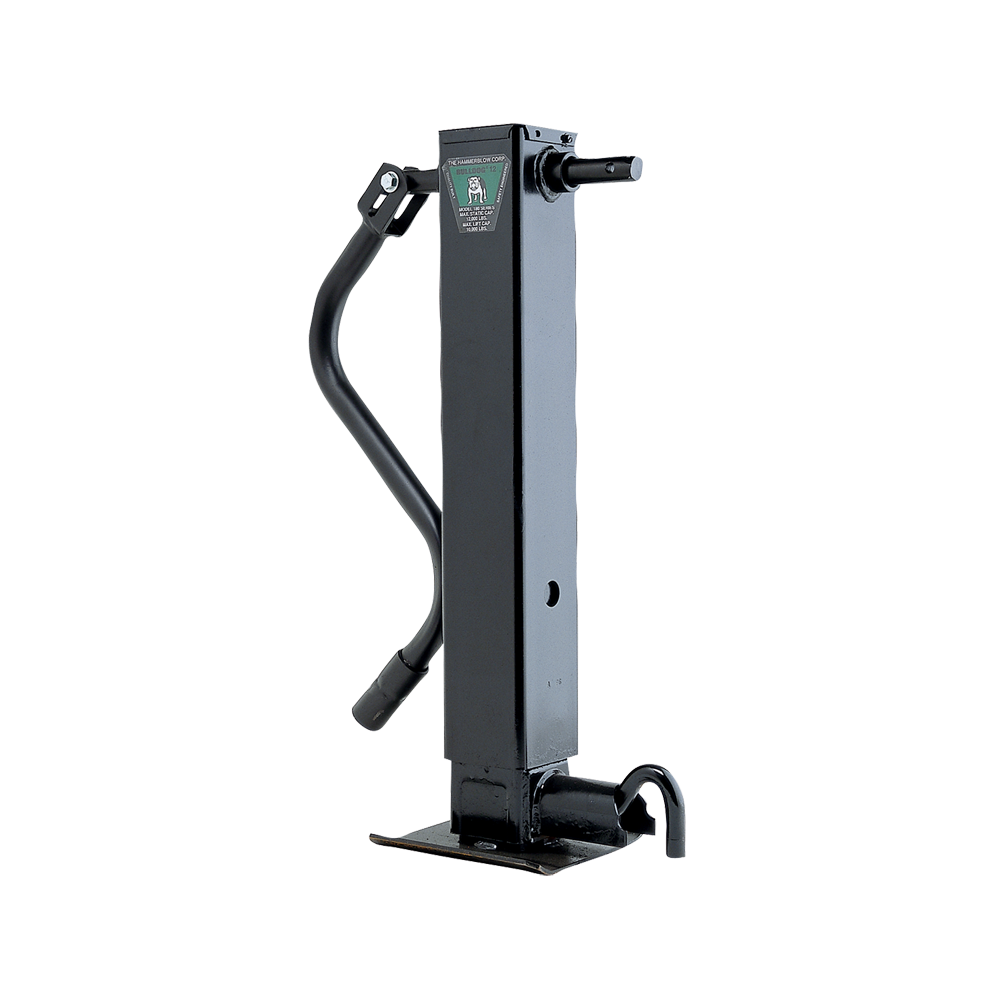

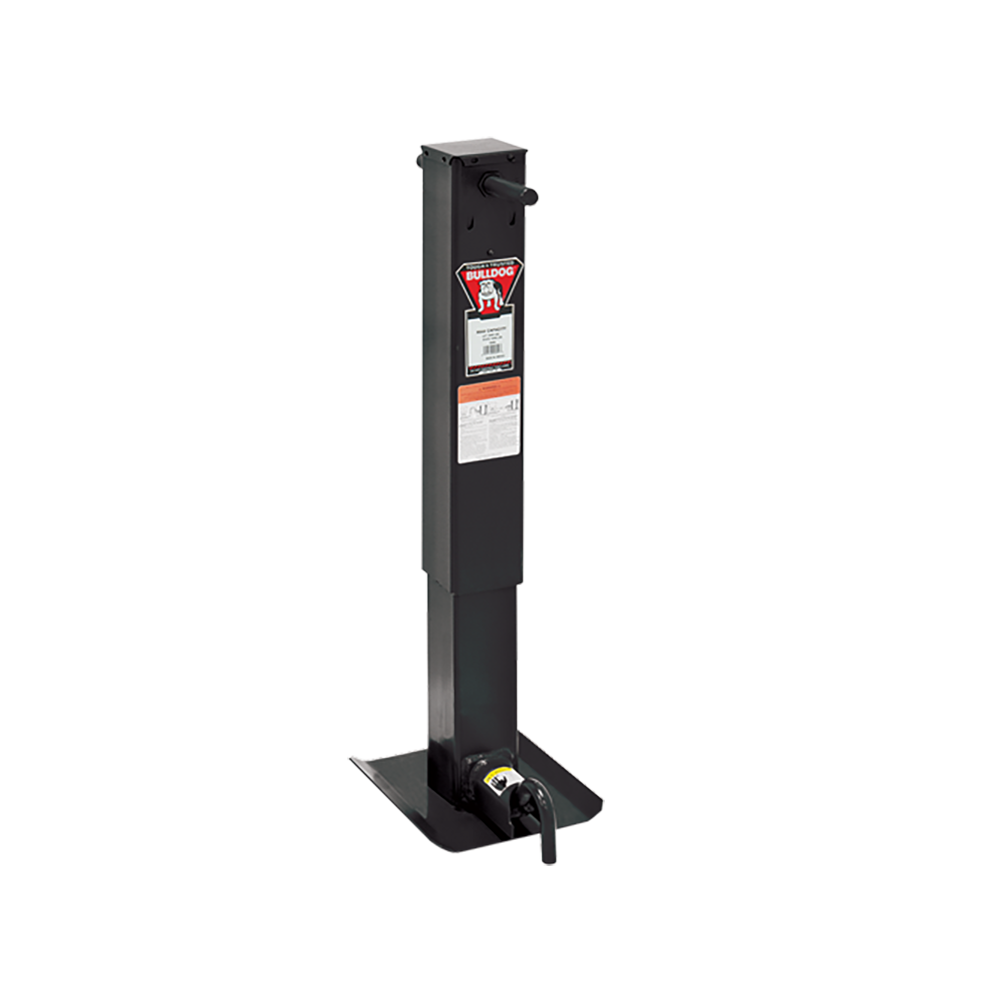

Join a new era of trailer support with the Bulldog Trailer Jacks - 182804 master and 182805 companion. Constructed from robust steel with a weather-resistant finish, these jacks provide reliable, heavy-duty lifting and support.

Key Features:

• Sturdy 4" Square Tubing made from 7-gauge alloy steel for durability.
• Protective Paint Coating on the outer tubes and drop legs for corrosion resistance.
• Tandem operation via crosshaft for single-handle control from one side.
• Adjustable Drop Leg with five positioning holes for versatile setup.
• Easy-Access Gear Box for straightforward maintenance with grease fittings.
• Spring Return Drop Legs for 12.5" of screw travel and 13.5" of additional adjustment.
• Plunger Pins conveniently located on the same side as the handle.
• Durable Powder Coat Finish for lasting protection.
• Sidewind Model offering smooth cranking with a 1:1.5 gear ratio.

Enjoy the simplicity of Spring-Actuated Drop Legs that retract on their own, eliminating manual effort.

ASABE S485 Compliant

BULLDOG products are certified ASABE S485, ensuring high-quality and reliability.

Technical Specifications:

• Bracket Height: 27-3/8" (Retracted), 39-7/8" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Legs: 13-1/2"
• Manual Lift Capacity: 20,000 lbs
• Static Capacity: 24,000 lbs
• Outer Tube: 4" width, 7-gauge steel
• 5-year warranty for confidence in your investment.

Crosshaft Specifications

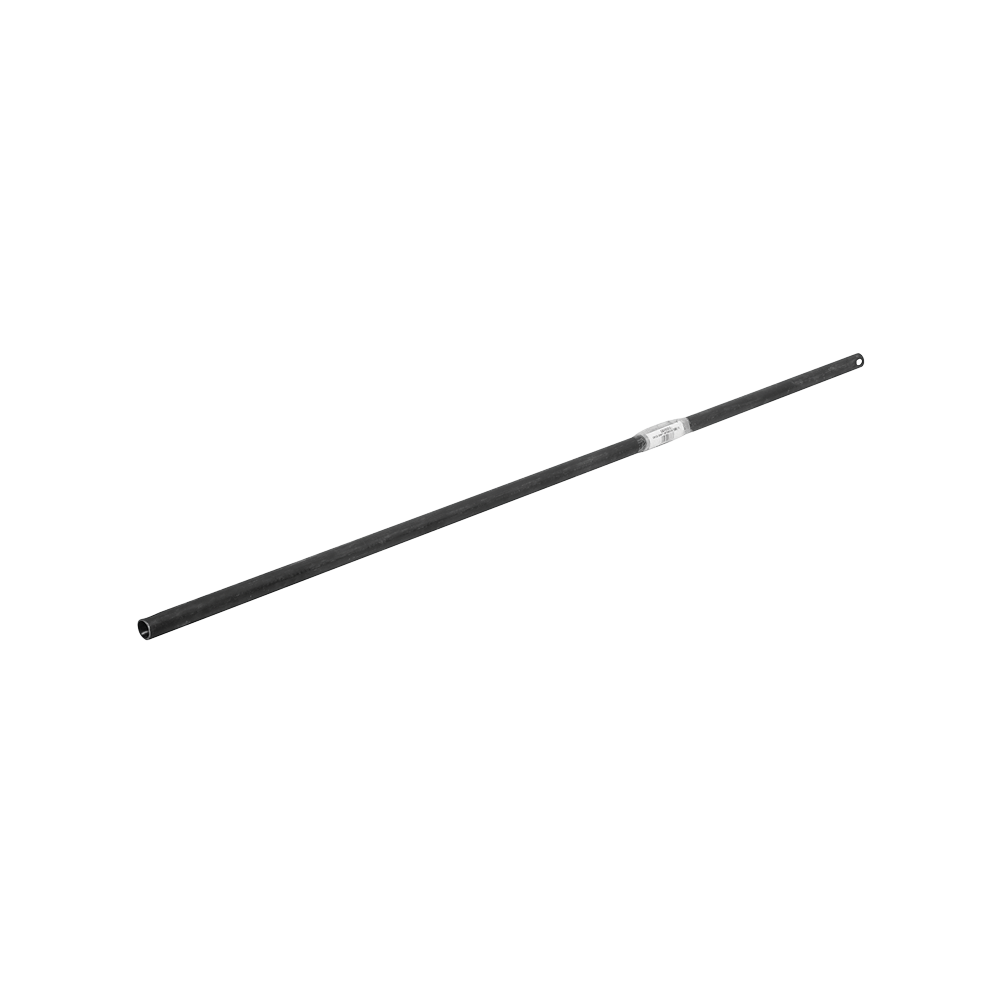

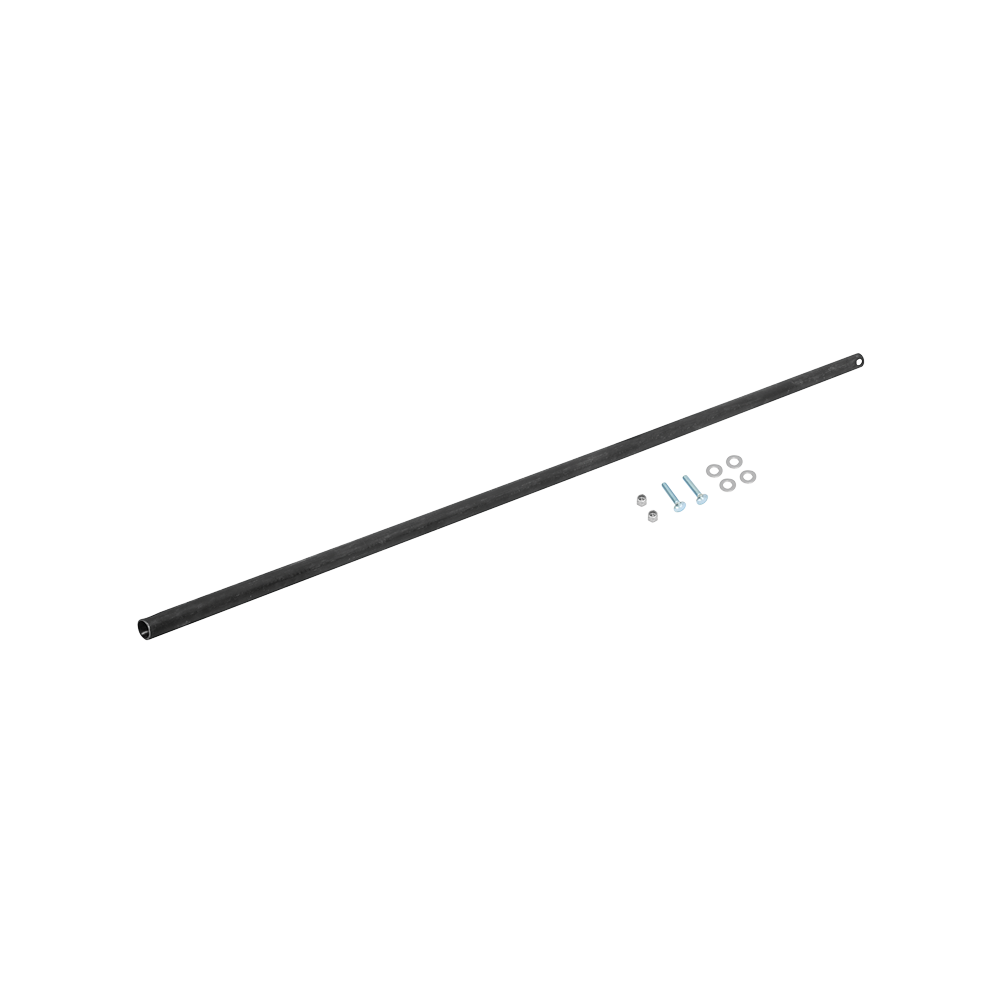

The Trailer Jack Cross Shaft Tube w/ Slotted Ends and Hardware (72-3/4" long) facilitates tandem operation of both jacks with one crank.

Dimensions are customizable to suit your specific needs.

Choose the BULLDOG Trailer Jacks 182804 and 182805 for unparalleled reliability and performance, backed by a 5-year warranty. Contact us at 877-869-6690 for the industry's best in landing gear solutions. With ASABE S485 compliance, our jacks represent the pinnacle of strength and durability.
