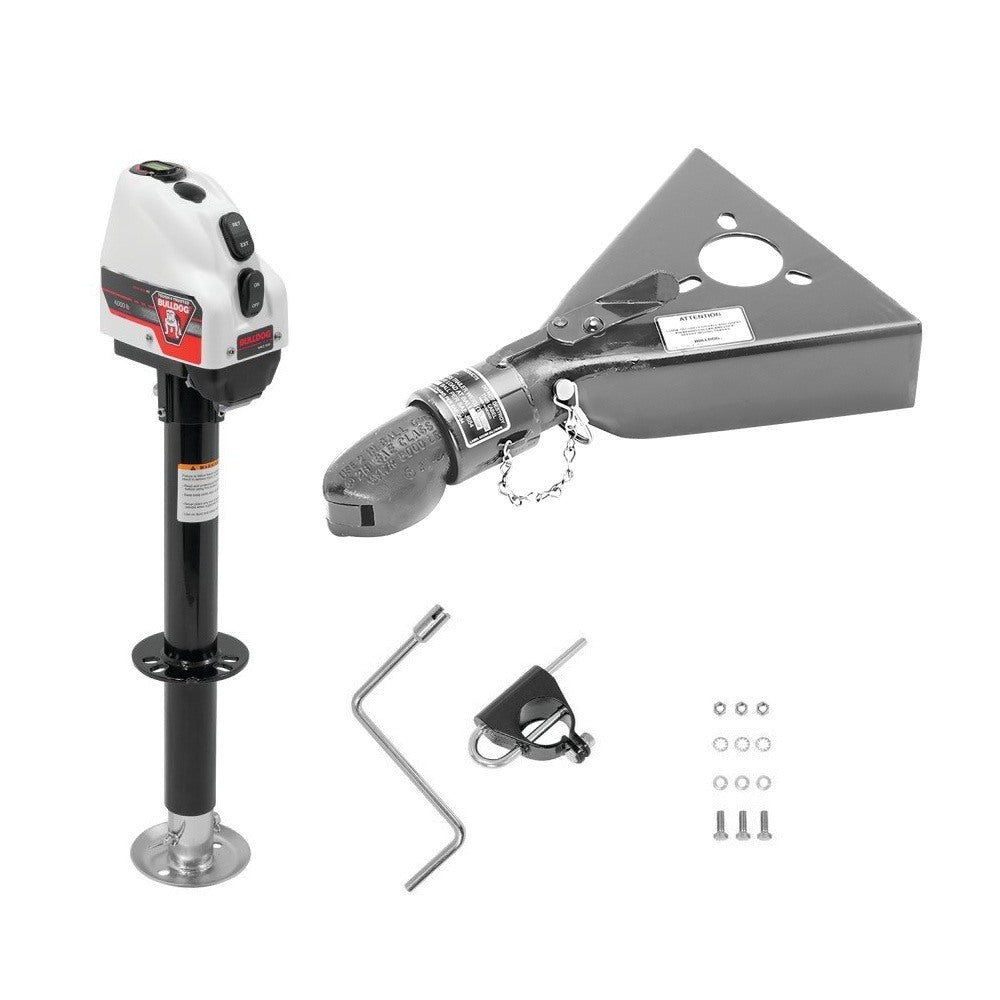

Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball

$640.99

BULLDOG 4,000 lb Electric A-Frame Jack with 5,000 lb Collar-Lokâ„¢ Coupler

Upgrade your towing setup with this heavy-duty Bulldog bundle—featuring a powerful 4,000 lb electric drive jack and Bulldog’s industry-leading 5,000 lb Collar-Lok™ coupler. Designed for quick operation and long-lasting reliability, this pair ensures smooth hookups, steady support, and unmatched durability under load.

Bundle Contents:

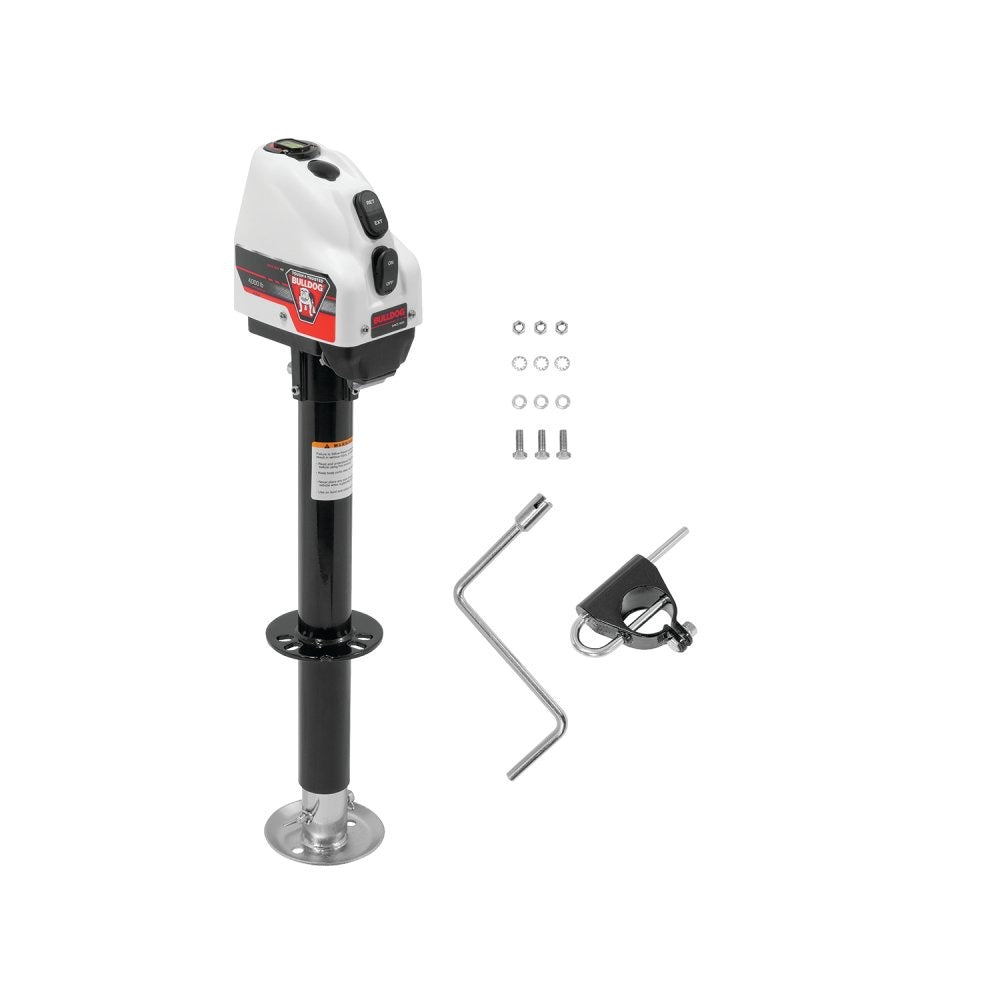

  • QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
    • Electric lift with integrated gearbox and motor for effortless raising
    • 22″ total travel and 14″ lift range
    • Onboard LED courtesy light angled for nighttime hookups
    • Emergency manual override crank included
    • Black zinc-plated finish resists corrosion
    • Limited 5-year warranty for industry-leading peace of mind

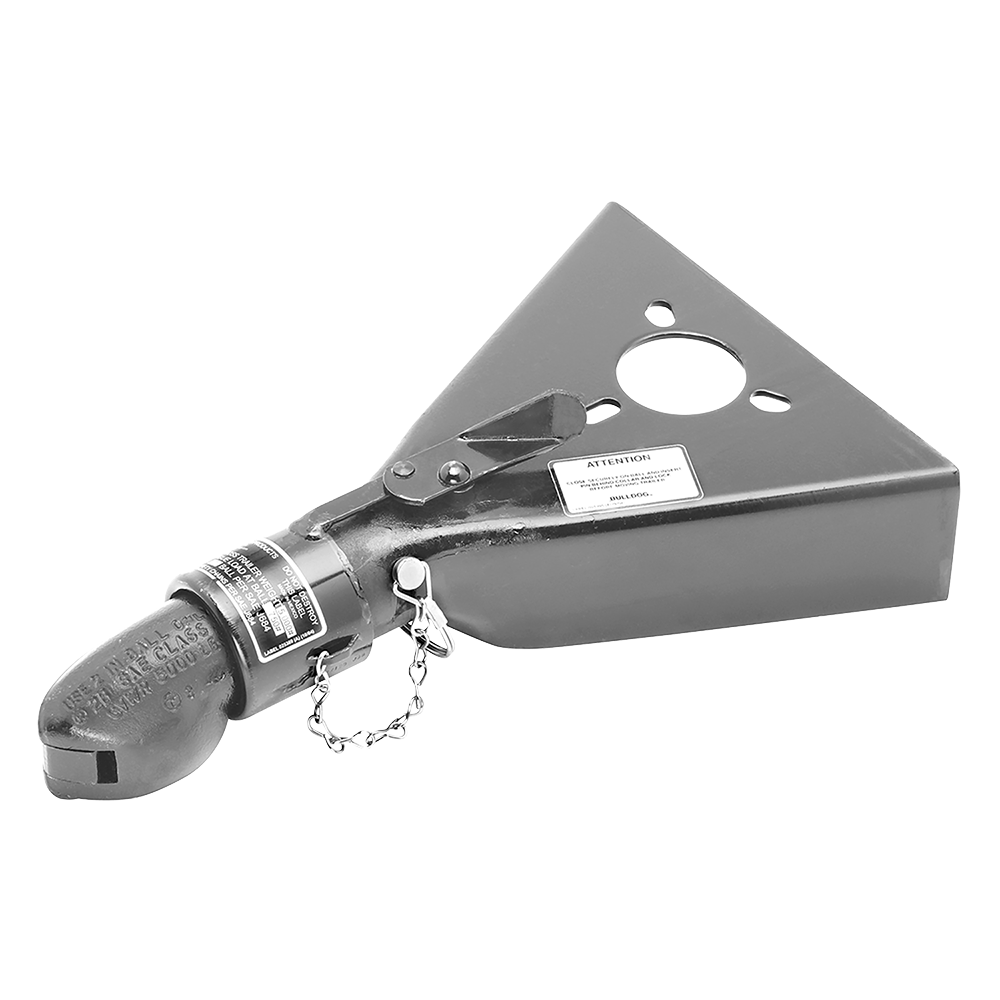

  • QTY (1): Collar-Lokâ„¢ A-Frame Coupler, 2″ Diameter, 5,000 lbs. Capacity
    • Automatic, continuously tight ball fit—no adjustments needed
    • Hinged ball socket for easy hookup and clear visual closure indication
    • Strong static and dynamic load performance
    • Versatile mount options fit most utility, livestock, cargo & construction trailers

For optimal performance, verify compatibility with your trailer’s OEM specifications and perform regular maintenance on moving parts and coupler latch.

Specifications:
Weight Capacity 3,001–5,000 lb
Jack Mounting Style A-Frame Triangular Center Mount
Jack Groups A-Frame Style Trailers
Jack Style A-Frame
Lift Mechanism Electric Lift
Jack Travel Range 14″ Lift
Jack Finish Black Zinc Plated
Static Load Capacity 4,000 lb
Lifting Load Capacity 4,000 lb
Foot Type Footplate
Leg Style Drop Leg Non-Spring Return
Swivel Type Non-Swivel
Outer Tube Diameter 2.25″
Inner Tubing Diameter 2″
Bracket-to-Bottom Clearance (Retracted) 9.75″
Bracket-to-Bottom Clearance (Extended) 31.75″
Bracket-to-Top Clearance 21″
Order today or call us at 877-869-6690 for expert advice and personalized service.
