Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
$208.99

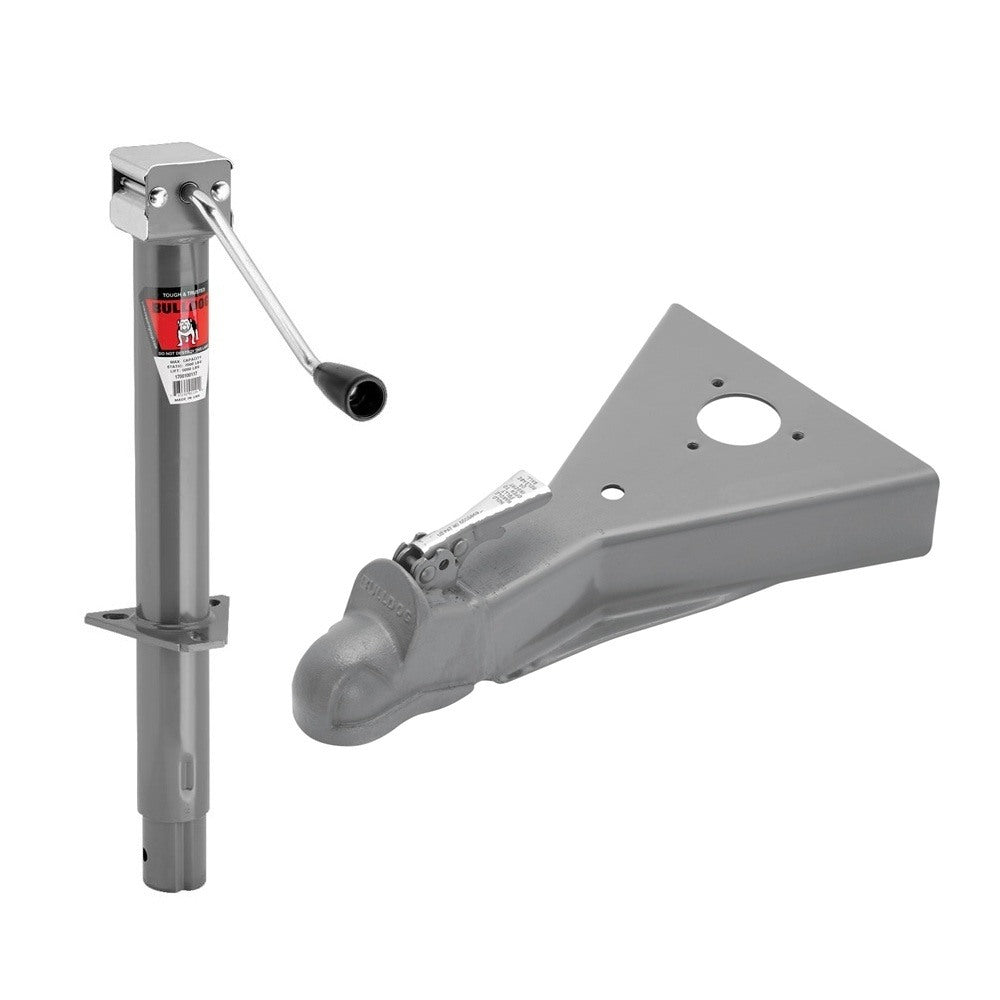

Bulldog 5,000 lb A-Frame Sidewind Jack & 8,000 lb A-Frame Coupler Bundle
Get superior reliability on the road with this Bulldog bundle: a 5,000 lb-capacity round A-frame sidewind trailer jack teamed with an 8,000 lb-capacity A-frame coupler. Perfect for utility, horse/livestock, cargo, or construction trailers, this kit ensures smooth operation, long-lasting performance, and a rock-solid connection.
Bundle Contents:
-

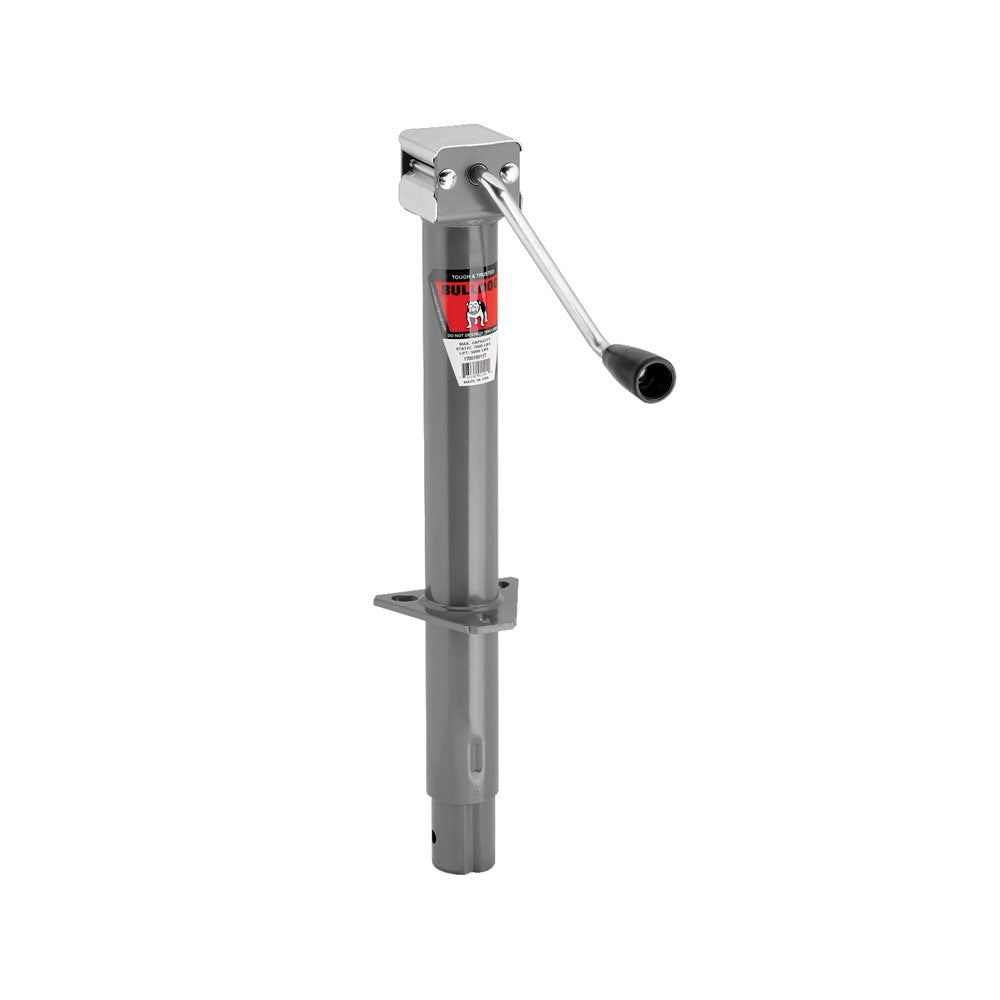

QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift, Sidewind, Bolt-On, 15″ Travel
- BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers.
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long‐term use at rated loads
- Precision-fitted parts for extra stability
- A-Frame models feature grey painted outer and inner tubes
- Custom finishes available upon request
-

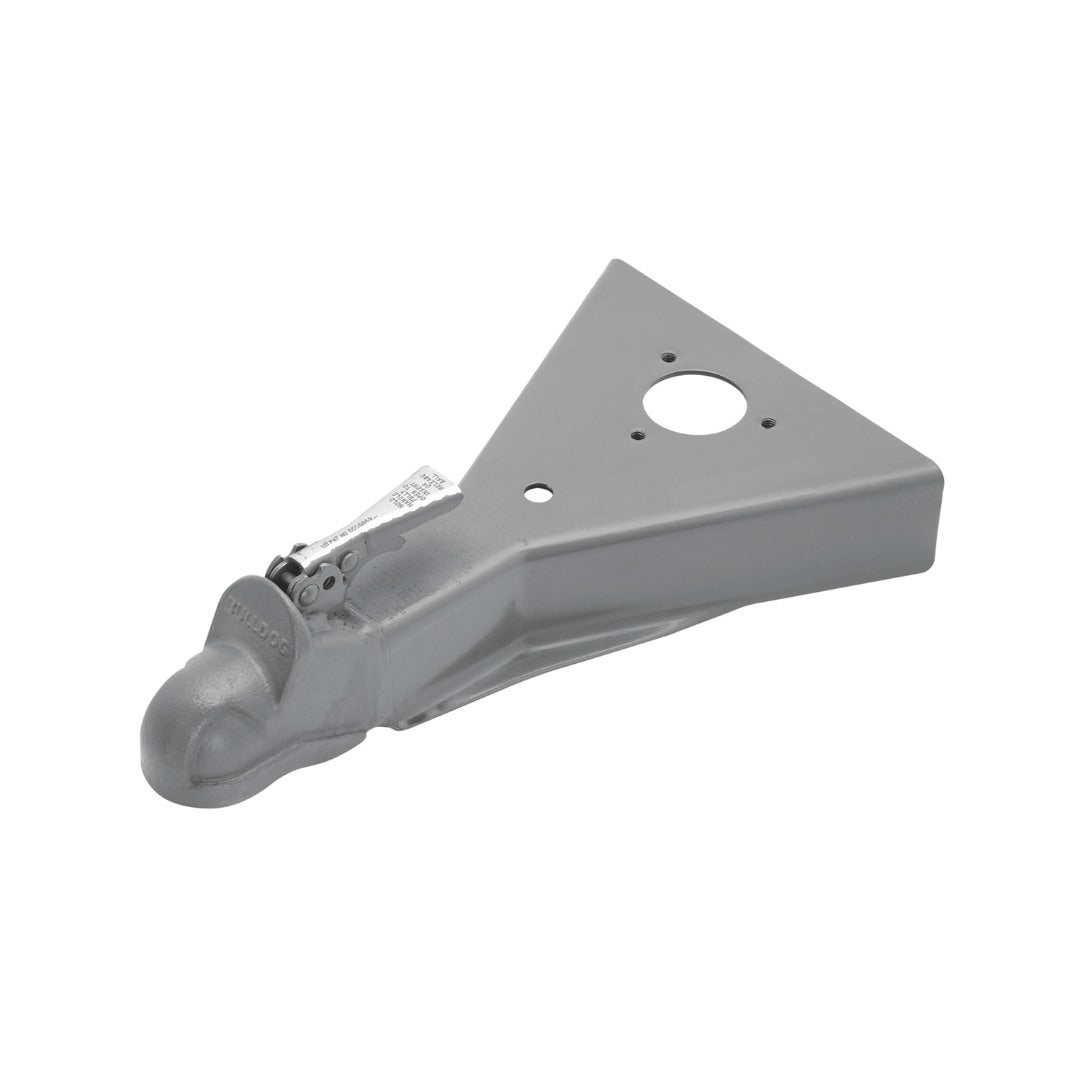

QTY (1): A-Frame Coupler, 2″ Diameter, 8,000 lbs. Capacity
- Patented “Wedge-Latch” design for quick, secure ball clamp
- Replaceable latching hardware for extended service life
- Quick and easy to engage
- Strong, road-worthy hold
- In compliance with SAE standard J684
Always verify compatibility with your trailer’s original equipment and perform regular maintenance to maximize safety and longevity.
| Specifications: | |
|---|---|
| Weight Capacity | 3,001–5,000 lbs |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | Round A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 15″ Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 5,000 lbs |
| Lifting Load Capacity | 5,000 lbs |
| Foot Type | Foot or Wheel Option |
| Leg Style | Fixed Leg |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2″ |
| Bracket-to-Bottom Clearance (Retracted) | 8.60″ |
| Bracket-to-Bottom Clearance (Extended) | 23.60″ |
| Bracket-to-Top Clearance | 12.75″ |
| Electric Lift | No |
| Custom Bundle | No |
Order today or call us at 877-869-6690 for expert advice and personalized service.
