$264.99

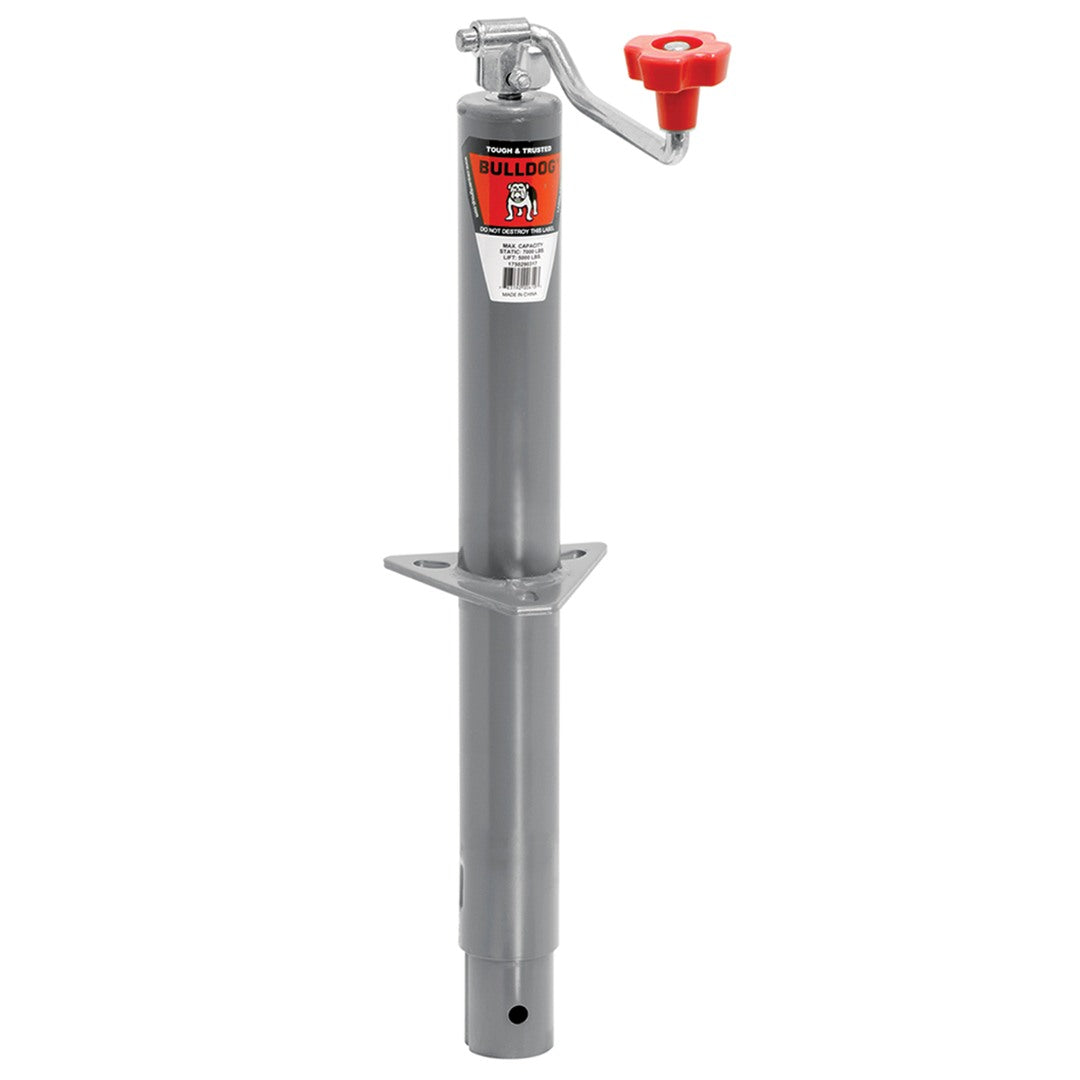

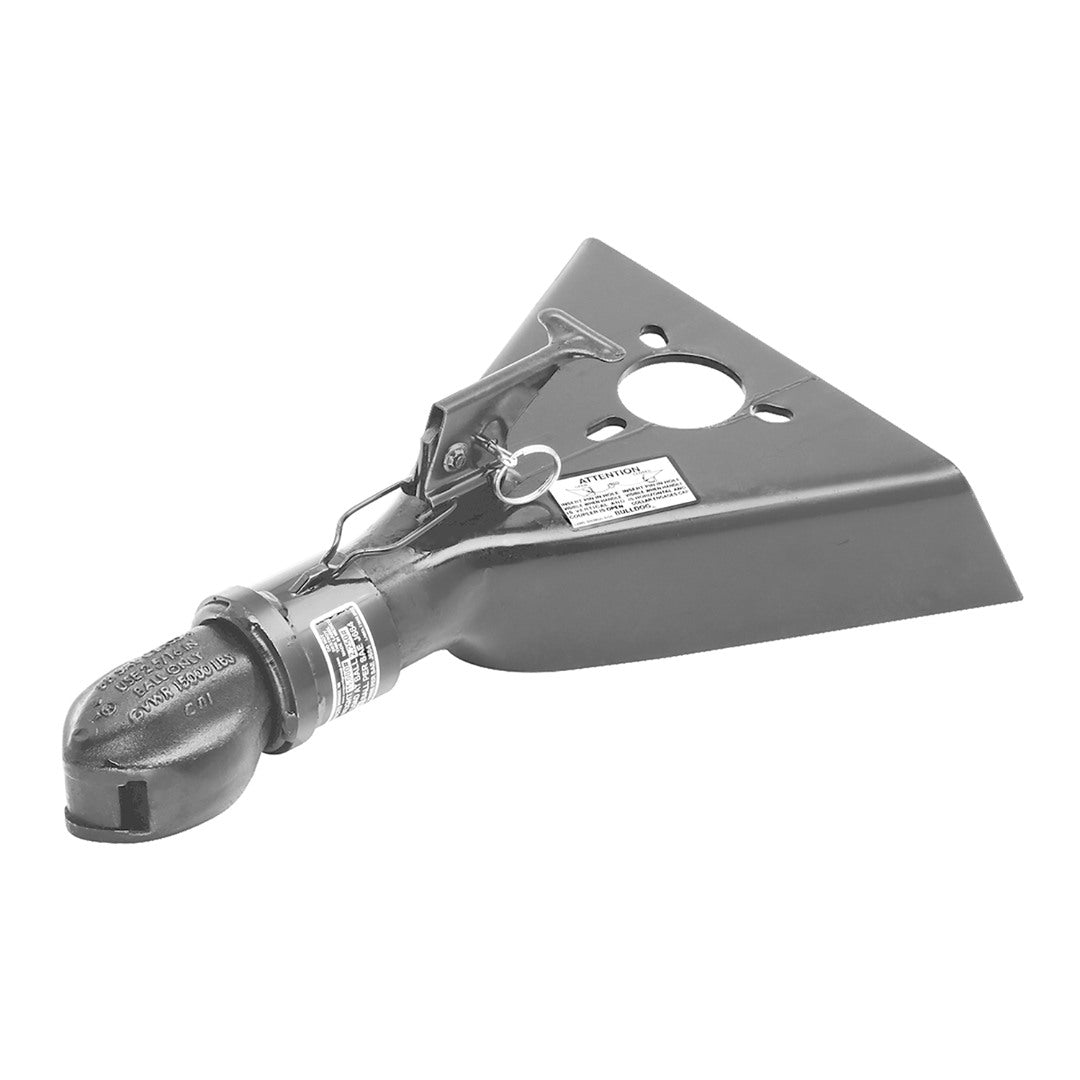

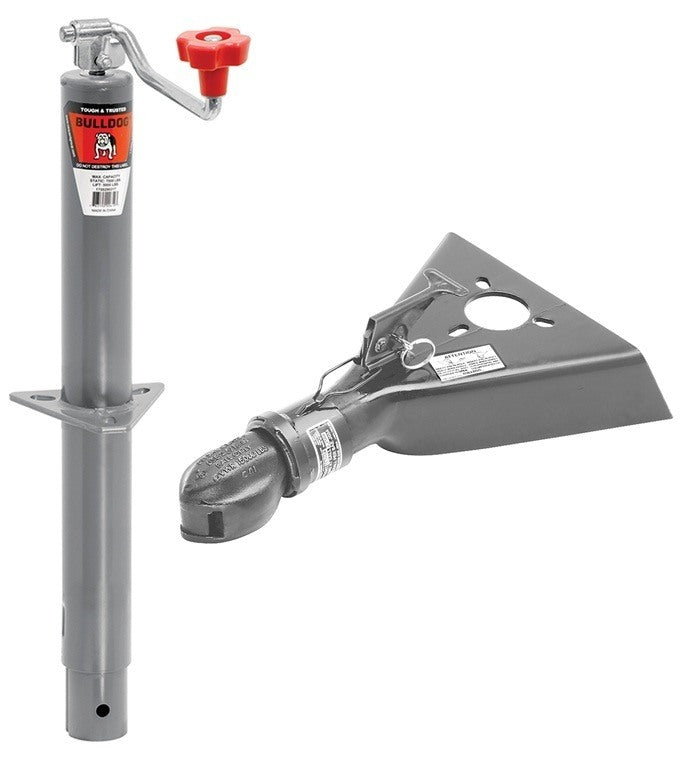

This convenient Bulldog bundle provides a dependable 5,000 lb. topwind A-Frame trailer jack with a 15-inch lift, along with a rugged 15,000 lb. Bulldog Collar-Lok coupler that accepts a 2-5/16" ball. Ideal for horse, livestock, cargo, and utility trailers, this combination is engineered for reliability and long-term performance.
Always double-check your trailer’s requirements, perform regular maintenance, and ensure a proper match with your towing vehicle for safe and reliable operation.
| Specifications: | Â |
|---|---|
| Kit Type | Trailer Jack & Coupler Bundle |
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 7.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 11 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 23 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 17 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.82 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 22.5 Inch |
| Exact Bracket-to-Top Clearance | 17 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
