Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
$201.99

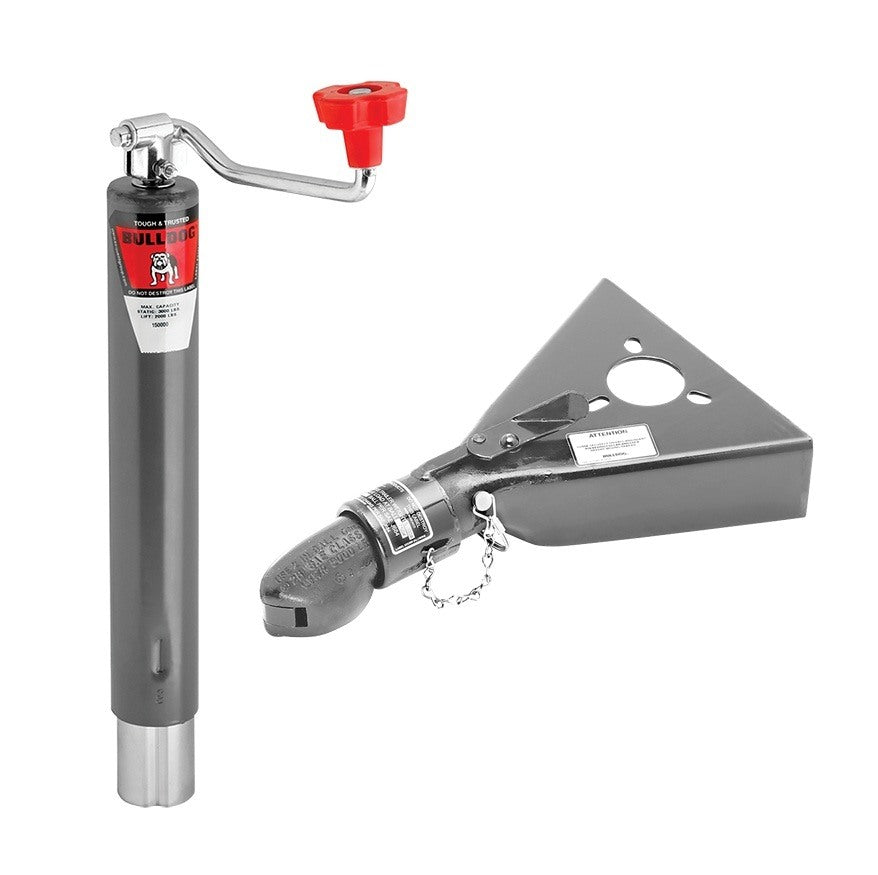

Bulldog 5,000-lb A-Frame Trailer Jack and 5K Collar-Lok Coupler Bundle
Experience reliable performance and hassle-free towing with this Bulldog 5K A-frame jack and matching 5K Collar-Lok coupler. Ideal for commercial, agricultural, horse, livestock, and utility trailers, this bundle ensures a secure connection and smooth lifting action every time.
Bundle Contents:
-

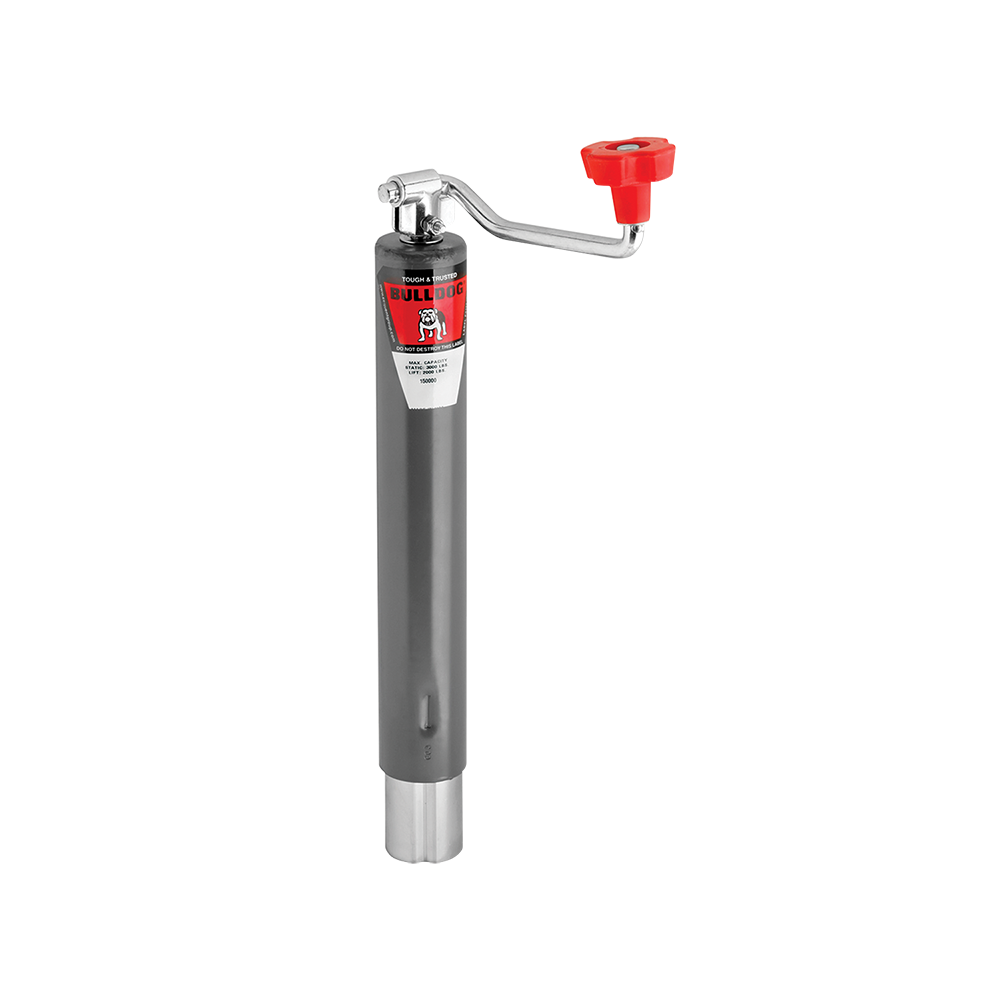

QTY (1): Round Trailer Jack, No Mount, 5,000 lbs. Lift Capacity, Topwind, Weld-On, 15 Inch Travel
- BULLDOG round jacks are recognized as the industry standard for trailers across multiple sectors.
- Proven reliability for long-term use at rated loads, backed by over three quarters of a century of performance.
- Smooth, comfortable, ergonomic design and dependable vertical/side load capacity.
- Precision-fitted parts for extra stability and reduced wear.
- A-Frame models feature grey painted outer and inner tubes.
- Custom finishes available upon request.
-

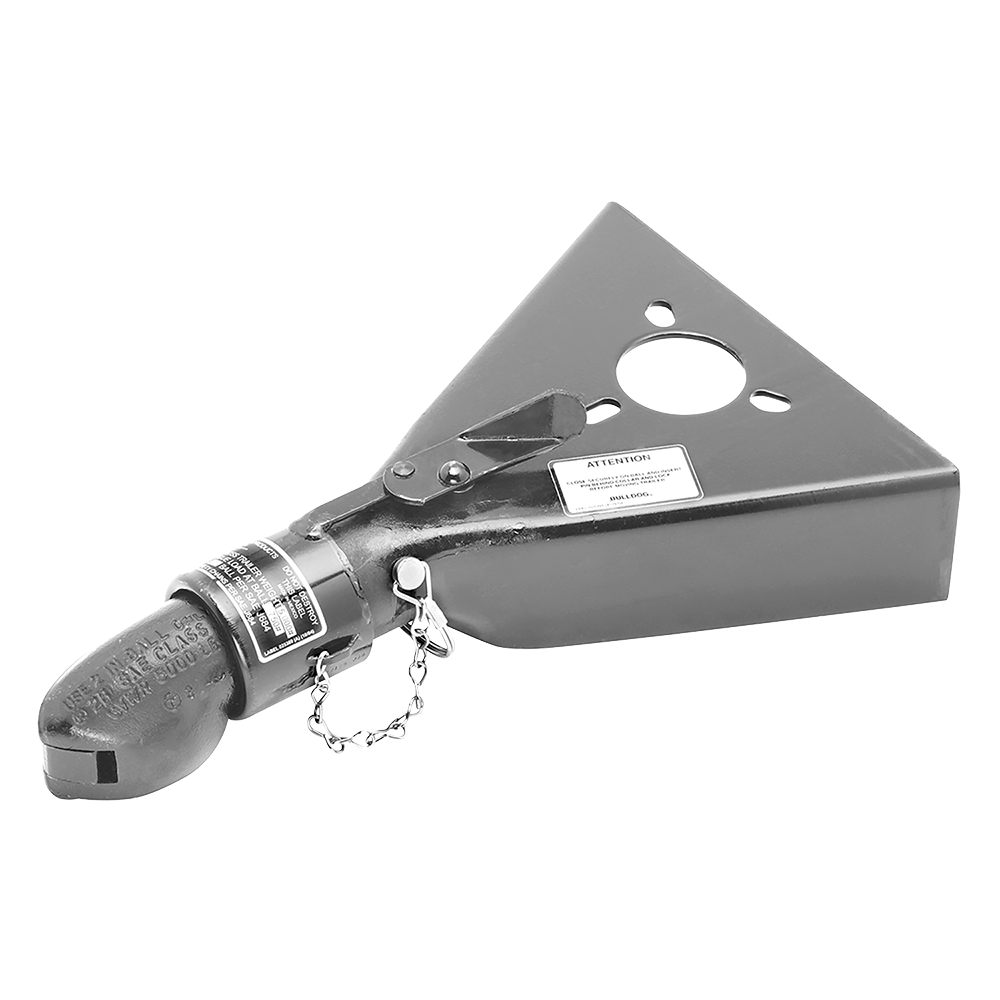

QTY (1): Collar-Lok™ A-Frame Coupler, 2 Inch Diameter, 5,000 lbs. Capacity
- Perfect for utility, horse/livestock, cargo, and construction trailer applications.
- Features the only automatic and continuously tight ball fit in the industry.
- Exceptionally strong in both static and dynamic loading conditions.
- Hinged ball socket design for easier hookup.
- Clear visual indication of proper closure for added safety.
Always confirm the correct fit for your trailer frame and ball size. Regular maintenance and inspection of trailer jacks and couplers are recommended for optimal performance.
| Specifications: | |
|---|---|
| Kit Type | Jack + Coupler Bundle |
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 21 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 36 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 21 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 36 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
| Inner Tubing Diameter | 2 Inch Inner Tube |
