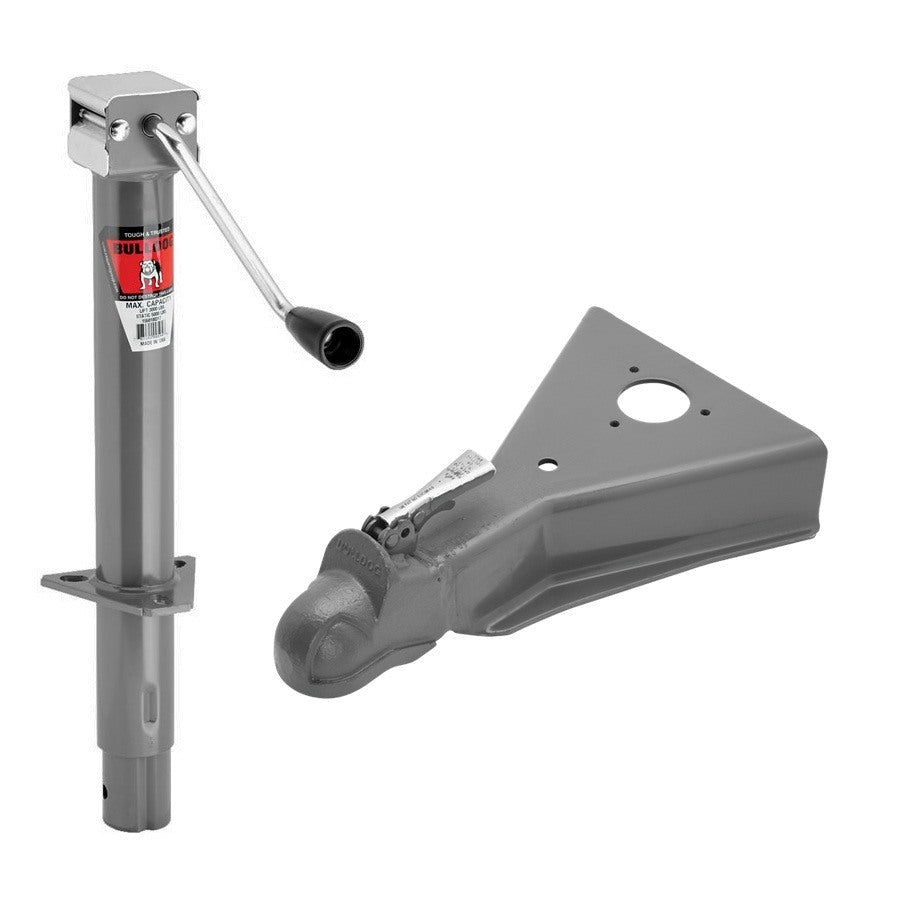

Bulldog 3K Round A-Frame Trailer Jack (13" Lift, Sidewind) & 12.5K Cast Head Coupler
This premium bundle provides a reliable Bulldog 3,000 lb capacity A-frame jack with 13" sidewind lift and a robust 12,500 lb cast head coupler for a 2-5/16" ball. Ideal for a wide range of trailers, this kit ensures easier lifting, secure towing, and long-term durability.
Bundle Contents:
-

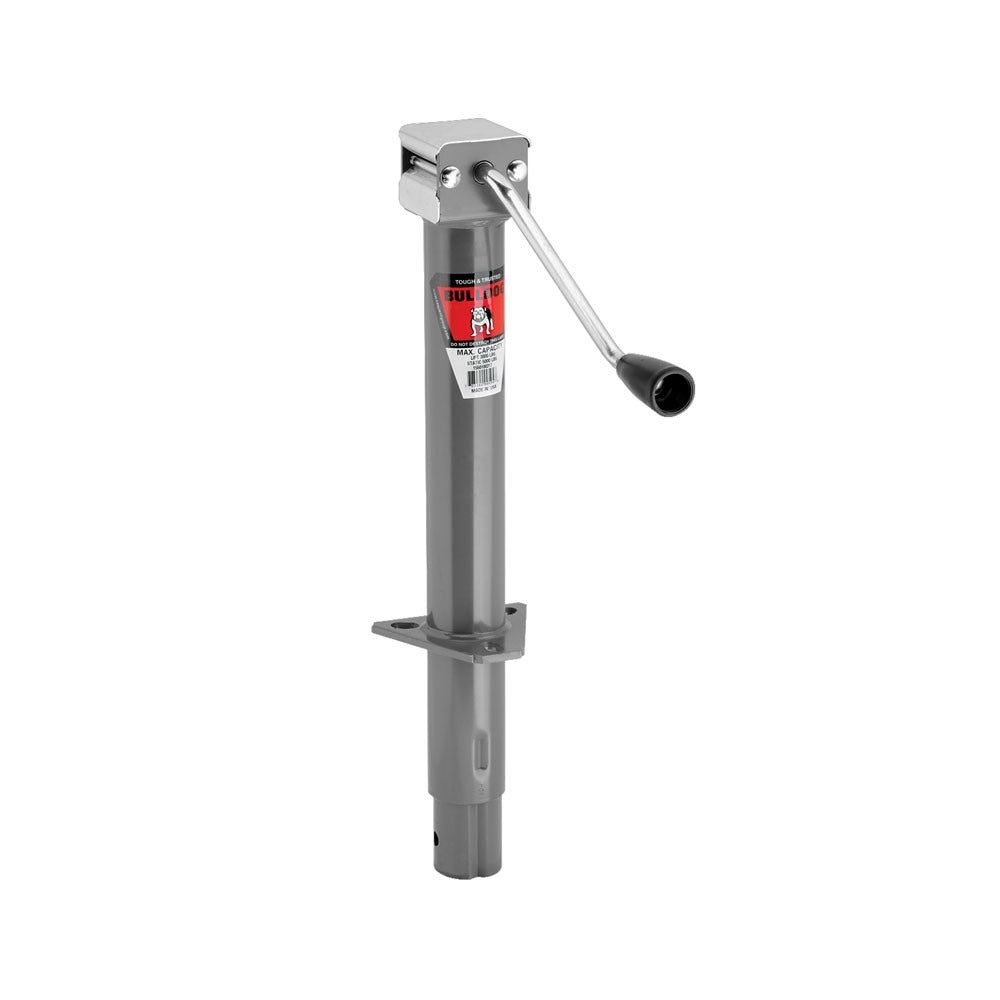

QTY (1): Round Trailer Jack, A-Frame, 3,000 lbs. Lift Capacity, Sidewind, Bolt-On, 13 Inch Travel
- BULLDOG round jacks are recognized as the industry standard
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long-term use
- Precision-fitted parts for extra stability
-
QTY (1): A-Frame Coupler, 2-5/16 Inch Diameter, 12,500 lbs. Capacity
- Designed for utility, horse/livestock, cargo, and construction trailers
- Heavy-duty cast head with patented Wedge-Latch design
- Quick to engage and disconnect
- In compliance with SAE standard J684
For optimal performance, confirm your trailer’s capacity, ball size, and proper mounting procedures before installation. Regular inspection and maintenance of your jack and coupler are recommended to ensure safe towing.
| Specifications: | |
|---|---|
| Weight Capacity | 2001-3000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 13 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 3000 LB Static Capacity |
| Jack Lifting Load Capacity | 3000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 7 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 20 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 15 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 7 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 20 Inch |
| Exact Bracket-to-Top Clearance | 14.50 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
