Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball

$241.99

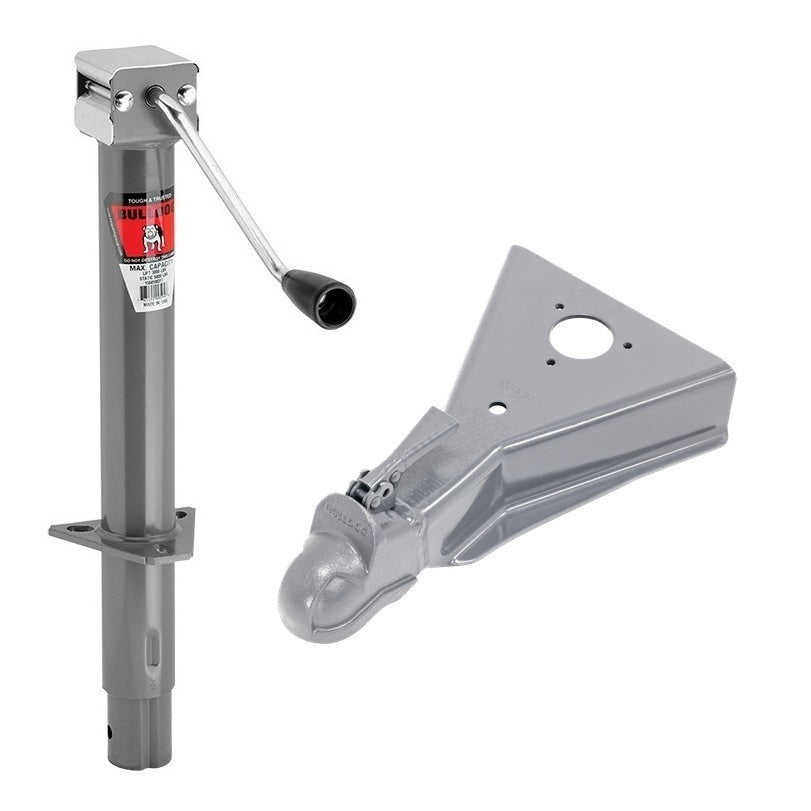

Bulldog 3K A-Frame Sidewind Jack with 15K Wedge-Latch Coupler – Complete A-Frame Trailer Upgrade Kit

Upgrade your trailer with this premium A-Frame bundle, featuring a heavy-duty 3,000 lb Bulldog sidewind jack and a 15,000 lb cast head coupler for 2-5/16” hitch balls. This pairing is perfect for utility, livestock, cargo, and construction trailers, offering unmatched reliability, superior design, and long-lasting performance.

Bundle Contents:

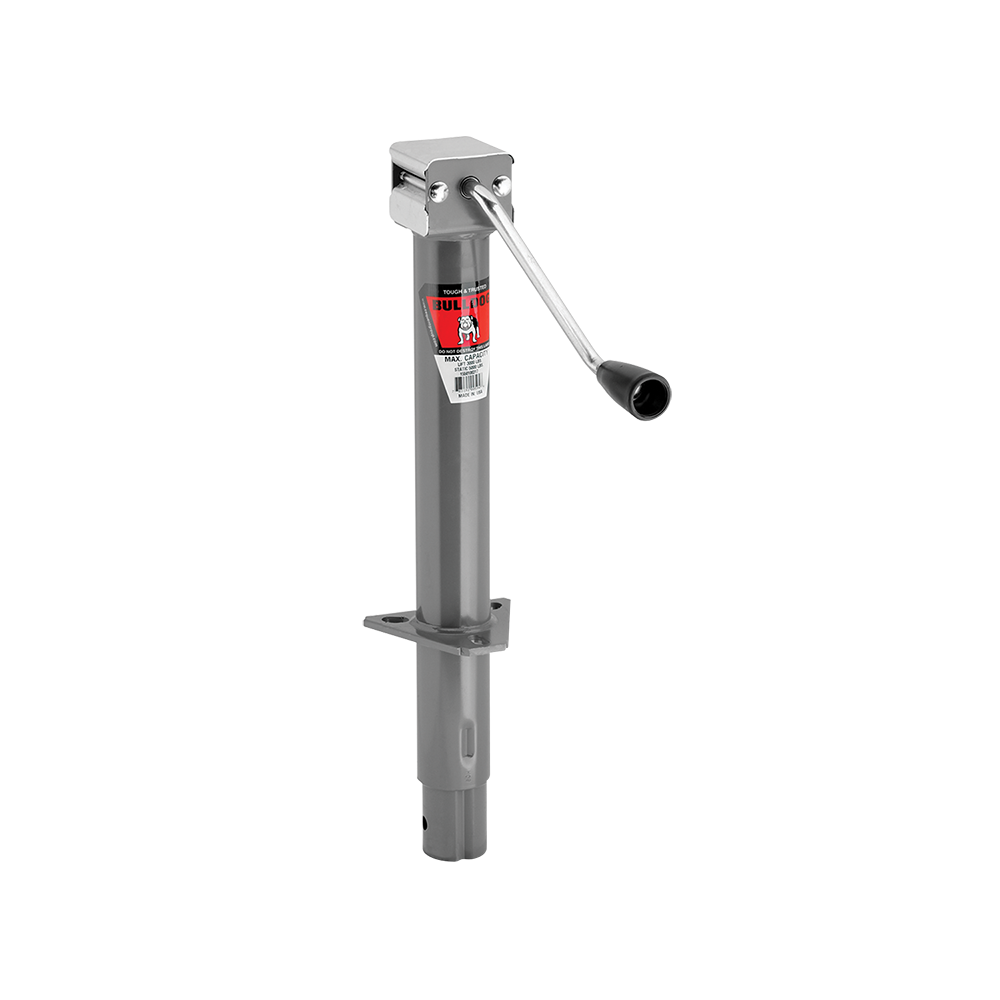

  • QTY (1): Round Trailer Jack, A-Frame, 3,000 lbs. Lift Capacity, Sidewind, Bolt-On, 13 Inch Travel
    • Industry-standard Bulldog brand jack
    • Ergonomic sidewind handle for smooth operation
    • 13” lift with 3,000 lb rated capacity
    • Grey painted outer and inner tubes for corrosion resistance
    • Precision fitted parts ensure stability and durability

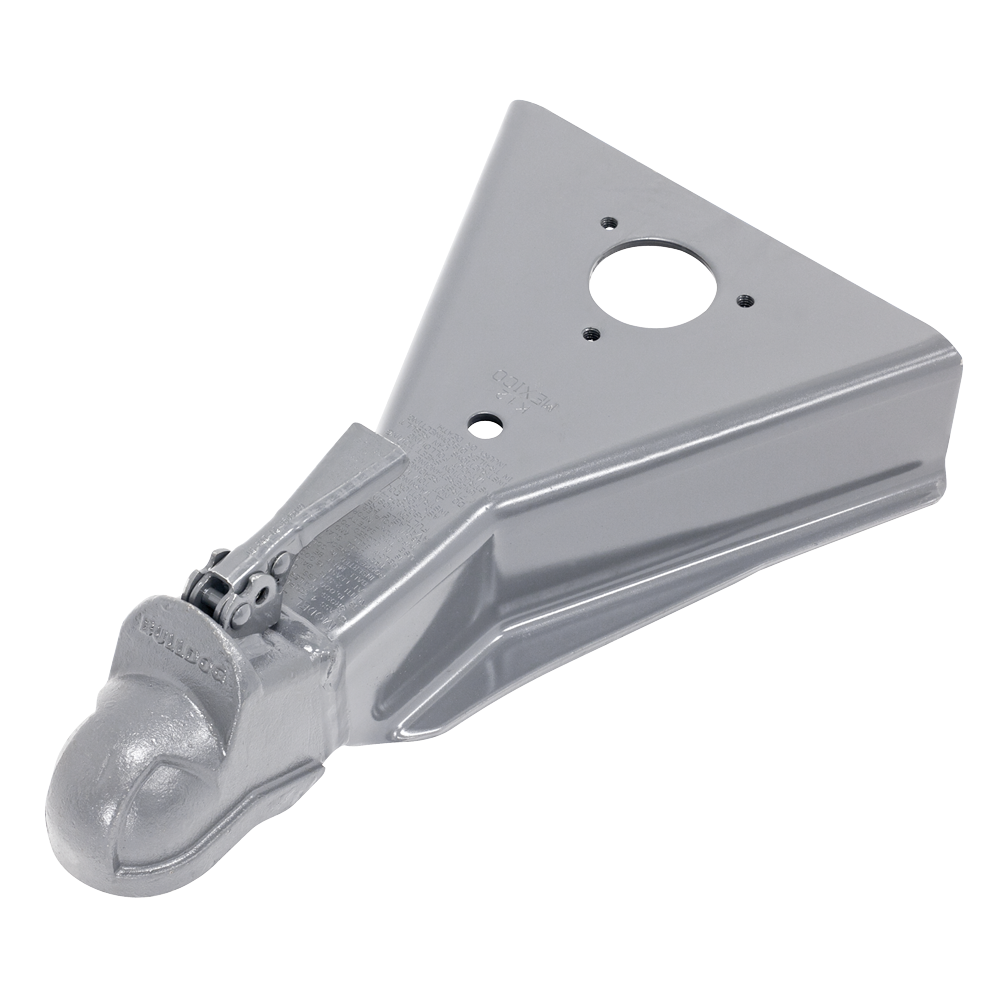

  • QTY (1): A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
    • Heavy-duty cast head “Wedge-Latch” design
    • Quick to hook up and disconnect
    • Replaceable latch hardware for extended service life
    • Meets SAE J684 safety standards
    • Ideal for utility, cargo, livestock, and construction trailers

Before purchase, always confirm compatibility with your trailer's original equipment. Perform regular inspections and maintenance for safe towing.

Specifications:
Kit Type Trailer Jack & Coupler Upgrade Kit
Jack Mounting Style A-Frame Triangular Center Mount
Jack Style A-Frame, Round
Jack Lift Mechanism Sidewind Handle Crank
Jack Travel Range 13 Inch Lift
Jack Finish Gray Powdercoat
Jack Static Load Capacity 3,000 LB
Jack Foot Type Foot or Wheel Option
Jack Leg Style Fixed Leg
Jack Swivel Type Non Swivel
Outer Tube Diameter 2.25 Inch
Inner Tube Diameter 2 Inch
Electric Lift Non Electric
Bracket-to-Bottom (Retracted) 7 Inch
Bracket-to-Bottom (Extended) 20 Inch
Bracket-to-Top Clearance 14.50 Inch
Order today or call us at 877-869-6690 for expert advice and personalized service.
