Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball

$973.99

Bulldog 4K Powered Drive A-Frame Jack with 5K Collar-Lok Coupler

Upgrade your trailer setup with this all-in-one bundle featuring a high-capacity electric A-frame jack and industry-leading Collar-Lok™ coupler. Perfect for heavy-duty utility, livestock, cargo, and construction trailers, you’ll enjoy effortless lifting and a continuously tight ball fit every time.

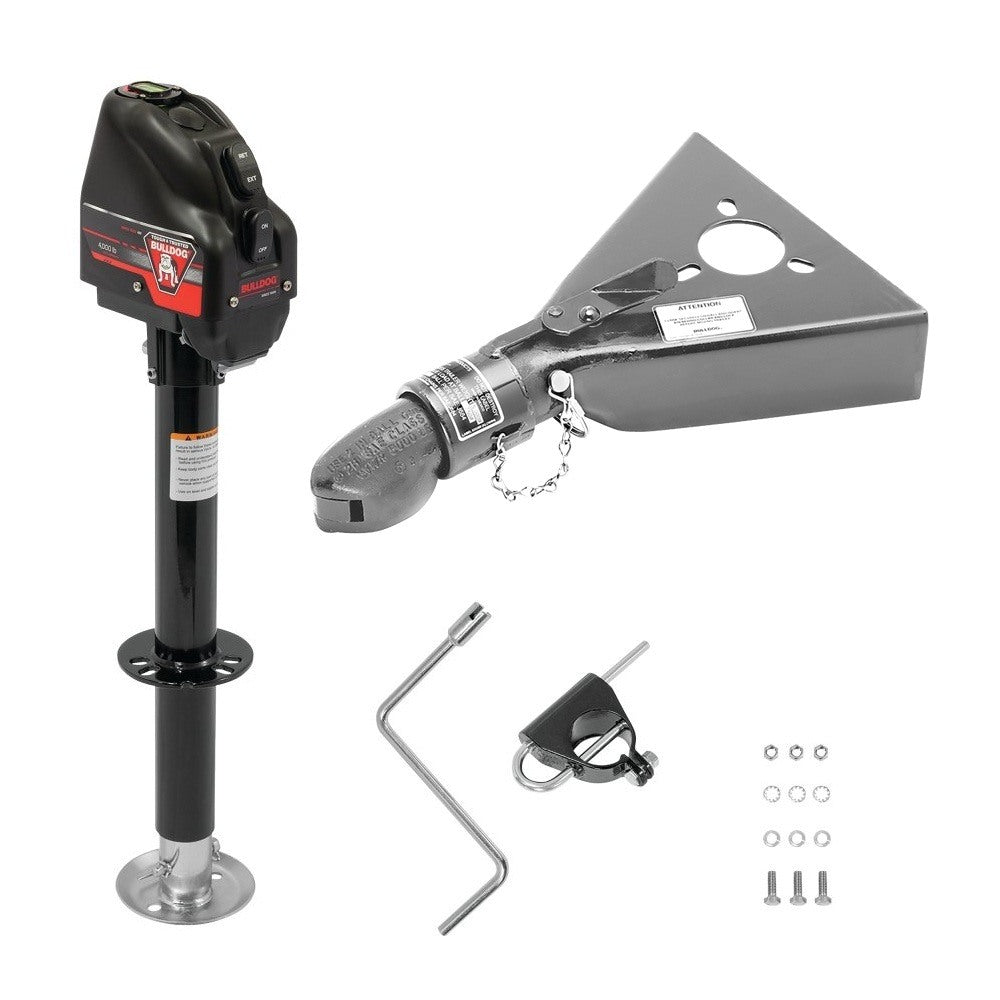

Bundle Contents:

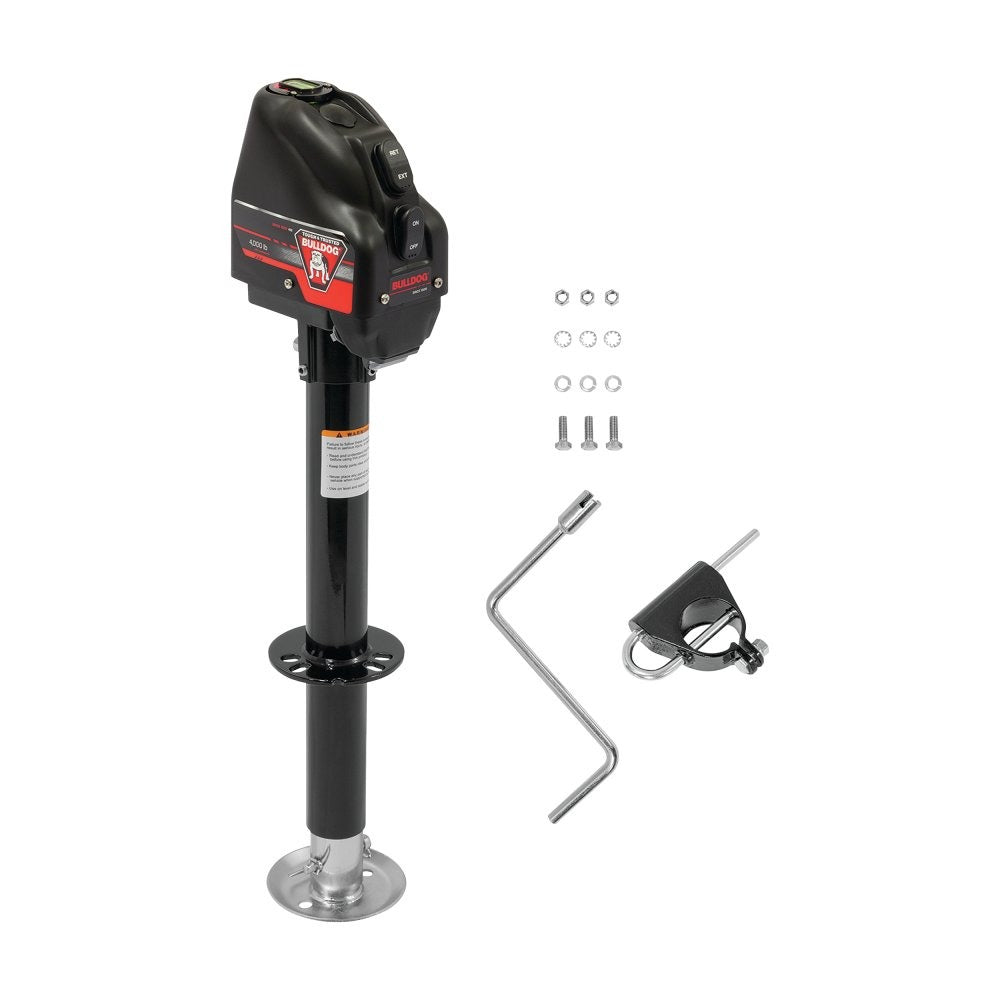

  • QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
    • Positions quickly with 22″ of total travel
    • 4,000 lbs. lift capacity
    • Integrated gearbox and motor
    • Drop leg design for stability
    • LED courtesy light for nighttime hookup
    • Emergency manual override with included crank
    • Industry-leading strength, durability, and side-load capacity
    • Corrosion-resistant black zinc finish
    • Limited 5-year warranty

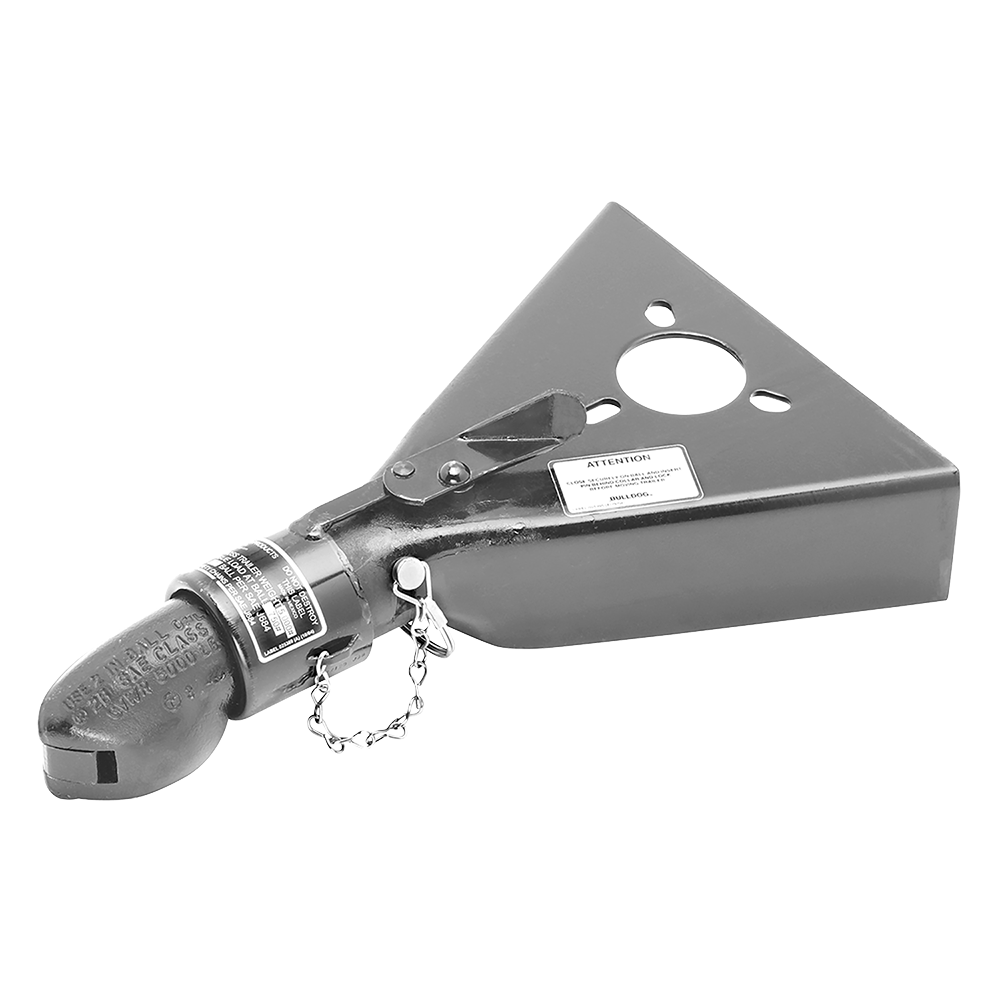

  • QTY (1): Collar-Lokâ„¢ A-Frame Coupler, 2″ Diameter, 5,000 lbs. Capacity
    • Automatic, continuously tight ball fit
    • Easiest to use in the industry
    • Strong in both static and dynamic loading
    • Hinged ball socket for quick hookup
    • Clear visual indication of proper closure

Before installation, always verify compatibility with your trailer’s tongue and perform regular maintenance to ensure long-term reliability.

Specifications:
Weight Capacity 3001–5000 Pounds
Jack Mounting Style A-Frame Triangular Center Mount
Jack Groups A-Frame Style Trailers
Jack Style A-Frame
Lift Mechanism Electric Lift (4,000 lb)
Jack Travel Range 14″ Lift
Jack Finish Black Zinc Plated
Static Load Capacity 4,000 lb
Lifting Load Capacity 4,000 lb
Jack Foot Type Footplate
Jack Leg Style Drop Leg, Non-Spring Return
Jack Swivel Type Non-Swivel
Outer Tube Diameter 2.25″
Shape Round Jack
Bracket-to-Bottom Clearance (Retracted) 9.75″
Bracket-to-Bottom Clearance (Extended) 31.75″
Bracket-to-Top Clearance 21″
Inner Tube Diameter 2″
Custom Bundle No
