Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 5K Collar-Lok Coupler for 2" Ball
$210.99

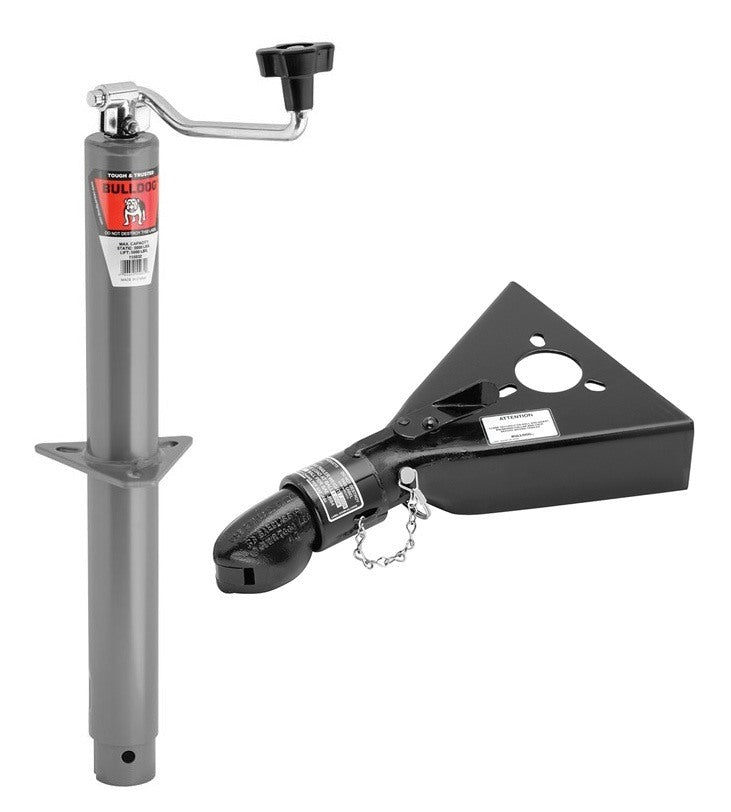

Bulldog 5K Round A-Frame Trailer Jack with 15" Lift & 7K Collar-Lok Coupler
This dependable bundle combines the trusted Bulldog 5K round A-frame trailer jack with 15 inches of travel and a Bulldog Collar-Lok coupler rated at 7,000 lbs. Whether you’re hauling livestock, cargo, or construction materials, this set provides smooth operation and reliable performance for a variety of trailer types.
Bundle Contents:
-

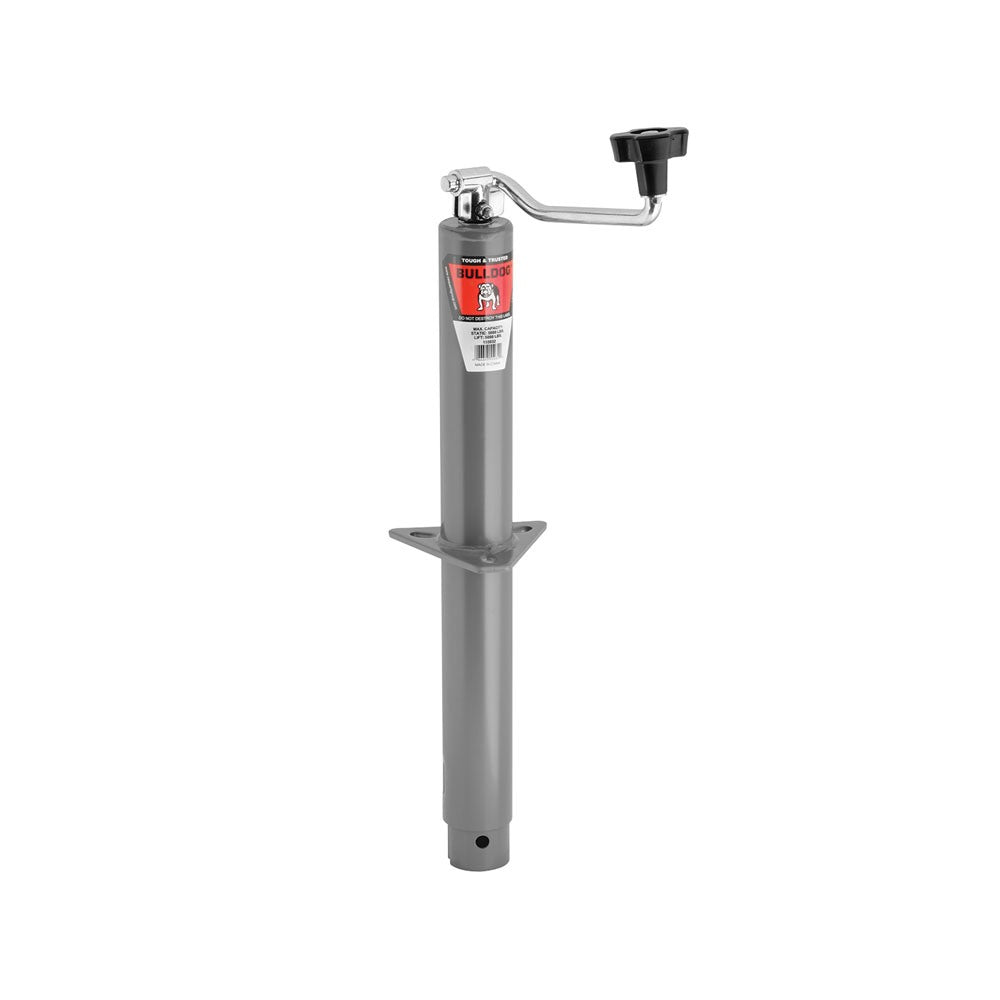

QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Topwind, Bolt-On, 15 Inch Travel
- Industry-standard BULLDOG round jack for agricultural, commercial, and other trailers
- Proven reliability for long-term use at rated loads
- Smooth, comfortable, ergonomic topwind design
- Precision-fitted parts for extra stability
- Dependable vertical and side load capacity
- Grey painted outer and inner tubes for lasting durability
-

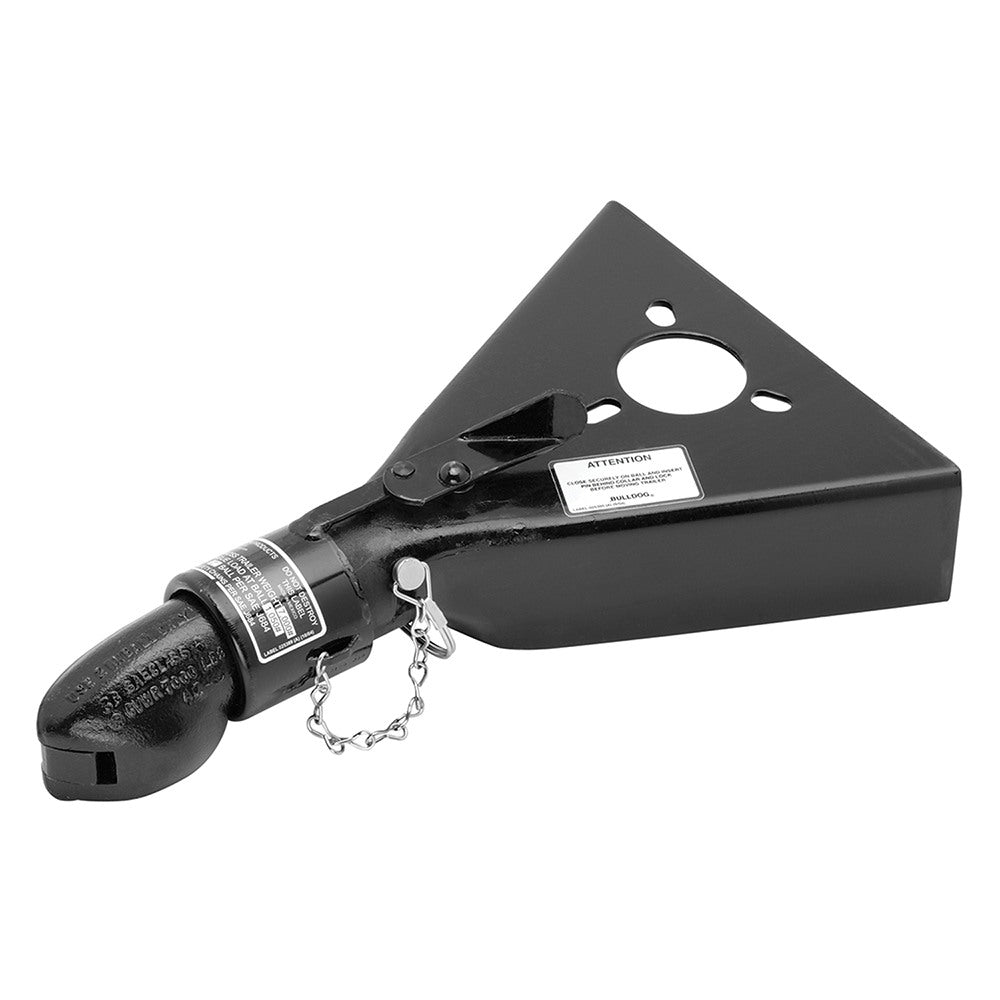

QTY (1): Collar-Lok™ A-Frame Coupler, 2 Inch Diameter, 7,000 lbs. Capacity
- Rated at 7,000 lbs. for utility, horse/livestock, cargo, or construction trailers
- Bulldog Collar-Lok with automatic, continuously tight ball fit
- Various coupler styles, tongue mounts, and latches for easy configuration
- Adjustable couplers for level towing across different vehicles
Always verify your trailer’s specifications and perform regular maintenance to ensure safe and reliable operation.
| Specifications: | |
|---|---|
| Kit Type | Trailer Jack & Coupler Bundle |
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 25 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 10 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.30 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 25.30 Inch |
| Exact Bracket-to-Top Clearance | 10.20 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
Order today or call us at 877-869-6690 for expert advice and personalized service.
