Bulldog 4K Powered Drive A-Frame Trailer Jack 14" Lift w/ 7K Collar-Lok Coupler for 2" Ball

$972.99

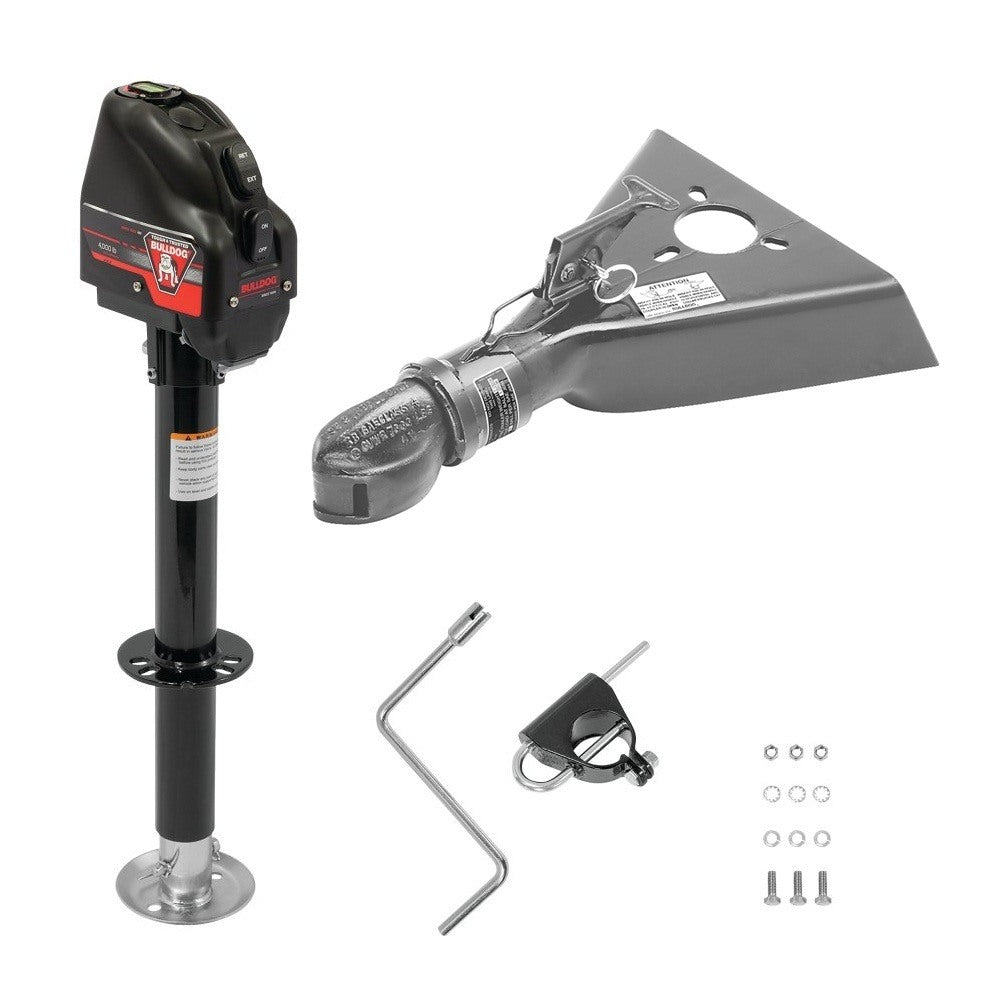

Bulldog 4K Electric A-Frame Trailer Jack with 7K Collar-Lok Coupler Bundle

This complete bundle combines Bulldog’s powerful 4,000 lb electric A-frame jack with the industry’s strongest 7,000 lb Collar-Lok coupler. Perfect for utility, livestock, cargo, and construction trailers, you’ll enjoy fast setup, reliable lifting, and secure hook-up in one easy package.

Bundle Contents:

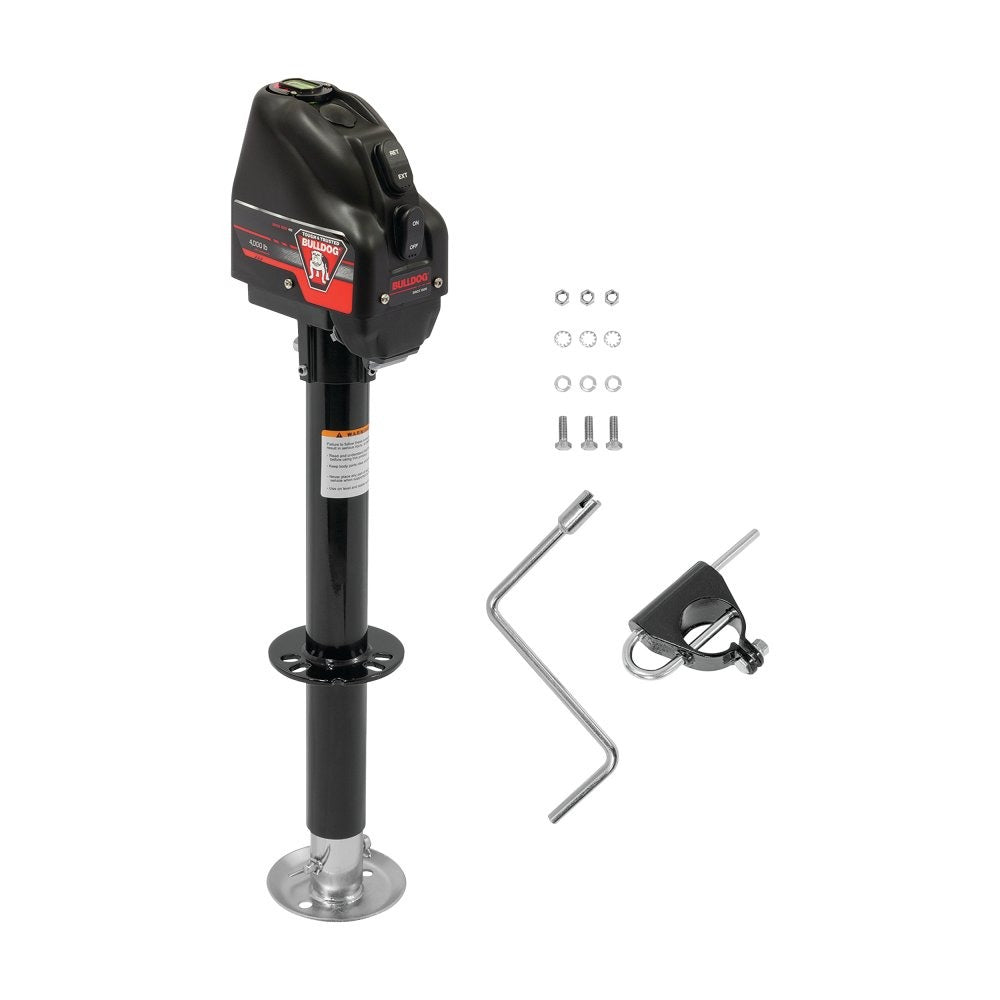

  • QTY (1): Powered Trailer Jack, A-Frame, 4,000 lbs. Lift Capacity, Bolt-On, 22″ Travel
    • Positions quickly with 22″ of total travel
    • 4000 lbs. lift capacity
    • Integrated gearbox and motor
    • Drop leg for stable support
    • On-board LED courtesy light for nighttime hookup
    • Emergency manual override crank included
    • Durable, corrosion-resistant finish
    • Limited 5-year warranty

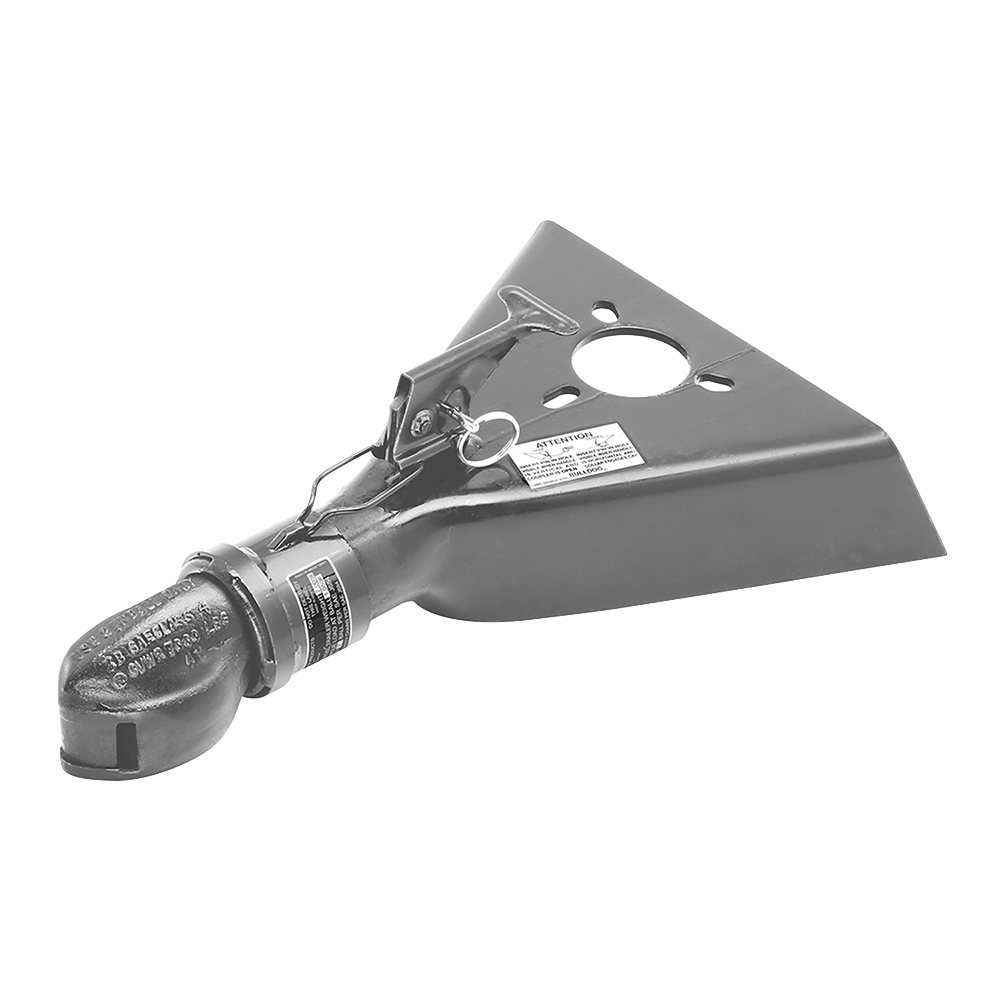

  • QTY (1): Collar-Lokâ„¢ A-Frame Coupler, 2″ Diameter, 7,000 lbs. Capacity
    • Automatic, continuously tight ball fit
    • Designed for utility, horse/livestock, cargo, and construction trailers
    • Hinged ball socket for easy hookup
    • Clear visual indication of proper closure
    • Strong in both static and dynamic loading conditions
    • Adjustable height for level towing

We recommend verifying your trailer’s frame and ball dimensions before installation and performing regular maintenance for maximum service life.

Specifications:
Weight Capacity 3001-5000 Pounds
Jack Mounting Style A-Frame Triangular Center Mount
Jack Groups A-Frame Style Trailers
Jack Style A-Frame
Lift Mechanism Electric Lift (4000 LB)
Jack Travel Range 14 Inch Lift
Jack Finish Black Zinc Plated
Jack Static Load Capacity 4000 LB Static Capacity
Jack Foot Type Footplate
Jack Leg Style Drop Leg Non Spring Return
Jack Swivel Type Non Swivel
Jack Outer Tube Diameter 2.25 Inch Outer Tube
Jack Shape Round Jack
Bracket-to-Bottom Clearance (Retracted) 9.75 Inch
Bracket-to-Bottom Clearance (Extended) 31.75 Inch
Bracket-to-Top Clearance 21 Inch
Custom Bundle No
Inner Tubing Diameter 2 Inch Inner Tube
