Bulldog 4x 25K Square Trailer Jack w/ 26" Lift Sidewind Spring Return Drop Leg
$1,166.99

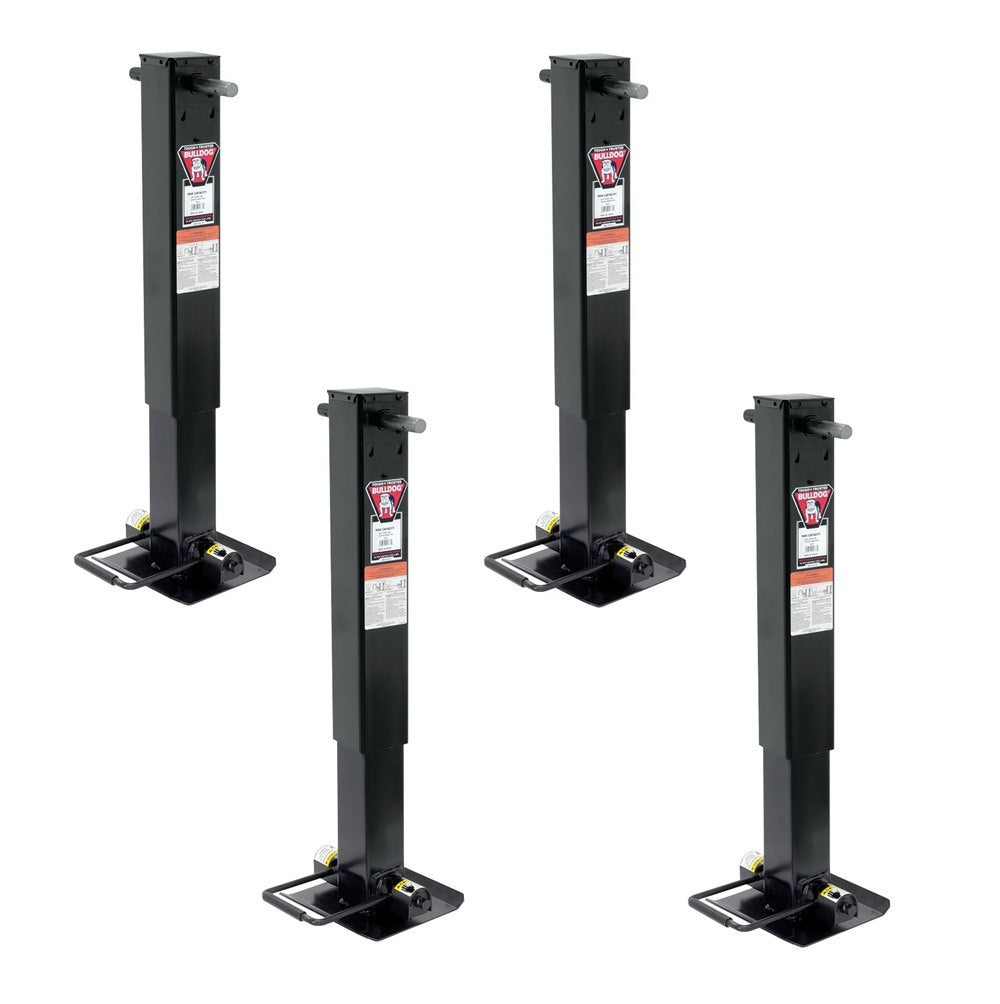

4-Pack Bulldog 25K Twin Cam™ HD Square Trailer Jacks – 26" Lift, Sidewind, Spring Return Drop Leg
Upgrade your heavy-duty trailer setup with this bundle of four Bulldog Twin Cam™ HD square trailer jacks. Each jack offers a 25,000 lb support capacity, 12,500 lb lift capacity, and 26" of lift travel. The industry-leading Twin Cam™ mechanism provides full control of drop-leg pins, while the spring-return drop leg and sidewind handle ensure quick, reliable operation. Perfect for agricultural, construction, and industrial trailers, this set delivers strength, durability, and convenience at an unbeatable value.
Bundle Contents:
-

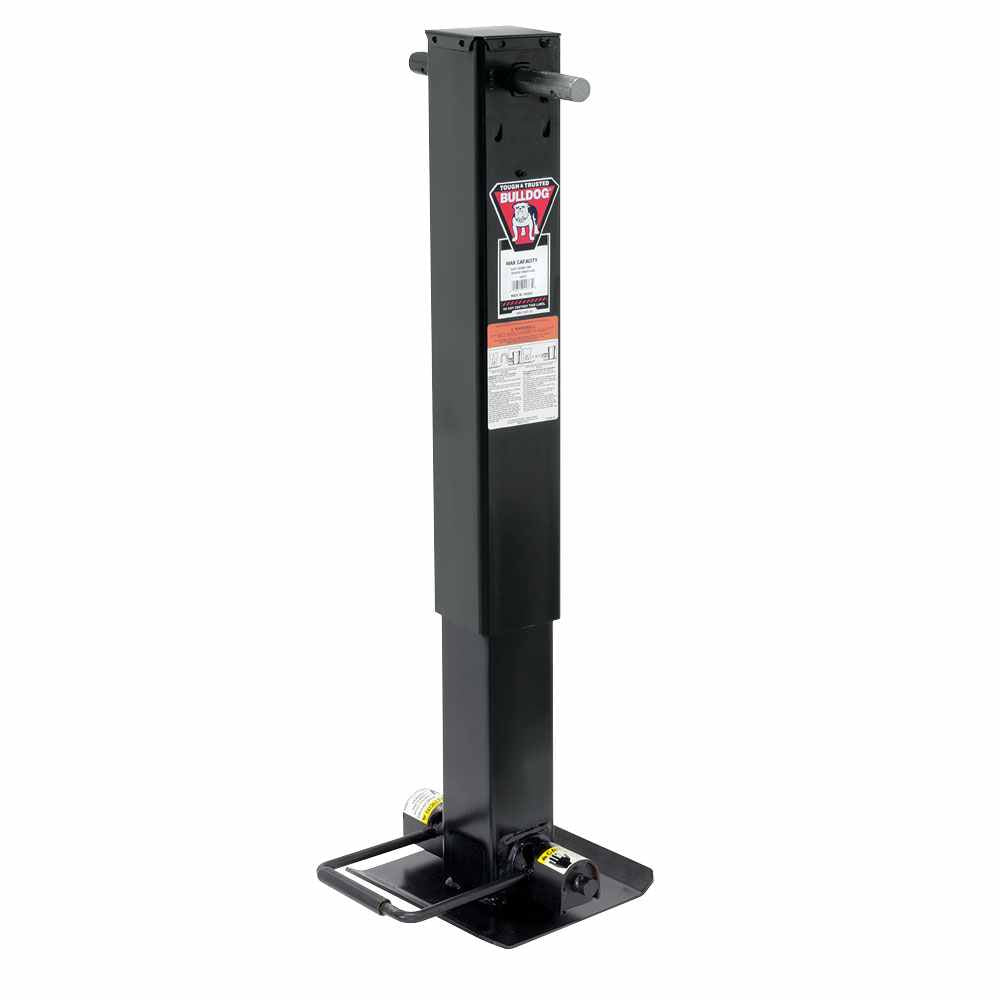

QTY (4): Twin Cam™ HD Square Trailer Jack (25,000 lb Support Capacity, Sidewind, 12-1/2" Travel)
- 12,500 lb lift capacity
- Industry’s strongest Drop Leg Jack with Twin Cam™ action for full pin control
- Patented screw stop to prevent screw/nut damage when fully extended
- Sidewind handle with 12.5" screw travel
- Spring-return drop leg for fast retraction
- Ideal for heavy-duty agricultural, construction, and industrial trailers
Always verify compatibility with your trailer’s original equipment and perform routine maintenance—grease the screw, inspect the drop leg pins, and ensure proper mounting before each use.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 25000 LB Static Capacity |
| Jack Lifting Load Capacity | 12500 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.5 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
