Bulldog 4x 8K Square Trailer Jack w/ Sidewind Handle and 15" Lift
$651.99

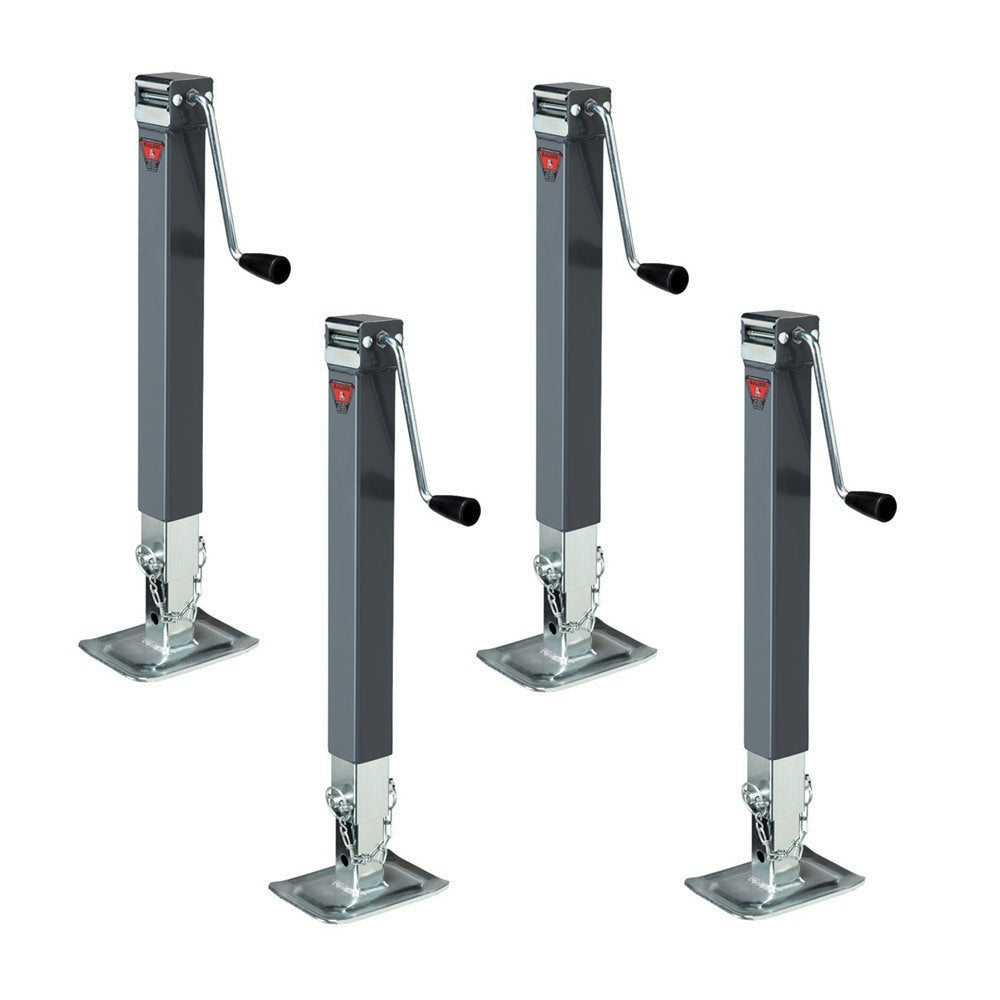

4-Pack Bulldog 8,000 lb Square Sidewind Trailer Jacks – 15″ Lift
Equip your trailers with reliable support and smooth operation using this Bulldog 4-pack of 8,000 lb capacity square sidewind jacks. With a sturdy welded footplate and 15″ of lift travel, these jacks are ideal for heavy-duty agricultural, construction, horse/livestock, and utility trailers.
Bundle Contents:
-

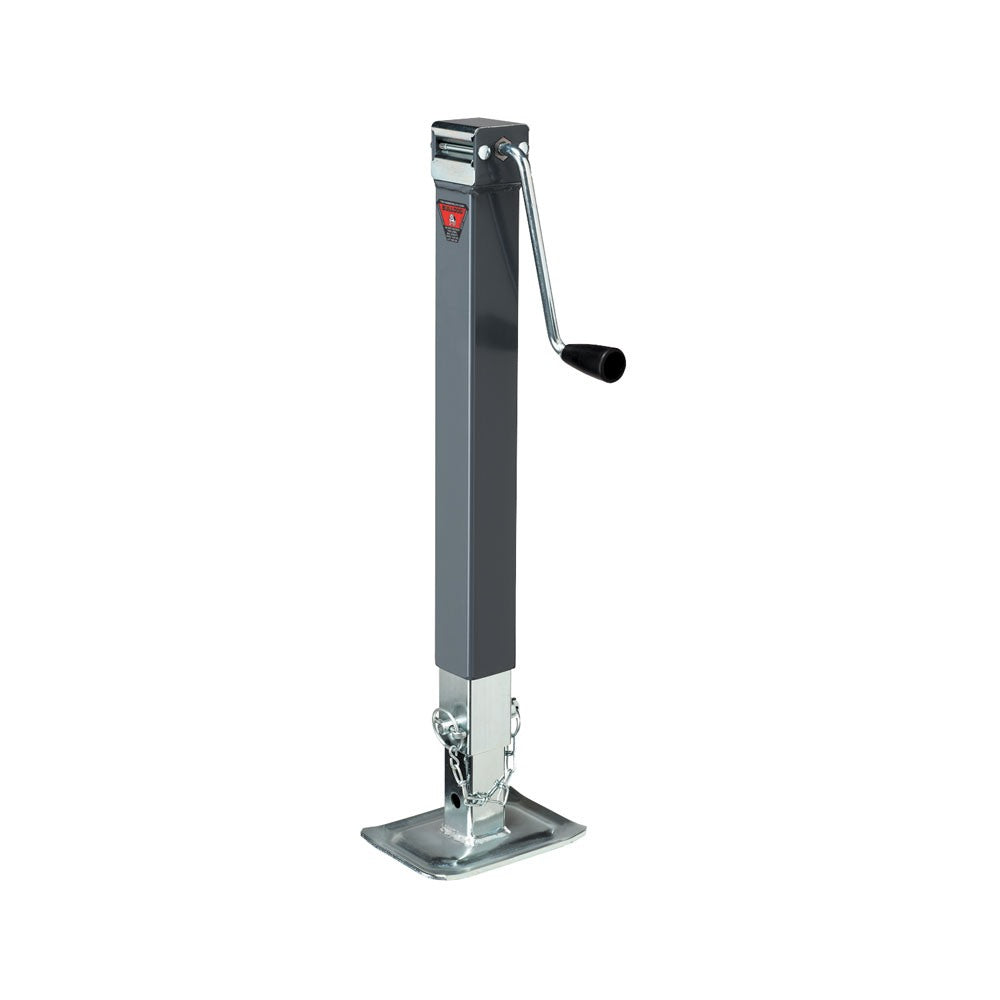

QTY (4): Bulldog Square Trailer Jack, 8,000 lb, Sidewind
- 15″ lift travel; weld-on mounting (no bracket included)
- Durable gray powdercoat finish with zinc-plated inner tube
- 4.7″ overlap for optimal side-load performance
- 5/8″ screw stem with patented nut stop to prevent damage
- Sidewind handle with 1:1.33 gear ratio for easy cranking
- Footplate base and non-spring drop leg for stable support
- 2.5″ outer tube diameter; square profile for maximum strength
Always verify your trailer’s bracket dimensions and perform regular maintenance—lubricate moving parts and inspect hardware—to ensure dependable operation.
| Specifications: | |
|---|---|
| Weight Capacity | 7,001–8,000 lb |
| Static Load Capacity | 8,000 lb |
| Lift Capacity | 5,000 lb |
| Lift Mechanism | Sidewind Handle Crank (1:1.33 ratio) |
| Travel Range | 15″ Lift |
| Mounting Style | Direct Weld HD Jack |
| Foot Type | Footplate |
| Leg Style | Drop Leg, Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.5″ |
| Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 25.06″ |
| Bracket-to-Bottom Clearance (Extended) | 53.56″ |
| Bracket-to-Top Clearance | User-Configurable |
| Finish | Gray Powdercoat |
Order today or call us at 877-869-6690 for expert advice and personalized service.
