Bulldog 4x 8K Square Trailer Jack w/ Tubular Swivel Mount 15" Lift w/o Mating Mount
$513.99

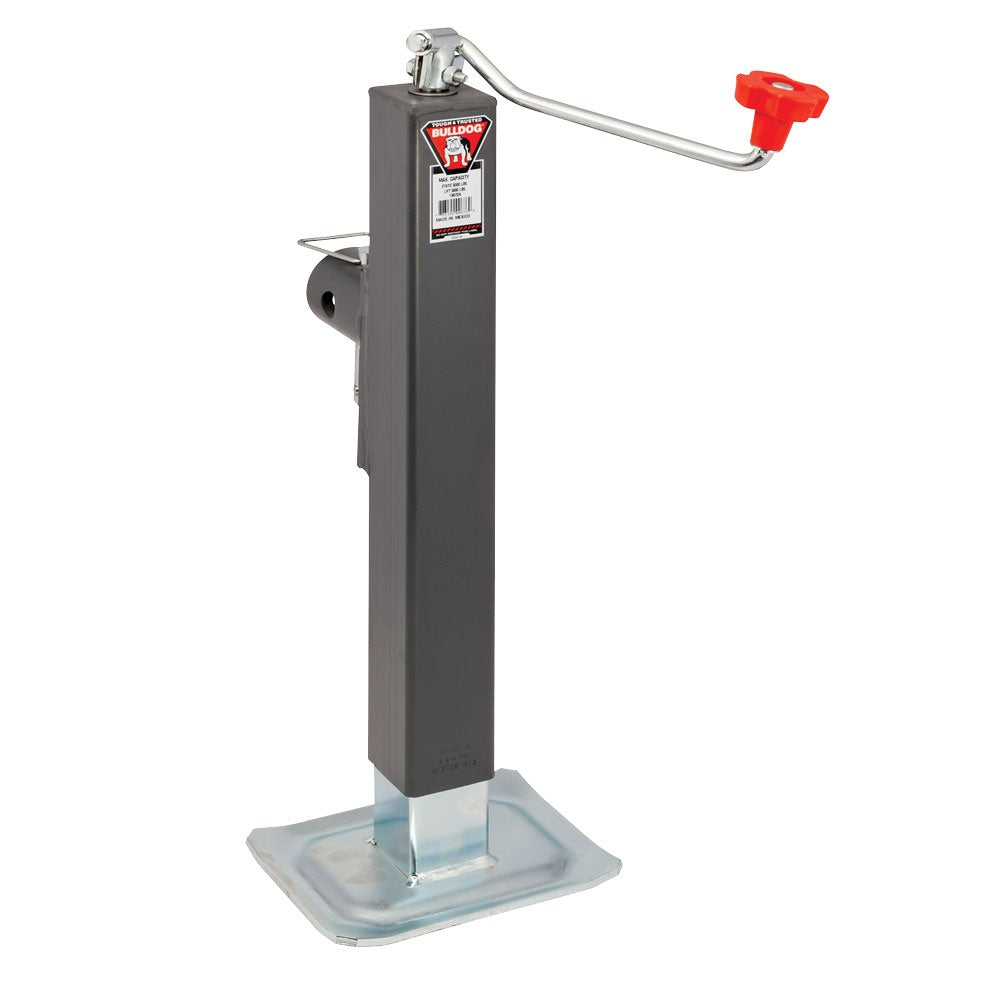

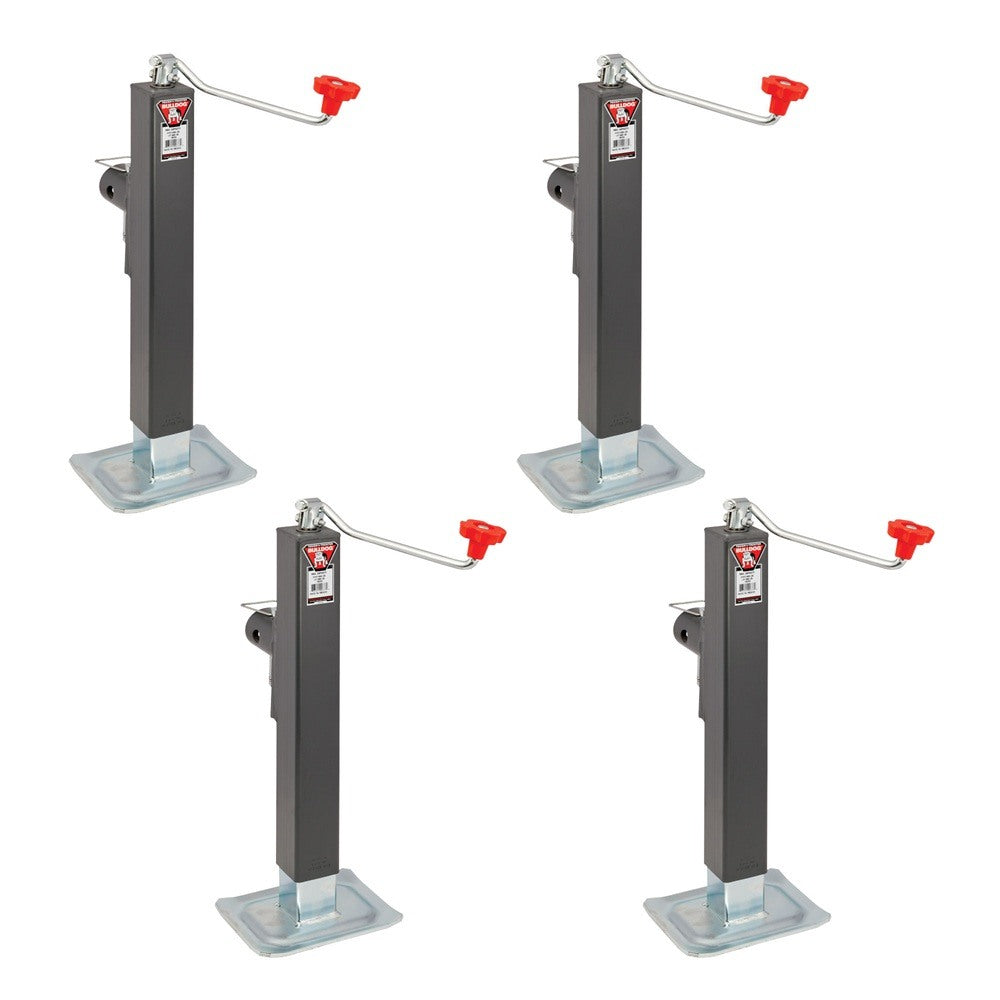

Bulldog 4-Pack 8,000 lb Square Swivel Trailer Jack – 15″ Lift
Get reliable, heavy-duty support for your agricultural, industrial, or utility trailers with this bundle of four Bulldog square swivel-mount jacks. Each jack delivers 8,000 lb static capacity and 15″ of smooth, topwind lift—ideal for tight applications where space is at a premium.
Bundle Contents:
-
QTY (4): Square Trailer Jack, Side Mount, 8,000 lbs. Support Capacity, Topwind, Weld-On, 15 Inch Travel
- Painted outer tube for use as final finish or primer
- Zinc-plated inner tube and drop leg
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem to prevent twisting under load
- Patented screw-nut stop to prevent damage when fully extended
- Topwind handle with bushing in top cap and eagle-claw grip
- 1:1.33 gear ratio for smooth operation
Before installation, verify compatibility with your trailer’s OEM mounting brackets and perform regular maintenance to ensure long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 7,001–8,000 lb |
| Mounting Style | Pipe Mount Swivel Jack |
| Jack Style | Square, Side Mount |
| Lift Mechanism | Topwind Handle Crank |
| Travel Range | 15 Inch Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 8,000 lb |
| Lifting Load Capacity | 5,000 lb |
| Foot Type | Footplate |
| Outer Tube Diameter | 2.5 Inch |
| Bracket-to-Bottom Clearance | 15.10 In (Retracted) / 30.10 In (Extended) |
| Bracket-to-Top Clearance | 7 Inch |
| Electric Lift | Non-Electric |
