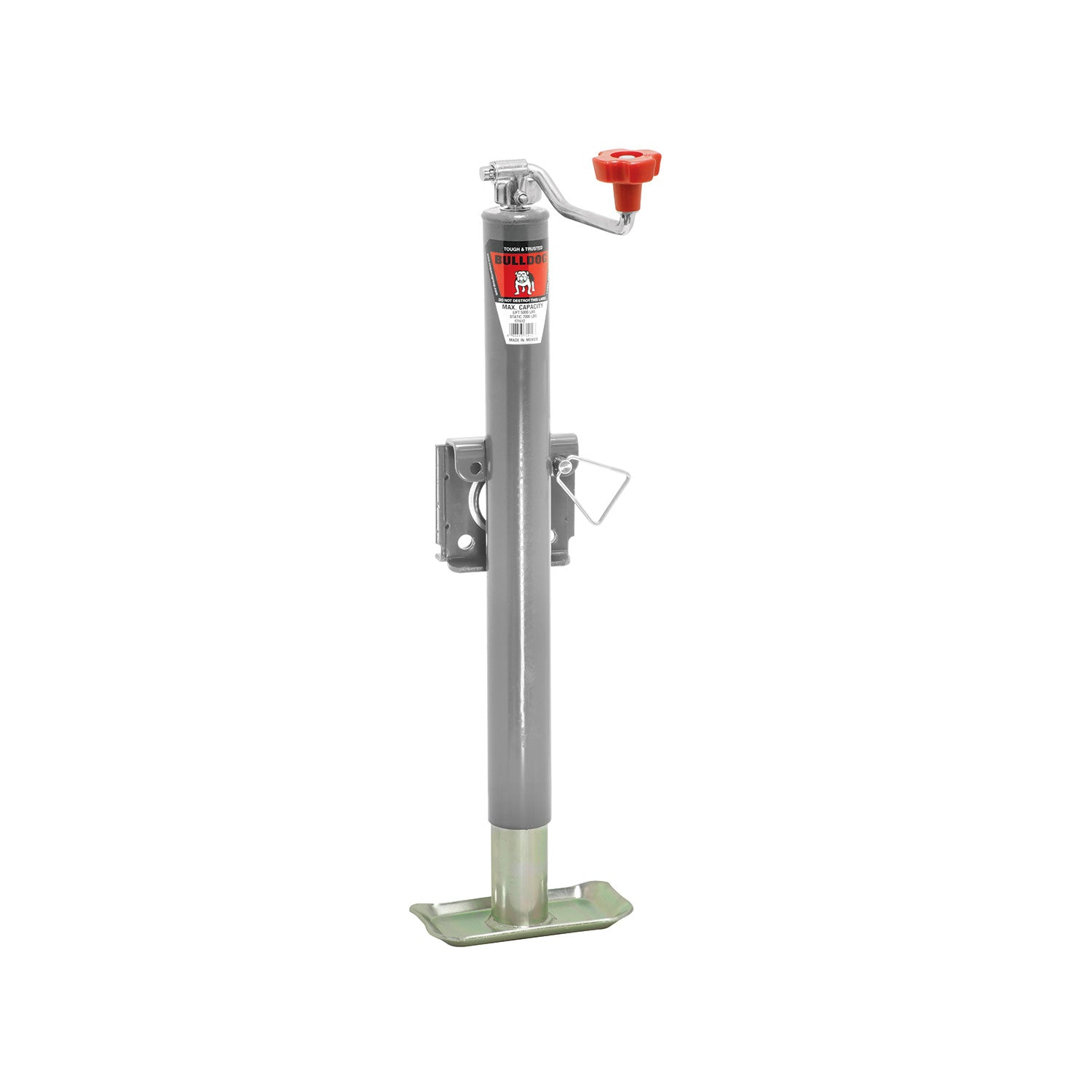

Bulldog 5000 lbs Snap Ring Swivel Trailer Jack with Footplate 15 Inch Lift Topwind 171412

$95.99

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Grey painted outer and zinc inner tubes

• Weld-on L-bend swivel bracket assembled

• Limited 5-year warranty

Specifications:

• Lift Capacity: 5,000 lbs.

• Retracted Bracket Height: 14.50" from bracket to bottom


• Extended Bracket Height: 29.50"

• Travel/Lift: 10"


• Clearance: 10" from bracket to top

• Weld-On L-bend swivel bracket assembled


• 1/2" diameter plunger pin


• Includes footplate

• Outer tube diameter: 2-1/4"

• Inner tube diameter: 2"


• Handle Radius: 6.65"
