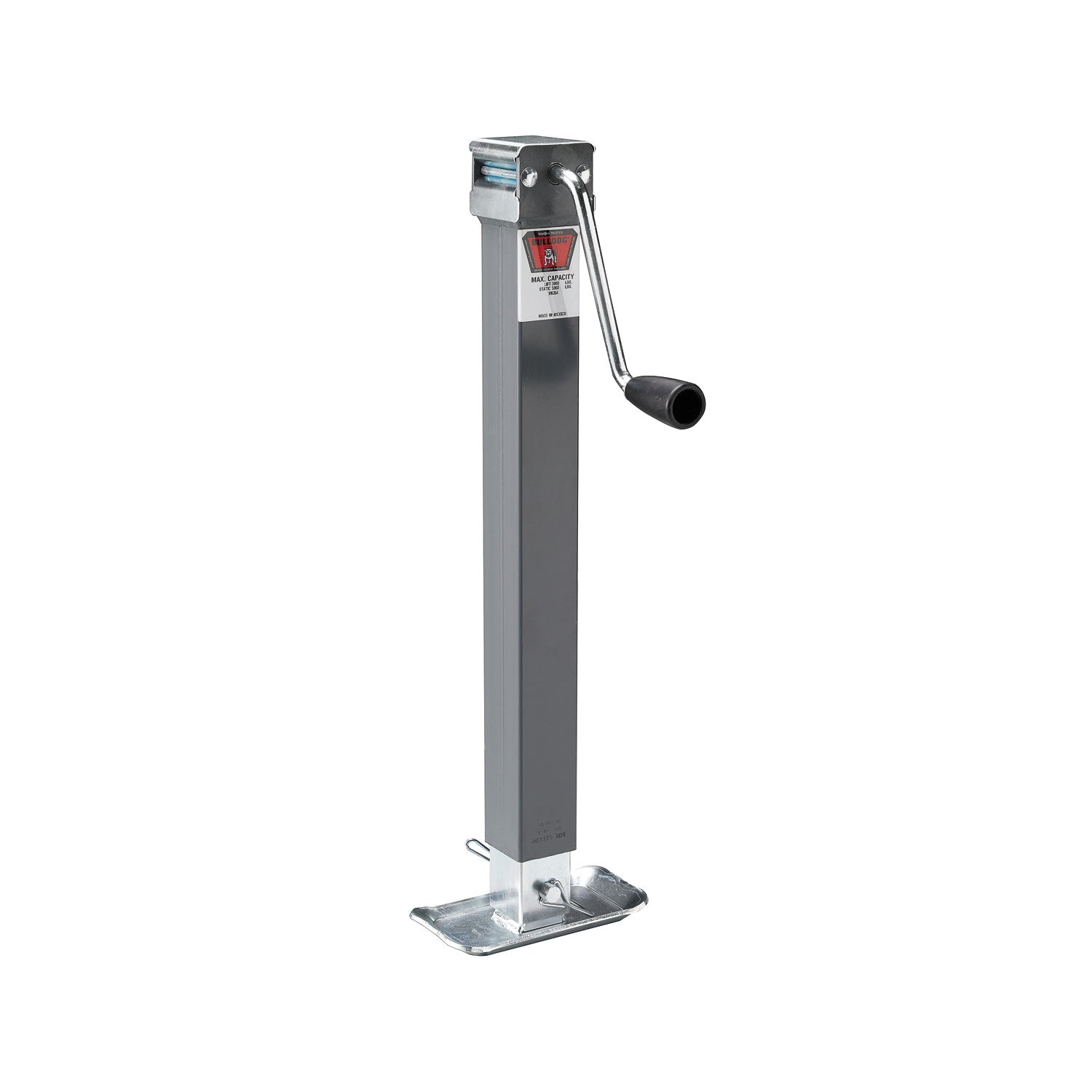

Bulldog 5000 Pound Square Trailer Jack Sidewind Handle with Drop Leg and Footplate 15 Inch Lift 195354

$118.99

SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, BULLDOG’s 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing  overall capacity.

• 12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity

• 4.62" outer tube overlap at full extension for additional side load strength


• Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes

• Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance


• Outer inner tubes overlap which results in optimal  side load performance

• Use the painted outer tube as the final finish or primer


• Limited 5-year warranty

• ASABE ASABE compliant

Specifications:

• Support Capacity: 5,000 lbs.

• Lift Capacity: 3,000 lbs.


• Retracted Bracket Height: 25.50"


• Extended Bracket Height: 54.10"

• Travel/Lift: 15"


• This Jack is intended to be welded on directly onto your application


• Drop Leg w/ Footplate (Drop Leg offers 13.50" of additional adjustment)


• Handle Radius: 6.5"

• Sidewind model

• 2-1/4" Tubing width
