Bulldog 50000 Pound Twin Cam Electric Landing Gear Set with Spring Return Drop Legs and Manual Override Crank 183750 182701 1824200100 CS730300 1400920383

Tandem 2-Speed Twin Cam Trailer Jacks

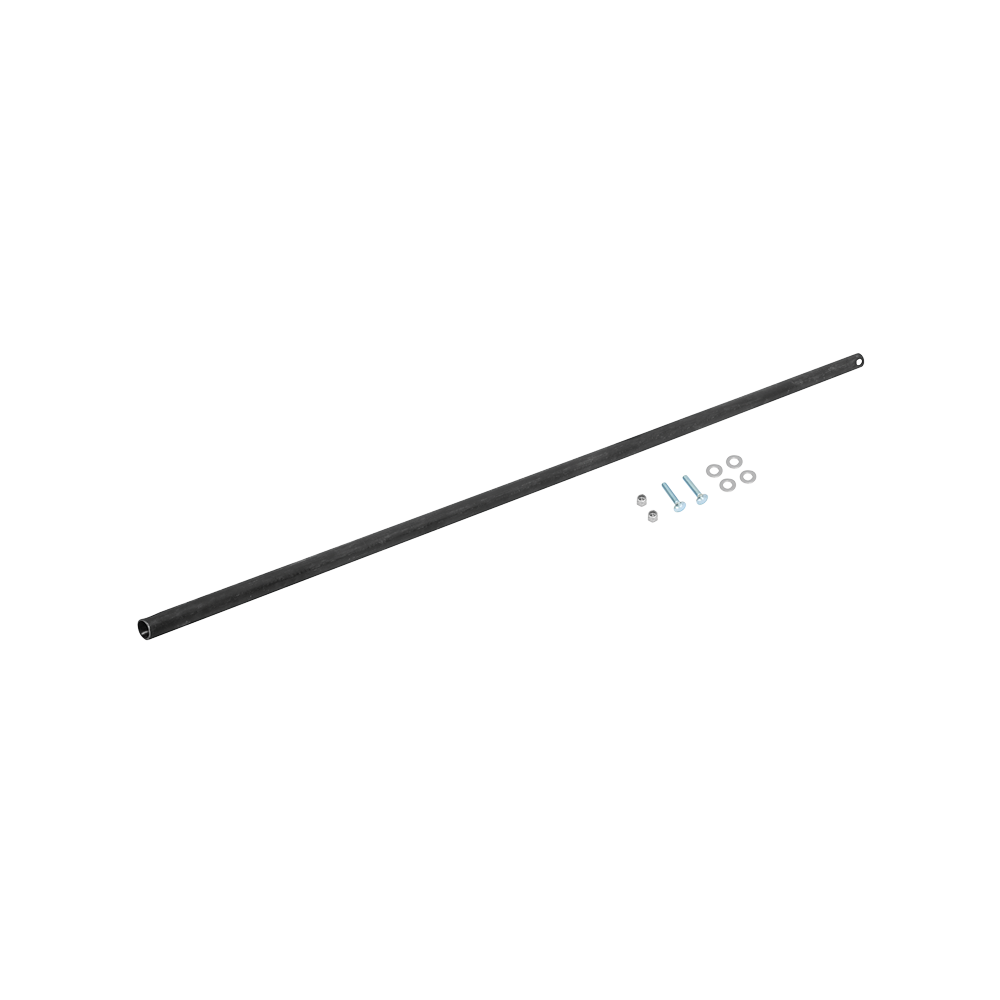

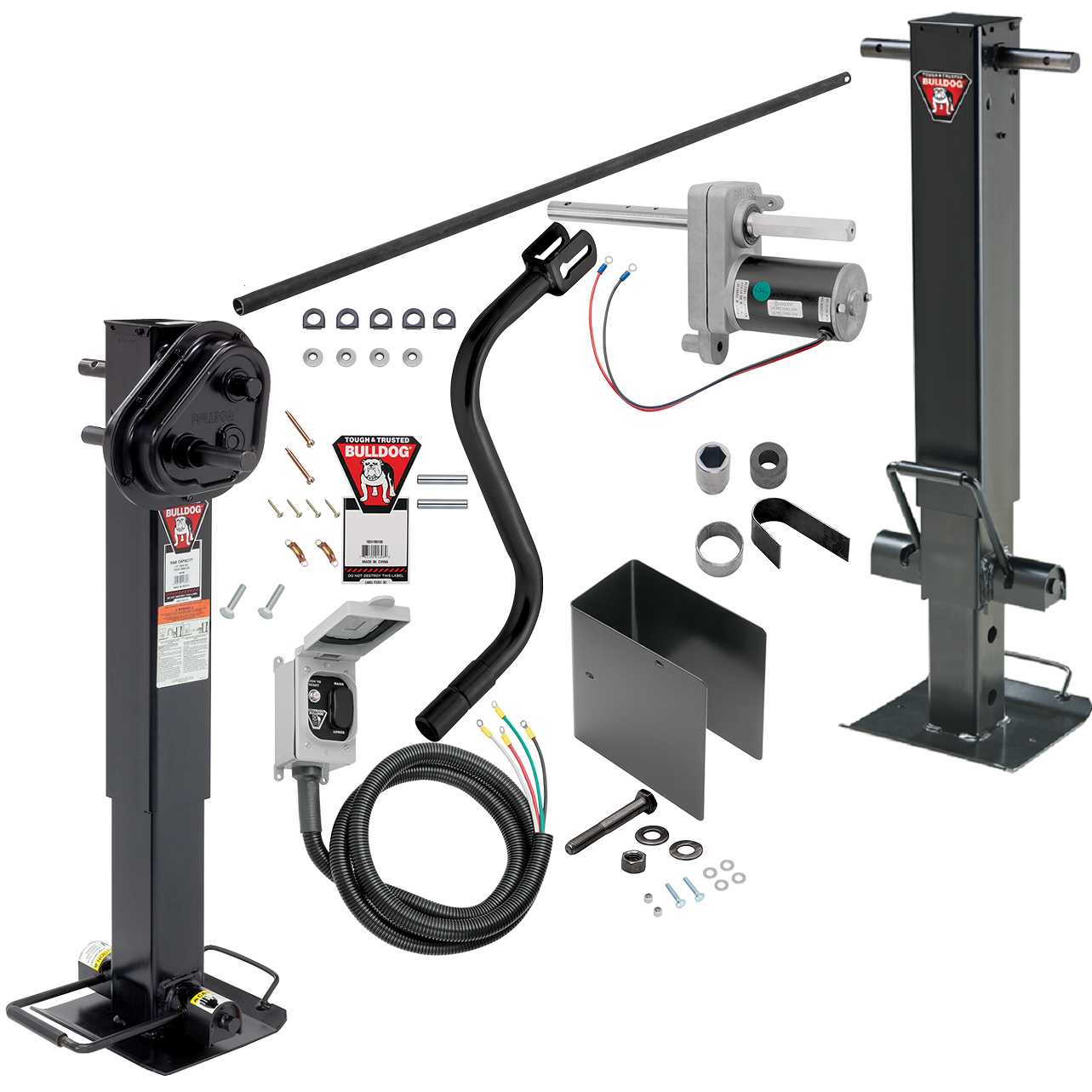

Introducing our premier trailer jack bundle, featuring the Bulldog Twin Cam Trailer Jacks - 183750 (2-Speed) and 182701, connected via a crossdrive crosshaft CS730300 and enhanced by the Bulldog electric motor kit 1824200100. This comprehensive setup provides an optimal solution for a wide range of trailers, ensuring effortless operation and unmatched performance.

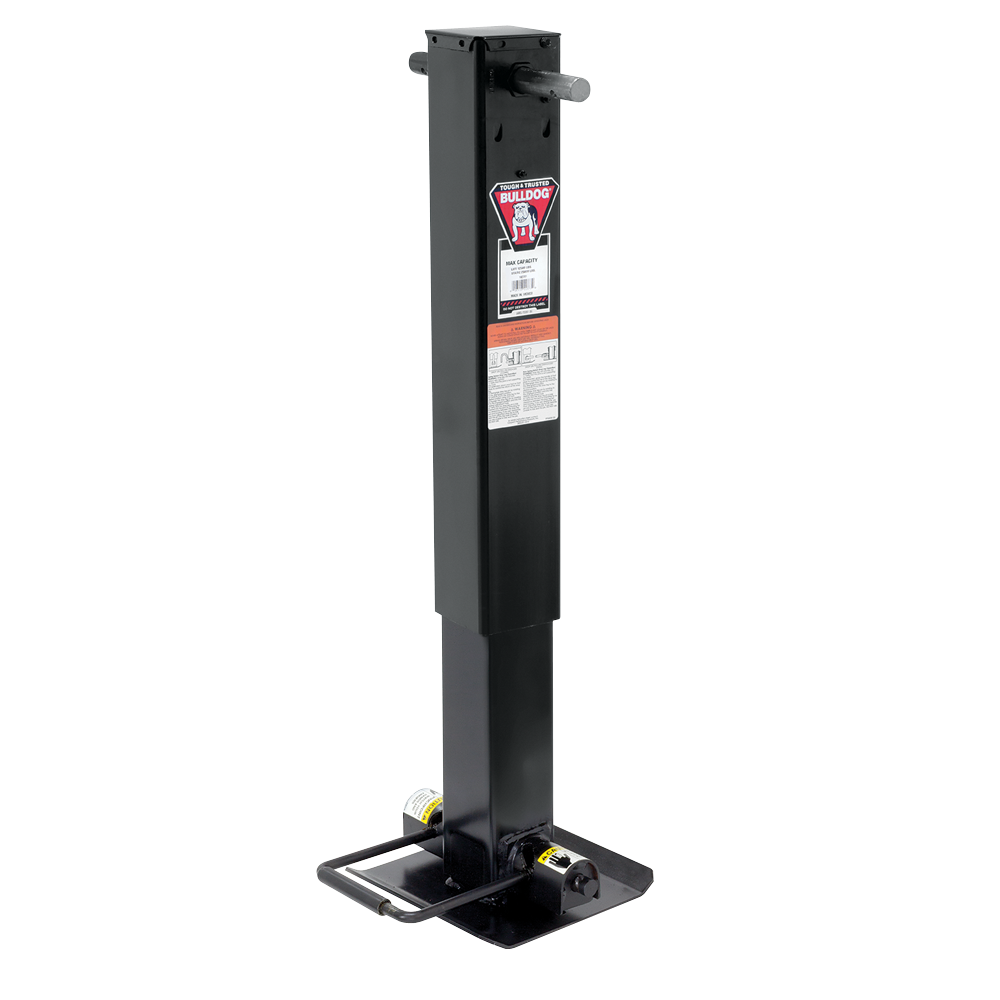

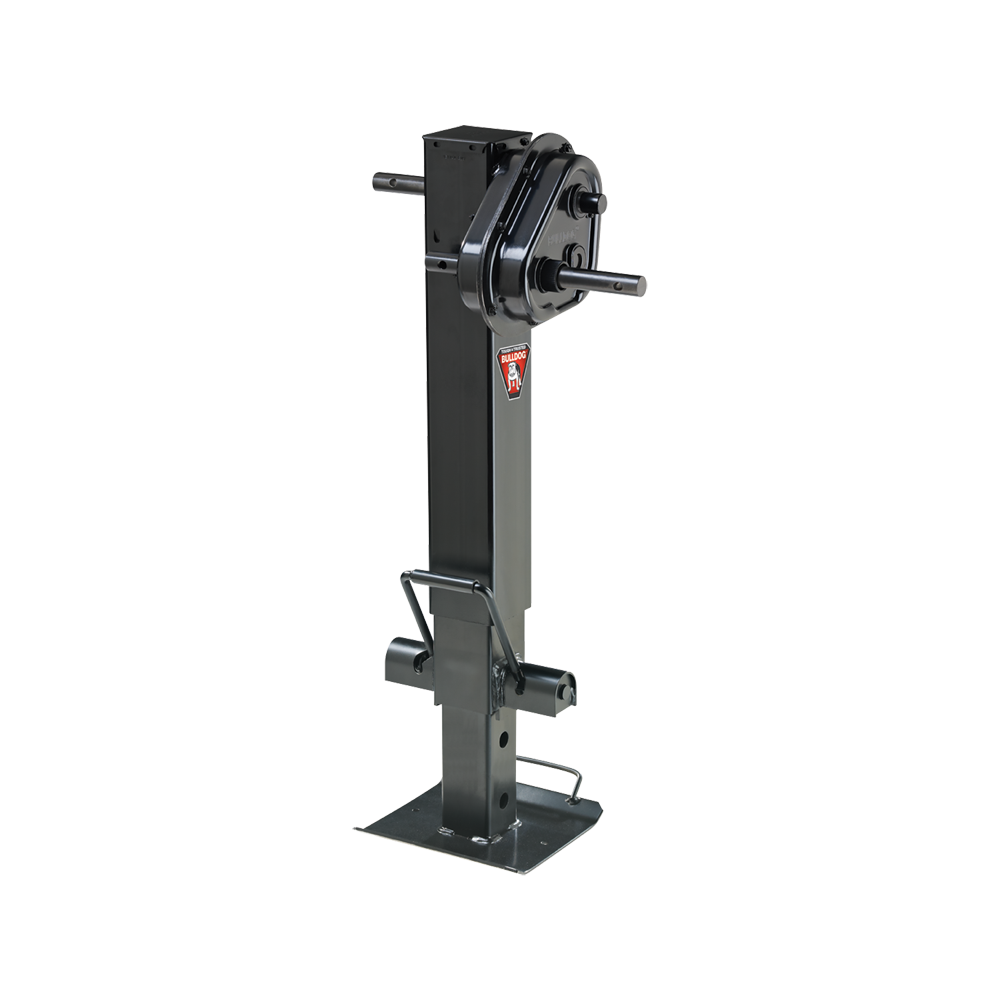

Bulldog Twin Cam Trailer Jack 2-Pack - 183750 (2-Speed) and 182701 with Spring Return Drop Leg:

The Bulldog Twin Cam Trailer Jacks - 183750 (2-Speed) and 182701 are engineered from durable steel with a stylish black finish. They offer a significant lifting capacity of 45,000 lbs, a static support capacity of 50,000 lbs, and an enhanced electric lift capacity of 15,000 lbs, designed to meet the demands of your most challenging tasks.

Key Features:

• Advanced Twin Cam Drop Leg Mechanism for improved static capacity and control.
• Enclosed mechanism protects against debris for smooth operation.
• Seamless tandem operation via crosshaft, synchronized with an electric motor.
• 2-Speed functionality provides efficient lifting across different conditions.
• Manual Override ensures reliability during power outages.
• Installation note: The electric motor needs to be installed on the companion jack for optimal operation.

Added Convenience with 2-Speed Functionality:

• Quick adjustment with spring return drop leg for efficiency and convenience.
• High-Speed and Low-Speed Ratios for versatile lifting capabilities.

Landing Gear Technical Specifications:

• Bracket Height: 27-1/2" (Retracted), 53-1/2" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Leg: 13-1/2"
• Combined Manual Lift Capacity: 45,000 lbs
• Combined Electric Lift Capacity: 15,000 lbs
• Combined Static Support Capacity: 50,000 lbs
• 2-Speed Gearbox: Low Gear - 1" every 29 turns; High Gear - 1" every 9 turns
• Footplate Dimensions: 10" long x 10" wide
• Outer Tube Dimensions: Width - 4"; Material - 7-gauge steel

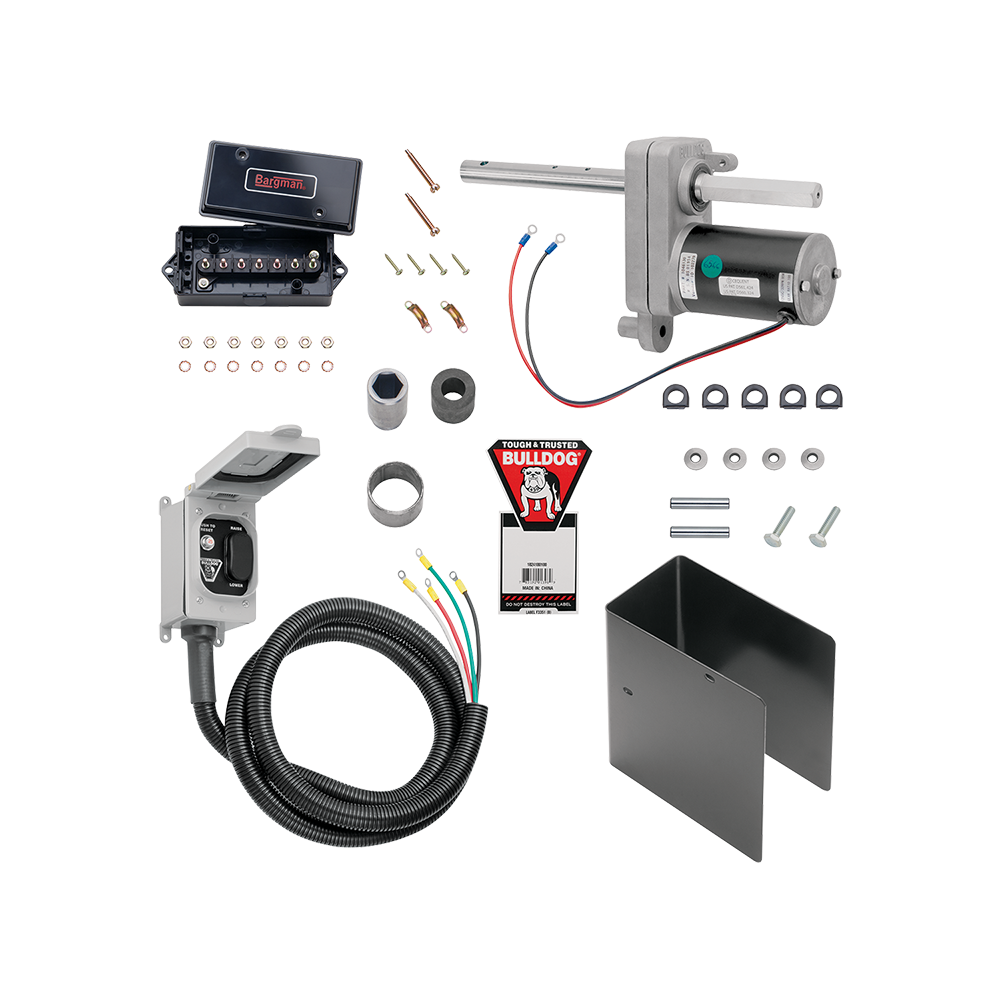

Bulldog Electric Motor Powered-Drive Kit - 1824200100:

Maximize your jack's functionality with the Bulldog Electric Motor Kit for quiet, efficient operations, ideal for heavy-duty trailers, with an electric lift capacity of 7,500 lbs per jack.

Features:

• Designed for faster lifting and compatibility with single-speed jacks.
• Compact design facilitates quiet operation and efficient power usage.
• Manual operation option available in case of power loss.

Installation Note:

For synchronized operation, the electric motor must be installed on the companion jack. This ensures seamless functionality across both jacks.

Choose the Tandem 2-Speed Twin Cam Bulldog Trailer Jacks for unparalleled performance. Contact us at 877-869-6690 to upgrade your trailer's capabilities, backed by a comprehensive 5-year warranty.
