Bulldog 50K Electric Leveling Dual Motor Landing Gear Set Spring Return Trailer Jacks Tandem Electric Motors Manual Override Crank 182701X2 1824200100X2 1400920383

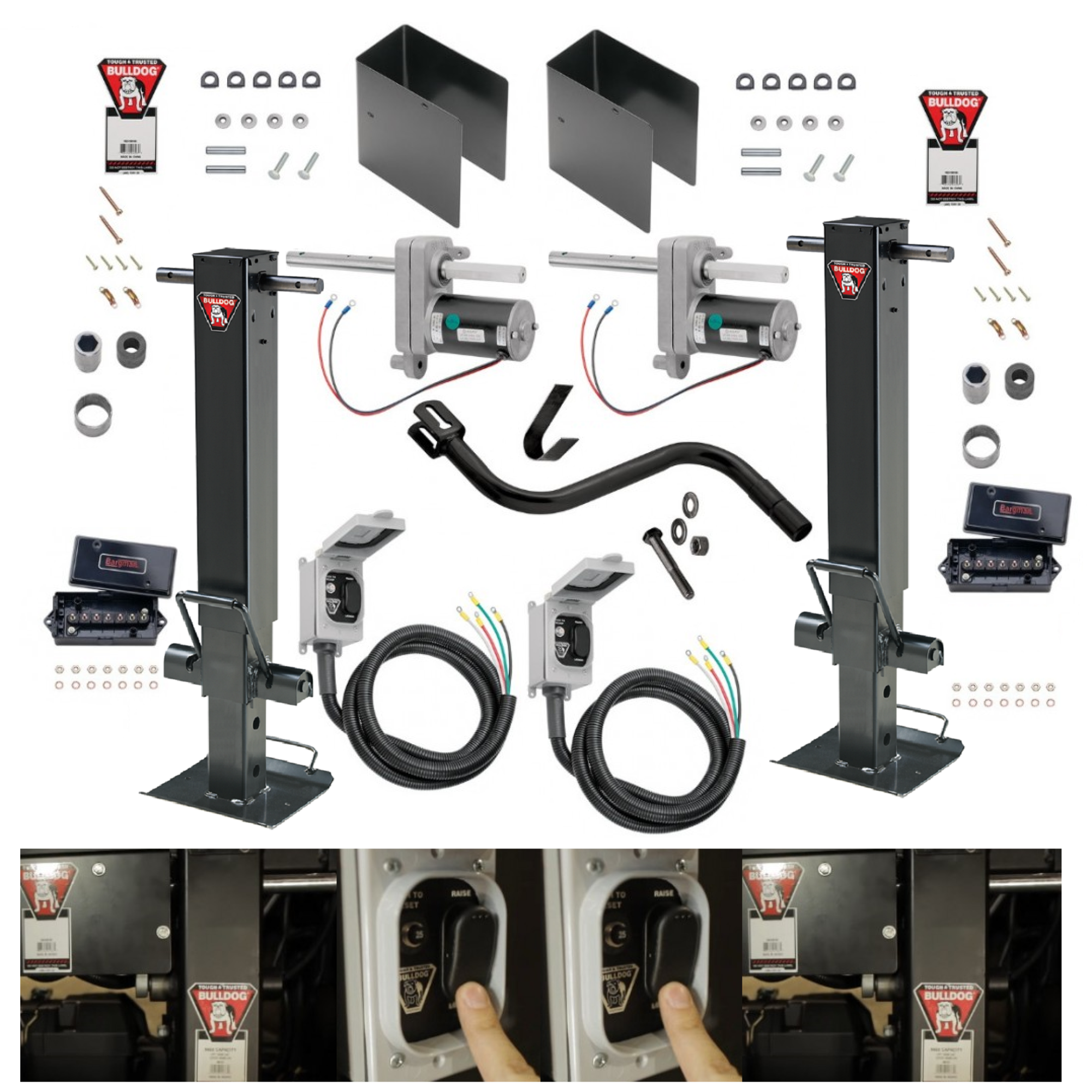

Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!

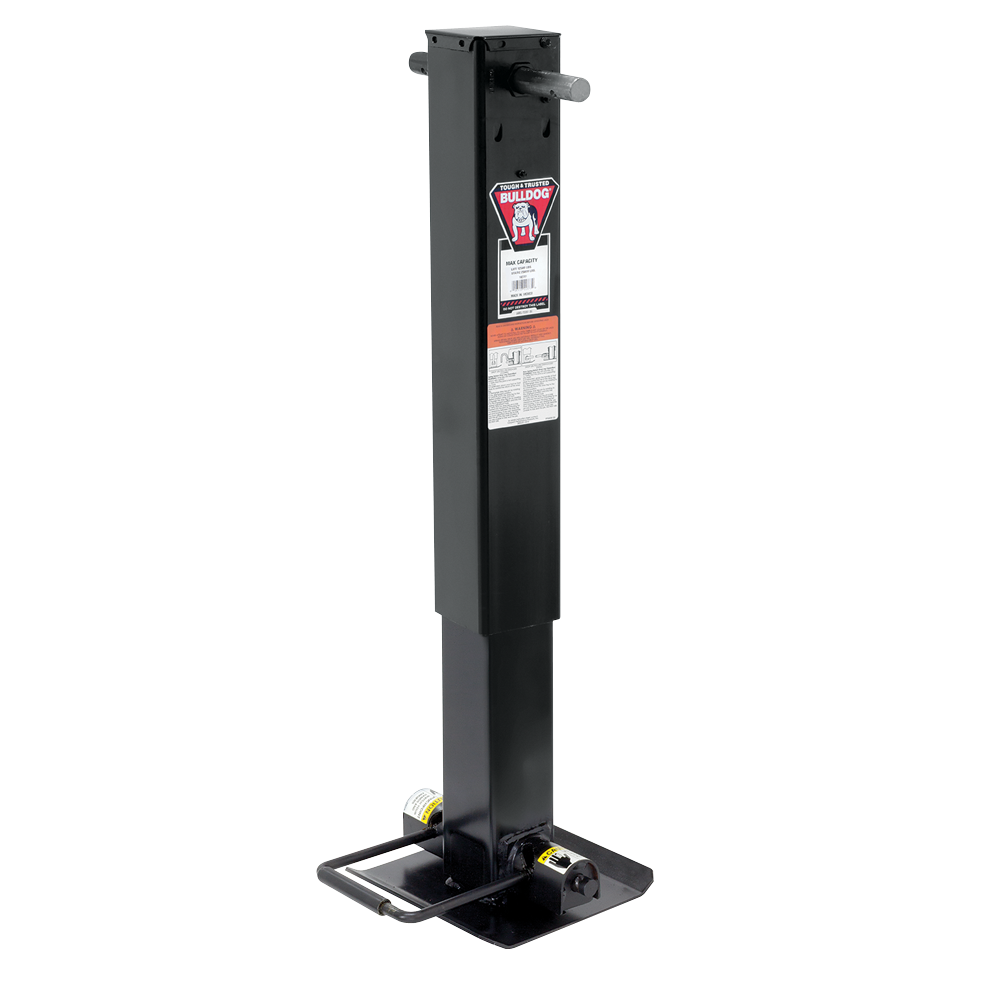

Introducing the Bulldog Twin Cam Landing Gear 2-Pack (182701), each featuring a Spring Return Drop Leg, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). This bundle is designed to meet the varied needs of trailers such as gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, enhancing your experience with added convenience and a Manual Override Crank.

Please Note: Each jack has a separate motor requiring individual switches for optimal operation, although both motors can be connected to the same battery.

Key Features:

• Twin Cam Drop Leg Mechanism for enhanced vertical static capacity.
• Enclosed Twin Cam to protect against dirt and debris.

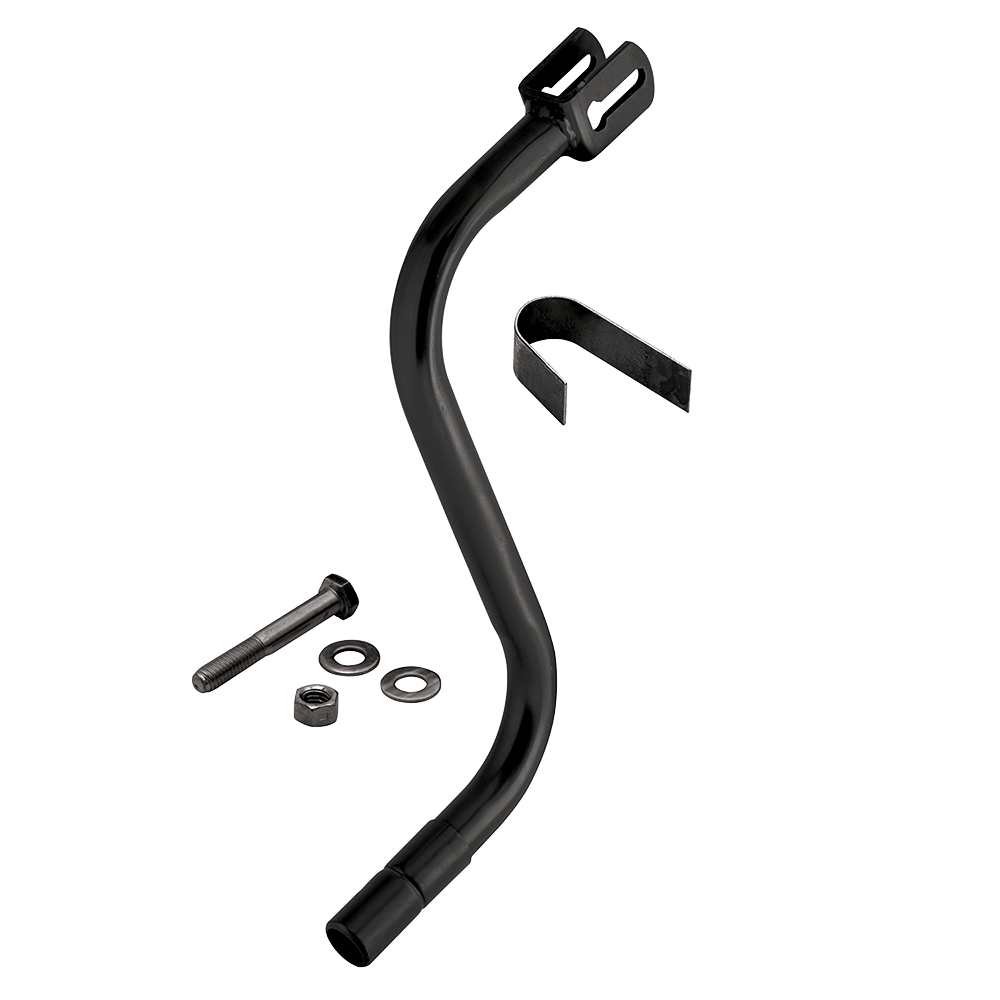

• Manual Operation Option with override cranks for emergencies.
• Grease Fittings for easy maintenance.
• Screw Stop Technology to prevent damage and extend longevity.
• Serviceability with easy access to internal components.
• Adjustable drop legs with five positions for 13.5" of adjustment.
• Heavy-Duty Steel Footplates for stability.
• Durable Input Shafts with a robust 1" diameter.
• Spring Return Drop Legs for added convenience and adjustability.

Experience effortless drop leg retraction with Spring-Actuated Drop Legs, eliminating manual lifting.

ASABE S485 Compliant: Bulldog products adhere to high-quality standards for reliability.

Technical Specifications:

• Bracket Height: 27-1/2" (Retracted) to 53-1/2" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Legs: 13-1/2"
• Manual Lift Capacity: 12,500 lbs per Jack, 25,000 lbs total
• Electric Lift Capacity: 7,500 lbs per Jack, 15,000 lbs total with Motor Kits
• Static Capacity: 25,000 lbs per Jack, 50,000 lbs total
• Footplate Dimensions: 10" x 10"
• Warranty: 5-year

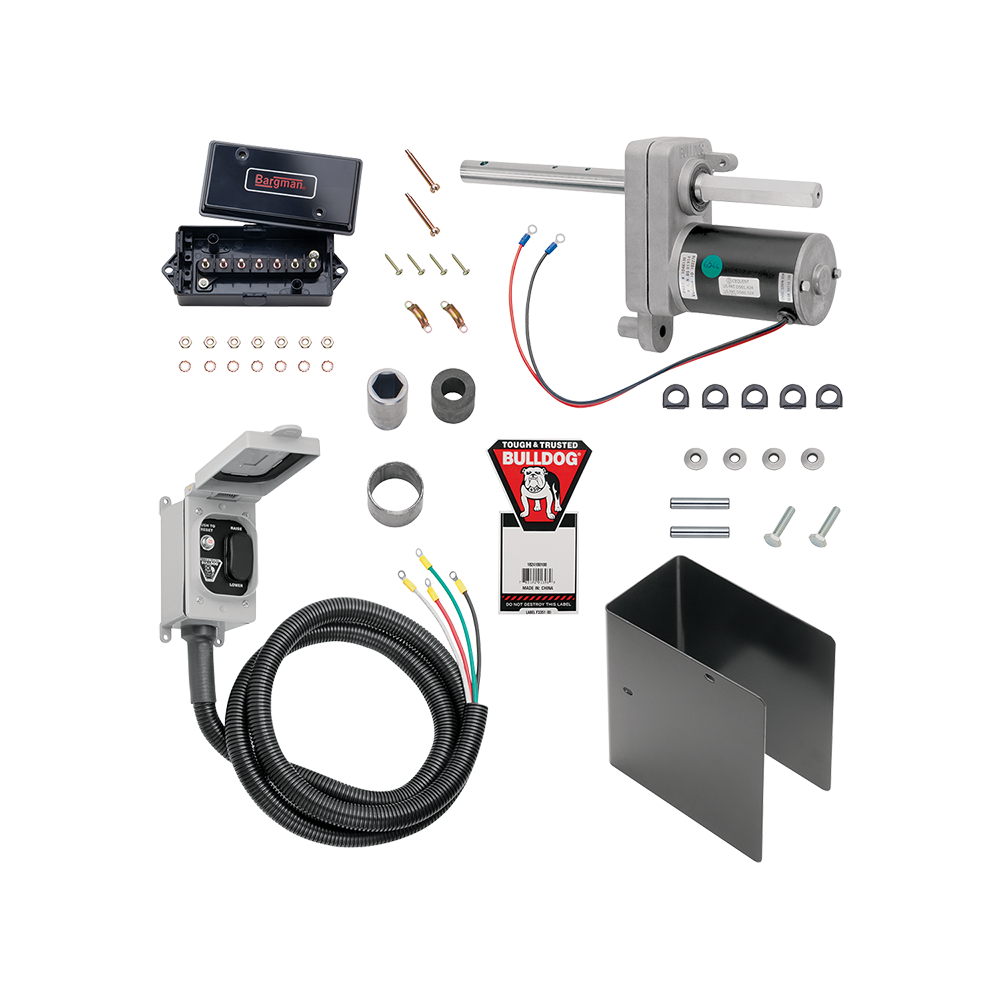

Bulldog Electric Motor Powered-Drive Kit 2-Pack:

• Faster, easier lifting with Bulldog jacks.
• Suitable for Bulldog Single-Speed Landing Gears.
• Ideal for heavy-duty trailers.
• Compact, quiet, and efficient design.
• Maintenance-free with weatherproof construction.
• Manual operation option available for power outages.

Motor Kit Specifications:

• 12 volt DC motor power.
• Electric Lift Capacity: 7,500 lbs per motor, 15,000 lbs total.
• Designed for Bulldog Single-Speed Landing Gears.
• Dimensions: 16-1/2" long x 3-1/8" wide x 7-3/16" tall.
• 5-year limited warranty.

For an efficient, reliable lifting solution, upgrade today with our Bulldog Landing Gear and Leveling Jacks Bundle. Contact us at 877-869-6690 to order and achieve superior performance and peace of mind with your trailer operations.
