Bulldog 50K Electric Leveling Dual Motor Landing Gear Set Trailer Jacks Manual Override Crank Tandem Electric Motors 182700X2 1824200100X2 1400920383

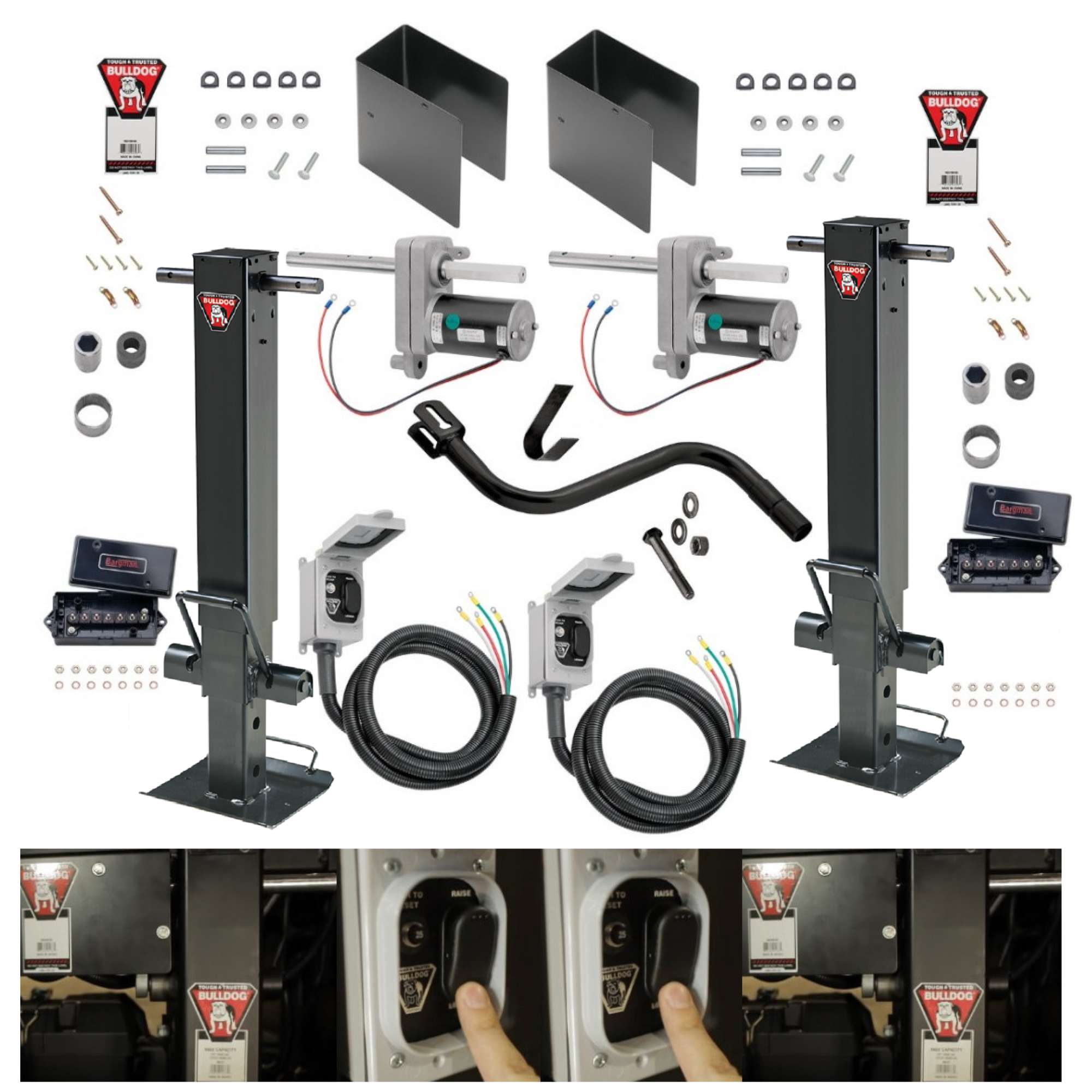

Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!

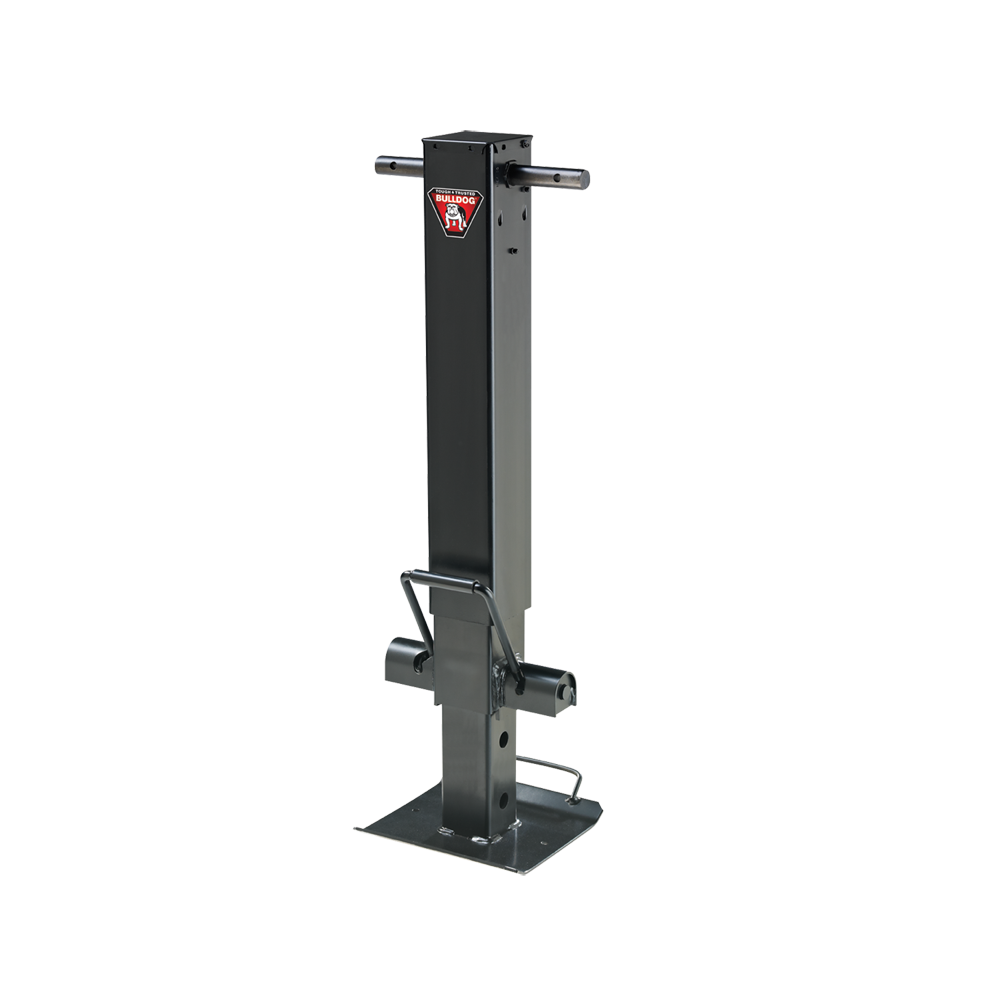

Introducing the Bulldog Twin Cam Landing Gear 2-Pack (182700) featuring Non-Spring Return Drop Legs, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). Designed for a broad range of trailers including gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, this bundle is the epitome of strength and efficiency. A Manual Override Crank is included for added convenience.

Note: Each jack has its own motor, requiring separate switches for operation, though they can share a battery.

Key Features:

• Twin Cam Drop Leg Mechanism enhances vertical static capacity with dual ¾" pins.
• Enclosed Twin Cam mechanism keeps out dirt and debris.

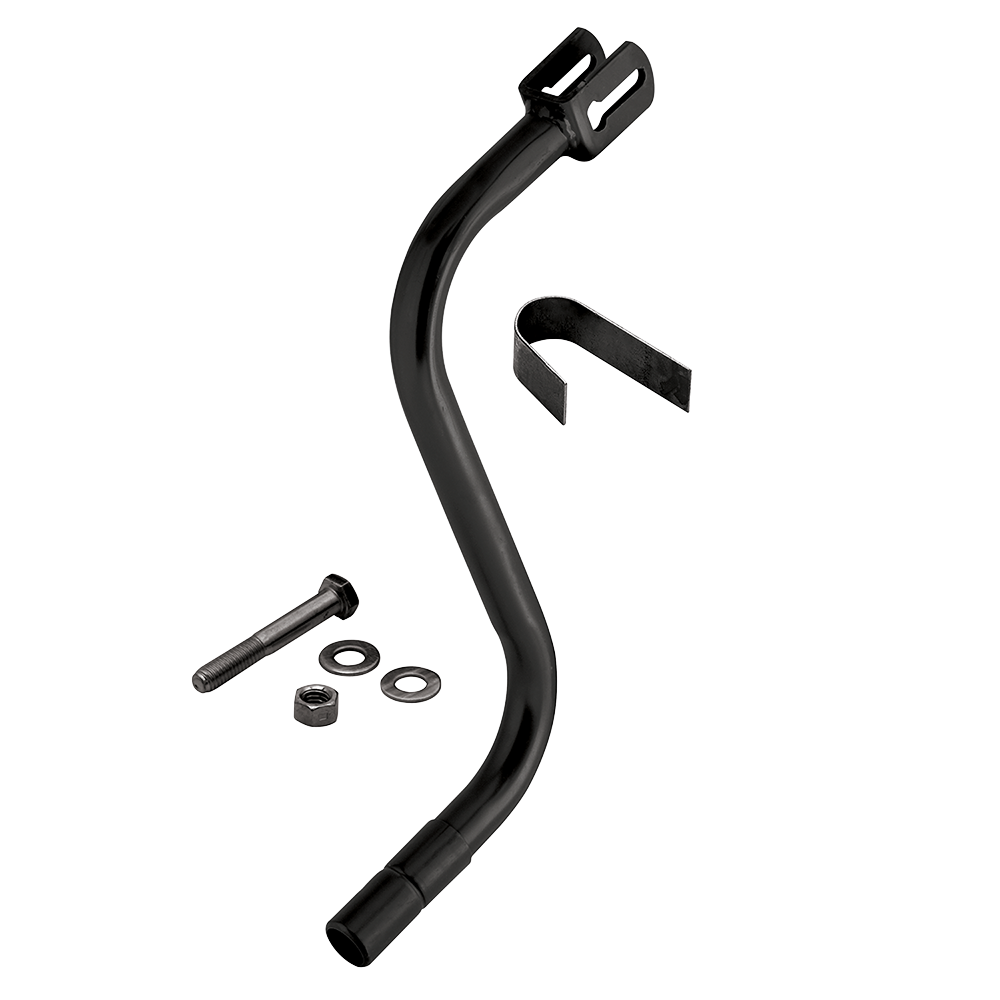

• Manual Override Cranks provided for power outages.
• Grease Fittings for easy maintenance.
• Screw Stop Technology protects against damage.
• Adjustable Drop Legs offer 13.5" of adjustment across five positions.
• 10" x 10" Heavy-Duty Steel Footplates ensure stability.
• Durable 1" diameter steel input shafts.
• Non-Spring Return Drop Legs for maximum adjustability.

Springless Drop Legs descend effortlessly without manual lifting.

ASABE S485 Compliant: Bulldog products meet top-tier quality and reliability standards.

Technical Specifications:

• Bracket Height: 27-1/2" (Retracted), 53-1/2" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Legs: 13-1/2"
• Manual Lift Capacity: 12,500 lbs per Jack, 25,000 lbs combined
• Electric Lift Capacity: 7,500 lbs per Jack, 15,000 lbs combined with Motor Kits
• Static Capacity: 25,000 lbs per Jack, 50,000 lbs combined
• Footplate Dimensions: 10" long x 10" wide

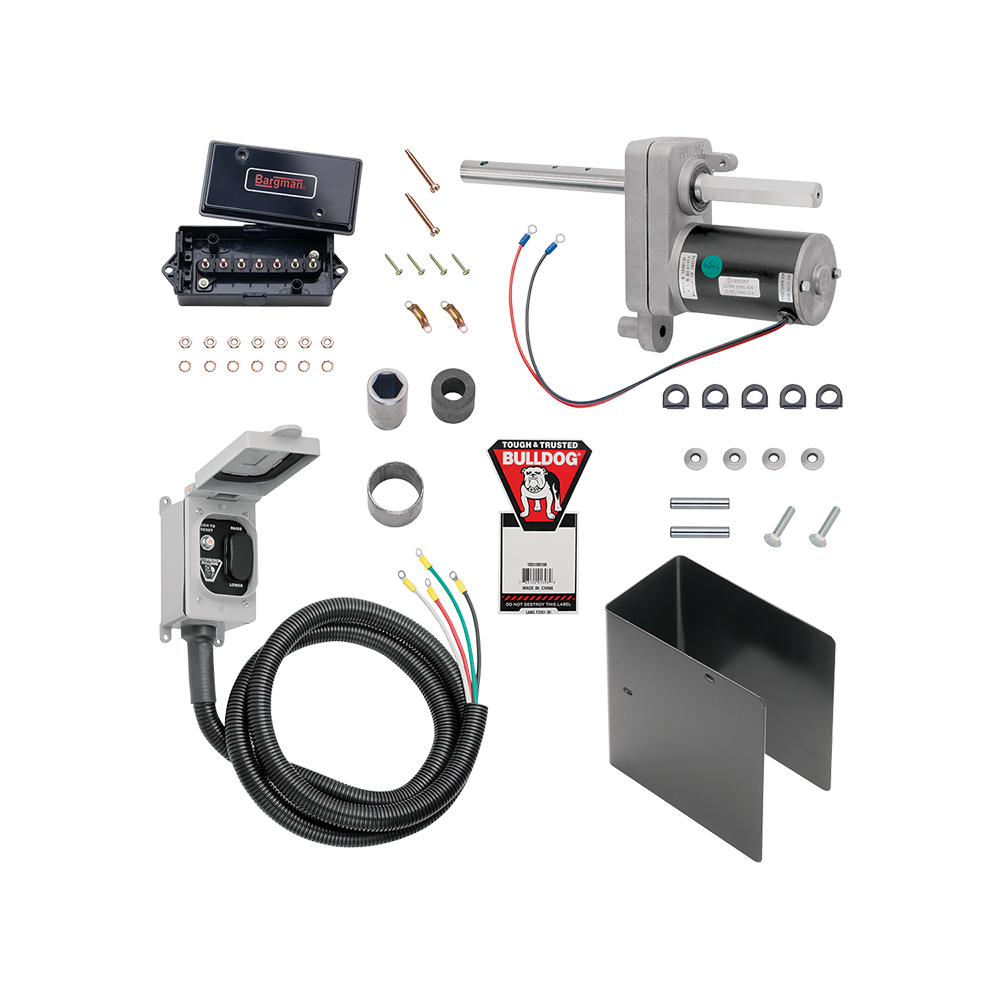

Bulldog Electric Motor Powered-Drive Kit 2-Pack:

• Enhances lifting efficiency of Bulldog jacks.
• Designed for heavy-duty trailers.
• Compact, quiet, and maintenance-free.
• Weatherproof for long-lasting performance.
• Manual operation option available.

Motor Kit Specifications:

• Motor Power: 12 volt DC
• Electric Lift Capacity: 7,500 lbs per motor, 15,000 lbs combined
• Applicable for Bulldog Single-Speed Landing Gears
• Dimensions: 16-1/2" long x 3-1/8" wide x 7-3/16" tall

Upgrade today with the Bulldog Landing Gear and Leveling Jacks Bundle for an efficient, reliable lifting solution. For inquiries or to order, call 877-869-6690.
