Bulldog 50K Twin Cam Landing Gear Dual Single Speed Trailer Jacks Spring Return Manual Override Crank Cross Shaft Tube 182701X2 CS730300 1400920383

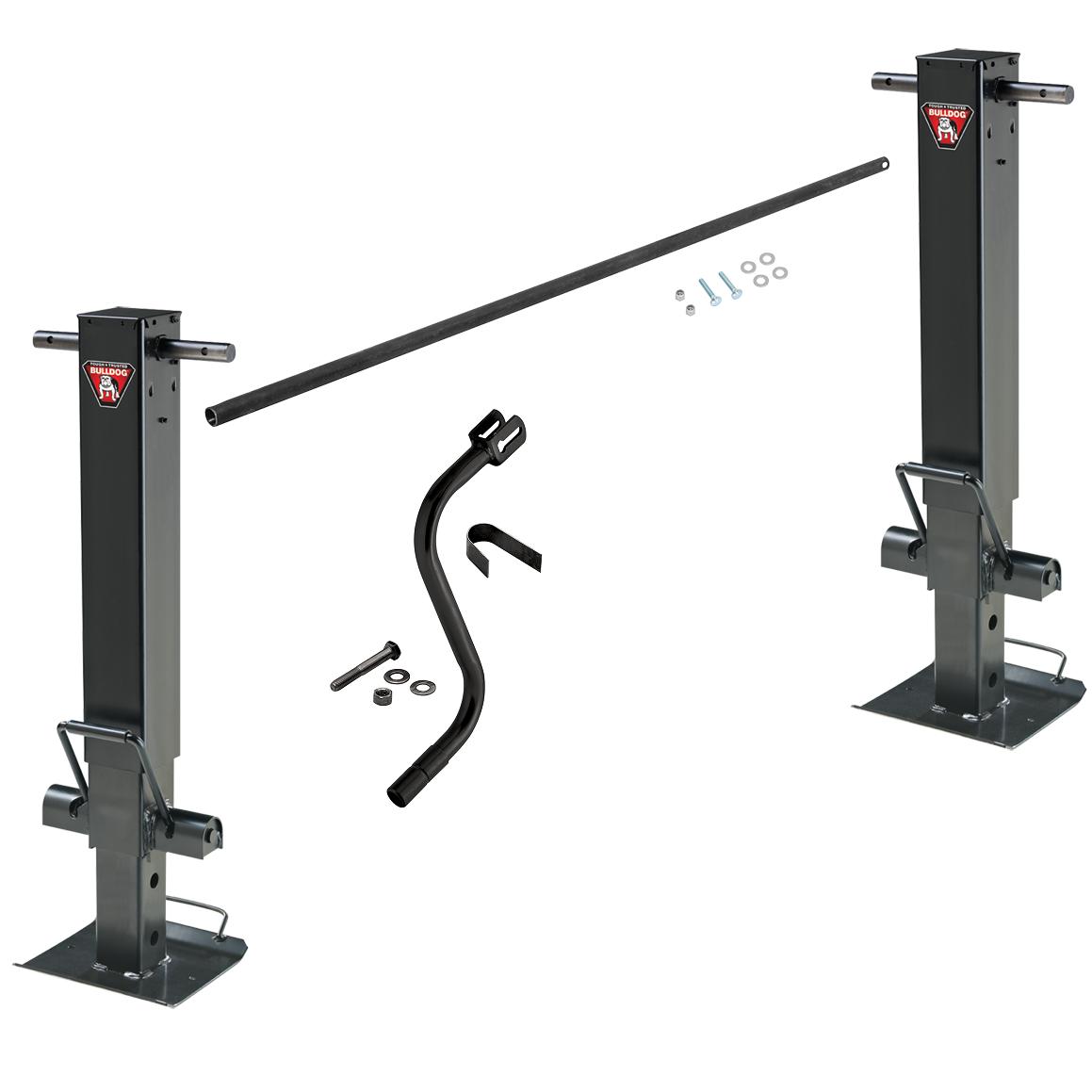

Tandem 50K Dual Bulldog Twin Cam Trailer Jacks Landing Gear with Crosshaft

Upgrade your trailer setup with our exclusive landing gear bundle, featuring two Bulldog Twin Cam Trailer Jacks (model 182701) without springs, connected via a crossdrive crosshaft (model CS730300). This powerful setup is perfect for a wide range of trailers including gooseneck, car hauler, fifth wheel, enclosed, utility, and horse trailers, offering superior convenience and performance.

Features & Benefits

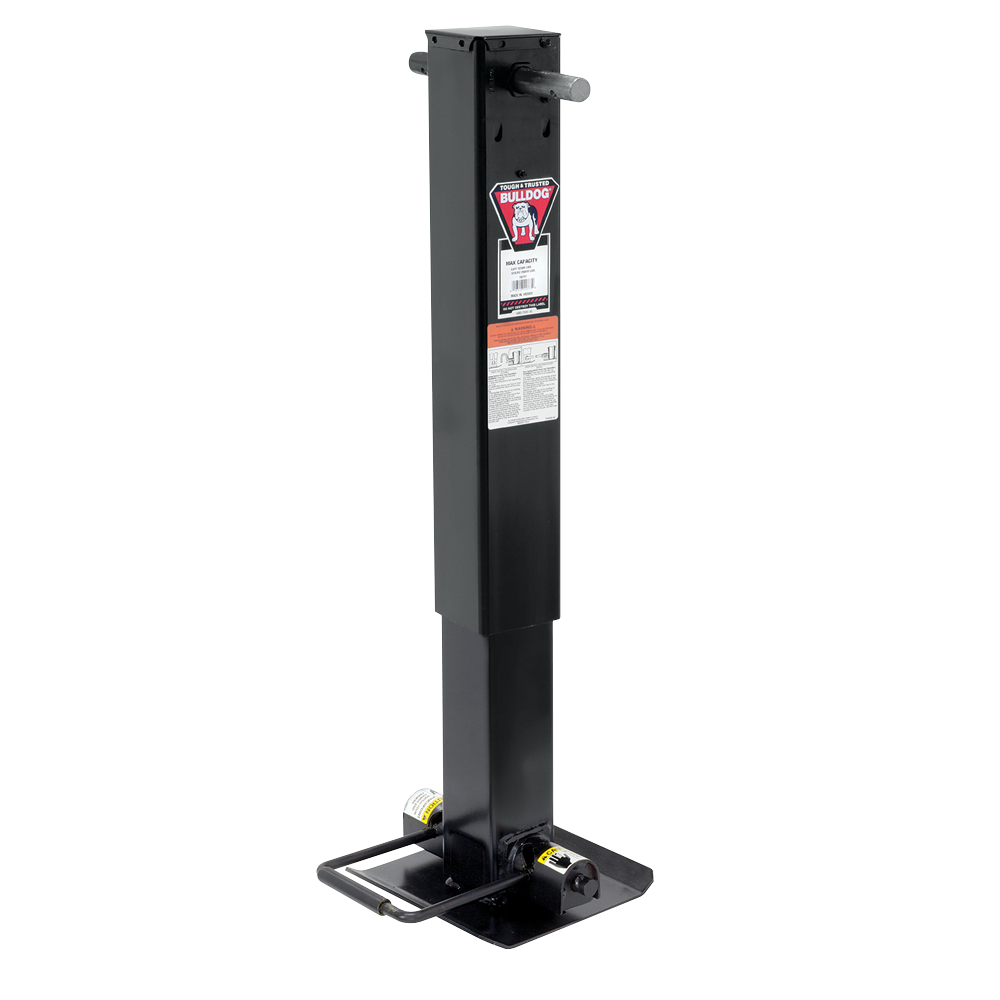

Bulldog Trailer Jack 2-Pack - 182701

These durable steel jacks, finished in sleek black, provide robust support with a lifting capacity of 25,000 lbs and a static support capacity of 50,000 lbs. Ideal for industrial and trailer equipment needs, they bring sophistication and strength to your setup.

Key Features Include:

• Twin Cam Drop Leg Mechanism for enhanced vertical static capacity and precise control.
• Enclosed Twin Cam to protect against dirt and debris.
• Tandem operation through crosshaft for single-handle operation from one side.
• Grease fittings for easy maintenance.
• Screw Stop Technology to prevent damage and extend longevity.
• Serviceability with easy access to internal components for quick servicing.
• Adjustability with five drop leg positions for 13.5" of adjustment.
• Heavy-Duty Steel Footplate for stability.
• Durable Input Shaft made of 1" diameter steel for lasting use.
• Spring Return Drop Leg for added convenience and efficiency.

ASABE S485 Compliant

Our BULLDOG products meet the ASABE S485 certification for quality and reliability.

Landing Gear Technical Specifications:

• Bracket Height: 27-1/2" (Retracted), 53-1/2" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Leg: 13-1/2"
• Manual Lift Capacity: 25,000 lbs
• Static Support Capacity: 50,000 lbs
• Footplate Dimensions: 10" x 10"
• Outer Tube Width: 4"
• Material: 7-gauge steel
• 5-year warranty for peace of mind.

Crosshaft Specifications

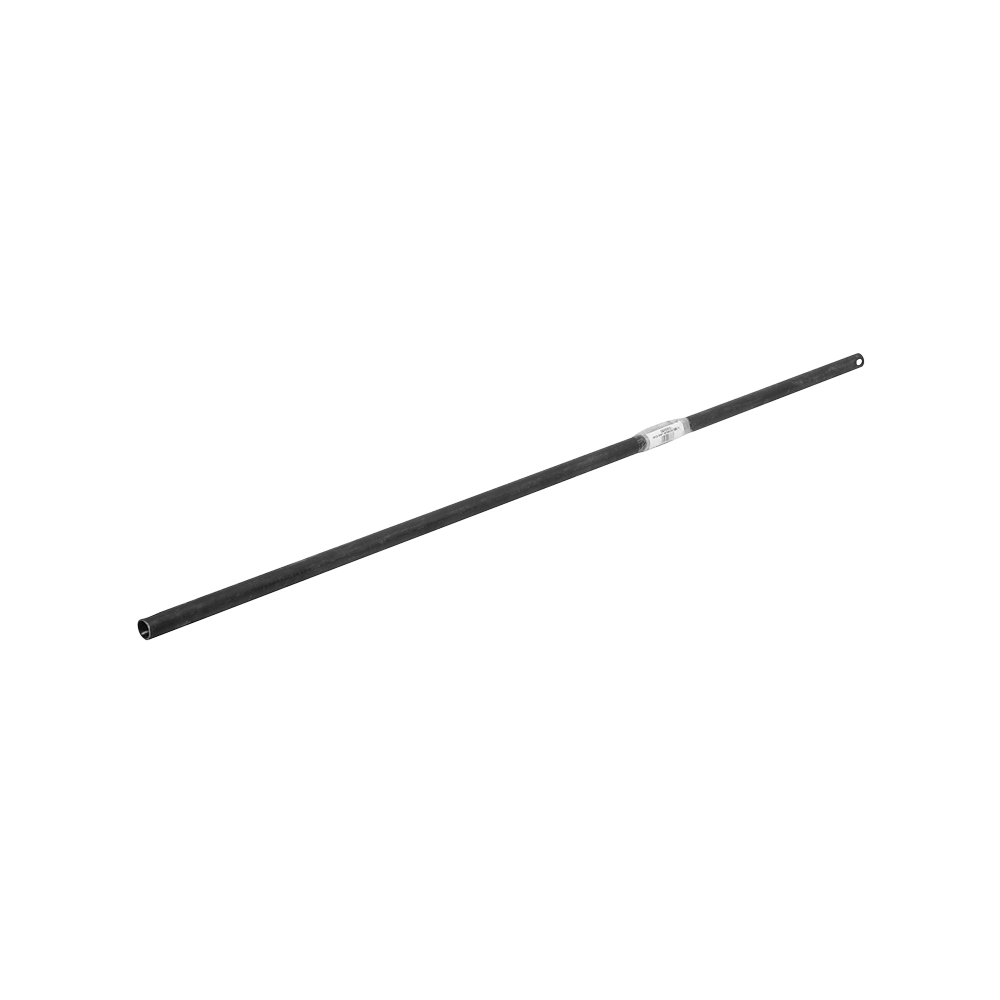

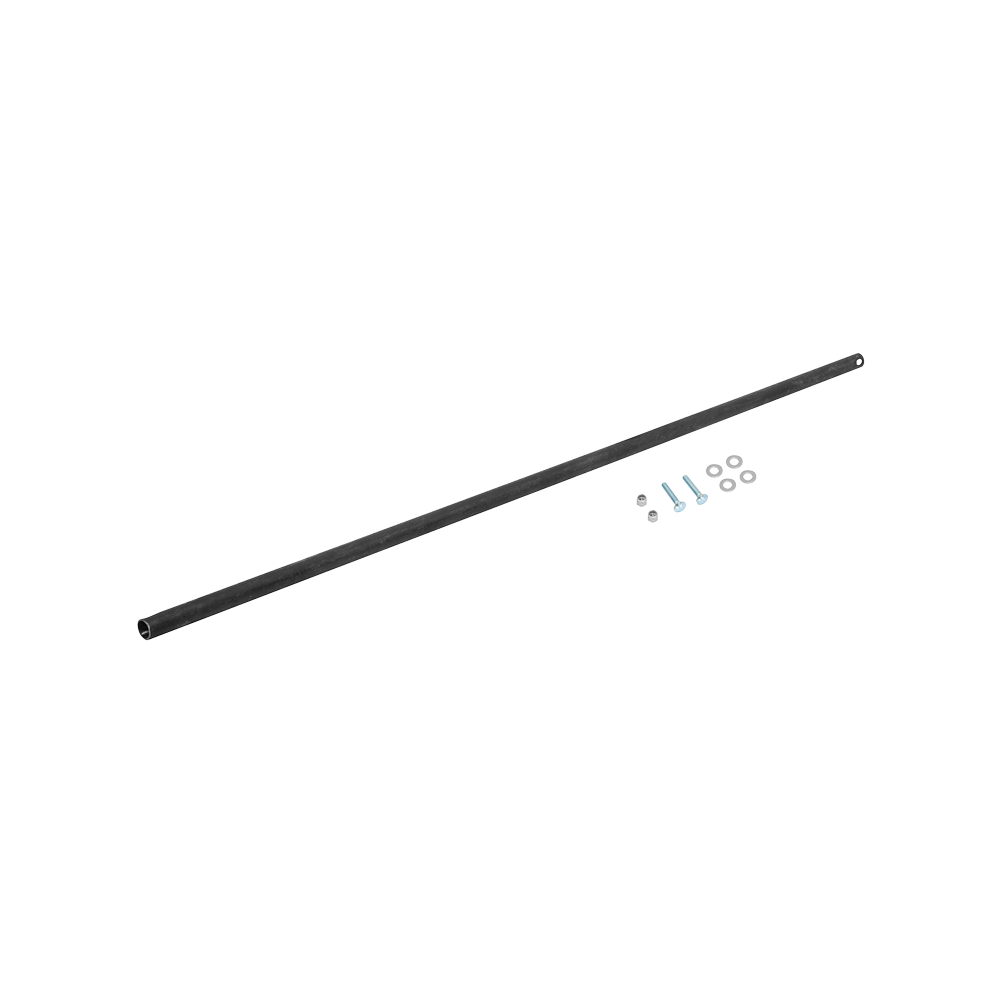

The cross shaft (72-3/4" long) with slotted ends and hardware allows tandem operation of both jacks, with customizable length to fit your needs.

For top-tier reliability and performance in your trailer operations, choose our Tandem Twin Cam Bulldog Trailer Jacks. Backed by a 5-year warranty, they set the standard in strength and durability. Call us at 877-869-6690 to upgrade your landing gear today.
