Bulldog 8000 Pound Square Drop Leg Trailer Jack Sidewind Handle with 15 Inch Lift 1907540176

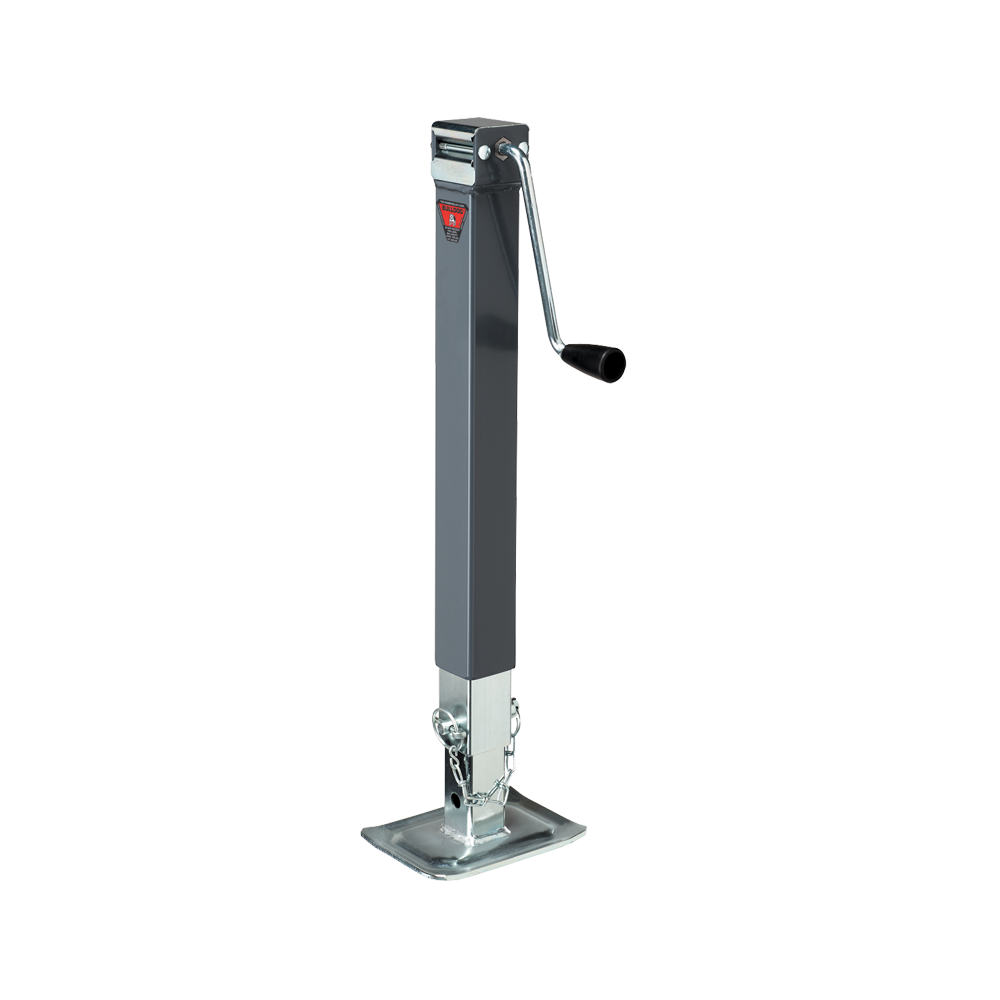

BULLDOG 8,000 lbs. Square Jack

The BULLDOG 8,000 lbs. Square Jack is engineered to meet the needs of the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. Its compact design is perfect for applications where space is at a premium, offering a robust support capacity in a more manageable size compared to traditional 3" and 4" square tube jacks.

Features:

• Painted outer tube serves as a final finish or primer, providing versatility in application.
• Zinc-plated inner tube and drop leg for corrosion resistance and durability.
• 4.7" outer/inner tube overlap ensures optimal side load performance.
• 5/8" screw stem offers additional security against twisting off.
• Patented screw nut stop prevents screw and/or nut damage when the jack is fully extended.
• Topwind models feature a bushing in top cap and eagle claw grip for easy handling.
• Sidewind models include a 1/4" cross pin that connects the gear train to the screw stem, guarding against shearing, and offer a 1:1.33 gear ratio for efficient operation.

Specifications:

• Jack Style: Direct Weld HD
• Static Capacity: 8,000 lbs; Lift Capacity: 5,000 lbs
• Lift Style: Sidewind
• Travel: 15" with a retracted height of 25.06" and an extended height of 53.56"
• Finish: Gray, providing a sleek and protective coating.
• Tubing Width: 2.5" for a sturdy and reliable support base.
• Leg: Drop Leg with 13.50" additional adjustment for versatile use.
• Foot: Heavy-duty footplate for stable support.
• Jack Shape: Square, optimized for high load performance.

For inquiries or to order, enhance your trailer's functionality with this durable and compact square jack by calling us now at 877-869-6690.
