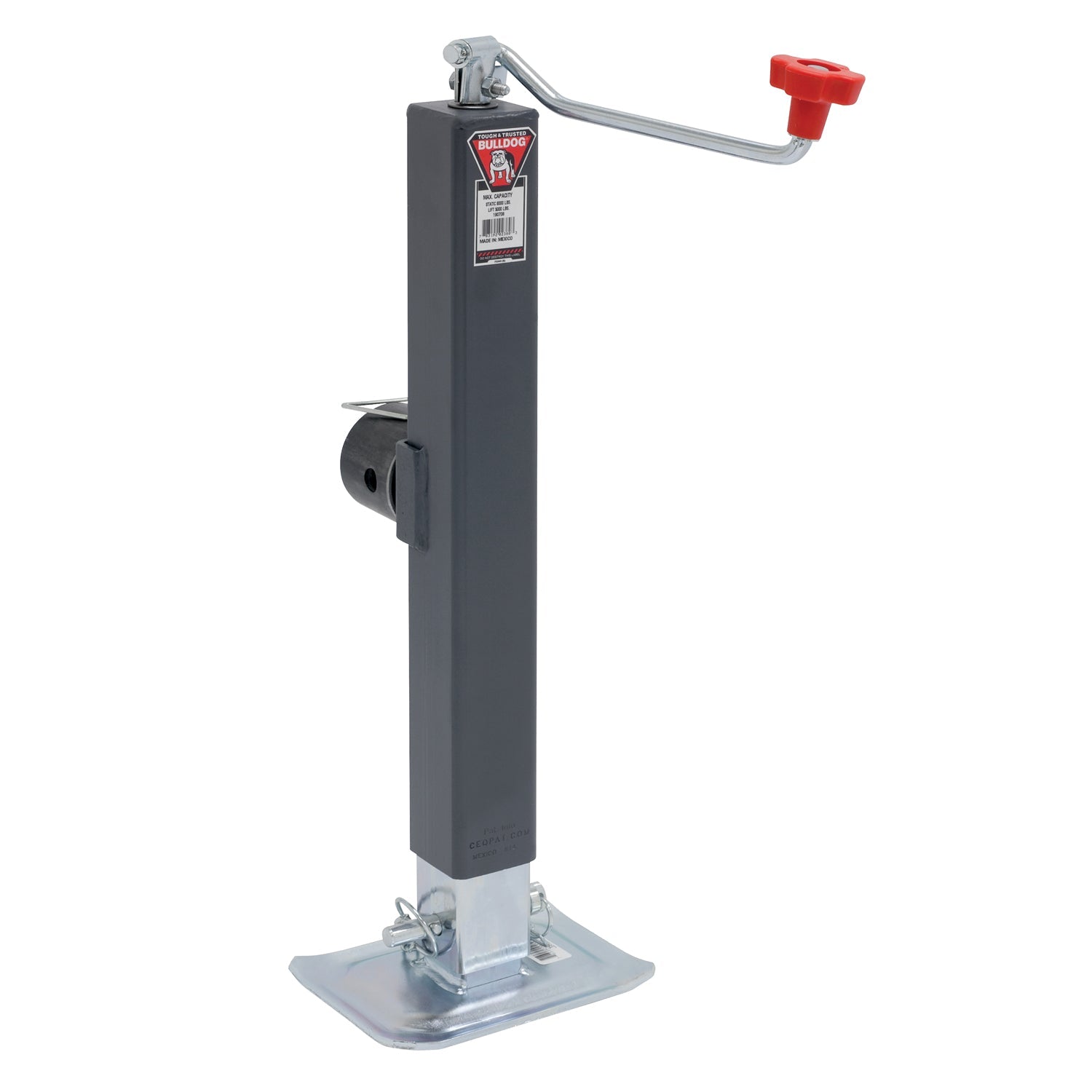

Bulldog 8000 Pound Square Trailer Jack with Tubular Swivel Mount Drop Leg Topwind Handle 15 Inch Lift 190708

$139.99

SQUARE JACKS BULLDOG’s 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4"  square tube jacks are too big!

• Use the painted outer tube as the final finish or primer

• Zinc-plated drop leg


• 4.7" Outer / inner tube overlap - results in optimal  side load performance

• 5/8" screw stem - provides insurance against screw  stem twisting off

• Patented screw nut stop - prevents screw and/or  nut damage when jack is fully extended

• Limited 5-year warranty

• ASABE Compliant

Specifications:

• Support Capacity: 8,000 lbs.

• Lift Capacity: 5,000 lbs.


• Retracted Bracket Height: 12.66" from bracket to bottom


• Extended Bracket Height: 41.16"

• Travel/Lift: 15"


• Clearance: 10.25" from bracket to top

• Zinc plated Drop leg with heavy duty base

• Drop Leg offers 13.5" of additional adjustment


• Round tubular swivel mount welded to outer tube (includes male mating mount, pin and chain)


• Handle included


• Handle Radius: 9"

• Topwind model - bushing in top cap,  eagle claw grip

• 2-1/2" Tubing width
