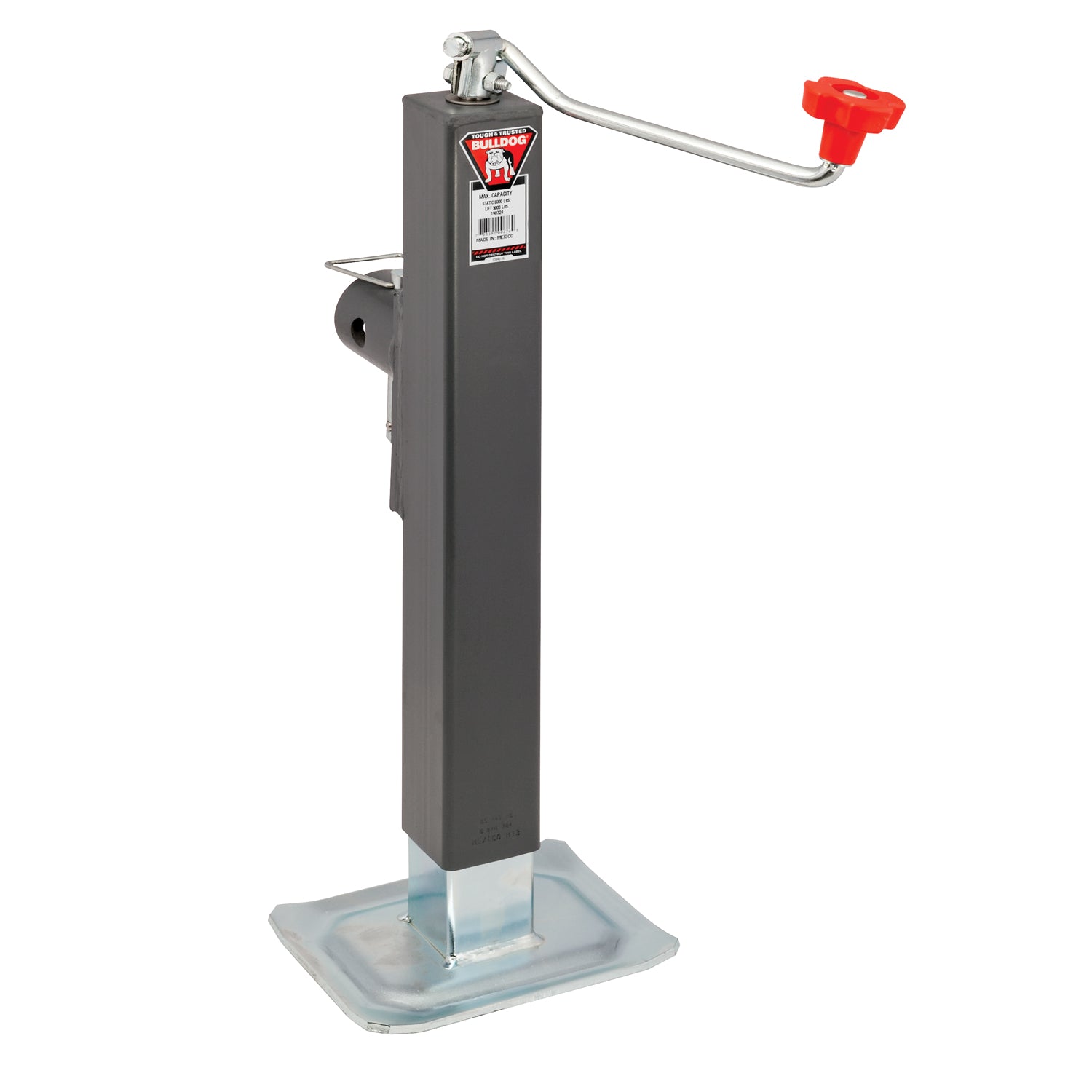

Bulldog 8000 Pound Square Trailer Jack with Tubular Swivel Mount Topwind Handle 15 Inch Lift without Mating Mount 190724

$134.99

SQUARE JACKS BULLDOG’s 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4"  square tube jacks are too big!

• Use the painted outer tube as the final finish or primer

• Zinc-plated inner tube

• 4.7" Outer / inner tube overlap - results in optimal  side load performance

• 5/8" screw stem - provides insurance against screw  stem twisting off

• Patented screw nut stop - prevents screw and/or  nut damage when jack is fully extended

• Limited 5-year warranty

• ASABE Compliant

Specifications:

• Support Capacity: 8,000 lbs.

• Lift Capacity: 5,000 lbs.


• Retracted Bracket Height: 15.10" from bracket to bottom


• Extended Bracket Height: 30.10"

• Travel/Lift: 15"


• Clearance: 7" from bracket to top

• Fixed leg with heavy duty base


• Round tubular swivel mount welded to outer tube (includes pin and chain, without mating mount)


• Handle included


• Handle Radius: 9"

• Topwind model - bushing in top cap,  eagle claw grip

• 2-1/2" Tubing width
