Bulldog 8x 12K Square Trailer Jack w/ Sidewind Handle Spring Return Drop Leg
$4,180.99

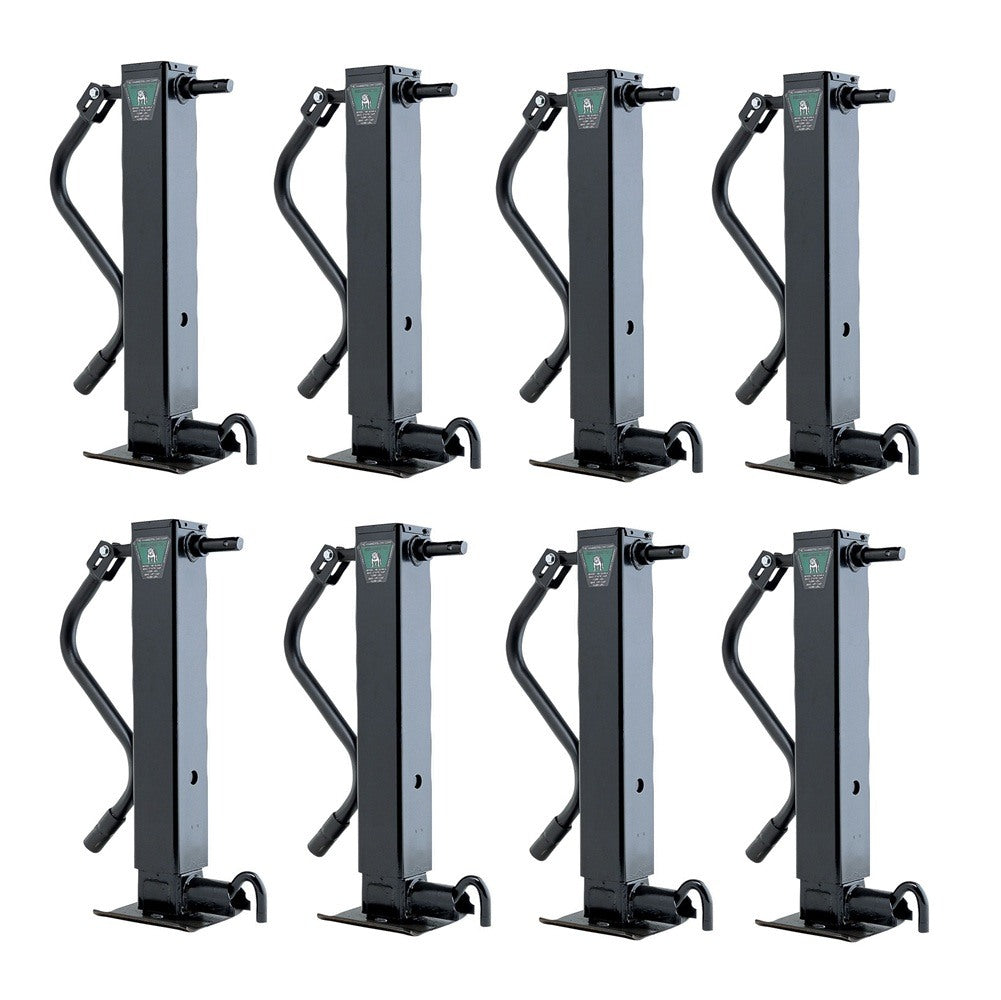

Bundle of 8 Bulldog 12,000 lb Square Trailer Jacks with Sidewind Handle & Spring Return Drop Leg
This bundle includes eight (8) heavy-duty Bulldog square trailer jacks, each rated for 12,000 lbs. support capacity and featuring a sidewind handle with a spring return drop leg. Designed for use in agricultural, construction, heavy-duty utility, and horse/livestock trailer applications, these jacks deliver exceptional strength and reliability straight from Bulldog’s legacy since 1923. Ideal for fleets or bulk installations, this pack ensures consistent performance and durability across all your trailers.
Bundle Contents:
-

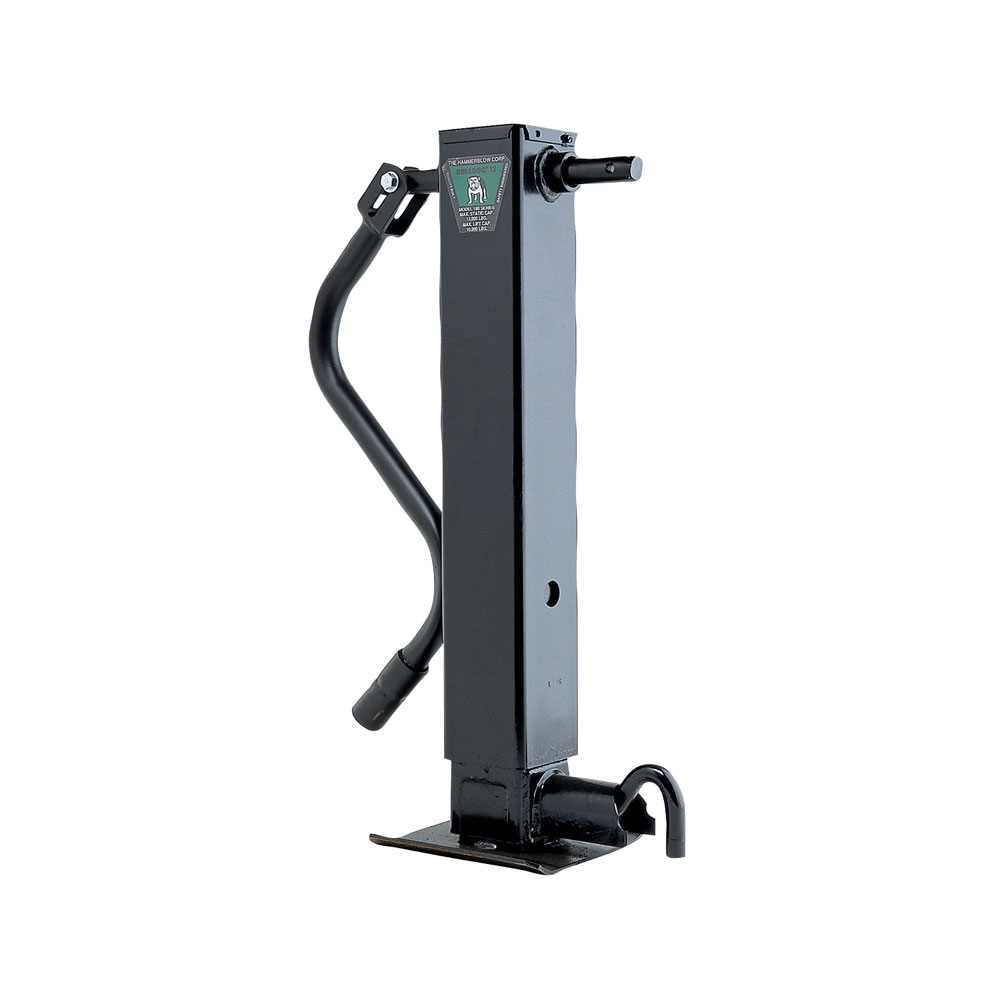

QTY (8): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Sidewind, 12½″ Travel
- Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack has led the industry since 1923.
- 4″ square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg for corrosion resistance
- Drop leg option with 5 positioning holes for precise height adjustment
- Easy-access gearbox with grease fitting for routine maintenance
- Spring return drop leg for automatic retraction; option for non–spring return
- 12.5″ screw travel with 13.5″ of total adjustment when extended
- Front-facing or side-facing drop leg plunger pin options
- Finish options: painted (with or without labels) or black powdercoat
- Sidewind handle with 1:1.5 gear ratio for smooth operation
We recommend verifying original equipment specifications before installation and performing regular lubrication and inspection to maintain peak performance and extend service life.
| Specifications: | Â |
|---|---|
| Weight Capacity | 10,001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5″ Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 12,000 lb Static Capacity |
| Jack Lifting Load Capacity | 10,000 lb Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4″ Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27″ |
| Approx Bracket-to-Bottom Clearance (Extended) | 54″ |
| Approx Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4″ |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.6″ |
| Exact Bracket-to-Top Clearance | User-Configurable |
