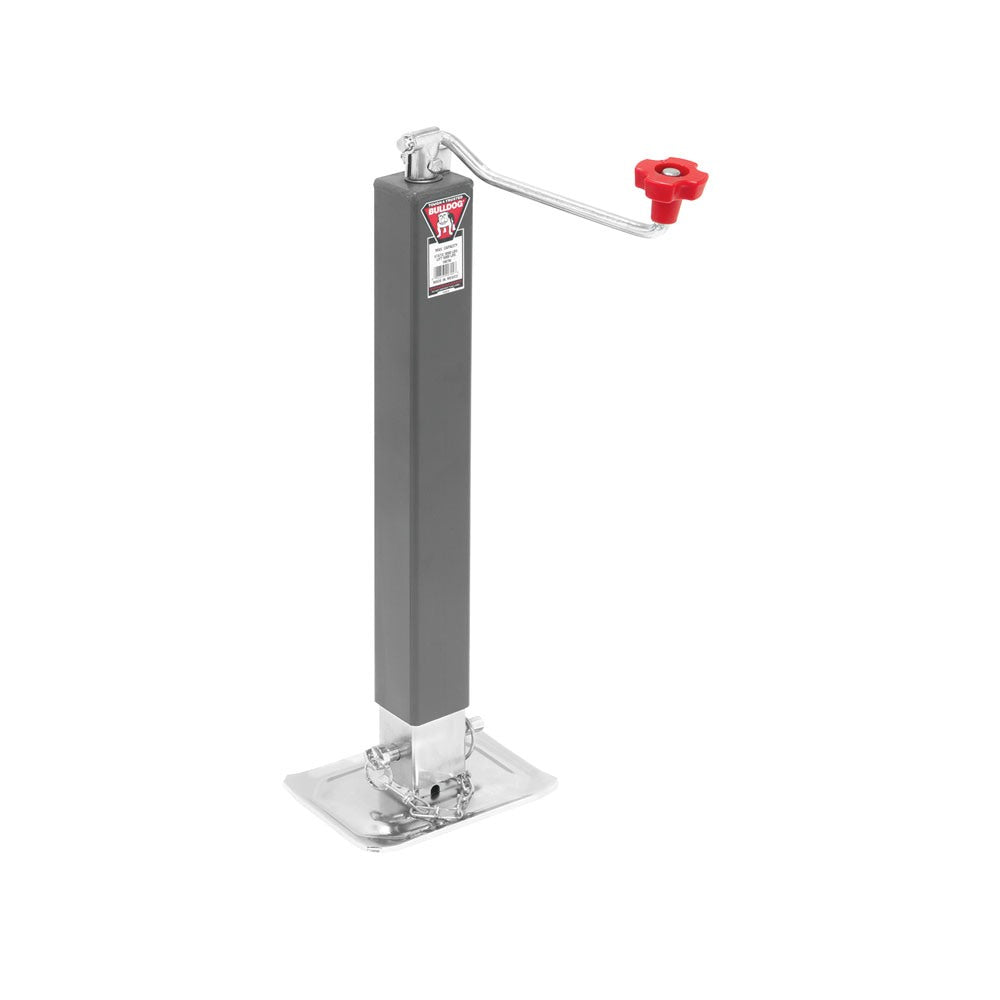

Bulldog 8x 8K Square Trailer Jack w/ 15" Lift Topwind Handle and Footplate
$818.99

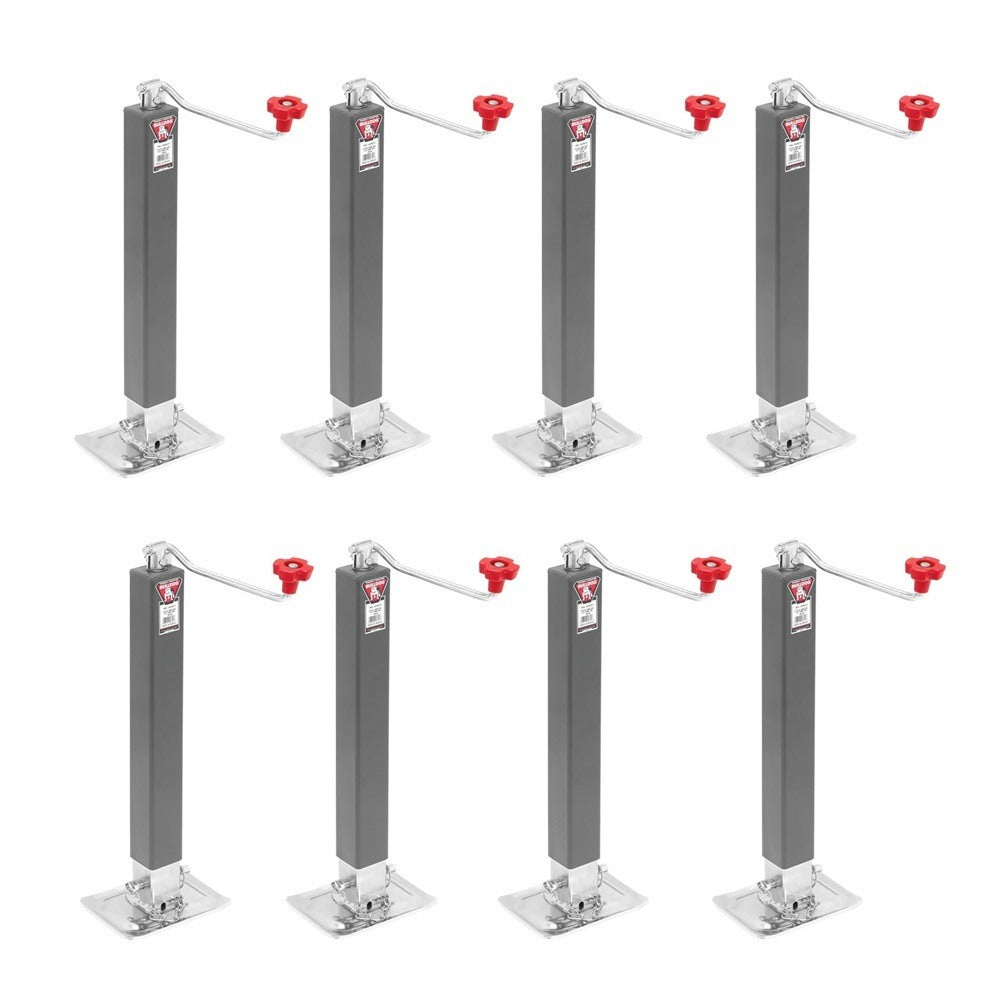

8-Pack Bulldog 8,000 lb Topwind Square Trailer Jacks w/ Footplate
Equip your fleet or trailer with this bundle of eight heavy-duty Bulldog square jacks. Each jack delivers a robust 8,000 lb static capacity and 5,000 lb lift capacity, featuring a 15″ travel range and durable gray powdercoat finish. Perfect for agricultural, industrial, construction, horse/livestock, and utility/cargo trailers where space is tight and reliability is critical.
Bundle Contents:
-
QTY (8): Square Trailer Jack, No Mount
- 8,000 lb static capacity; 5,000 lb lift capacity
- Compact 2.5″ square tube fits tight applications
- Painted outer tube serves as final finish or primer
- Zinc-plated inner tube and drop leg resist corrosion
- 4.7″ outer/inner tube overlap for optimal side-load support
- 5/8″ screw stem to prevent twisting under load
- Patented screw-nut stop prevents damage at full extension
- Topwind handle with bushing in top cap and eagle-claw grip
Please verify compatibility with your original equipment and perform regular maintenance to ensure peak performance and longevity.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lift Capacity | 5000 LB Lift Capacity |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non Spring Return |
| Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch Outer Tube |
| Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 23 Inch |
| Bracket-to-Bottom Clearance (Extended) | 51 Inch |
| Bracket-to-Top Clearance | User-Configurable Clearance |
| Exact Retracted Clearance | 22.66 Inch |
| Exact Extended Clearance | 51.41 Inch |
| Electric Lift | Non Electric |
Order today or call us at 877-869-6690 for expert advice and personalized service.
