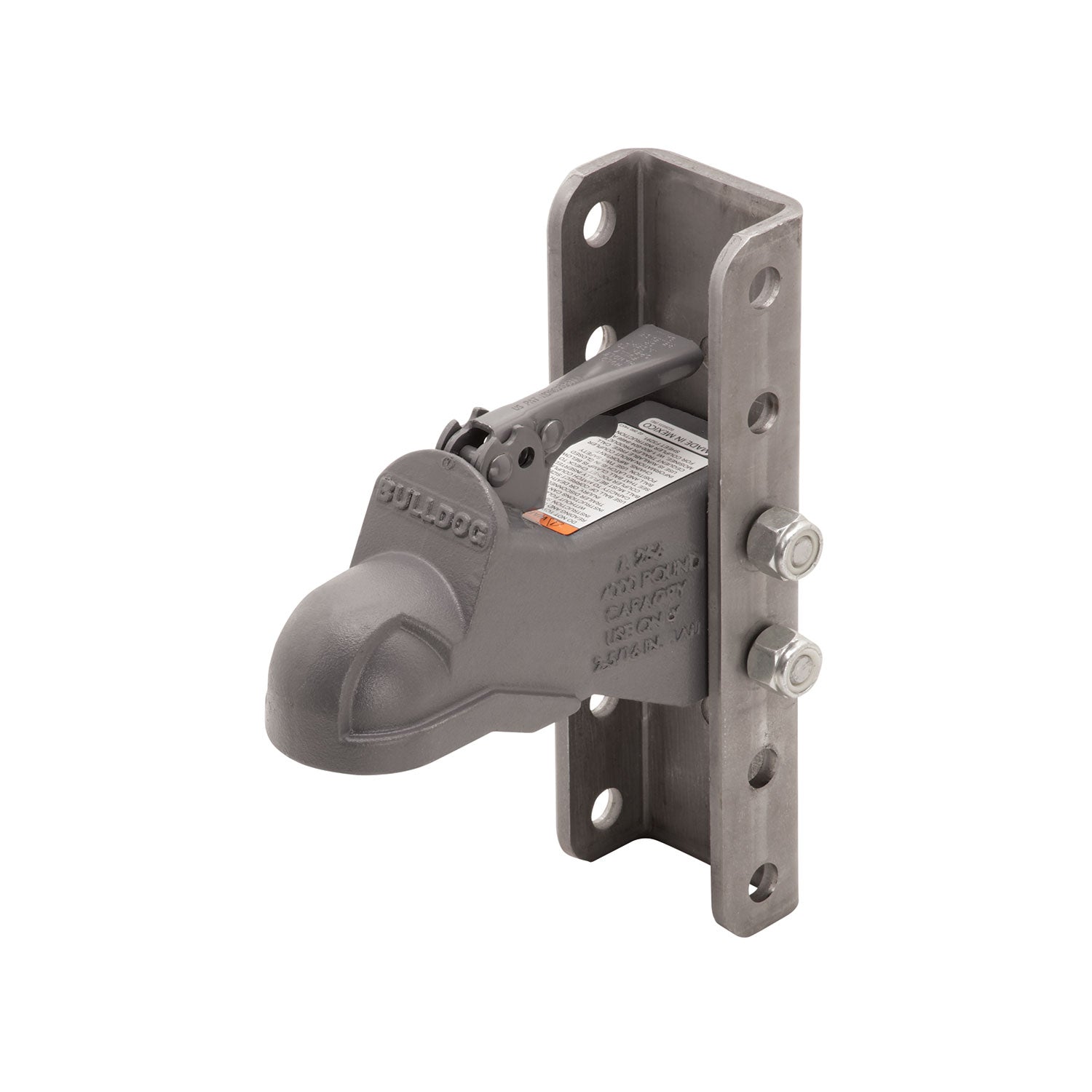

Bulldog Cast Head Trailer Coupler for 2-5/16 Inch Ball 14,000 lbs 5-Position Adjustable Channel Tongue Wedge Latch A2565C0317
$140.99
HEAVY DUTY COUPLERS - CAST COUPLERS
Designed for utility, horse/livestock, cargo, and construction trailer applications, BULLDOG Couplers are the strongest in the industry. The patented cast head “Wedge-Latch®” coupler design is offered in heavyduty, A-frame, and convenient adjustable height models. Adjustable couplers assure level operation for trailers when pulled by a variety of different vehicles. The replaceable latching hardware allows for longer service life.
- Quick and easy to engage
- Strong and secure on the road
- Patented Wedge-Latch® ball clamp design
- Quick to hook up and disconnect
- In compliance with SAE standard J684
| Part Number | A256C 0317 |
| Brand | Bulldog |
| Gross Trailer Weight | 14,000 lbs. |
| Ball Size | 2-5/16" |
| Application | Fits inside 3" wide channel |
| SAE Class | IV |
| Overall Length | 9-1/2" |
| Latch | Wedge-Latch |
| Material | Cast Steel |
| Warranty | 5 Year |
| Installation Instructions |  |
Adjustable Channel Bracket Specs
About Bulldog
| Part Number | AC500 0300 |
| Brand | Bulldog |
| Holes | 5 |
| Positions | 6 |
| Height | 11-3/4" |
| Vertical Adjustment | 8 |
| Material | High-strength steel |
| Warranty | 5 Year |
About Bulldog
Bulldog trailer couplers are the standard by which all others are measured. No other competitor offers the combination of heavy-duty materials, unique features and replaceable parts for outstanding performance and long life. That’s why Bulldog is the right selection for your heavy duty towing needs, whether its utility hauling, horses & livestock, travel trailer, RV, camper, cargo or construction trailer applications.
