Bulldog Tandem 24000 Pound 2-Speed Square Trailer Jack Set with Spring Return Drop Leg Traditional Gearbox and Crank Handle 183902 182805 CS730300 1400920383

$855.99

2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.

BULLDOG’s 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully  loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting traditional gearbox 29 turns per 1" of travel. In high gear, the  cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.

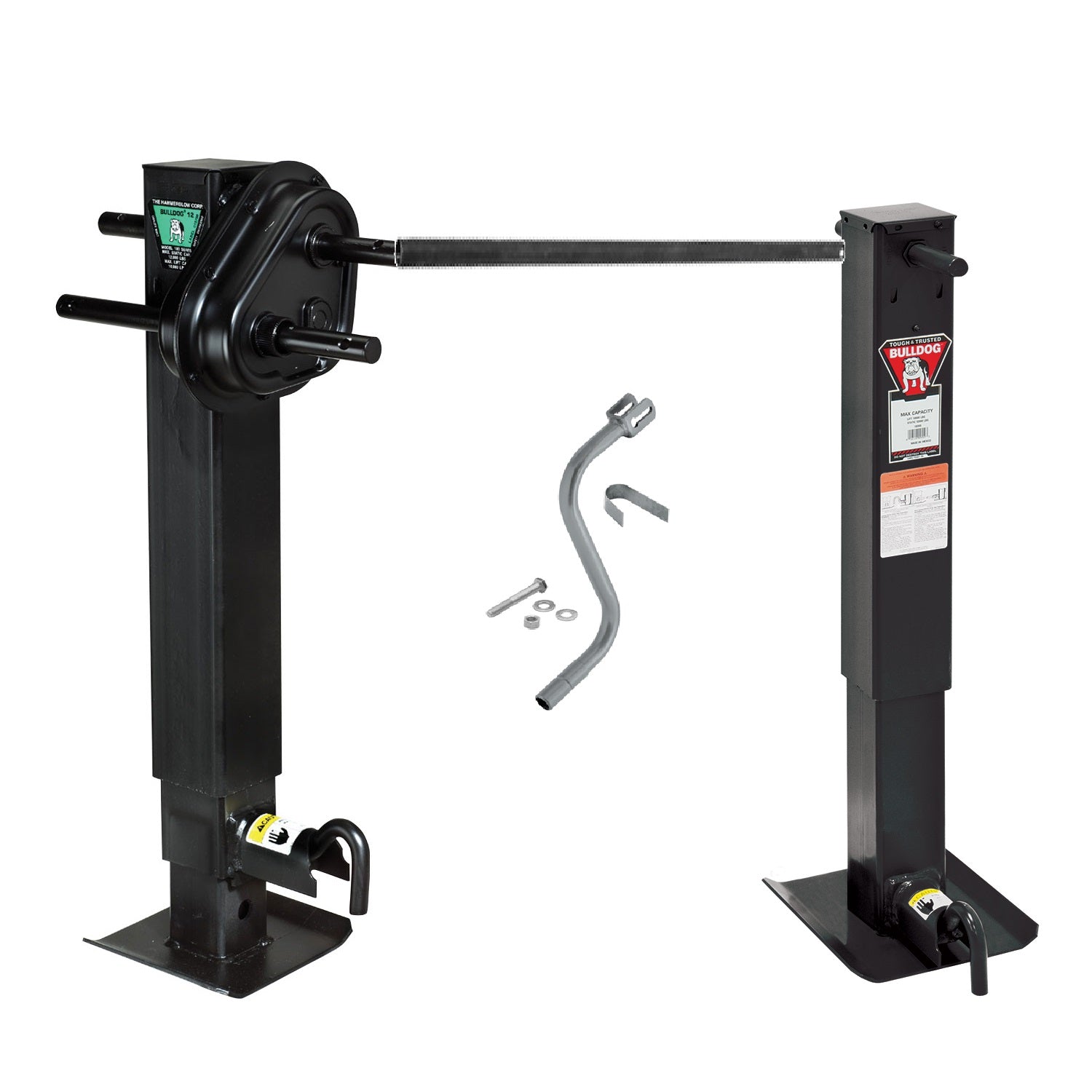

What's Included:
Bulldog  2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift
Bulldog 12,000 lb Trailer Jack
Crank Handle
73"Cross Shaft Tube (Can be cut)


• State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads

• Designed for today’s standard agricultural,  construction and industrial trailer applications.

• User friendly design makes operation smooth  and easy

• Drop Leg increases overall extension

• Engineered alloys for enhanced strength, stability and sideload capability

• Painted outer tube, inner tube, and drop leg.



Specifications:

• Support Capacity: 12,000 lbs.

• Lift Capacity: 10,000 lbs.

• Retracted Height: 28.5"

• Extended Height: 54.6"

• Travel/Lift: 12.5"

• Spring Return Drop Leg allows 13.5” of additional adjustment

• Standard disc foot included

• Drop Leg Pull Pin is on the side

• Crank Sold Separately

• 4" Tubing width

This Jack can be paired with the Bulldog 2-Speed Electric Powered Drive Motor Kit, please use part number 1824180100. This is a 2-Speed Motor Kit.

Recommended applications: PJ Downeaster Sundowner eby merhow Featherlite CM Kaufman Saratoga Classic Jamco 4 Star Sidekick Hawk Trail-et Sundowner Bri-Mar Big Tex Trails West Forest River Lexington dump construction equipment stock grain cart cherokee Trailerman cORN PRO McLander GatorMade Trailerman Cronkite Elite Boss Stillwater Brooks Bothers Horton
