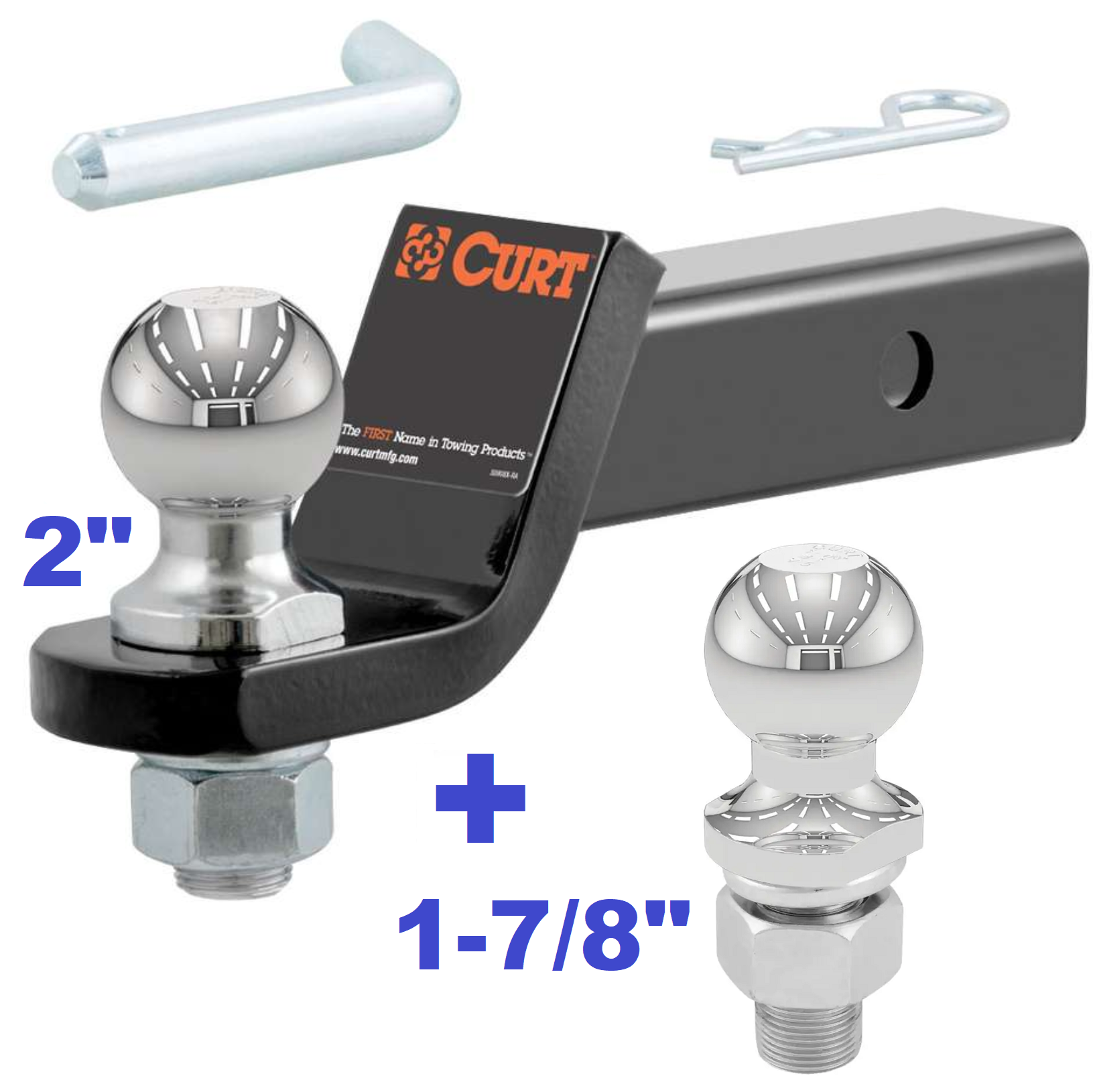

Class 3 Ball Mount Tow Kit Dual Balls 2 Inch and 1-7/8 Inch 750 Pounds Tongue Capacity Includes Pin Clip Fits 2 Inch Receiver 45836 40002

Class 3 Ball Mount 7,500 LBS Tow Kit w/ Dual 2" + 1-7/8" Balls - 2" Shank 2" Drop 750 LBS Tongue Capacity Flip Around 1" Rise Includes Pin/Clip

Part 1: Loaded Ball Mount with 2" Ball, Imported (Part #45036)

When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2" trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 7-1/2", a drop of 2" and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.

• Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
• Fits trailer hitches with a 2" x 2" receiver tube opening
• Factory-torqued CURT trailer ball accepts a 2" coupler
• 2" drop for precise trailer leveling
• Hollow shank weighs less and can be used with an anti-rattle kit
• CNC-formed, robotically welded and mechanically descaled for a perfect fit
• Protected by a durable powder coat finish
• Trailer ball features a polished chrome-plated finish
• 5/8" hitch pin & clip for secure mounting in receiver tube
• Limited lifetime warranty (one-year finish, one-year parts)

Part 2: 1-7/8" Trailer Ball (Part #40002)

CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8". This CURT tow ball features a ball capacity of 3,500 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 1" shank diameter, a 2-1/8" shank length, 0" of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.

• Fits 1-7/8" couplers and accepts up to 3,500 lbs. GTW
• Constructed from high-strength, hot-forged steel
• Protected by a durable chrome-plated finish
• Zinc-plated hex nut and helical lock washer for secure mounting
• Features fine threads for superior holding strength
• Tested for safety to meet U.S. VESC V-5 specifications
• Limited lifetime warranty (one-year finish, one-year parts)
