Complete Lippert Tandem Axle Suspension Kit � 3,500 lb Capacity, 1.75" Axle Tube, 26" 2,000 lb Leaf Springs, Standard Equalizer, Hangers & Hardware � Dexter/Alko/Rockwell Compatible

Complete Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity, 1.75" Axle Tube, 26" 2,000 lb Leaf Springs, Standard Equalizer

Upgrade or replace your trailer’s suspension system with this all-inclusive Lippert Tandem Axle Kit. Designed for 3,500 lb axles with 1.75" tubes and 26" (2,000 lb) leaf springs, this bundle also includes front, center, and rear hangers, plus the necessary attaching parts (equalizer, shackle assemblies, and hardware). It’s compatible with Dexter, Alko, Rockwell, and Quality Axles, ensuring a reliable, straightforward installation.

Bundle Contents:

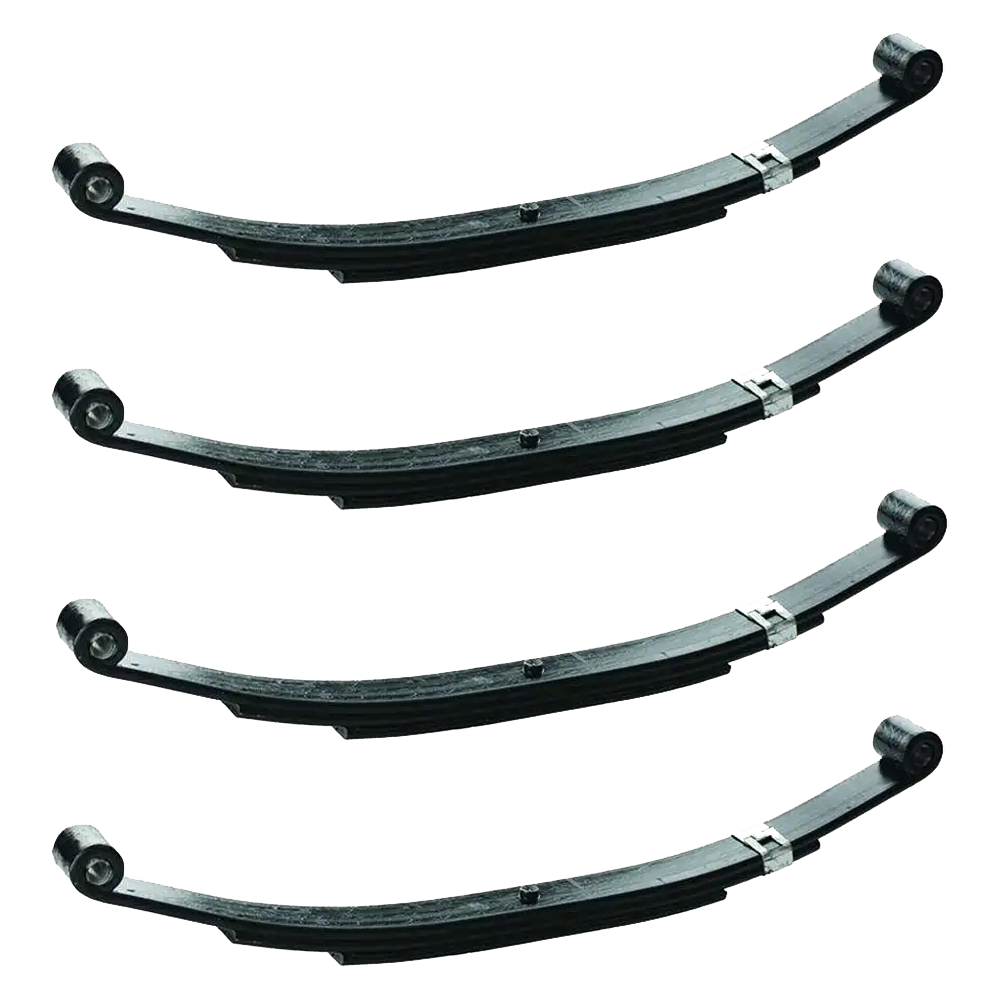

• QTY (4): Replacement Double-Eye Leaf Spring (26", 2,000-lb capacity)
  • 2,000 lb capacity each
  • 1-3/4" width, double-eye design
  • Helps maintain proper ride height and balance
  • Check existing leaf spring length before ordering

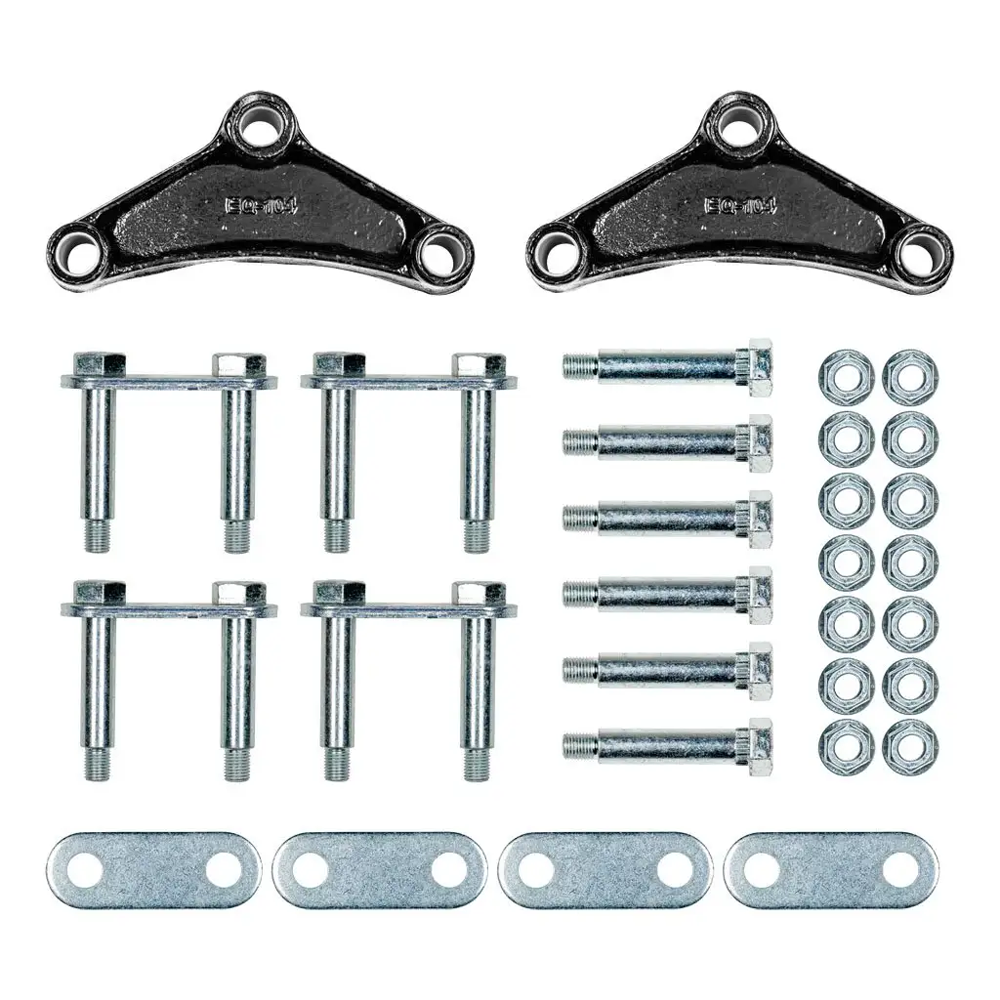

• QTY (1): Lippert Attaching Parts Kit – Standard Equalizer (EQ-104)
  • Equalizer Reference: EQ-104
  • Equalizer Bolt Qty: 2 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length each)
  • Shackle Plate Qty: 4 (2.25" length each)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16"-20 thread)
  • Lock Nut Qty: 14 (7/16"-20 thread)
  • All bolts, nuts, and plates are designed to match Lippert’s exact OEM specifications.

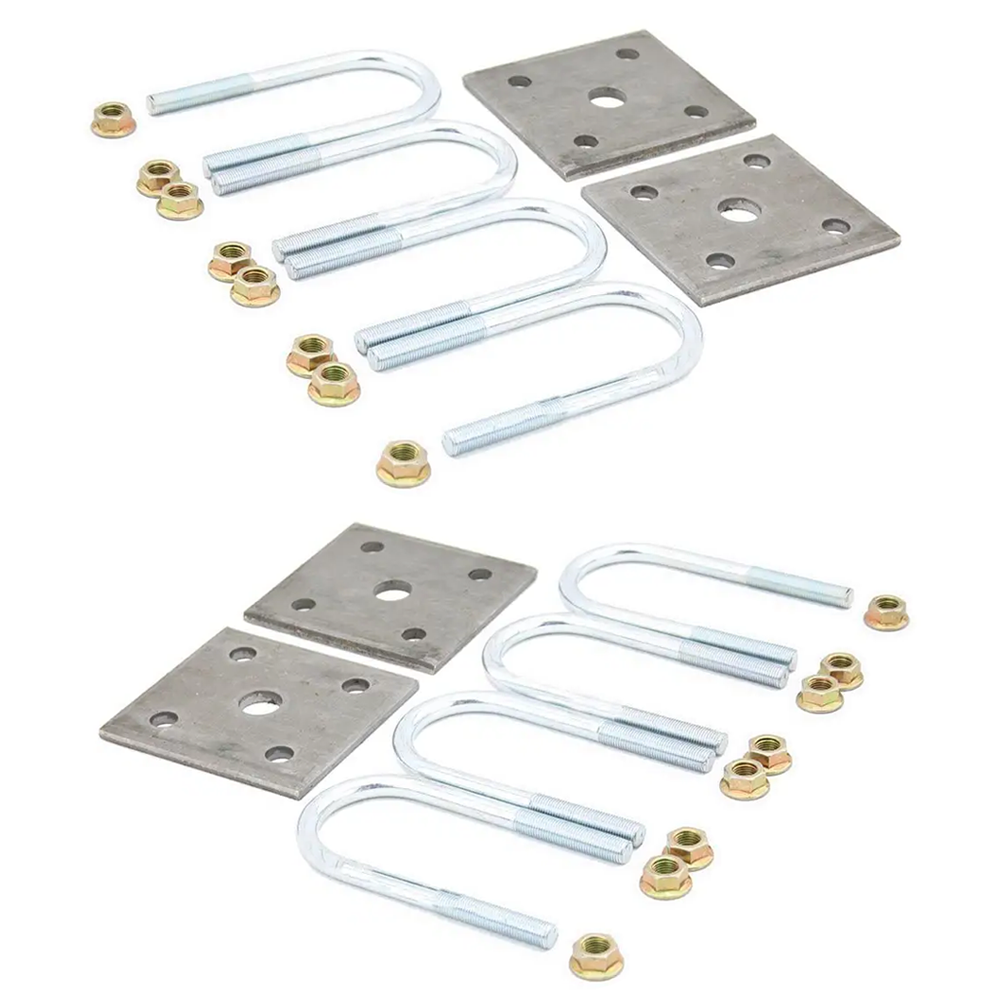

• QTY (2): Axle Mounting Kit – 1.75" Tube
  • Securely fastens 1.75" axle tubes to leaf springs
  • U-bolt design for stable, dependable mounting
  • Installs just like your original equipment
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb Rating
  • Length: 4-5/16"; Width: 2-3/16"
  • Hole Size: 9/16"; Distance to Hole: 3-9/16" on-center
  • Welded to chassis for proper front axle positioning
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb Rating
  • Length: 4-1/2"; Width: 3-1/8"
  • Hole Size: 7/8"; Distance to Hole: 3-5/16"
  • Crucial for tandem suspension equalization
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb Rating
  • Length: 6"; Width: 2-1/4"
  • Hole Size: 5/16"; Distance to Hole: 4"
  • Welded to chassis to support the rear axle

Always confirm your existing suspension dimensions before installing new components. Following regular maintenance intervals is essential to prolong the life and performance of your trailer’s suspension.
