CURT 10x 5K Pipe Mount Swivel Trailer Jack w/ Topwind Handle and 10" Travel

$523.99

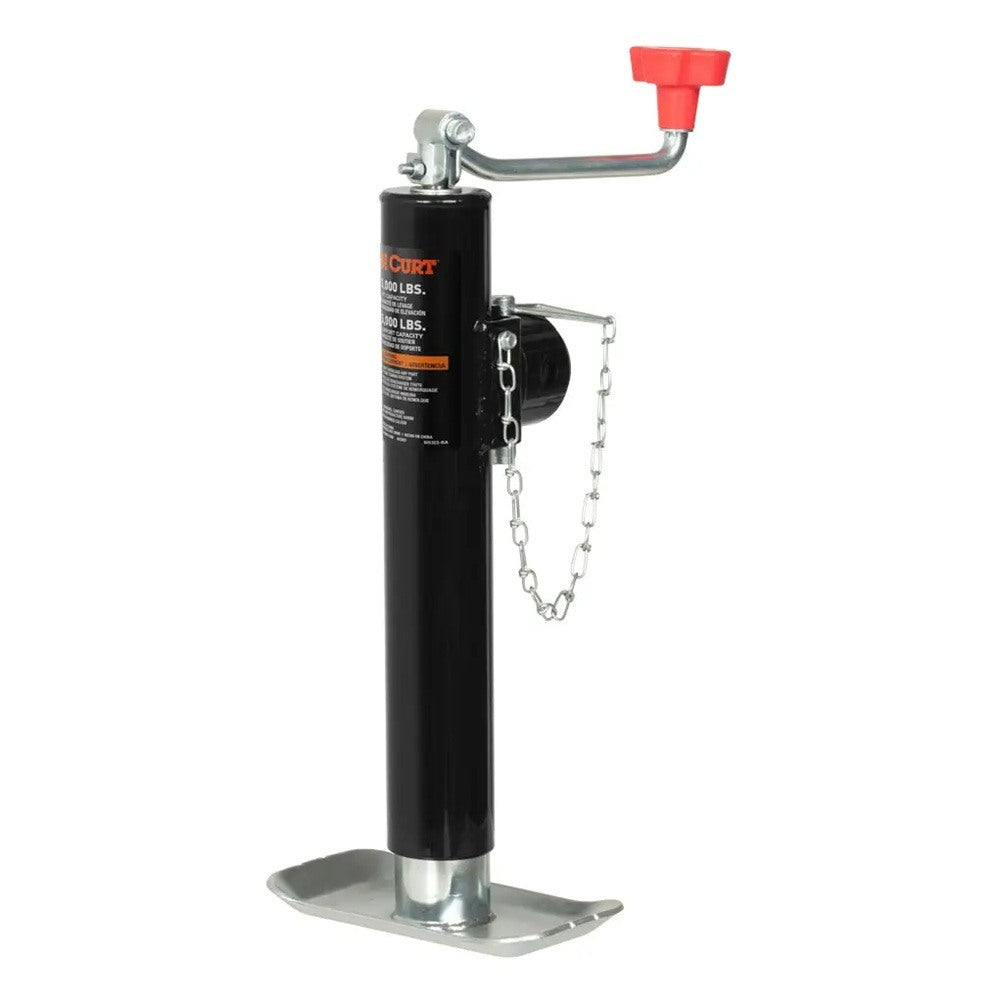

CURT 10x 5K Pipe-Mount Swivel Trailer Jacks with Topwind Handle & 10" Travel

This CURT trailer jack bundle is perfect for those needing multiple high-quality, durable jacks for medium-duty trailers. With 5,000 lbs of lift and support capacity per unit, this set of 10 pipe-mount swivel jacks features topwind handles and a 10-inch travel range — making trailer loading, unloading, and repositioning smooth and safe. Designed to be welded directly to the trailer frame, these jacks swing up and out of the way for travel and come equipped with a secure footplate for added stability.

Bundle Contents:

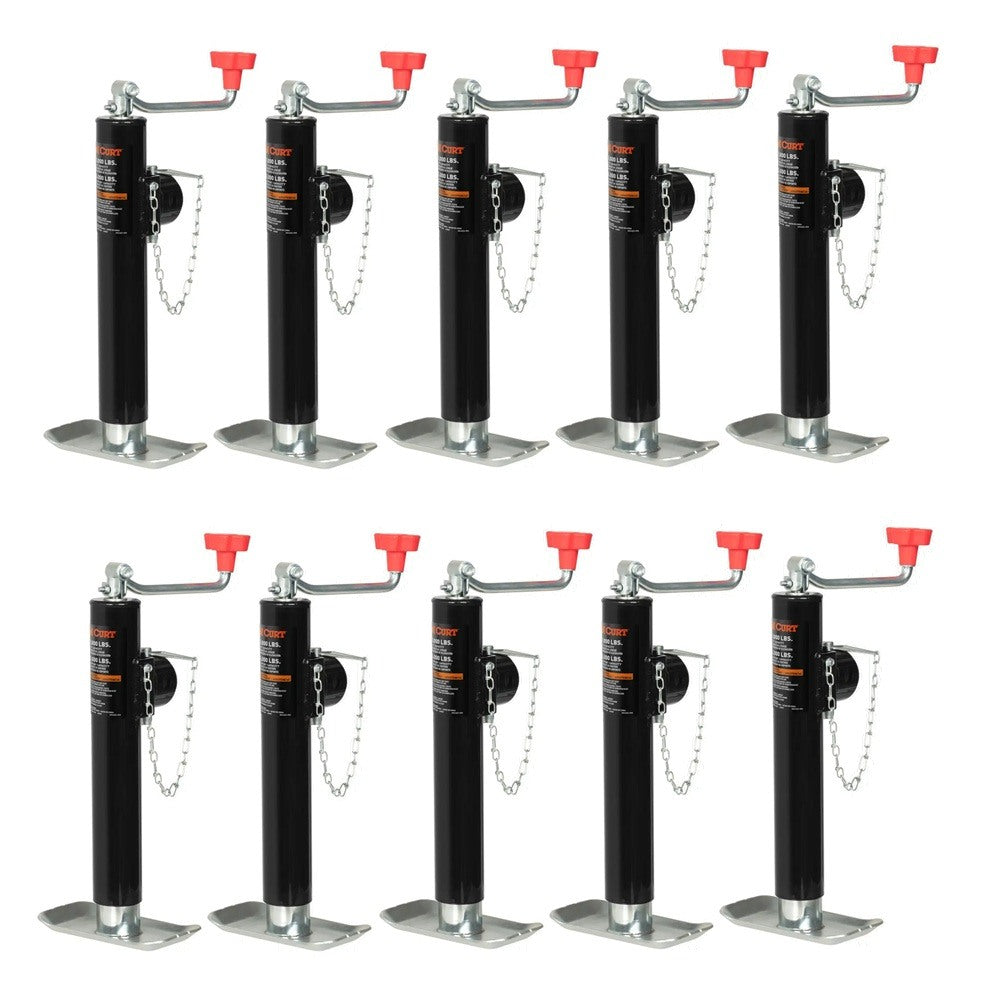

  • QTY (10): Pipe-Mount Swivel Trailer Jack with Top Handle (5,000 lbs, 10" Travel)
    • 5,000 lbs support and lift capacity

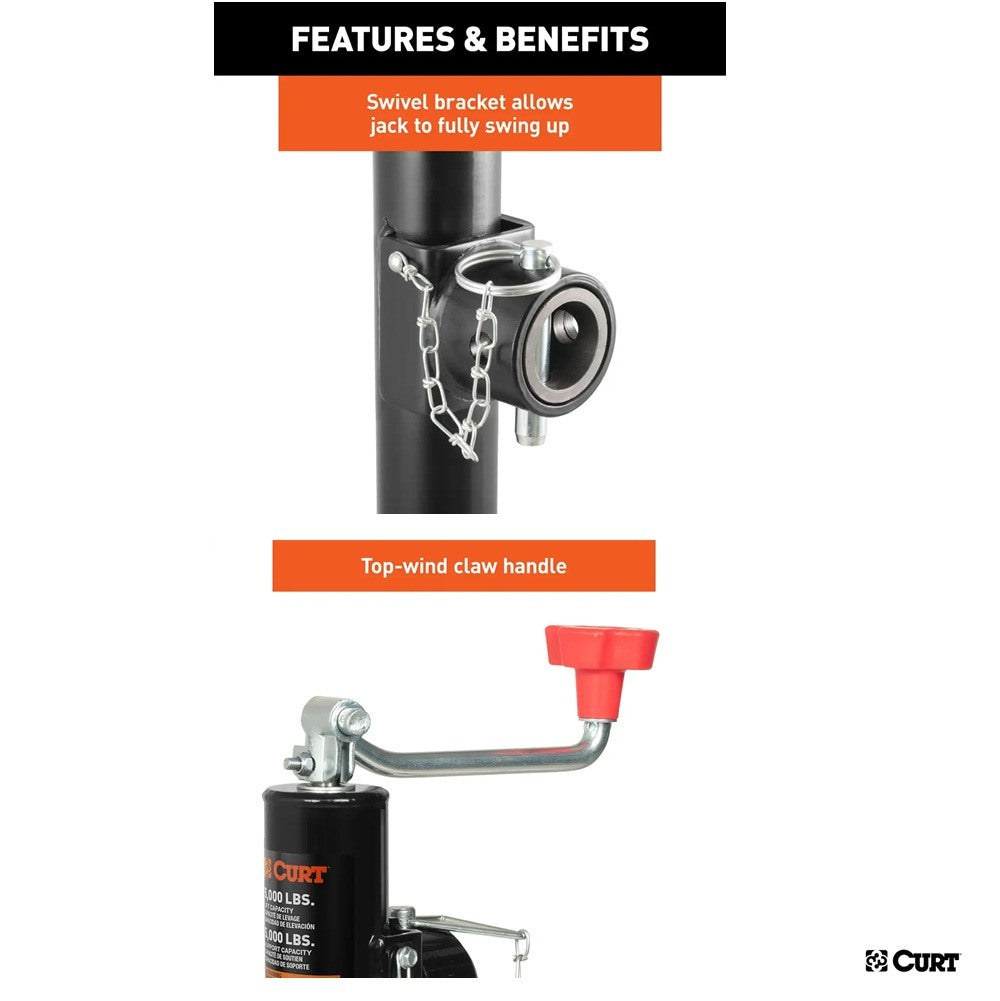

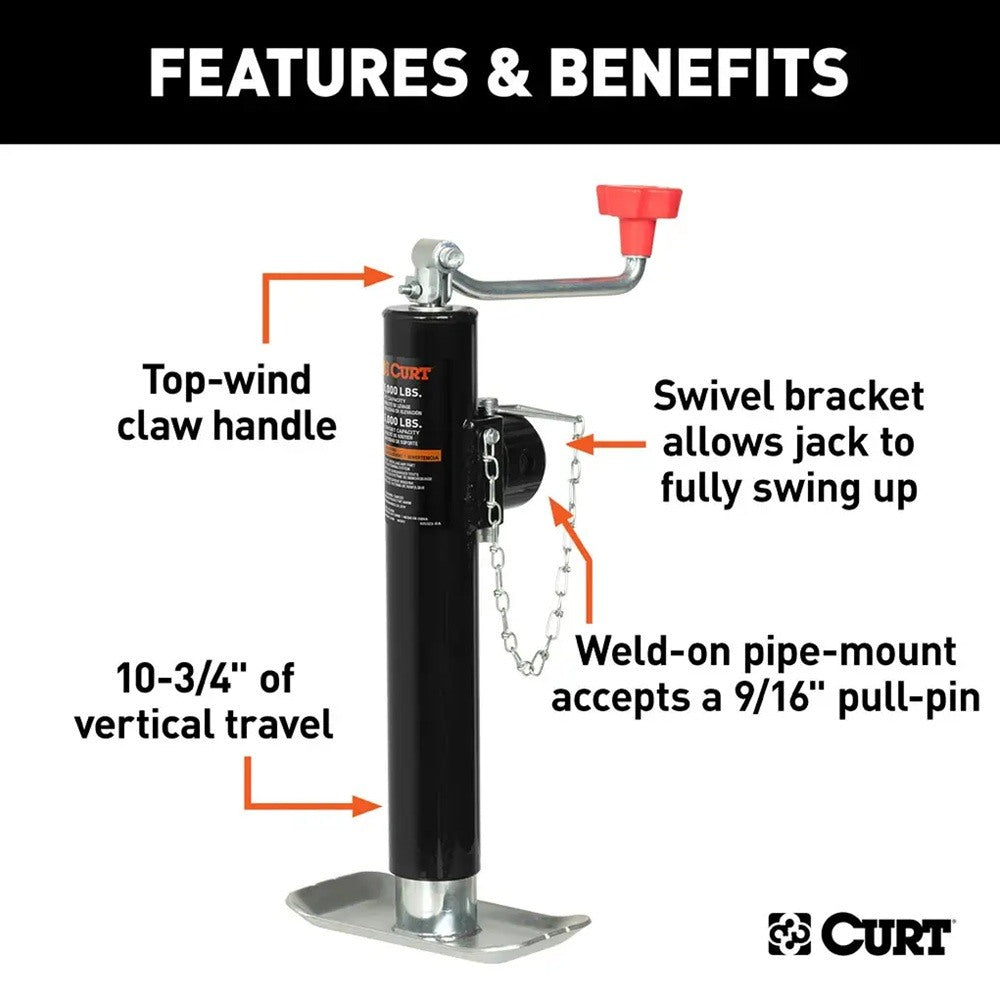

    • Topwind claw handle for easy cranking
    • Weld-on pipe-mount accepts 9/16" pull-pin
    • Swivel design swings jack up for travel
    • Footplate adds stability on uneven ground
    • Black powder-coated finish resists corrosion
    • 10" of vertical travel
    • Includes weldable pipe mount
    • Limited lifetime warranty

Please ensure compatibility with your trailer configuration. Regular maintenance of moving parts is recommended to extend jack life and maintain safe operation.

Specifications:
Kit Type Trailer Jack Bundle
Jack Mounting Style Pipe Mount (Weld-On)
Lift Mechanism Topwind Handle
Lift Range 10 Inch Travel
Static Load Capacity 5,000 lbs
Lift Load Capacity 5,000 lbs
Outer Tube Diameter 2.25 Inch
Inner Tube Diameter 2 Inch
Foot Type Footplate
Swivel Type Pull-Pin Swivel

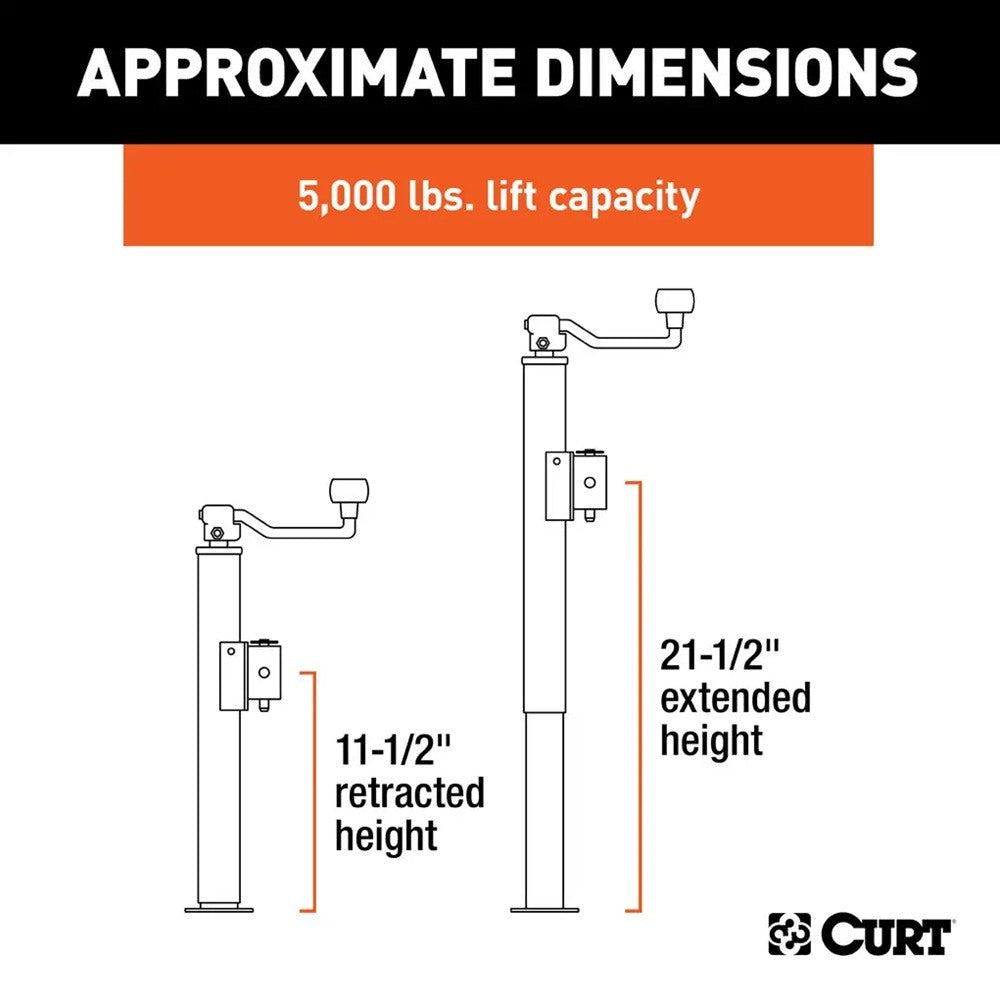

Retracted Clearance 11 Inch
Extended Clearance 21.75 Inch
Bracket-to-Top Clearance 4 Inch
Finish Black Powder Coat
Electric Lift No
Order today or call us at 877-869-6690 for expert advice and personalized service.
