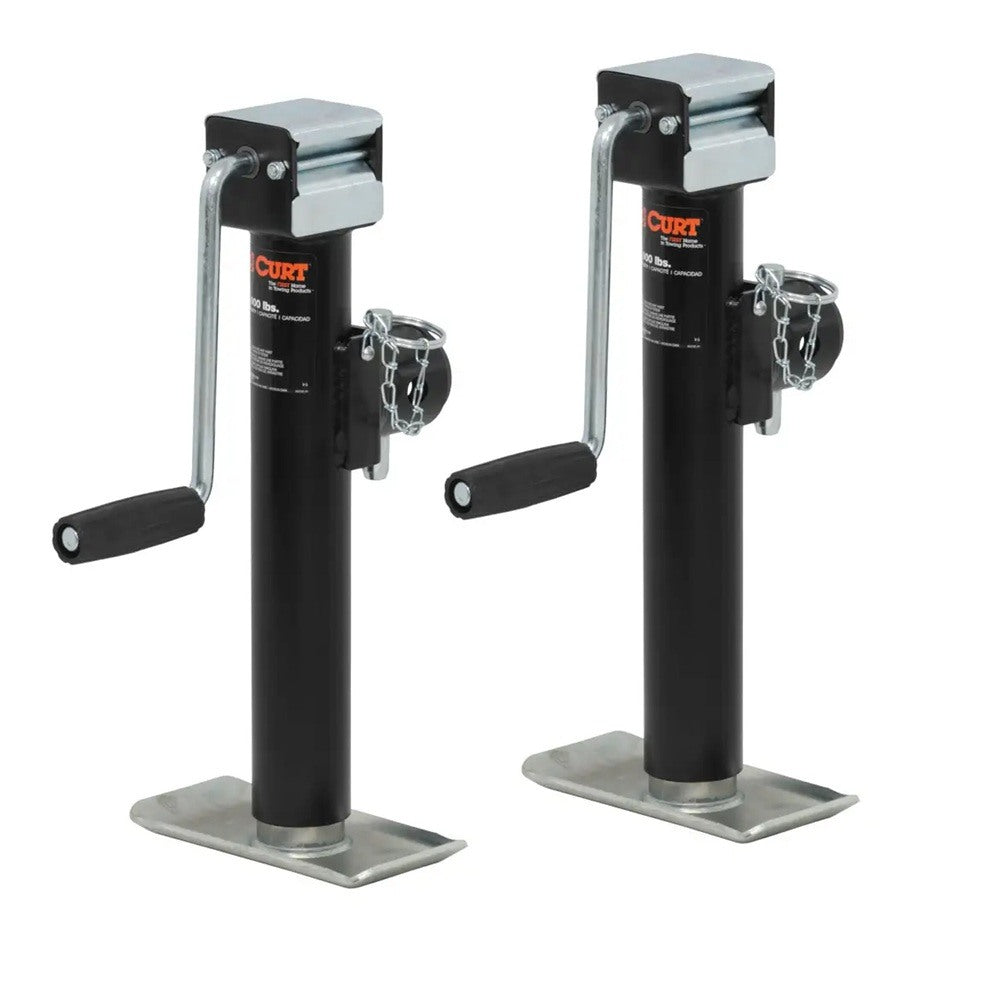

CURT 2x 5K Pipe-Mount Swivel Trailer Jack w/ Sidewind Handle and 10" Travel
$158.99
CURT 2x 5K Pipe-Mount Swivel Trailer Jacks with Sidewind Handle and 10" Travel
Upgrade your trailer with this bundle of two CURT medium-duty swivel jacks, each designed for reliable support and effortless operation. Featuring a pipe-mount design with a sidewind handle and 10" of travel, these jacks are perfect for boat trailers, utility trailers, and more. The welded footplate offers enhanced stability on uneven terrain, while the swivel bracket ensures convenient storage during travel.
Bundle Contents:
-

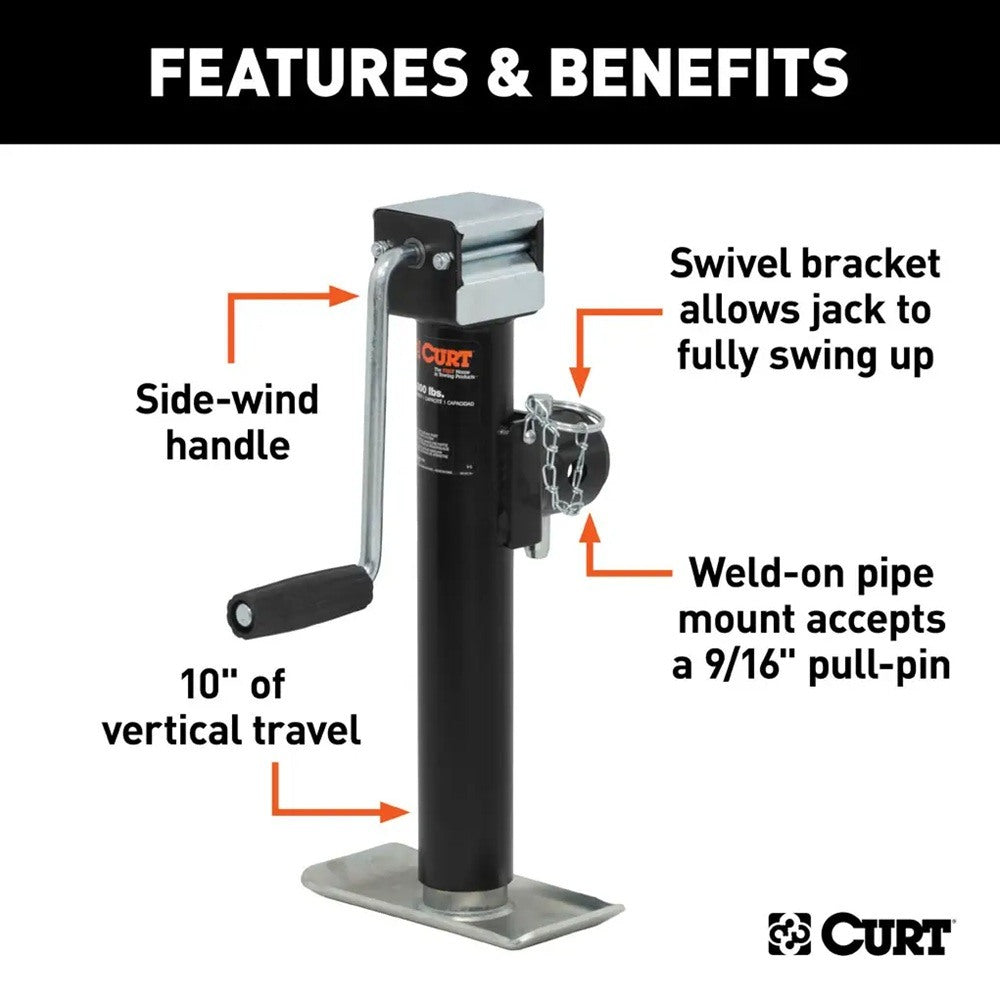

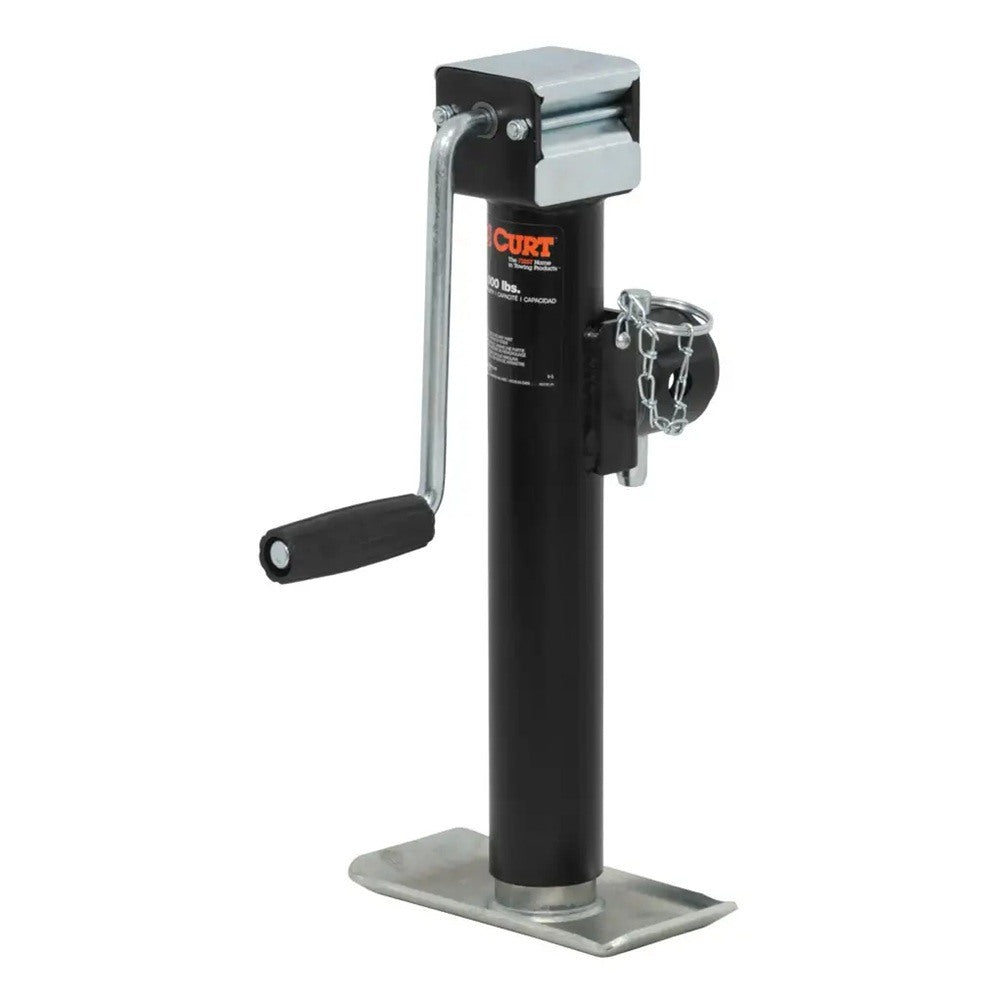

QTY (2): Pipe-Mount Swivel Jack with Side Handle (5,000 lbs, 10" Travel)
- Rated for 5,000 lbs support, 3,000 lbs lift

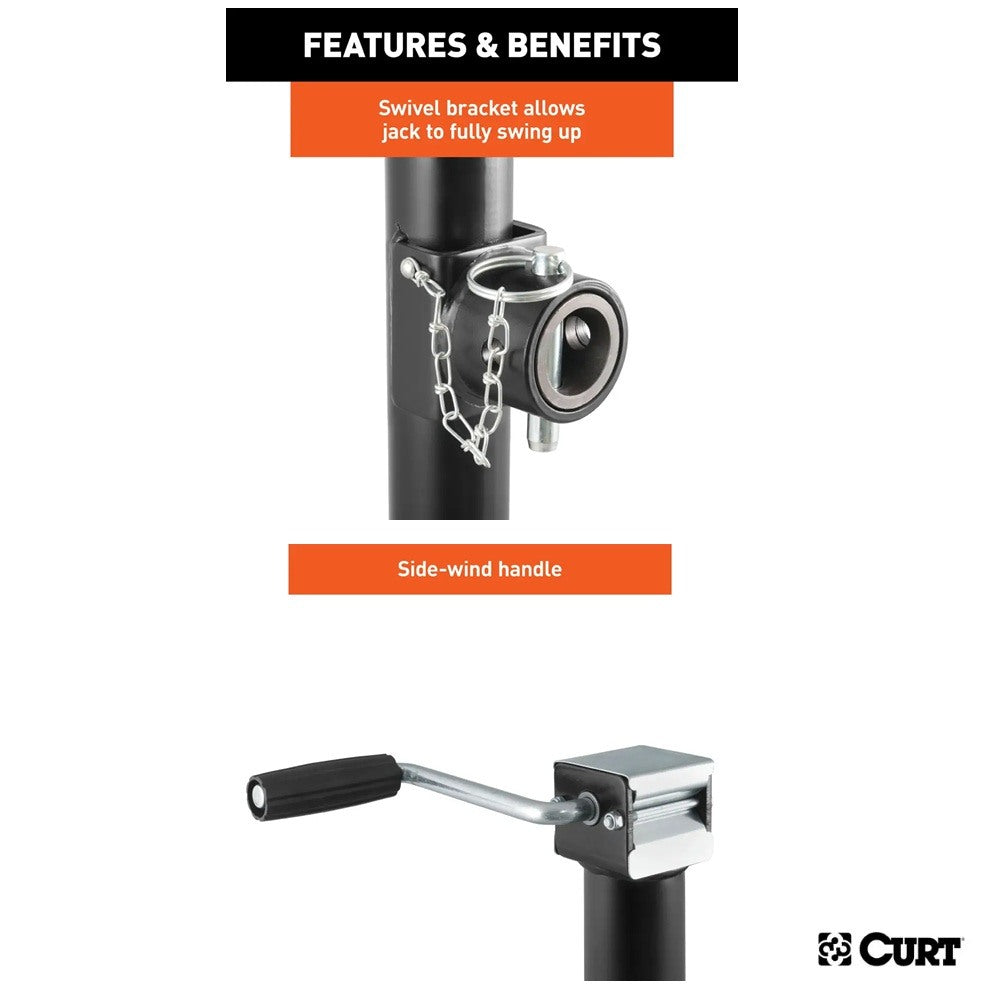

- Side-wind handle for easy lifting/lowering
- Swivel bracket with 5/8" pull-pin lock
- Weld-on pipe mount included
- 10" vertical travel for multiple coupler heights
- Footplate offers enhanced ground stability
- Durable black powdercoat finish
Always confirm compatibility with your trailer’s existing mounting style and perform regular maintenance to ensure long-term functionality.
| Specifications: | |
|---|---|
| Kit Type | Trailer Jack Bundle |
| Weight Capacity | 5,000 lbs Support / 3,000 lbs Lift |
| Mounting Style | Pipe Mount Swivel |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 10 Inches |
| Foot Type | Fixed Leg with Footplate |
| Outer Tube Diameter | 2.25 Inches |
| Inner Tube Diameter | 2 Inches |

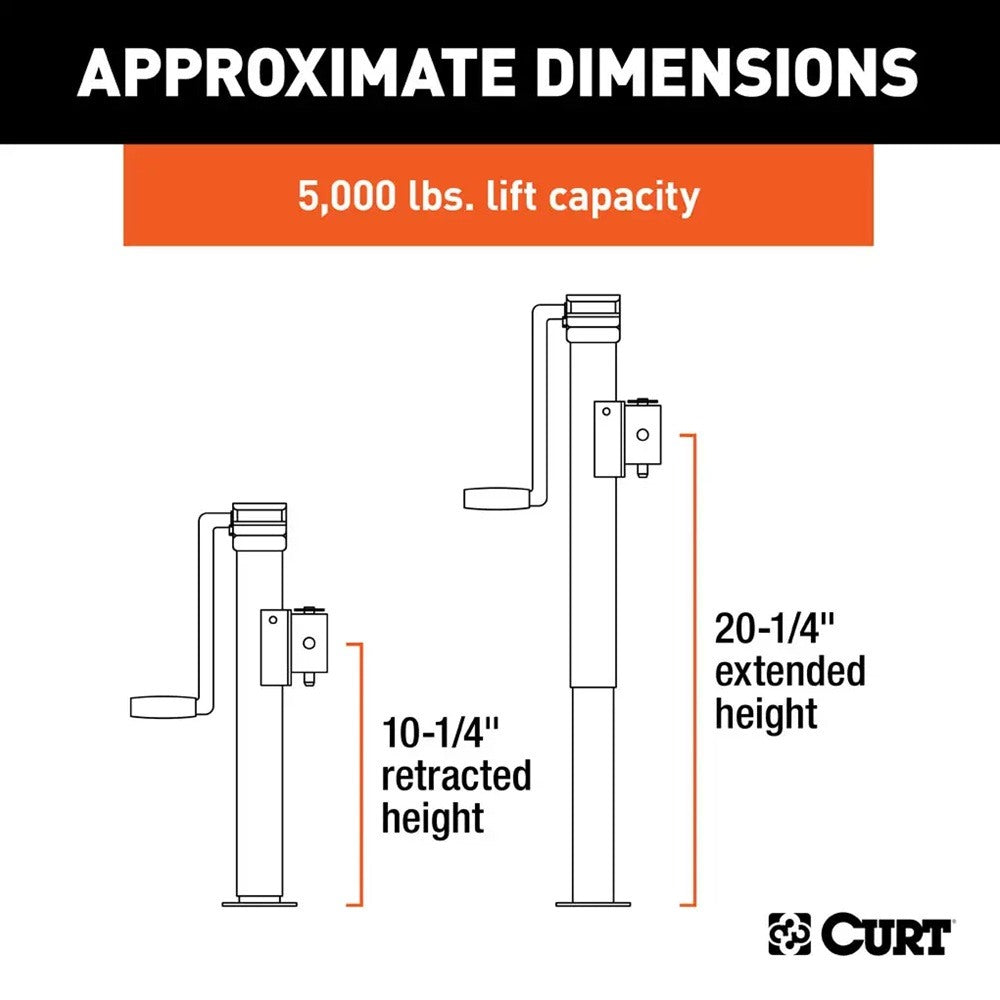

| Retracted Clearance | 10 Inches (Bracket to Bottom) |
| Extended Clearance | 20 Inches (Bracket to Bottom) |
| Bracket to Top Clearance | 4 Inches |
| Finish | Black Powdercoat |
| Electric Lift | No |
Order today or call us at 877-869-6690 for expert advice and personalized service.
