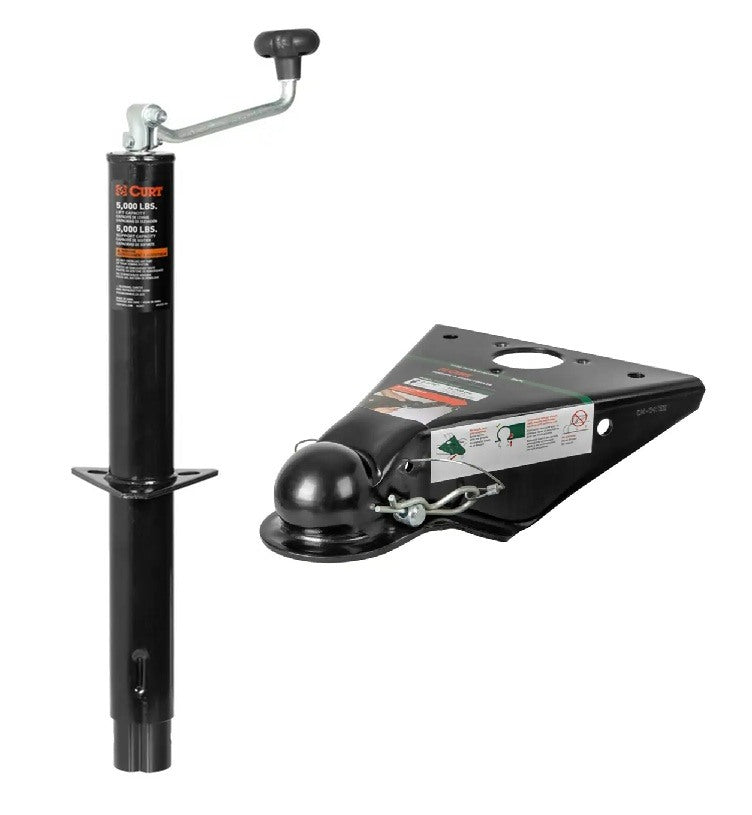

CURT 5K A-Frame Trailer Jack Top Handle 15" Travel w/ QuickPin A-Frame Coupler for 2-5/16" Ball
$109.99
CURT 5K A-Frame Trailer Jack & QuickPin Coupler Bundle for Reliable Towing
Introducing the CURT 5K A-Frame Trailer Jack & QuickPin Coupler Bundle – a perfect solution for secure and efficient towing. This bundle combines a robust trailer jack with a top handle and an innovative coupler for hassle-free trailer hookup.
Bundle Contents:
-
QTY (1): A-Frame Trailer Jack with Top Handle (5,000 lbs, 15" Travel)
- Designed to be mounted on an A-frame trailer tongue
- Rated for 5,000 lbs. support and lift capacity
- Top-wind claw handle for easy operation
- 15" of vertical travel to accommodate multiple ball heights
- Can be bolted or welded on (hardware not included)
- Limited lifetime warranty (one-year finish, one-year parts)
- Use replacement handle bulk #28937
-
QTY (1): QuickPin No-Latch 2-5/16" A-Frame Trailer Coupler, 14,000 lbs
- Innovative design for fast, hassle-free trailer coupling
- No complicated hinge or latch mechanisms
- Secures with an included hitch pin and clip
- Lasso lanyard secures the pin to avoid loss
- Stamped steel construction for dependable strength
- Passes SAE J684 performance testing
- Fits standard 2-5/16" trailer ball with 50° A-frame mounting
- Bolt-on or weld-on installation
- Durable black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Compatible with CURT locks: #23546, #23081, #23025, #23022, #23521
- Coupler must only be used with the included pin
- Trailer mounting hardware not included
- Patent pending
For optimal performance, always check your original equipment and perform regular maintenance.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 25 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 15 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 25 Inch |
| Exact Bracket-to-Top Clearance | 14.55 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
Order today or call us at 877-869-6690 for expert advice and personalized service.
