Curt Q20 Dual Jaw Sliding 5th Wheel Trailer Hitch for 2014-2025 Ram 2500 and 2013-2025 Ram 3500 with 6-1/2' Bed - For Short Beds (20K Towing Capacity) CU34IA

CURT 16022 Replacement Ram 2500, 3500 Puck System 5th Wheel Roller Adapter, 24,000 lbs, Hitch Head and Roller Required (QTY 1)

Manufactured by: Curt

The CURT OEM puck system 5th wheel roller adapter for Ram pickups combines the functionality of a CURT 5th wheel roller with the strength and convenience of Ram's truck bed puck system The adapter is designed to securely mount a CURT 5th wheel roller and hitch head into the bed of your Ram truck, using the OEM puck system It is designed to fit the puck system in select model years of the Ram 2500 and 3500 with 6.5-foot bed (see application info to verify fitment).

It features a set of adjustable, quarter-turn anchors to quickly and easily drop into the pucks and provide a moveable platform for the 5th wheel coupling point This puck system roller adapter is specifically designed for short-bed trucks and requires the Ram puck system for installation It features a capacity of 24,000 lbs.

and is compatible with most CURT 5th wheel heads (weight capacities are limited to the lowest-rated towing component) Like our OEM puck system 5th wheel legs, the key feature of the Ram 5th wheel roller adapter is its quarter-turn anchors With the hitch head and roller initially bolted onto the adapter, the adapter can easily be dropped into place whenever needed and secured with the quarter-turn anchors.

The anchors can also be adjusted to help eliminate chucking noises between the adapter and under-bed platform while towing When you are finished towing, simply turn the anchors to remove the entire assembly within seconds The CURT 5th wheel roller adapter for Ram pickup trucks provides the ultimate in versatility for the CURT 5th wheel line.

With a gross trailer weight capacity of 24,000 lbs., it is able to accept any CURT 5th wheel roller, including the R16, R20 and R24 It tested for safety in accordance with SAE J2638 and is coated in a highly durable carbide black powder coat finish to protect against scratches and rust..

Features:

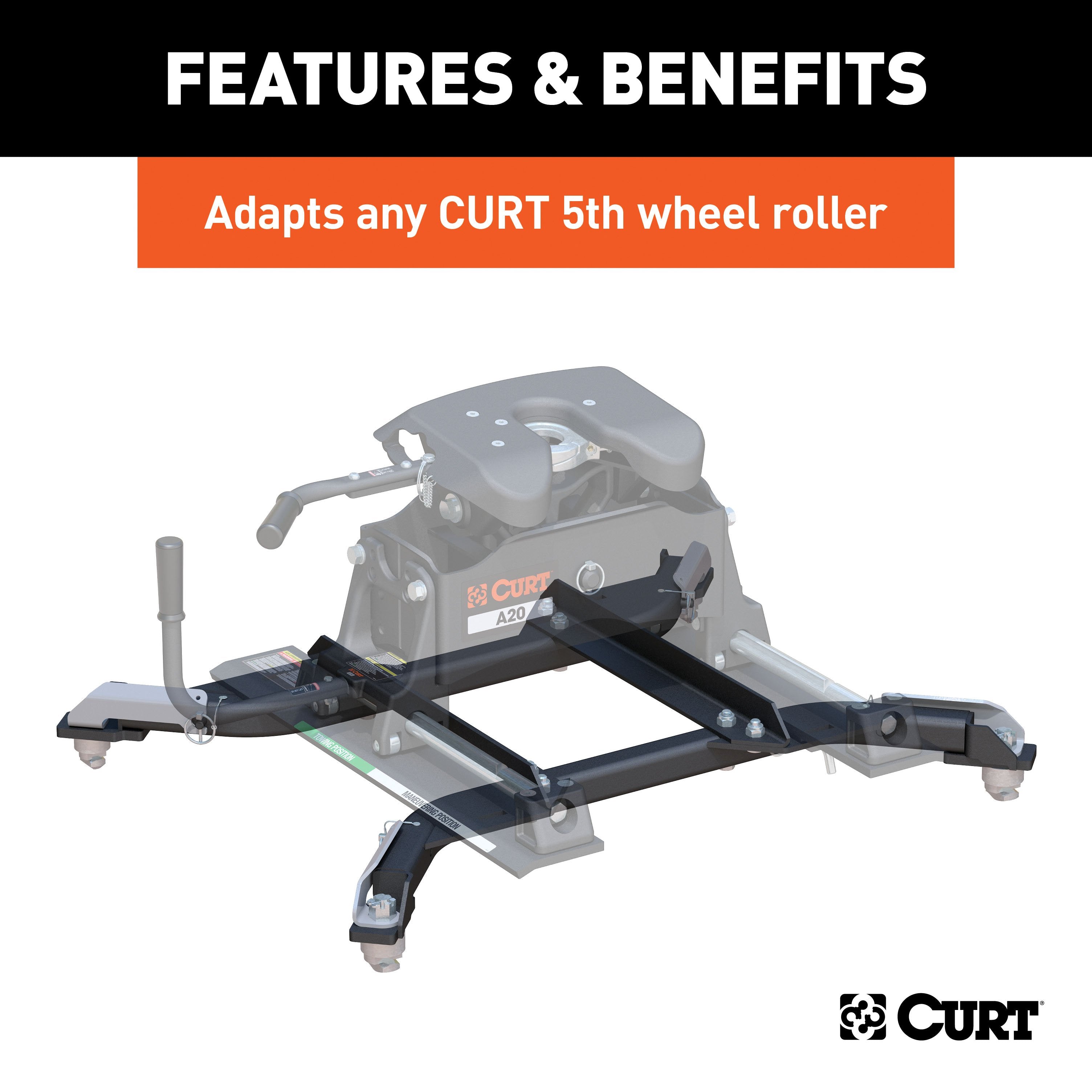

• Adapts any CURT 5th wheel roller to fit the Ram puck system
• Roller adds clearance for short-bed trucks making tight turns (not included)

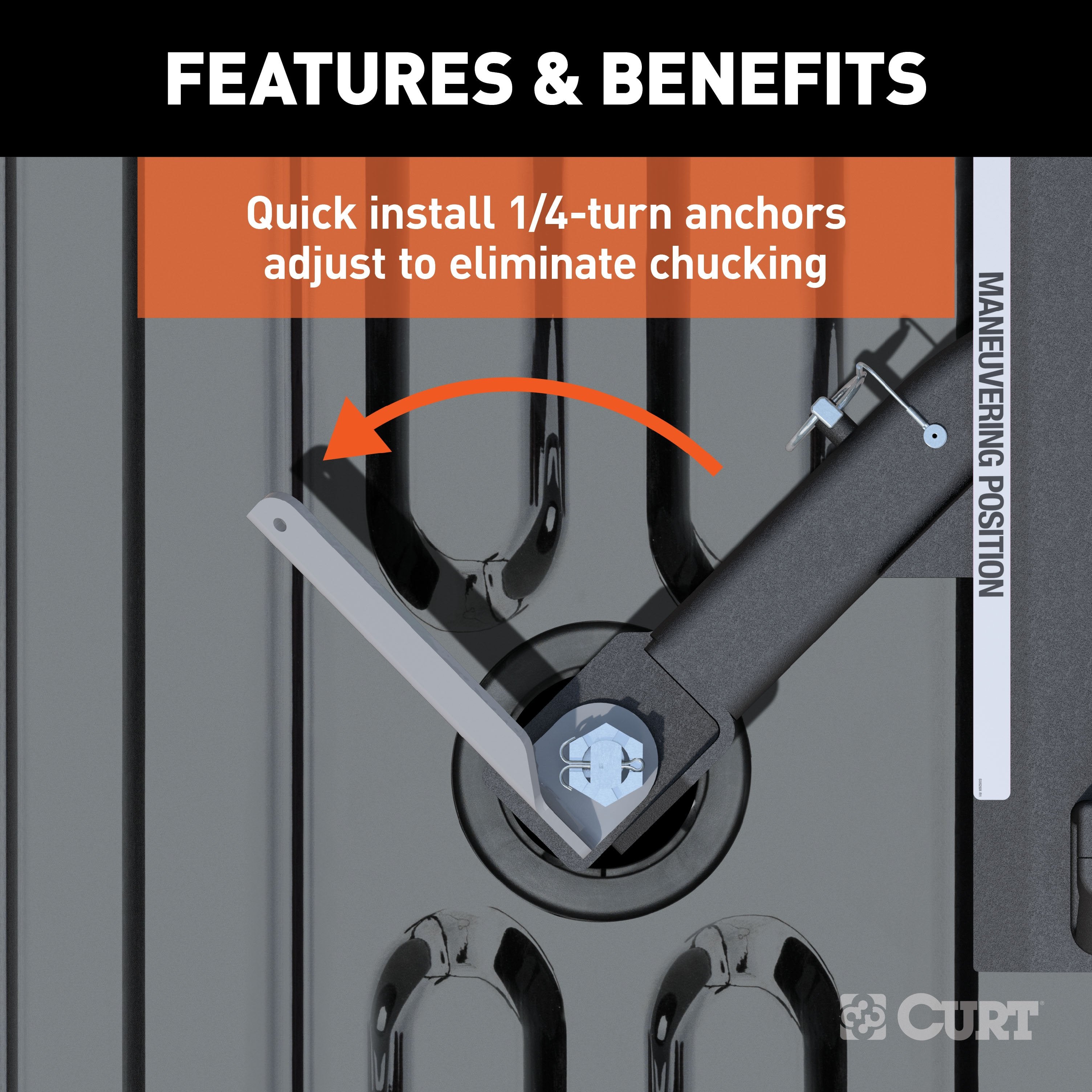

• Quarter-turn anchoring system provides quick installation and removal
• Adjustable anchors to eliminate chucking between the legs and puck system
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide black powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16550 R20 5th Wheel Roller for Short Bed Trucks, 20,000 lbs (QTY 1)

Manufactured by: Curt

A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel roller turns this gentle giant into the ultimate in mobility too If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel roller.

Our 5th wheel rollers mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck CURT 5th wheel rollers feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost CURT 5th wheel rollers are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply moving on hollow rods as seen in competitive models.

With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn This 20K 5th wheel roller comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage.

It has a towing capacity of 20,000 lbs and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches..

Features:

• For use with CURT A20 5th wheel hitch head #16540 or Q20 head #16530
• Allows for forward and rearward movement of 5th wheel hitch for added clearance
• Constructed with solid, non-binding rods that lock the hitch into position
• Provides 12" of travel while most competitive models only offer 10"
• Uses wheels to bear the weight, instead of hollow rods like competition

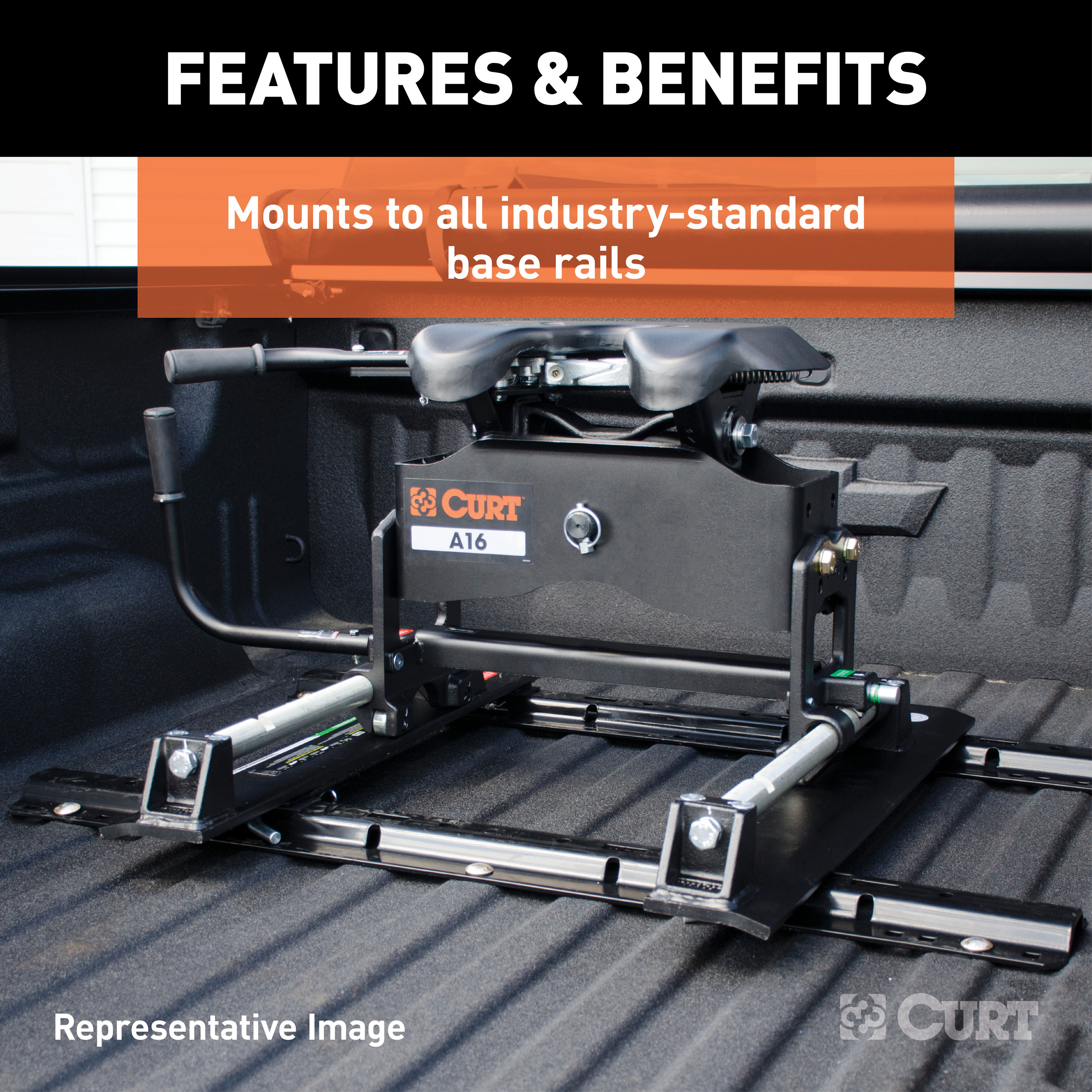

• Mounts to all industry-standard base rails
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16530 Q20 5th Wheel Hitch Head Only, Legs or Roller Required, 20,000 lbs (QTY 1)

Manufactured by: Curt

Like the other 5th wheel hitches of the CURT Q-Series, the CURT Q20 is a specialist in its class It features a gross trailer weight capacity of 20,000 lbs and can accept a vertical load limit of 5,000 lbs., giving it the capability to tow most large recreational vehicles, campers and many other 5th wheel trailers.

Also like the Q24, the Q20 5th wheel has a superior hitch head, pivoting on a spherical axial bearing This ensures smooth, quiet towing and allows unimpeded head movement and a wide turning radius for your trailer The self-aligning head and dual-locking jaws make coupling easier, and with the three-position coupling mechanism, indicating when it safe to couple and when it is safe to tow, you can be out of the driveway and on your way quicker than ever.

The Q20 comes with a durable carbide powder coat finish to give this hitch the best possible defense against corrosion, scratching, UV damage and whatever else you throw its way It is tested in accordance with SAE J2638 for safety and is also backed by a limited lifetime warranty to give you peace of mind This 20K 5th wheel hitch head comes ready to be attached to the CURT R20 5th wheel roller.

Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards Please contact CURT Product Support for compatibility information..

Features:

• Requires CURT 5th wheel roller or legs for installation
• Spherical axial bearing tilts head in any direction for a smooth, quiet ride
• Dual jaws fully wrap the kingpin to reduce chucking and increase security

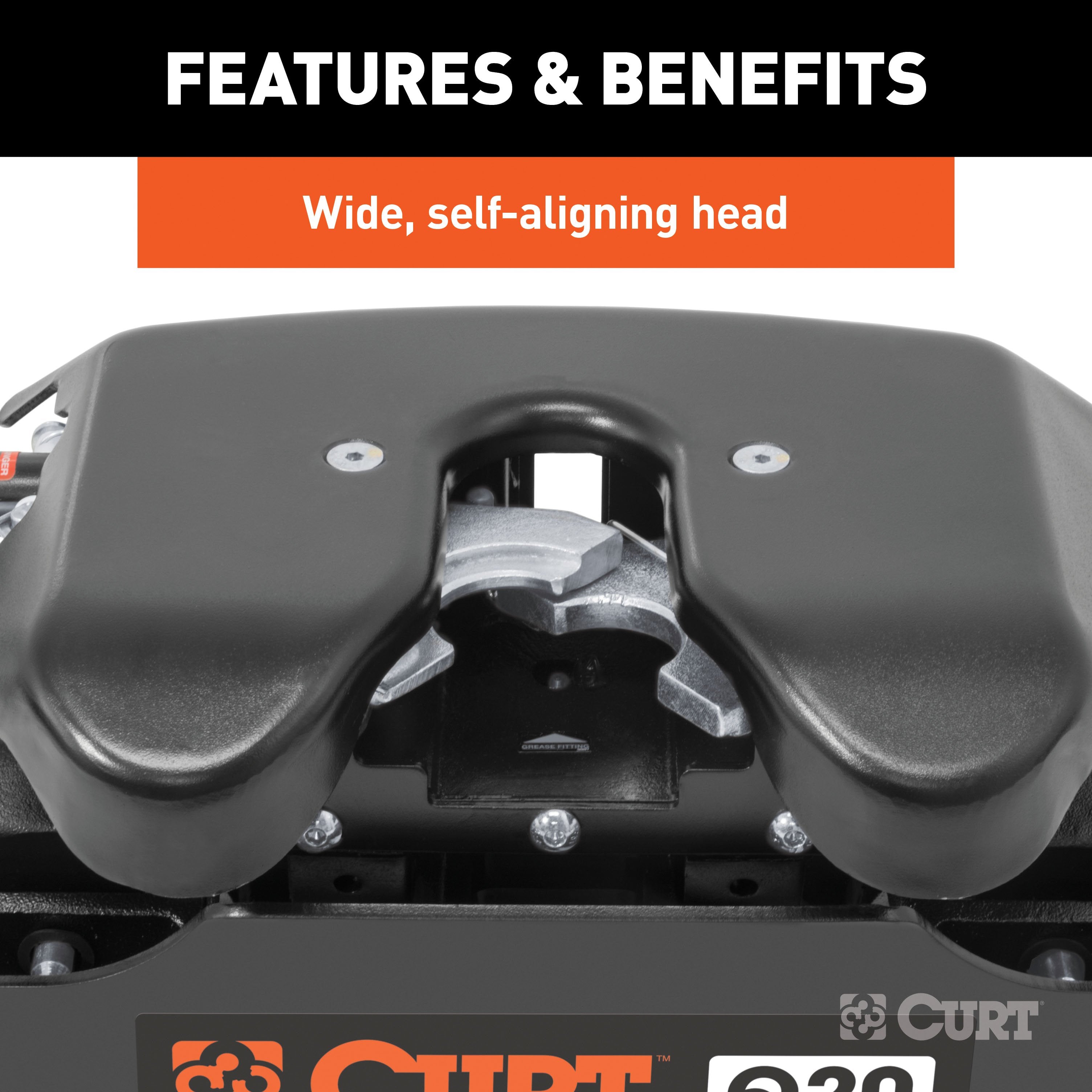

• Wide, self-aligning head helps eliminate errors when backing up to the trailer
• Lockable, short-throw handle automatically engages with the kingpin
• Three easy-access grease fittings for lubrication
• Three-position coupling indicator clearly shows coupling status
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
