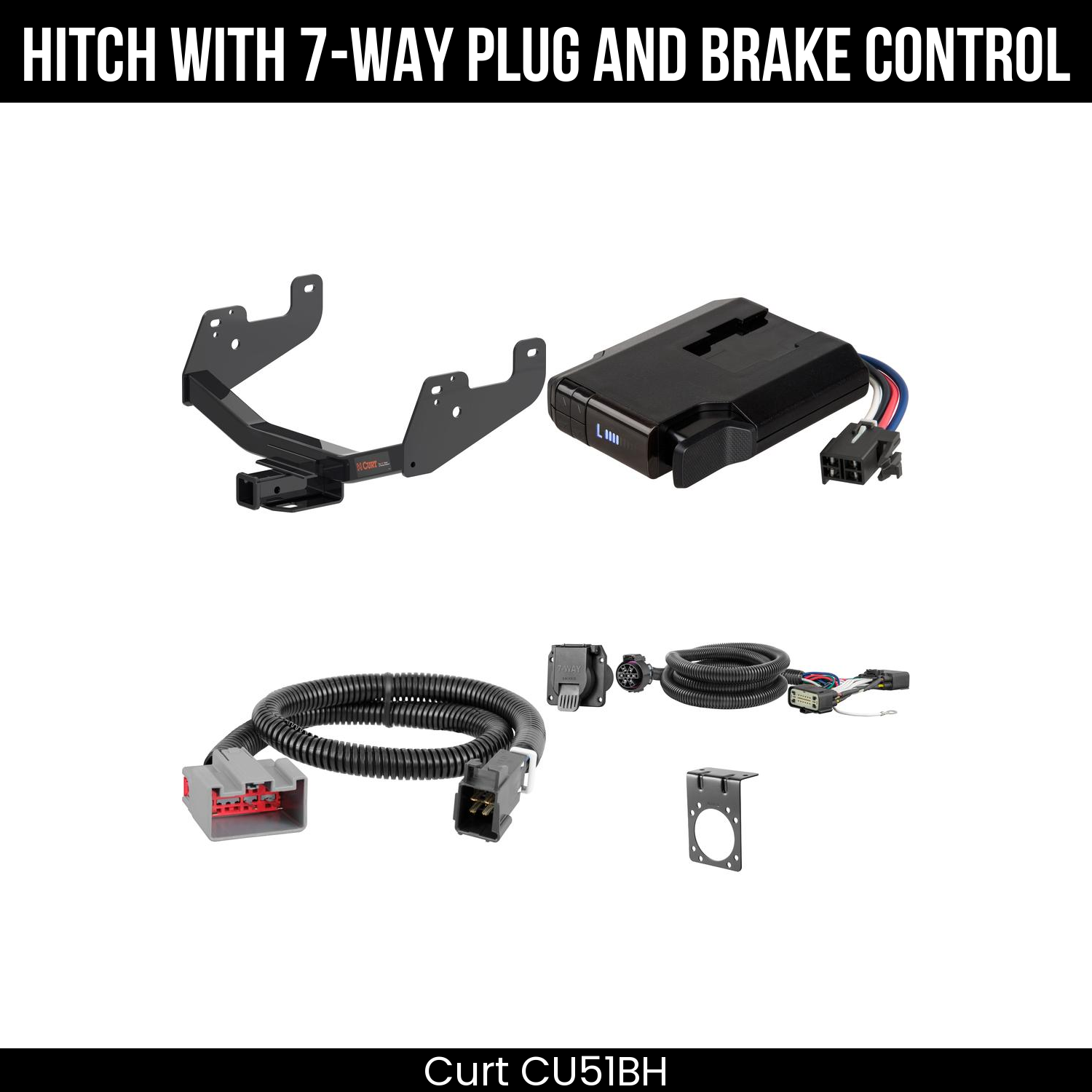

Curt Trailer Hitch + 7-Way Wiring + Venturer Brake Control For 15-20 Ford F-150 17-20 F-150 Raptor w/ Factory Hitch CU51BH

CURT 14021 Class 4 Trailer Hitch, 2-Inch Receiver (QTY 1)

Manufactured by: Curt

Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans.

This particular class 4 hitch fits certain years of the Ford F-150 (to verify vehicle compatibility, see application info) It provides a weight carrying capacity of 10,000 lbs GTW and 1,000 lbs.

TW It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs and a WDTW of 1,200 lbs.

CURT class 4 tow hitches are as much suited for work as they are for play With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component) All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation.

From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on To prove it, we test all our hitches in accordance with SAE J684 for safety..

Features:

• Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
• Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

CURT 56413 Vehicle-Side Custom RV Blade 7-Pin Trailer Wiring Harness (QTY 1)

Manufactured by: Curt

CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection.

This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Ford F150 (see application info to verify fitment).

It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming.

It takes a solid connection and the right amount of power..

Features:

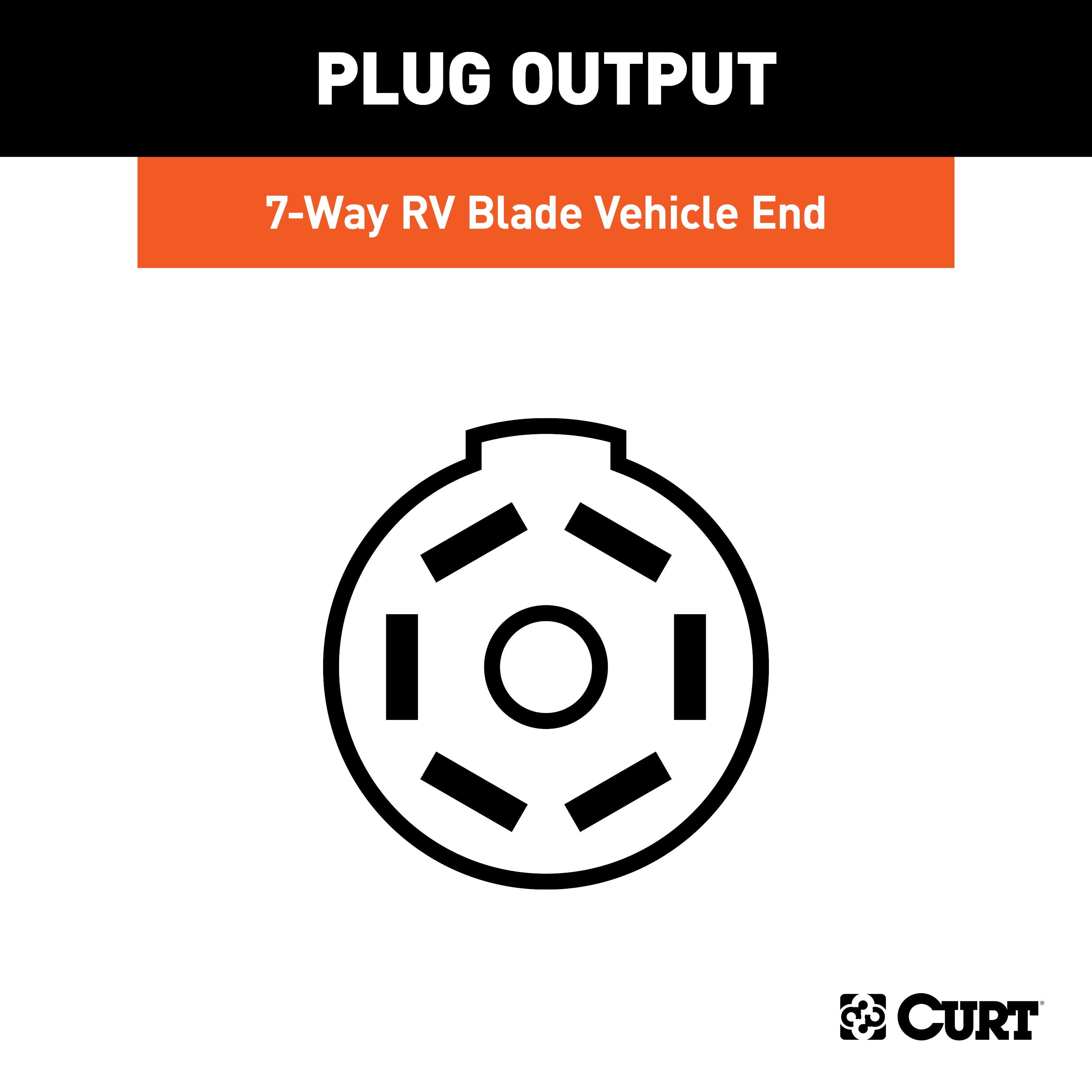

• Plugs into vehicle tail light assembly to provide a 7-way RV blade socket
• Simple plug-and-play design eliminates the need for cutting or splicing
• 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
• Spring-loaded dust cover keeps connector clean when not in use
• Slit loom keeps wires contained and well protected
• Backed by a limited one-year warranty

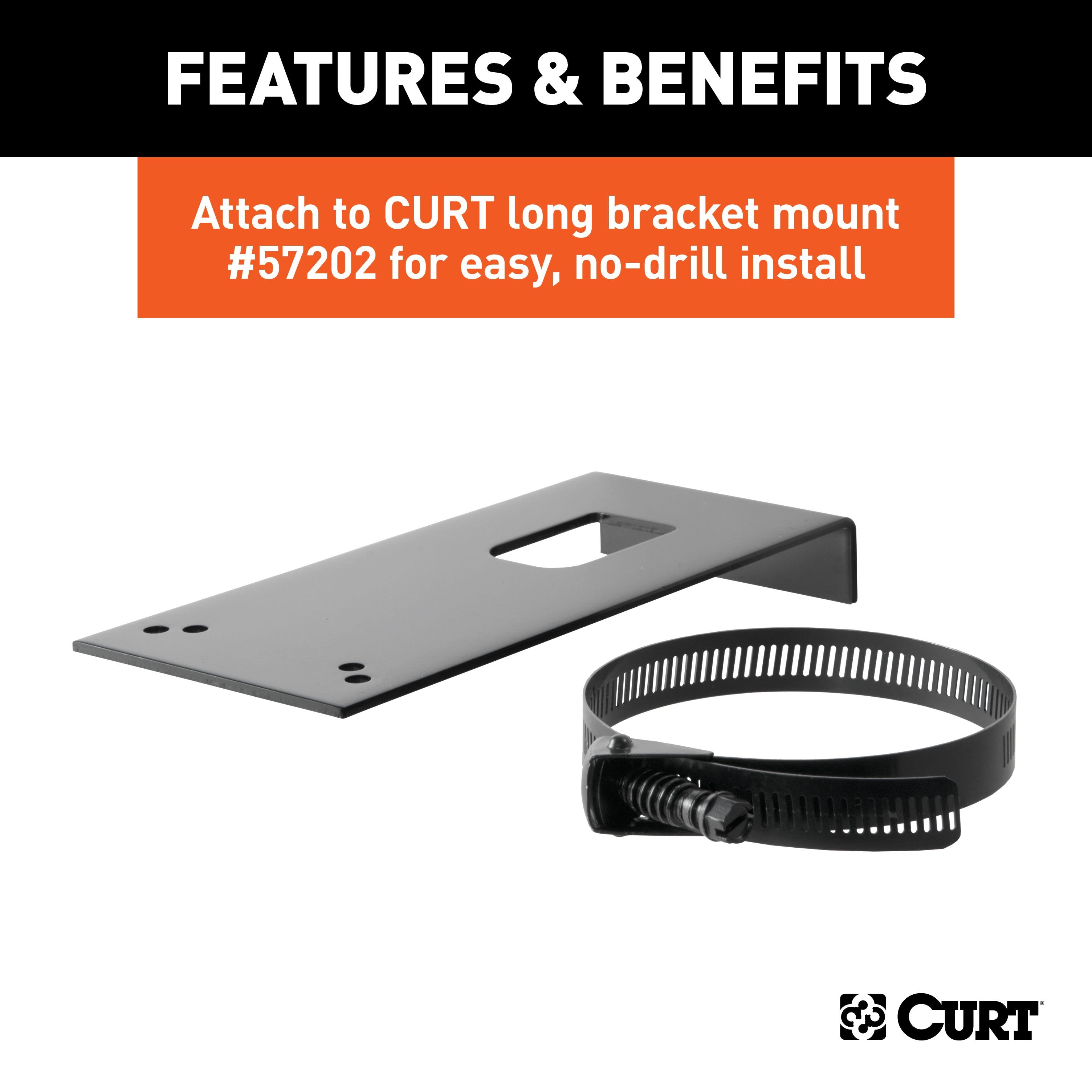

CURT 58290 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 7-Way RV Blade (QTY 1)

Manufactured by: Curt

CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around They can get tangled up with cargo and even damaged.

An electrical connector left to hang off the back end of your vehicle is an even greater hazard Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 7-way RV blade socket.

It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch When it comes to plugging in your trailer lights, it pays not to skimp out CURT electrical is the smart way to ensure that your trailer lights and electrical systems are prepared for the road ahead.

Keep the power flowing, no matter where your adventures take you, with quality electrical products from CURT..

Features:

• Securely mounts 7-way RV blade connector sockets
• Allows for attachment to the vehicle or trailer hitch
• Multiple screw holes offer flexible mounting options
• Constructed from high-strength steel
• Protected by a durable gloss black finish

CURT 51116 Venturer NEXT Electric Trailer Brake Controller, Time-Delay, Fully Adjustable, Low Profile, 1-3 Axles, Plug-and-Play (QTY 1)

Manufactured by: Curt

Experience the reliability and efficiency of the CURT Venturer NEXT, an intuitive and compact brake controller designed to ensure dependable operation of your electric trailer brakes directly from your vehicle's cabin Featuring a sleek and modern design, this advanced controller is equipped with a low-profile bracket that adds clearance for enhanced functionality With the ability to control 2-6 trailer brakes at a time (1-3 axles), it offers fully adjustable settings to perfectly adapt to your unique vehicle-trailer setup.

The Venturer NEXT is a redesigned and improved version of our popular Venturer brake controller, offering compatibility with low-volt, PWM, ABS, cruise control, and electric over hydraulic brakes Its slim profile provides a functional and contemporary aesthetic, allowing for powerful brake control at your fingertips without dominating your vehicle's dashboard The LED display conveniently shows power adjustments in 1.0 increments, allowing you to quickly check your settings, and the brightness is adjustable for optimal visibility during day or night towing.

Additionally, the included unique mounting bracket further enhances clearance, ensuring a seamless and unobtrusive installation Equipped with a time-delay feature, the Venturer NEXT brake controller provides fully adjustable power and ramp time Choose from a wide range of 10 gain settings and nine load settings to perfectly match your specific towing requirements.

The ramp-up progress is clearly displayed through LED indicators, and the brightness can be adjusted to suit day or night-time towing conditions This time-based brake controller is quick and easy to set up, with no internal moving parts or leveling required It offers versatile mounting options, allowing installation at any desired location and angle within your vehicle.

For convenient plug-and-play installation, it is recommended to use a CURT brake controller wiring harness (sold separately)..

Features:

• Slim, low-profile design for a functional, modern aesthetic
• Unique bracket system for improved dash clearance
• Fully adjustable power and ramp time
• Operates 2-6 trailer brakes at a time (1-3 axles)
• No internal moving parts and no leveling required
• 10 gain settings and 9 load settings to adapt to various driving conditions
• LED indicator lengthens as controller applies power
• Digital display shows power adjustments in 1.0 increments
• Adjustable brightness for optimal visibility
• Mounts anywhere in the vehicle, at any angle
• Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
• Auto-sleep mode prevents battery drain after five minutes of idle time

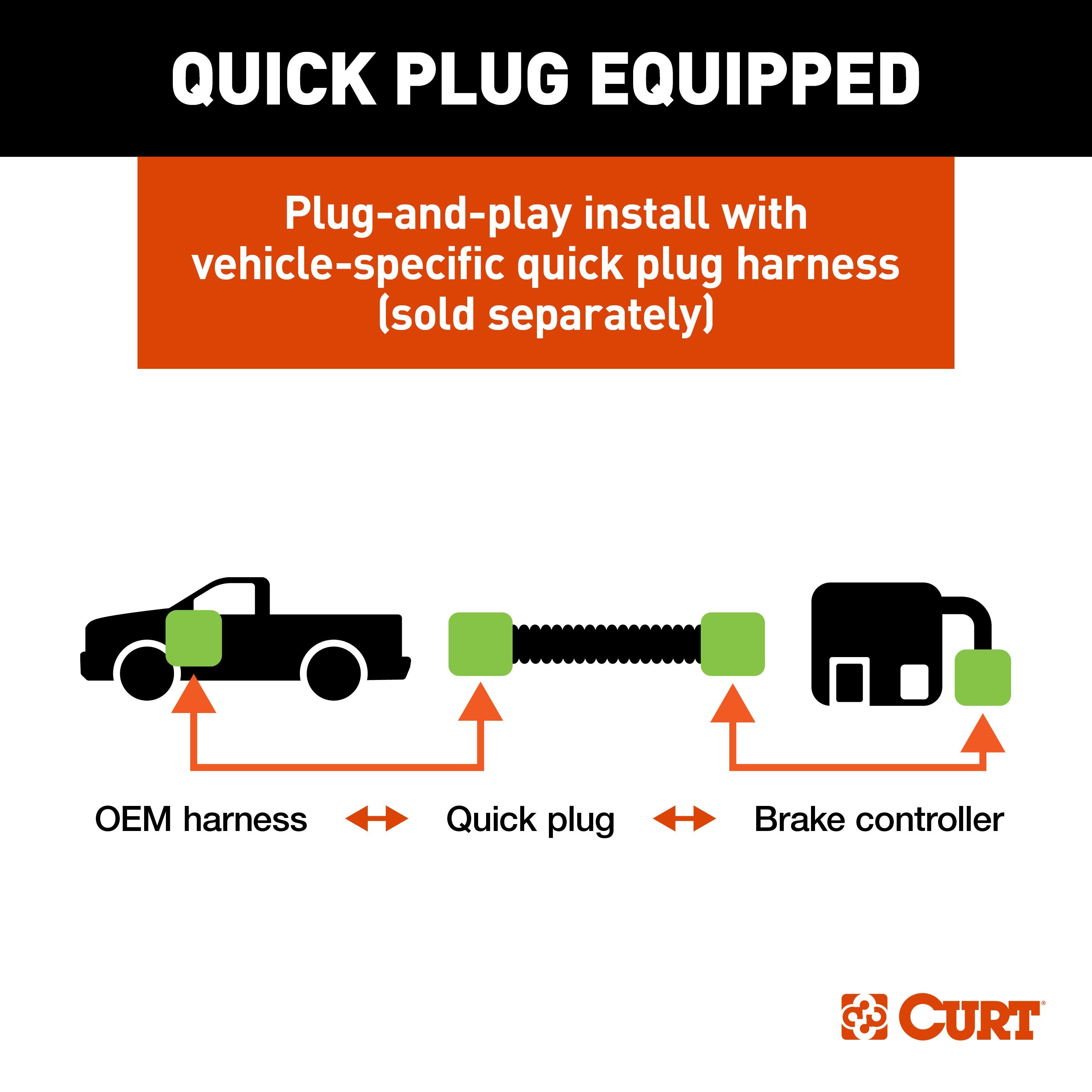

• Plug-and-play install with vehicle-specific quick plug harness (sold separately)

CURT 51436 Quick Plug Electric Trailer Brake Controller Wiring Harness (QTY 1)

Manufactured by: Curt

A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle’s factory brake controller socket The other end plugs into your CURT trailer brake controller.

Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation This particular brake controller harness fits certain years of the Ford Expedition, F150, F250 Super Duty, F350 Super Duty, F450 Super Duty, F550 Super Duty, Flex, Lincoln MKT and Navigator (see application info to verify fitment) CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation.

They're also great for towing all types of trailers with electric brakes For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long It also features a slit loom sleeve to keep the wires protected against crushing and abrasions.

CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight..

Features:

• Allows a CURT trailer brake controller to be plugged into OEM socket
• Quick plug harness installs with plug-and-play convenience
• Wire colors match standard brake controller harnesses
• Includes 24" of 12 gauge wire for flexible installation
• Slit-loom sleeve keeps wires contained and protected
