Draw-Tite Trailer Hitch + 7-Way Wiring + Tekonsha Voyager iD Smart Brake Control For 01-10 Chevy Silverado GMC Sierra 2500 HD 3500 HD 07-07 Classic 8 Foot Bed DR46UI

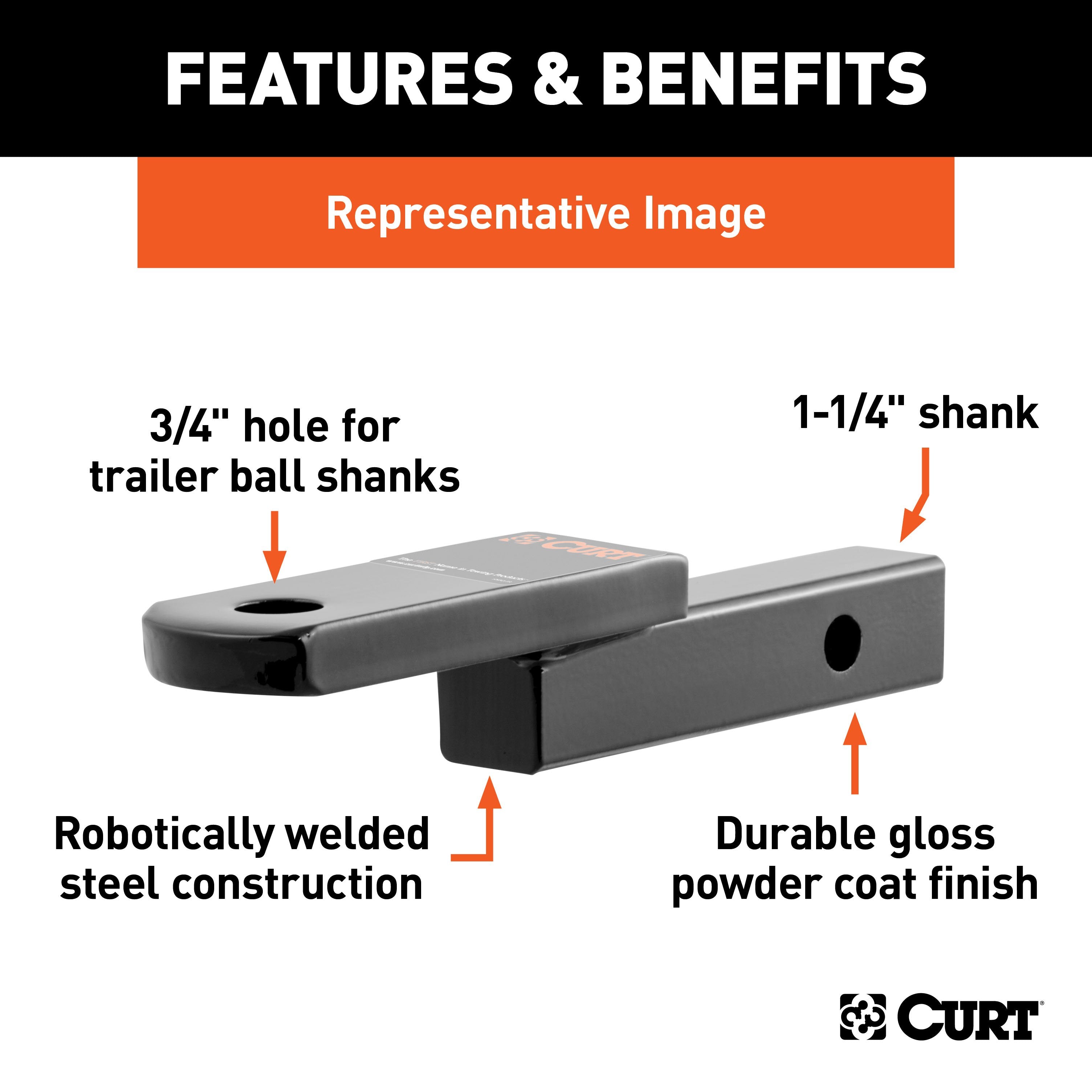

CURT 45519 Class 2 Trailer Hitch Ball Mount, Fits 1-1/4-Inch Receiver, 3,500 lbs, 3/4-Inch Hole, 1-1/4-In Drop, 3/4" Rise (QTY 1)

Manufactured by: Draw-Tite

CURT class 2 ball mounts are designed to be fast, easy and reliable for your light-duty or standard-duty towing needs We produce our class 2 ball mounts using state-of-the-art CNC machinery and robotic welding This provides the accuracy and consistency in our ball mounts that we pride ourselves on and ensures that you receive the exact towing product you expect from an industry-leading manufacturer.

Like our class 1 ball mounts, CURT class 2 ball mounts are all made with 1-1/4" x 1-1/4" shanks and have a 3/4" trailer ball hole A CURT class 2 ball mount is an excellent choice for full-size sedans, minivans, crossover SUVs and other vehicles that commonly use a class 2 trailer hitch They are ideal for towing small boat trailers and utility trailers, popup campers and some recreational vehicle trailers such as those used to haul dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e.

the vehicle, hitch, trailer, etc).This CURT class 2 ball mount has a gross trailer weight capacity of 3,500 lbs and a tongue weight capacity of 350 lbs It measures 9-3/4" long, has a rise of 3/8" and a drop of 1-1/4".

To give our class 2 ball mounts the edge they need to go wherever the road takes you, we coat each one in a highly durable black powder coat that provides a long-lasting defense against rust, UV damage, scratching, scuffing and chipping..

Features:

• Fits trailer hitches with a 1-1/4" x 1-1/4" receiver tube opening
• Equipped with a 3/4" hole to accept a trailer ball shank
• 3/4" rise or 1-1/4" drop for precise trailer leveling
• Shank constructed from solid steel for optimum strength
• CNC-formed, robotically welded and mechanically descaled for a perfect fit
• Protected by a durable powder coat finish
• Made in USA
• Limited lifetime warranty (one-year finish, one-year parts)

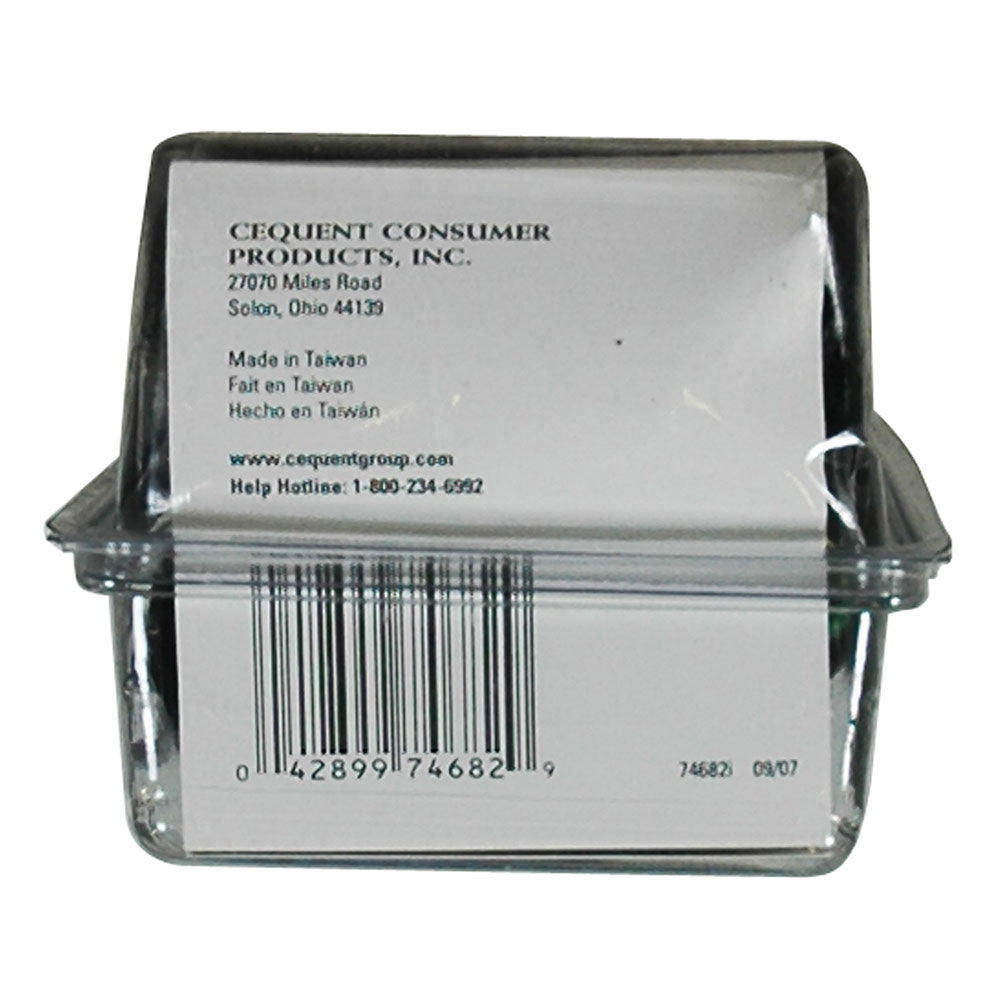

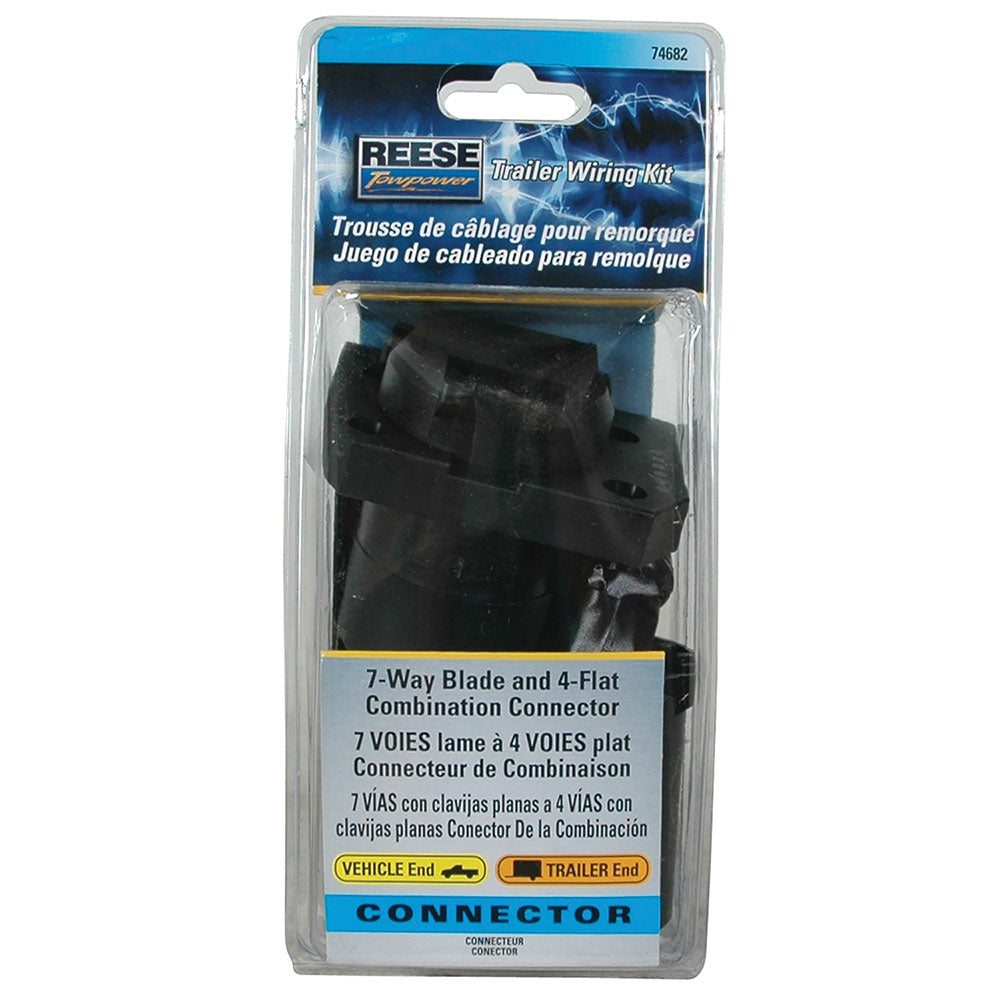

REESE Towpower electrical T- Connector designed to fit a multitude of today's models offering both a 7-Way connector and a 4-Flat connector. The connector is designed to be inserted into the vehicles wiring harness to facilitate a quick and easy plug in installation. Easy to follow, detailed instructions are included with every T-Connector to make the installation process as smooth and trouble-free as possible.  Check the application guide to see if it fits your model vehicle.• For quick connection to 4-Flat or 7-Way trailer connectors• Includes mounting bracket and hardware• Easily adapts to existing vehicle 7-Way plug• Ability to tow trailers with different style trailer connectors• Durable plastic shell• Weather tight seal• Attractive point-of-purchase packaging(QTY 1)

Manufactured by: Reese Towpower

REESE Towpower electrical T- Connector designed to fit a multitude of today's models offering both a 7-Way connector and a 4-Flat connector The connector is designed to be inserted into the vehicles wiring harness to facilitate a quick and easy plug in installation Easy to follow, detailed instructions are included with every T-Connector to make the installation process as smooth and trouble-free as possible.

Check the fitment guide to see if it fits your model vehicle..

Features:

• Quick connection to 4-Flat or 7-Way trailer connectors
• Easily adapts to existing vehicle 7-Way plug
• Allows towing of trailers with different style connectors
• Durable plastic shell
• Weather tight seal
• Attractive point-of-purchase packaging
• Connector type: 7-Way/4-Flat
• Harness type: Male and female
• Terminal quantity: 7
• Wire colors: Brown, green, yellow, white
• Wire quantity: 7
• Amperage rating: 30 A
• Circuit protection: None

Voyager iD™ Trailer Brake Controller, Proportional, 1 to 3 Axles (QTY 1)

Manufactured by: Tekonsha

VOYAGER® Smart Braking with a sleek designThe Tekonsha Voyager iD trailer brake controller gives you dynamic braking power when you need it most The Voyager iD brake controller seamlessly integrates control and display into your vehicle’s dash and out of the way from your knees or airbag systems.

As one of the industry’s most advanced brake controller and a true proportional braking system, the iD provides a smooth braking response in any stopping situation Wrapped in a sleek, OEM style design, this advanced electric brake controller knob that controls settings and trailer braking activity Fingertip control of the lighted, rotary-style knob makes engaging manual override quick and easy too.

The integrated in-dash appearance keeps your dashboard clean while the brains of this electric brake controller – otherwise known as the power module – are secured safely behind the dash, out of sight and safe from outside elements The Voyager iD works with all trailers up to three axles and is backed by a limited lifetime warranty..

Features:

• OEM-style design integrates into dash
• Proportional braking control in all situations
• Fingertip adjustable brake control settings
• Manual override via rotary control knob
• Bi-color LED high visibility display
• Self-leveling unit with multiple mounting options
• Easy plug & play installation
• Supports up to six trailer wheels (1 to 3 axles)
• Electric brake type
• Digital output display
• Solid state construction
• No hydraulic connections
• No circuit breaker protection
• Black plastic housing
