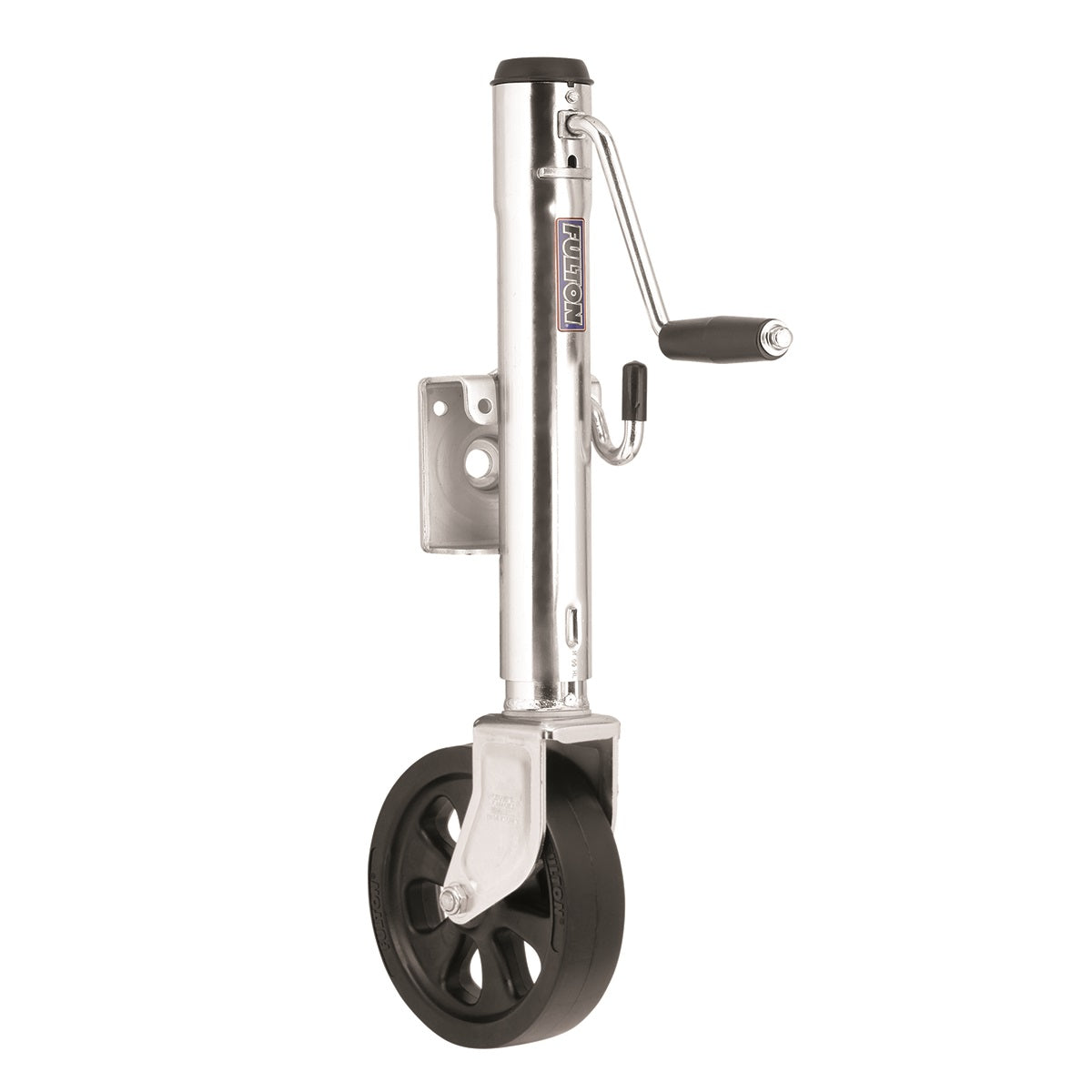

Fulton Bolt Thru Swivel Trailer Jack 1500 Pounds 10 Inch Lift 8 Inch Caster Wheel Weld On XP15W 0301
$130.99
Fulton Marine and Recreational Trailer Jack (P9012-00 Weld-On Mount & Hardware Sold Separately)
Â
Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 1/2" pull pin models. The Fulton brand boltthru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.
Specifications:
- Fits: 3"x3", 3"x4", and 3"x5" trailer frames
- Lift Capacity: 1,500 lbs
- Retracted Bracket Height: 13" from bracket to bottom
- Travel/Lift: 10"
- Extended Bracket Height: 23"
- Clearance: 12.4" from bracket to top
- Wheel size: 8" diameter
- Spring loaded Pull pin diameter: 1/2"
- Finish: Z-Max 600 zinc
- 5-Year limited warranty
Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others
