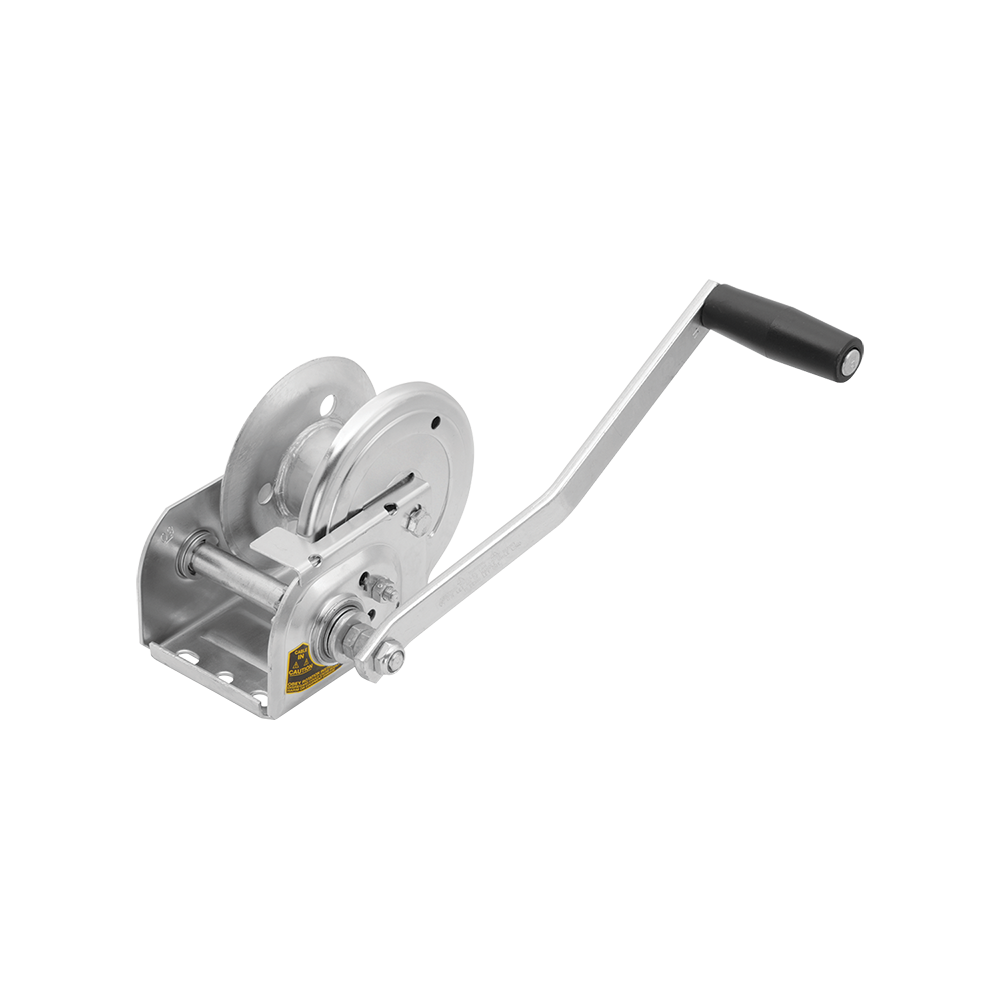

Fulton® Brake Winch - Part Number: 143005

Efficiency and safety in lifting and hauling tasks are paramount, whether you're working on a construction site, managing agricultural equipment, or ensuring the smooth operation of manual fork lifts and boat lifts. With Fulton® Brake Winches, you gain the advantage of self-activating automatic brakes that securely hold the load whenever the crank handle is released. This feature, combined with Fulton®'s dedication to superior materials and rugged manufacturing, ensures that our brake winches not only perform under the most demanding conditions but also offer sleek, attractive designs that complement any setup. Designed by some of the industry's most innovative engineers, our brake winches provide reliable solutions for a wide range of applications, making your work easier, safer, and more efficient.

Key Features

• Self-activating automatic brake winches hold the load securely when the crank handle is released.
• Max Rated Line Pull 1st Layer: 1,000 lbs (454 kg)
• Max Rated Line Pull Full Drum: 500 lbs (227 kg)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Diameter: 7/32" (5.5 mm)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Drum Storage: 50 ft (15 m)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Test Strength: 5,600 lbs (2540 kg)
• Handle Length (in.): 11 (27.9 cm)
• Gear Ratio: 4:1
• Drum Hub Diameter (in.): 2-1/4 (57 mm)
• Covered Gears: Yes, for added durability and protection
• Cable Included: No, allowing for customized cable selection
• 5-Year Warranty, offering peace of mind
• Packaging: Litho Box

How to Select the Right Winch

To ensure you choose a winch that meets your specific needs for safety and efficiency, consider the following:

1. Identify the maximum load weight to determine the necessary winch capacity.
2. For optimal performance and safety, select a winch with a capacity that meets or exceeds your maximum load requirement.
3. Example: If your maximum line load is 950 lbs, opting for the Fulton® Brake Winch 143005, with a first layer capacity of 1,000 lbs, ensures a safe and reliable operation.

Remember, selecting a winch with a capacity close to your maximum load requirement enhances operational safety and longevity of the winch.
