Lippert 10,000-lb Single Left Electric Brake & 8 on 6.5? Hub/Drum � 12�? x 3?? (Fits Dexter, Alko, Rockwell)
$427.99
Lippert 10,000-lb Single Left Electric Brake & 8 on 6.5″ Hub/Drum – 12¼″ x 3⅜″
This convenient bundle provides a genuine Lippert 10K-rated left electric brake assembly and matching hub/drum with an 8 on 6.5″ bolt pattern. It's perfect for keeping your trailer’s braking system strong and reliable, especially when towing heavy loads.

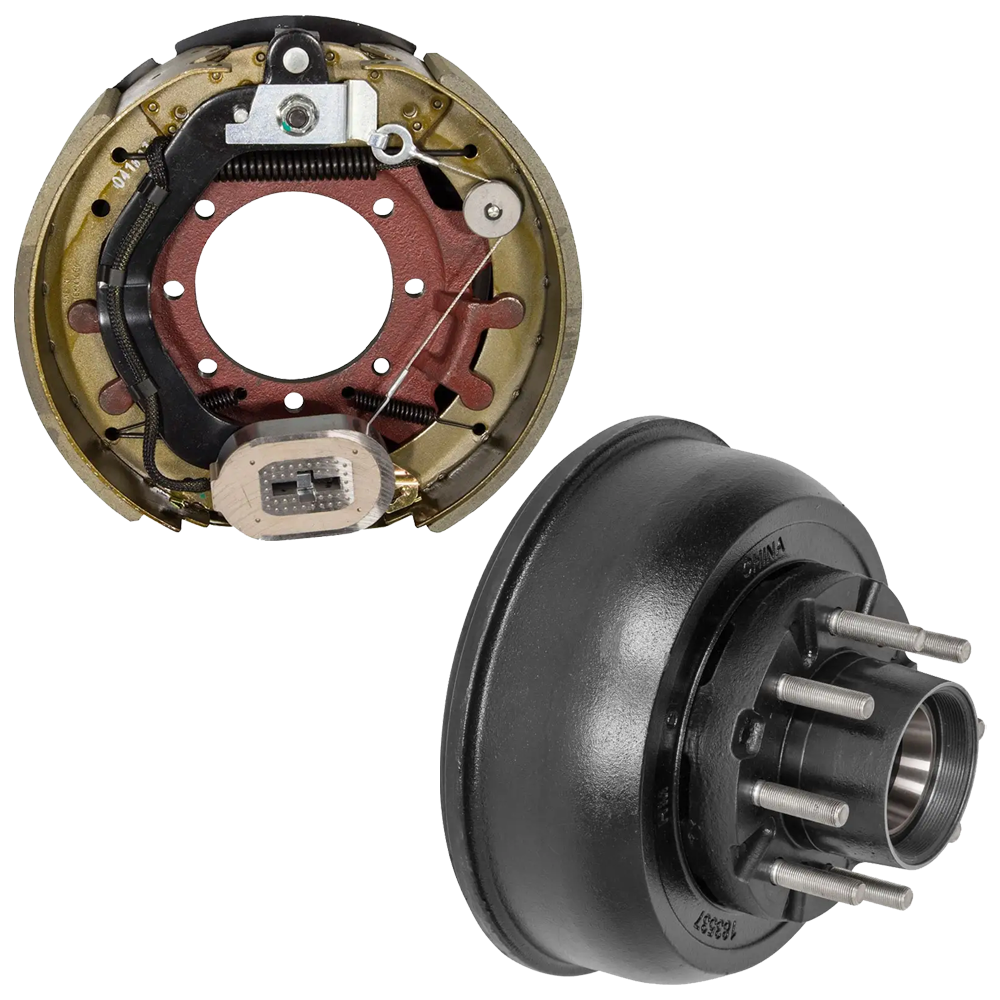

Bundle Contents:
-

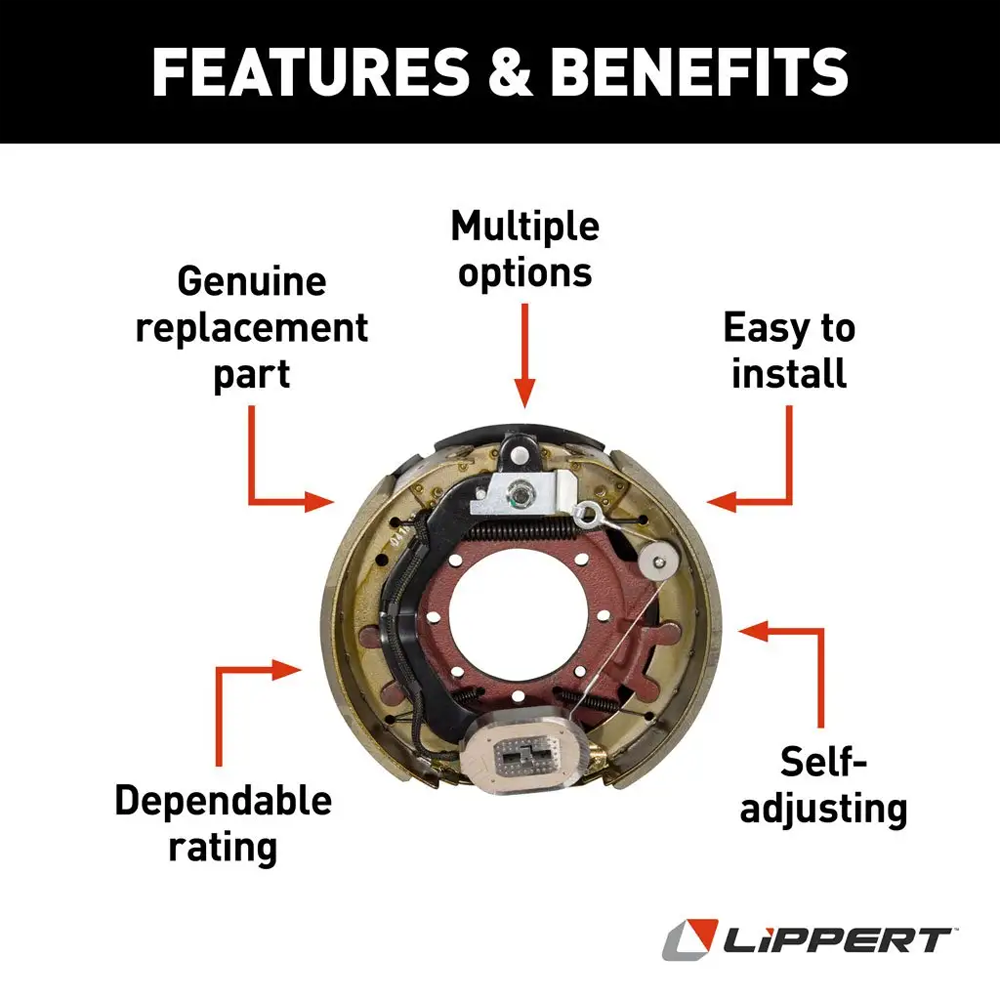

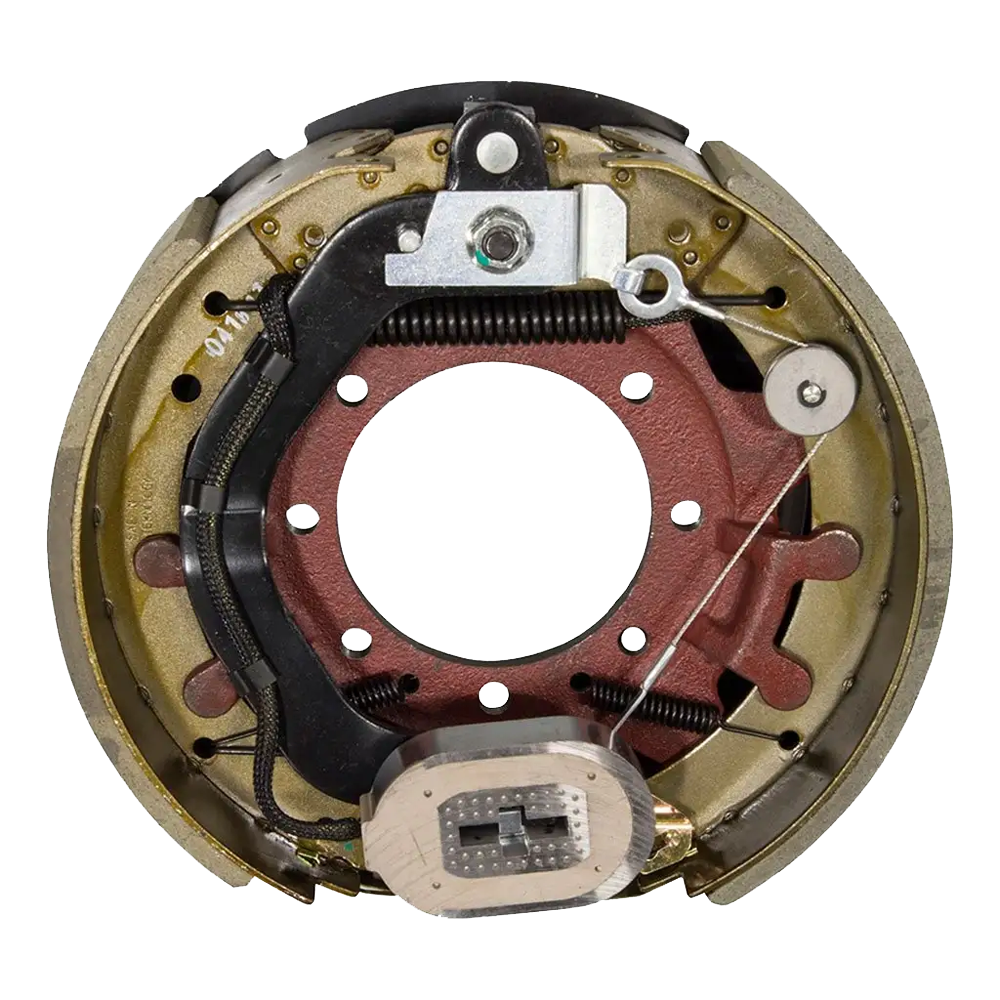

QTY (1): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12" x 3.38"
- New electric drum brakes will require a break-in period to achieve full performance
- Dexter Compatible Part Number: K23-450-00 | 023-450-00
-

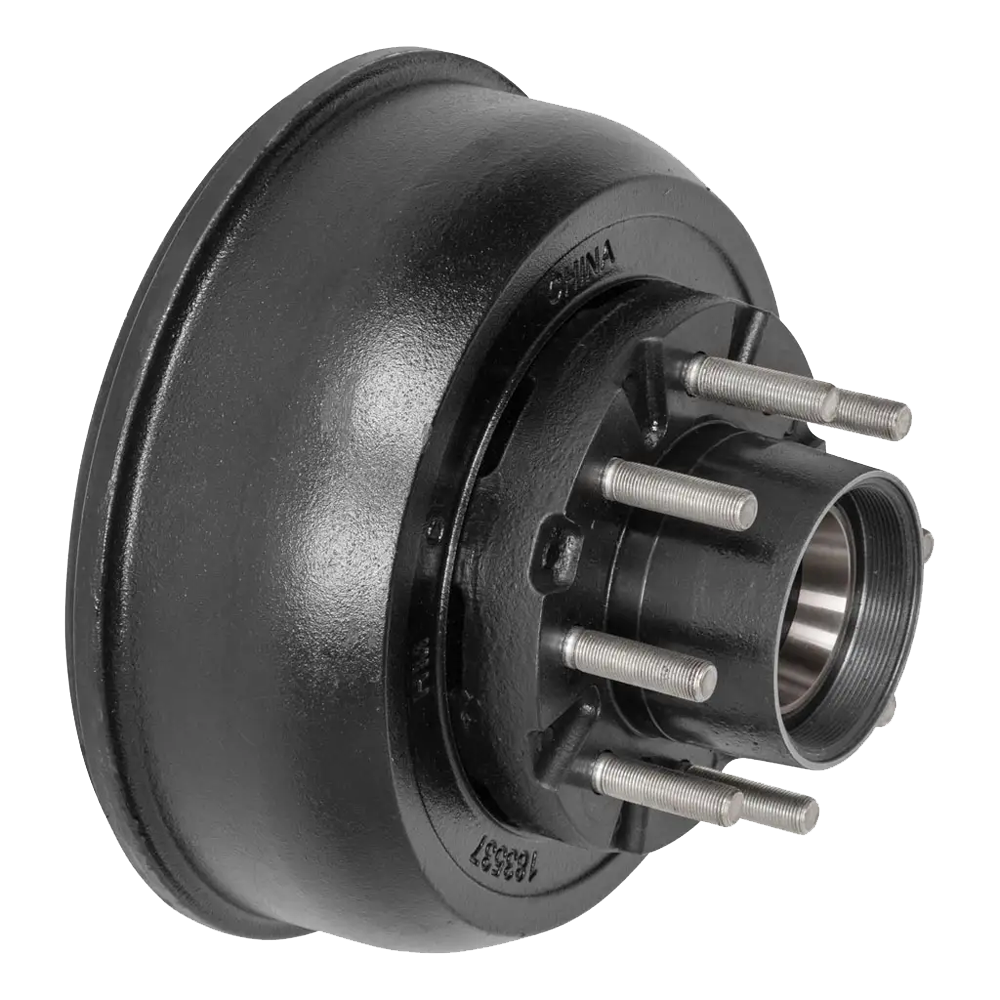

QTY (1): 12-1/4" x 3-3/8" Trailer Brake Drum - 10,000-lb.
- Axle capacity: 10,000 lbs.
- Brake size: 12-1/4"
- Brake width: 3-3/8"
- Lippert genuine replacement part
- Allows for electric or hydraulic drum brakes
- Durable, cast iron construction
- Backed by a 1-year warranty
We recommend regularly checking your existing brake components to ensure safe performance. Always reference your original equipment labels before installing these replacement parts.
| Specifications: | |
|---|---|
| Kit Type | Single-Side Electric Brake & Hub/Drum Kit |
| Axle Rating | 10,000 lbs. |
| Brake Drum Dimensions | 12.25" x 3.38" |
| Brake Mounting Pattern | 7-Bolt Brake Flange |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Hub With Integrated Drum Assembly |
| Type of Adjustment | Self-Adjusting |
| Brake Location | Left (Roadside) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
Order today or call us at 877-869-6690 for expert advice and personalized service.
