Lippert 10? � 2.25? 3,500-lb Right-Hand Manual-Adjust Electric Brake & 5-on-4.5 Drum Hub Kit � Dexter, Alko, Rockwell, Quality Axles Compatible

Lippert 10″ × 2.25″ Electric Brake & Drum Hub Bundle – 3,500-lb Right-Hand Replacement

Restore confident stopping power with this genuine Lippert® bundle. It combines a manual-adjust, right-hand 10″ × 2.25″ electric brake assembly with a perfectly matched 5-on-4.5″ drum hub, delivering a factory-fit solution for 3,500-lb axles—all in one convenient kit.

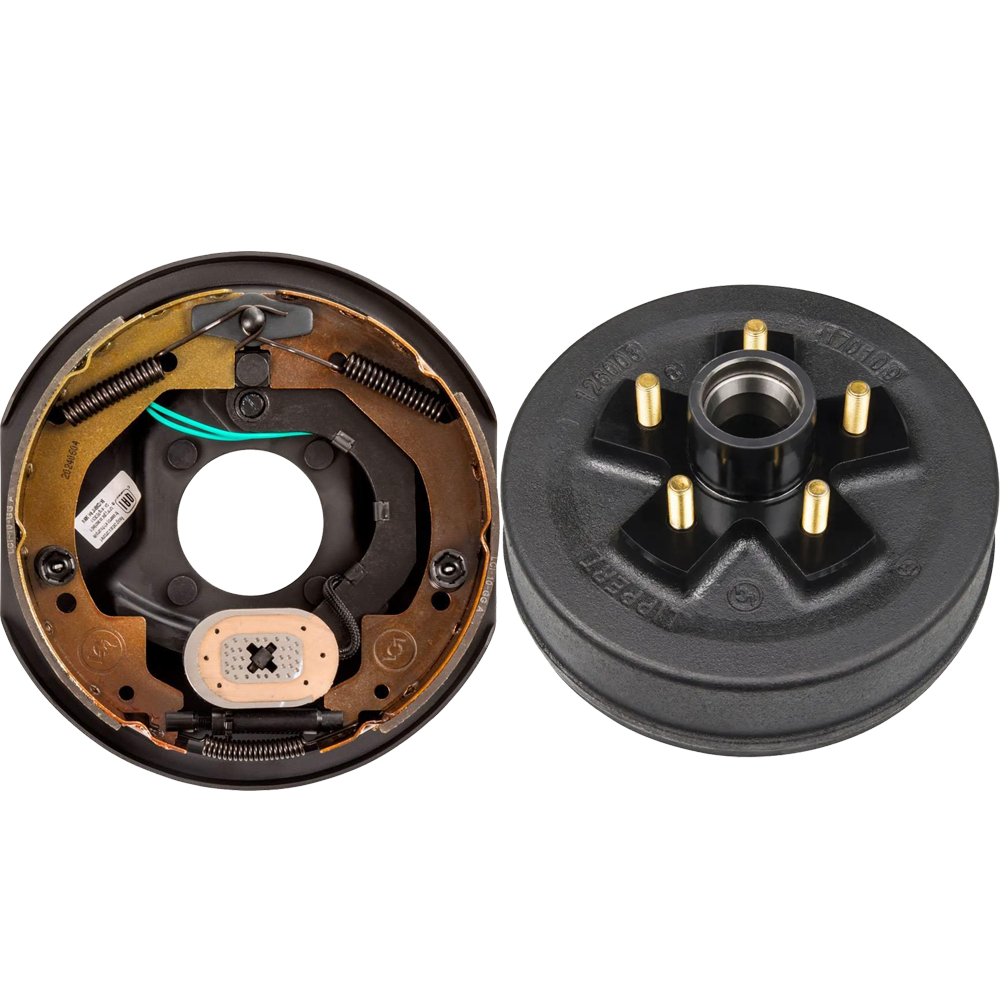

Bundle Contents:

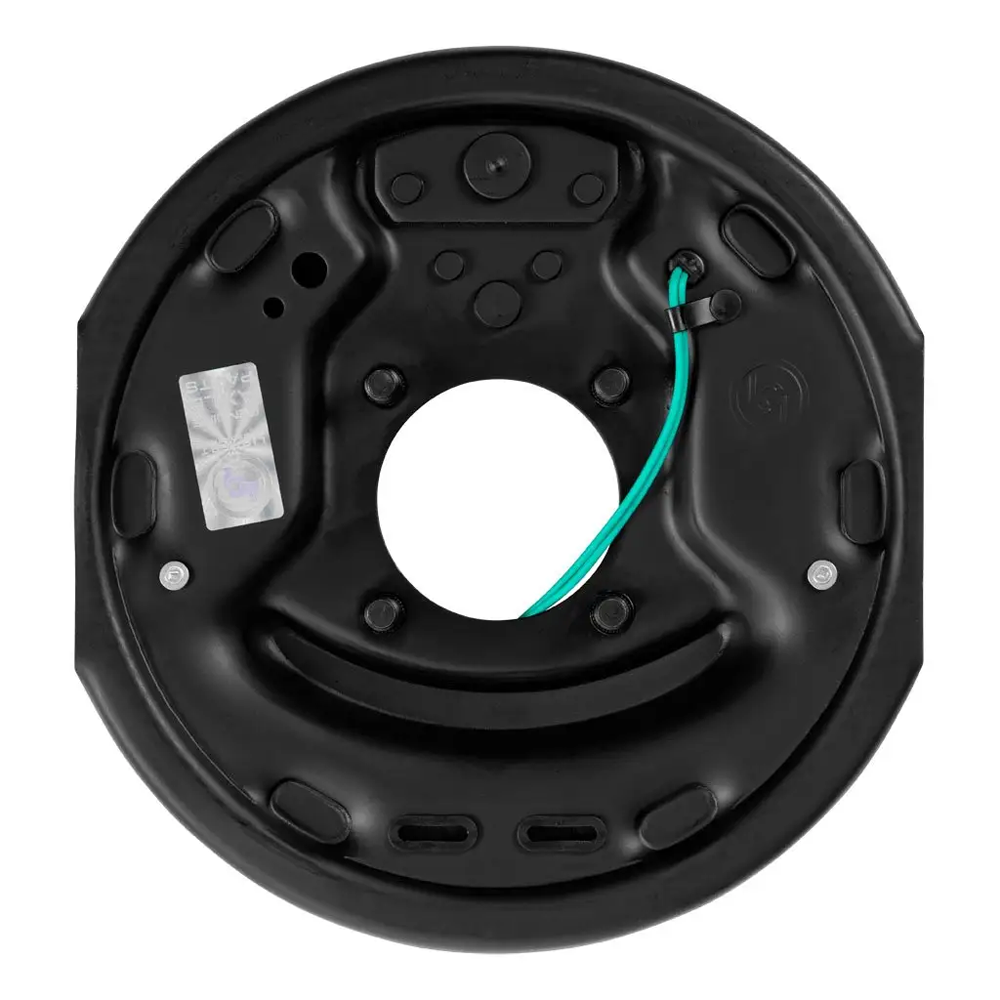

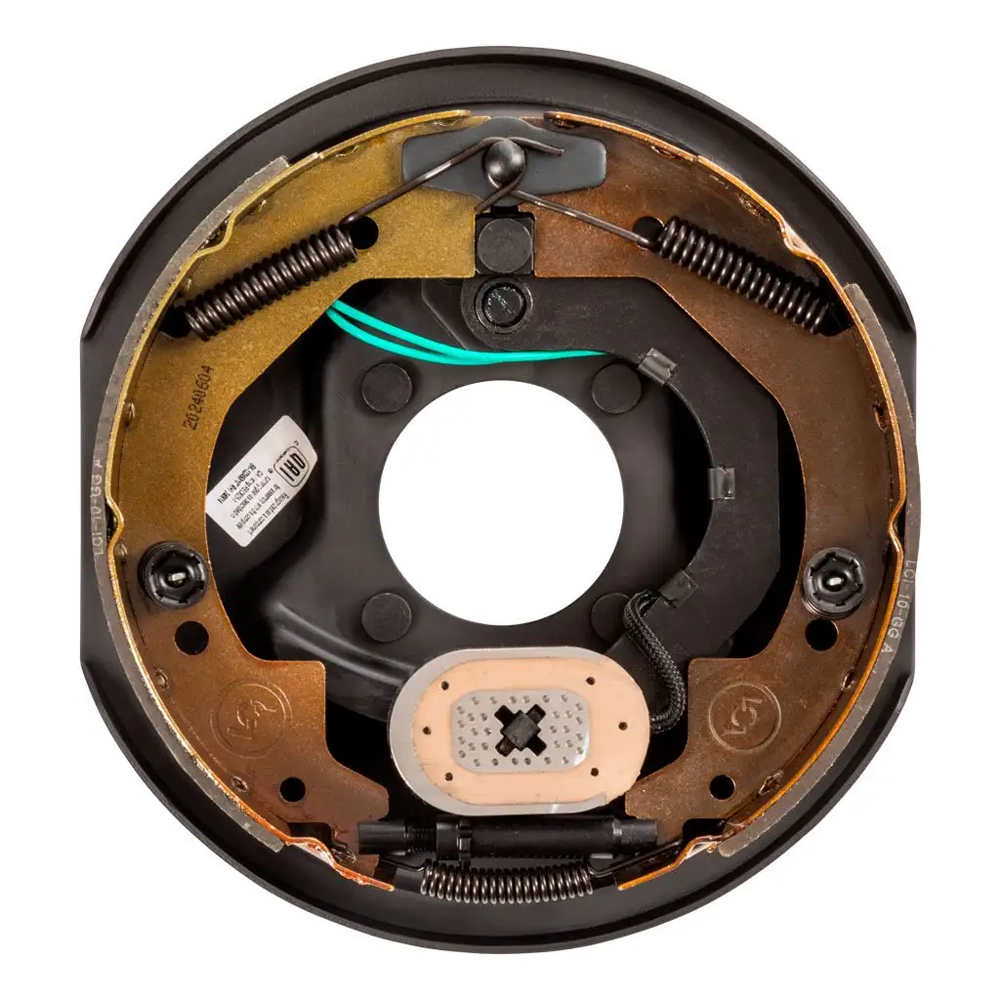

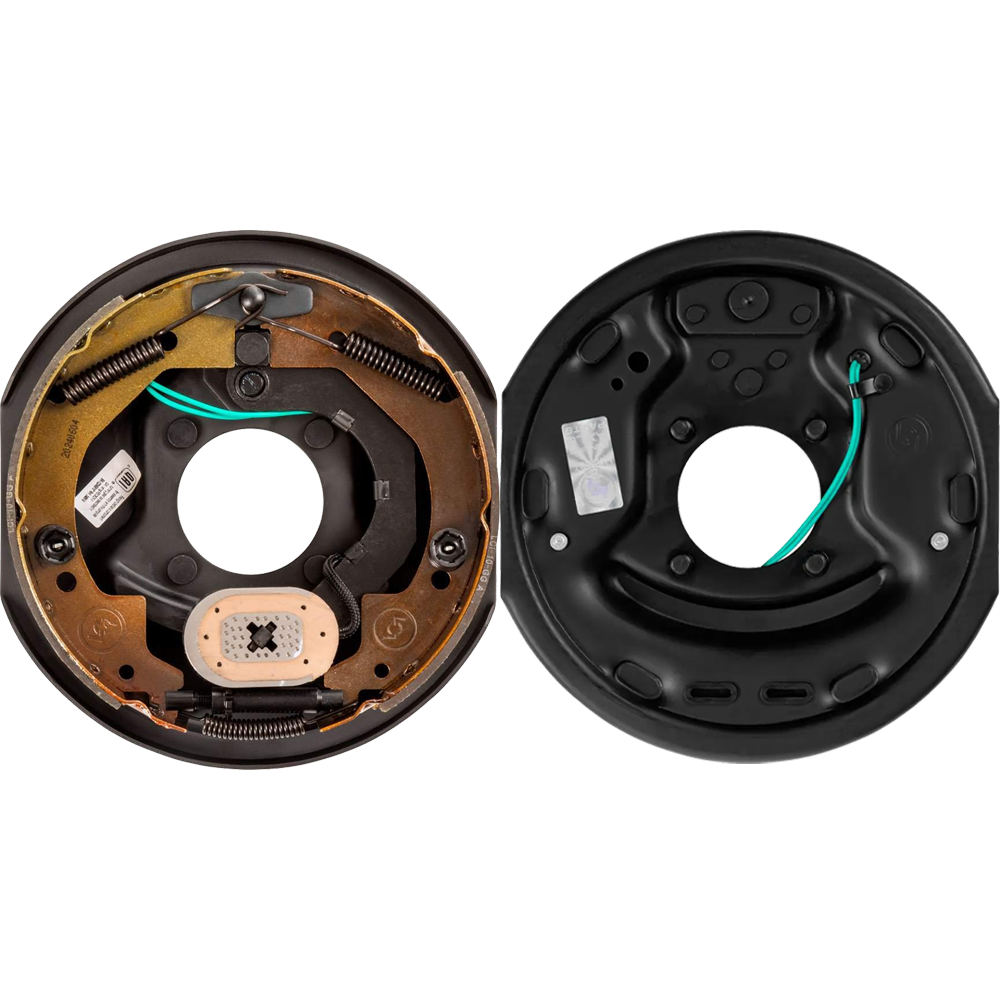

• QTY (1): Lippert Electric Brake Assembly – 10″ × 2.25″, 3,500 lbs. (Right)
  • Manual-adjust, 4-bolt mounting flange
  • Right-hand (curb-side) configuration
  • Pre-assembled shoes & magnet for quicker install
  • Fits standard 3,500-lb trailer axles
  • Dexter compatible part numbers: K23-027-00, 023-027-00
  • Lippert® quality backed by 1-year warranty

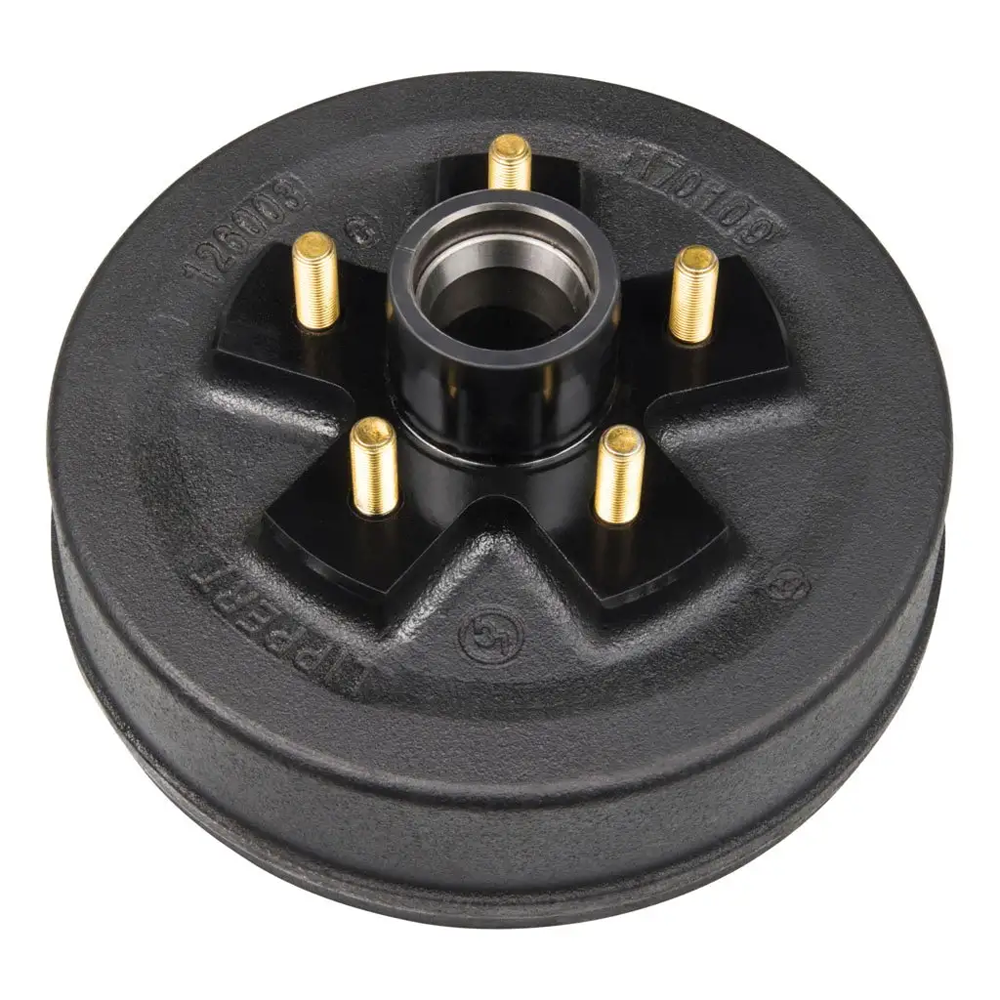

• QTY (1): Lippert 10″ Brake Drum Hub – 5 on 4.5″, 1/2″ Studs
  • Durable cast-iron hub-drum, machined for accuracy
  • 5 on 4.5″ bolt circle with 1/2″ pressed-in studs
  • Rated for 3,500-lb electric-brake axles
  • Accepts 13″–15″ wheels
  • Limited 1-year Lippert® warranty

Always verify specifications against your original equipment and perform periodic inspections and manual adjustments for peak braking performance and axle longevity.
