Lippert 10″ × 2.25″ Manual-Adjust Electric Brake & Drum Hub Kit – 3,500-lb Axles

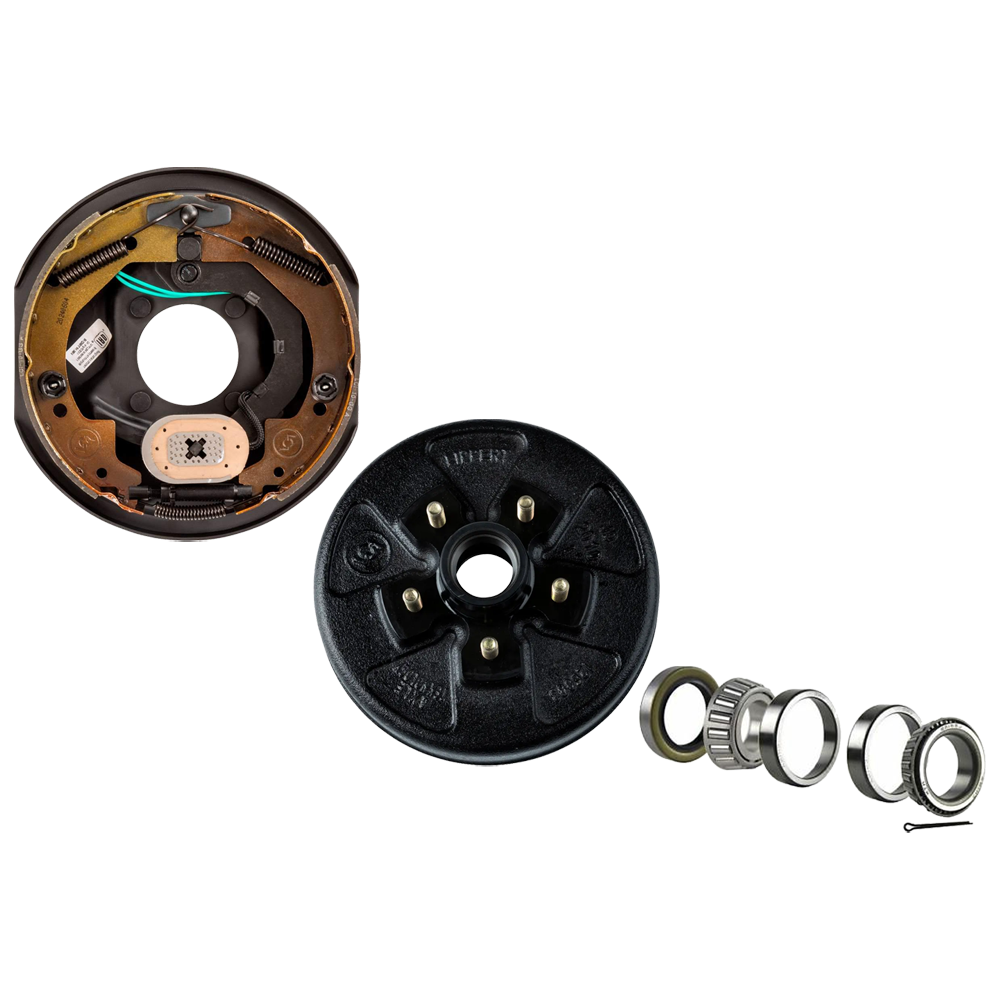

This convenient bundle pairs a genuine Lippert right-hand electric brake assembly with a matching 10″ drum hub, giving you everything you need to refresh the curb-side wheel end of your 3,500-lb trailer axle. By purchasing the kit, you save time tracking down compatible parts and gain the confidence of OEM quality in one box.

Bundle Contents:

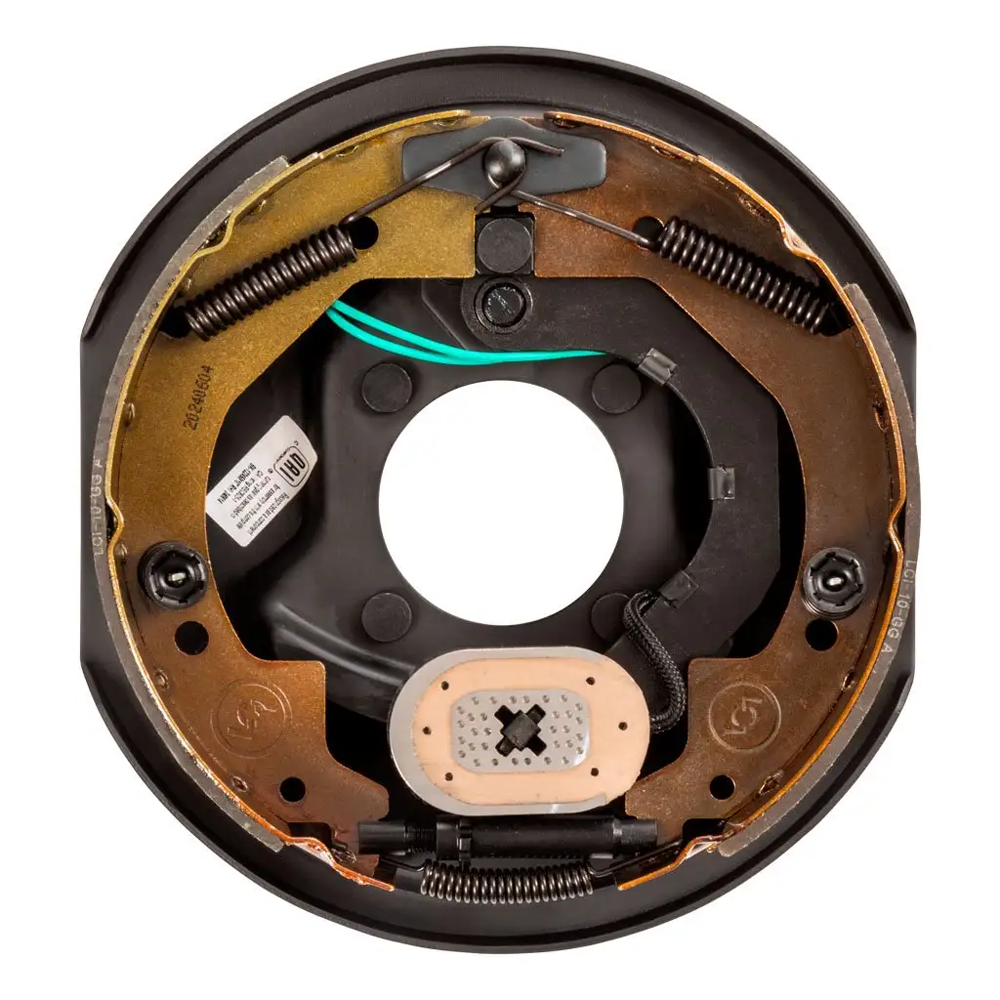

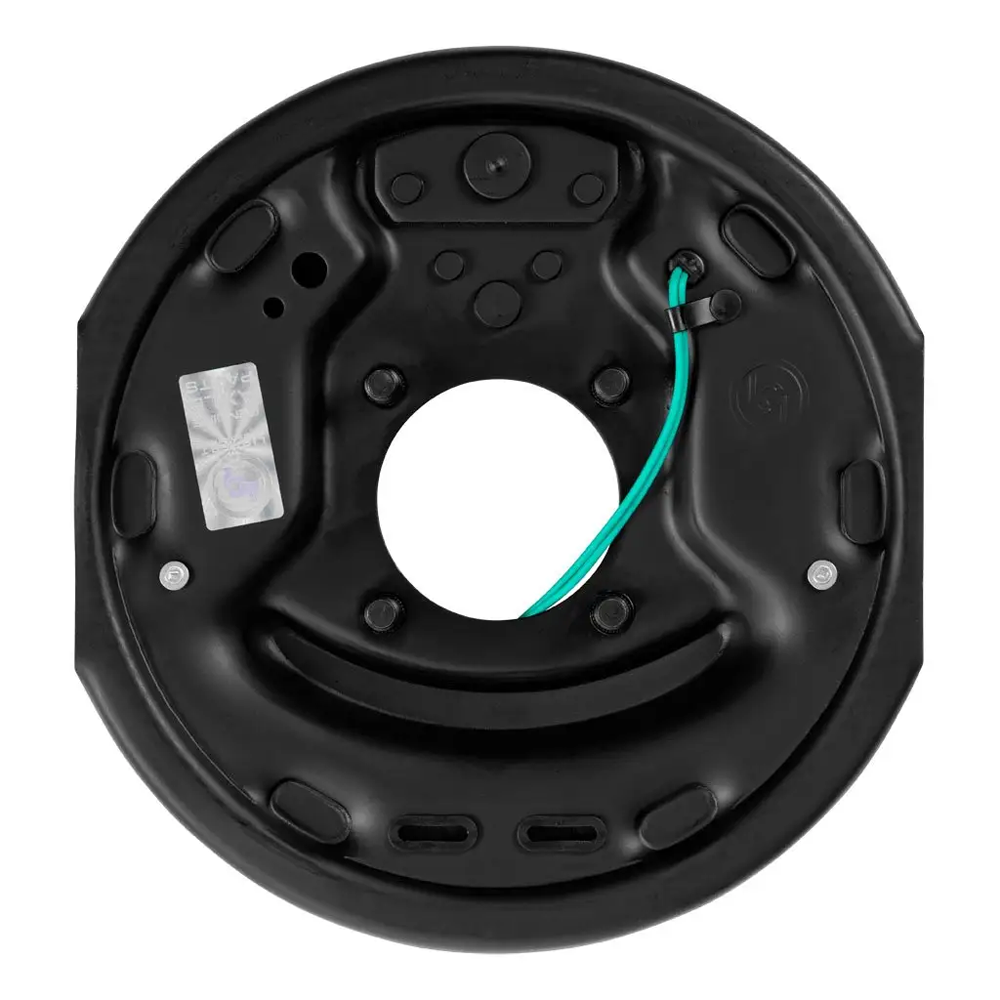

• QTY (1): Lippert 10″ × 2.25″ Manual-Adjust Electric Brake Assembly – Right-Hand, 3,500 lbs
  • Right-hand (curb-side) replacement for Lippert, Dexter & AL-KO 4-bolt brake flanges
  • 10″ × 2.25″ friction surface sized for 3,500-lb axles
  • Manual star wheel lets you fine-tune braking force
  • Dexter compatible part numbers: K23-451-00 / 023-451-00
  • Pre-assembled shoe, magnet & springs for fast bolt-on install
  • Backed by Lippert’s 1-year limited warranty

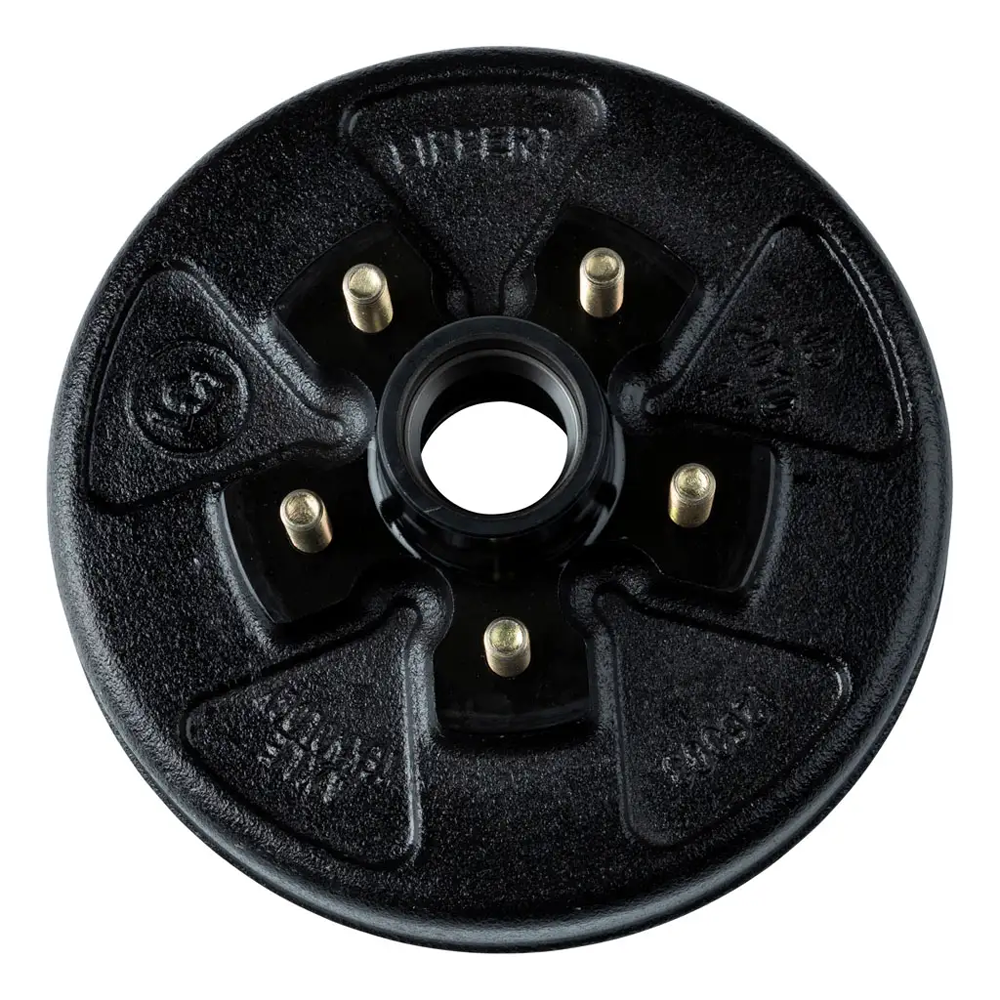

• QTY (1): Lippert 10″ Brake Drum Hub Assembly – 5 on 4.5″, 1/2″ Studs
  • CNC-machined cast-iron drum hub rated for 3,500-lb axles
  • Standard 5 × 4.5″ lug pattern; accepts 13″–15″ wheels

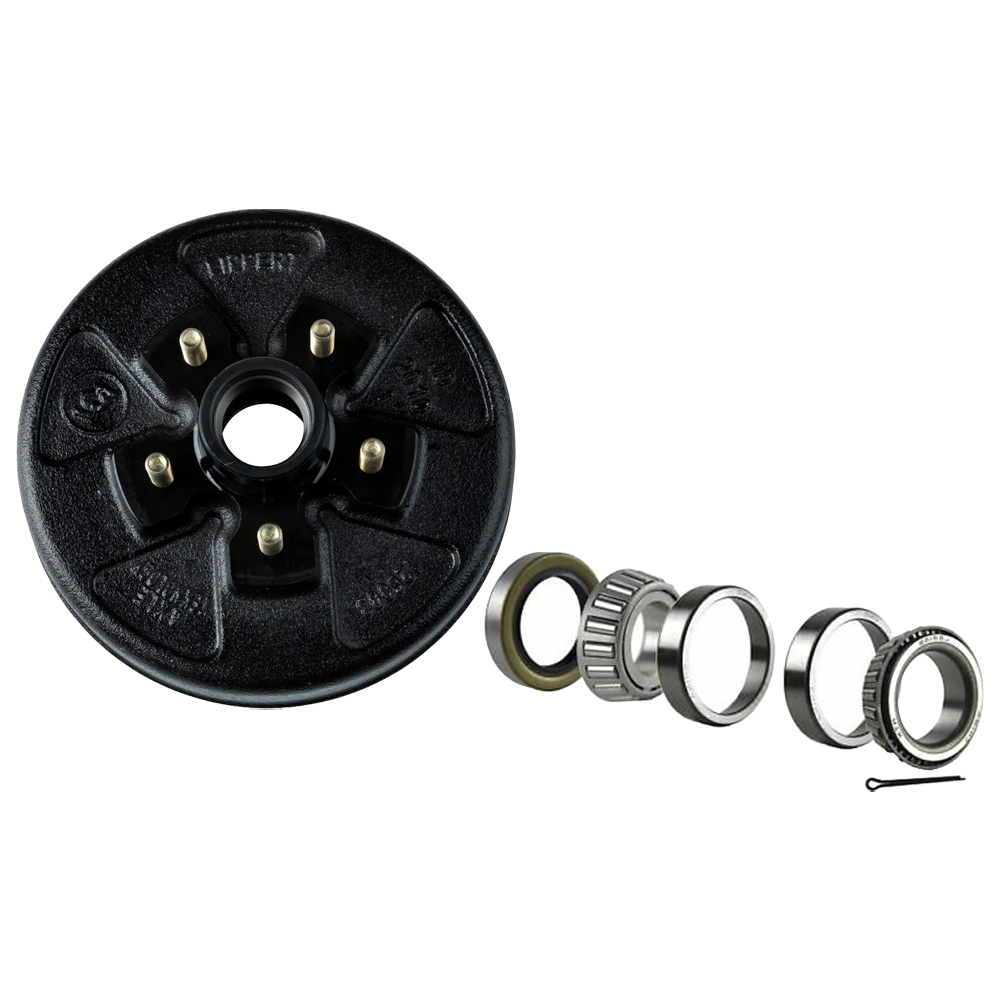

  • Includes bearing kit (per hub) #333948 containing:
    • (1) Inner Bearing Cone
    • (1) Outer Bearing Cone
    • (1) Inner Bearing Cup
    • (1) Outer Bearing Cup
    • (1) Double-Lip Grease Seal
    • (1) Cotter Pin
    Hardware quantities are multiplied per hub supplied.
  • Compatible with Lippert brake #126003 and most 10″ shoes
  • One-year limited warranty for long-term peace of mind

Always verify your existing axle and brake label before ordering, and perform routine inspections and adjustments to ensure maximum braking performance and component life.
