Lippert 10? � 2.25? Right-Hand 3,500-lb Electric Brake & 5-on-4.5 Drum-Hub Bundle � Dexter / Alko Compatible, Manual-Adjust, 4-Bolt Mount

Lippert 3,500-lb Electric Brake & Drum-Hub Replacement Bundle

Restore confident stopping power on your 3.5K trailer axle with this convenient Lippert bundle. It pairs a manual-adjust, right-hand 10″ × 2.25″ electric brake assembly with a matching 5-on-4.5 brake-drum hub and a complete, separately-bagged bearing kit—everything you need for a quick, worry-free swap-out.

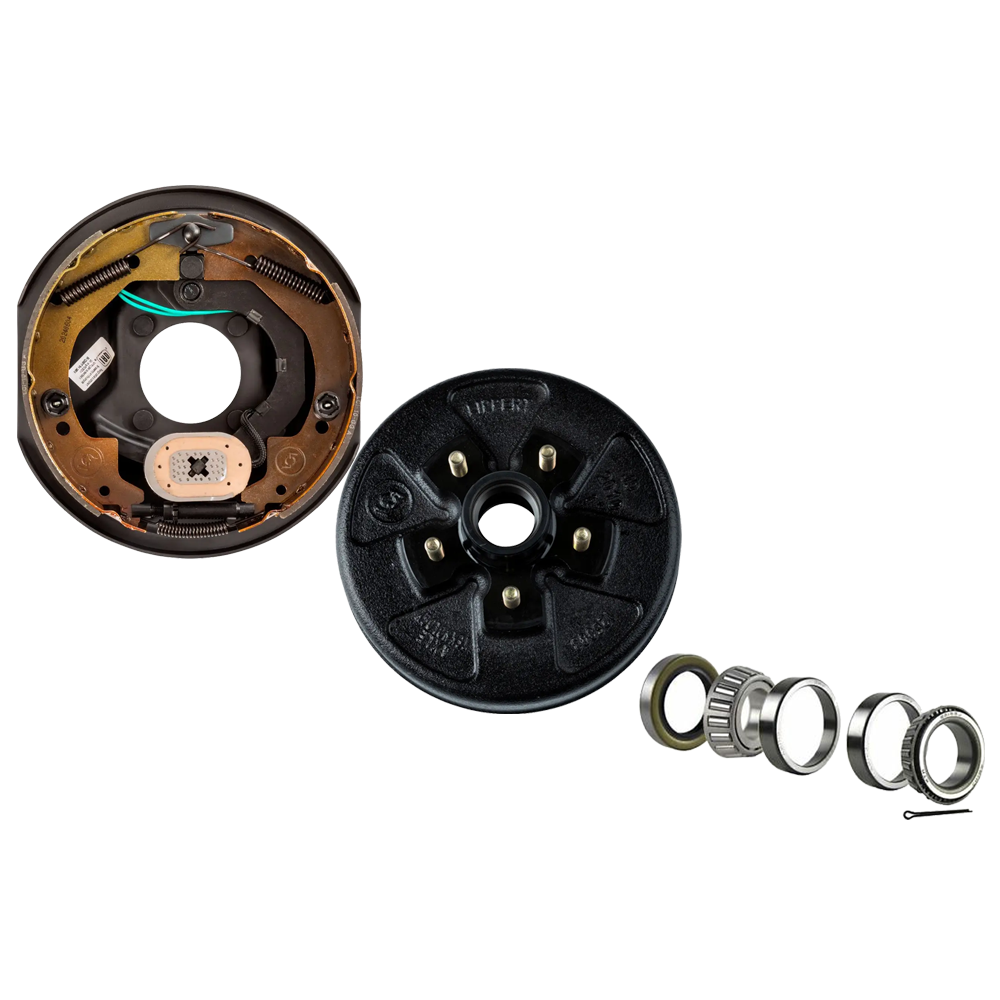

Bundle Contents:

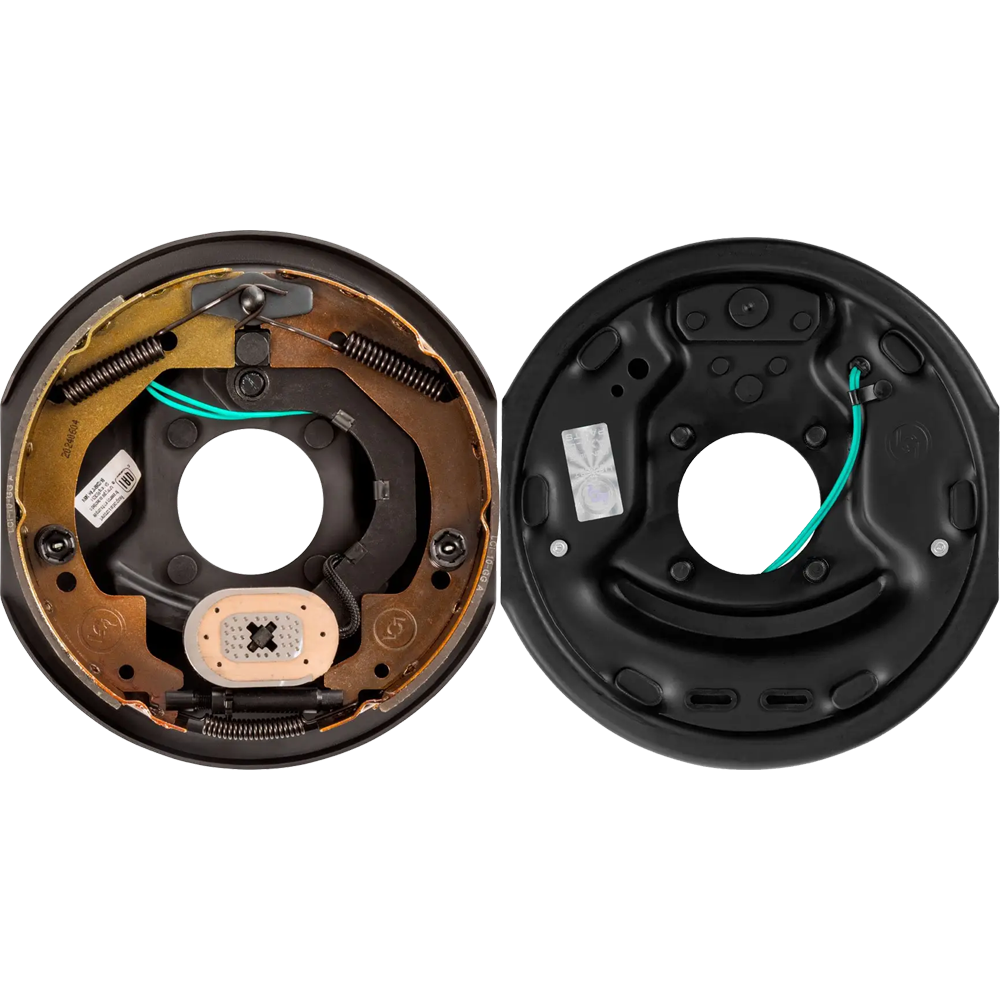

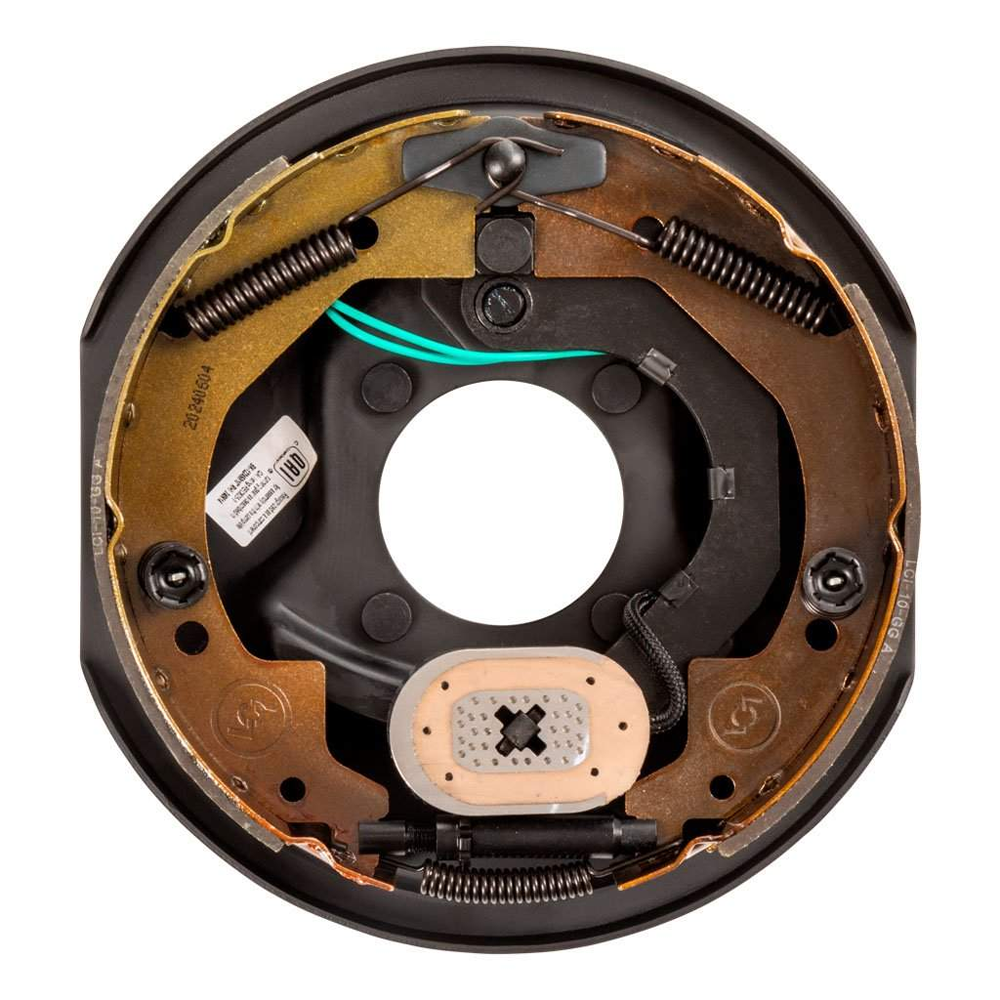

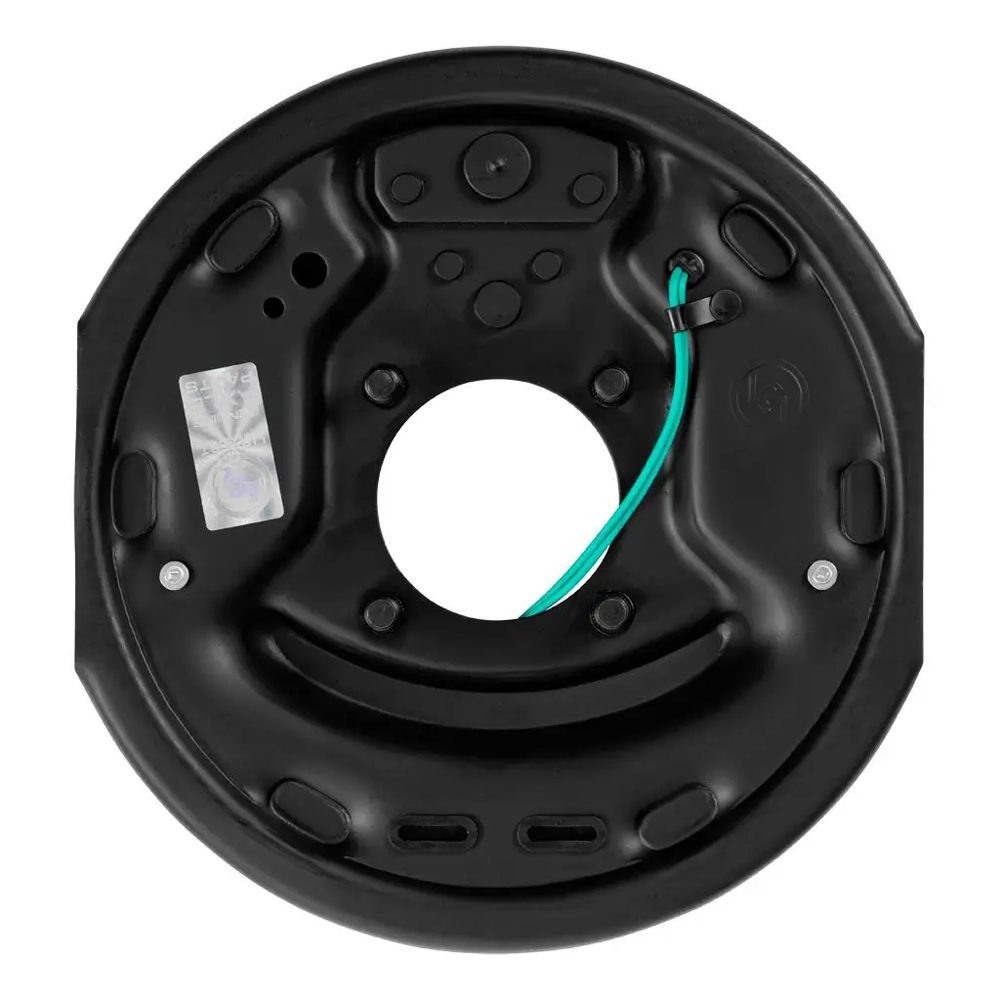

• QTY (1): Lippert 10″ × 2.25″ Electric Trailer Brake Assembly – Right-Hand
  • Manual-adjust with built-in parking brake
  • 4-bolt mounting pattern; curb-side (passenger) installation
  • Rated for 3,500-lb axles; fits 13″–15″ wheels
  • Brake size: 10″ × 2.25″ (requires break-in for full performance)
  • Dexter compatible part numbers: K23-027-00 | 023-027-00

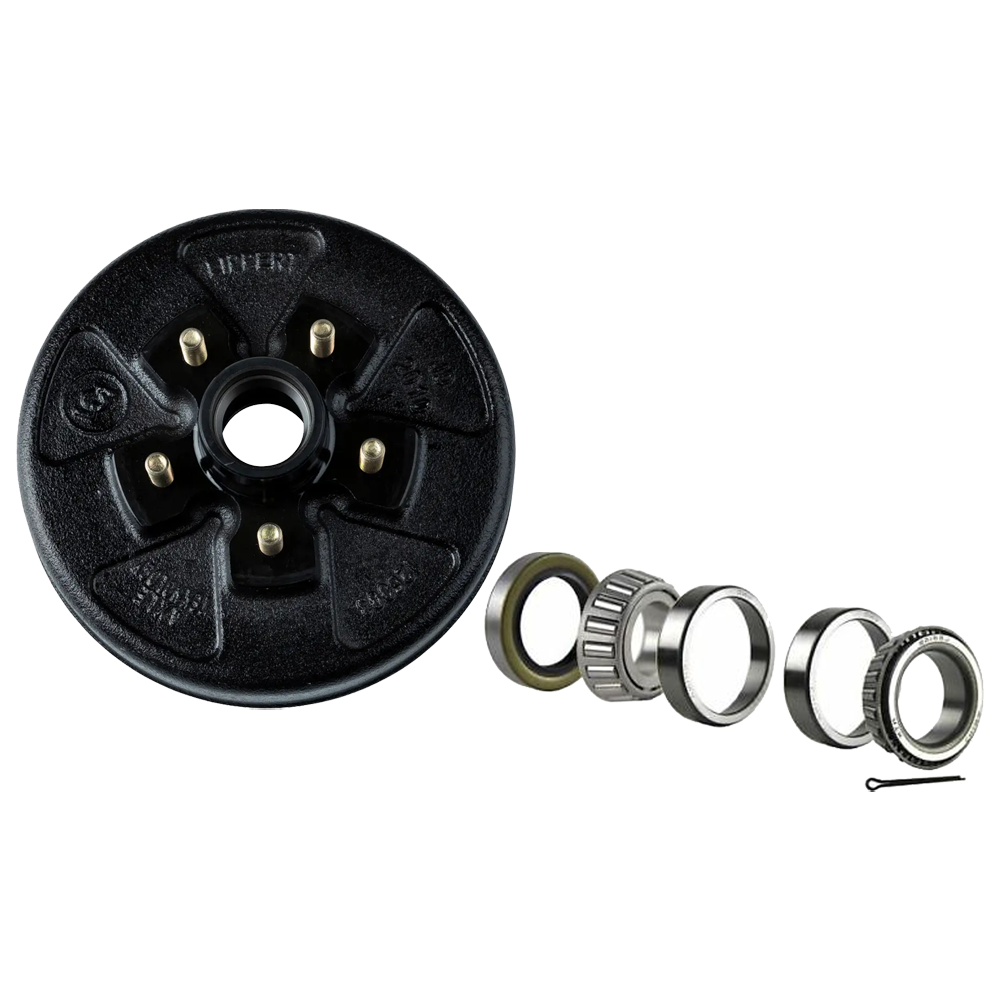

• QTY (1): Lippert 10″ Brake Drum Hub Assembly w/ Bearing Kit – 5 on 4.5
  • Solid iron hub/drum for 3,500-lb axles
  • 5-on-4.5 bolt pattern, ½″ studs
  • Dexter compatible part numbers: K08-247-94 | 008-247-94
  • Hub #126003 | Bearing Kit #333948
  • Bearing kit (bagged separately – one kit per hub) includes:
    • Inner bearing cone
    • Inner bearing cup
    • Outer bearing cone
    • Outer bearing cup
    • Cotter pin
    • Double-lip grease seal
  • Limited 1-year warranty

Always verify fitment with your original equipment label and perform regular brake and bearing maintenance for safe, consistent performance.
