Lippert 10? Manual-Adjust Electric Brake & 6 � 5.5 Bare Drum-Hub Kit � Fits 4,400-lb Single Axle � Dexter/Alko Compatible
$268.99
Lippert 10″ Manual-Adjust Brake & Bare Hub/Drum Kit – Single-Axle, 4,400 lb
Restore confident stopping power on your trailer with this complete Lippert service bundle. It pairs left- and right-hand 10″ × 2-1/4″ manual-adjust electric brake assemblies with two bare 6-on-5.5″ hub/drums—everything you need to outfit one 4,400-lb axle in a single, convenient package.

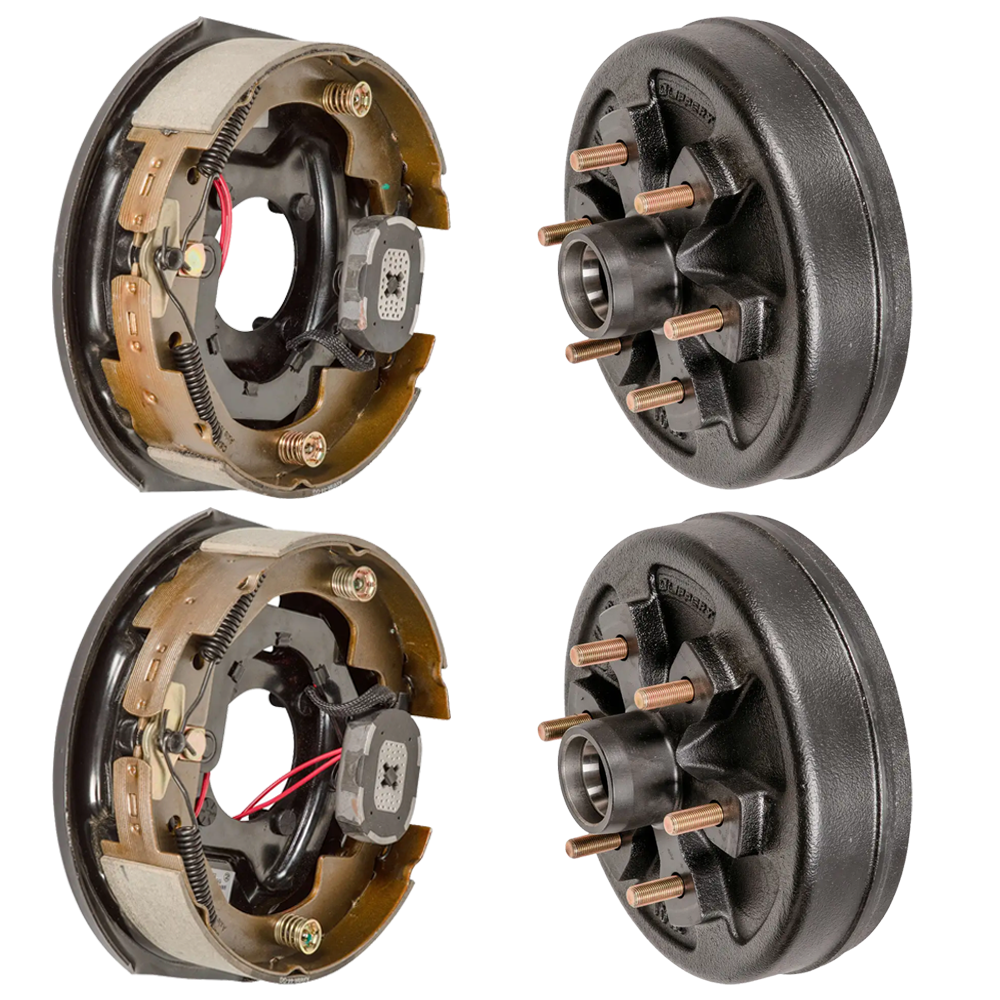

Bundle Contents:
-

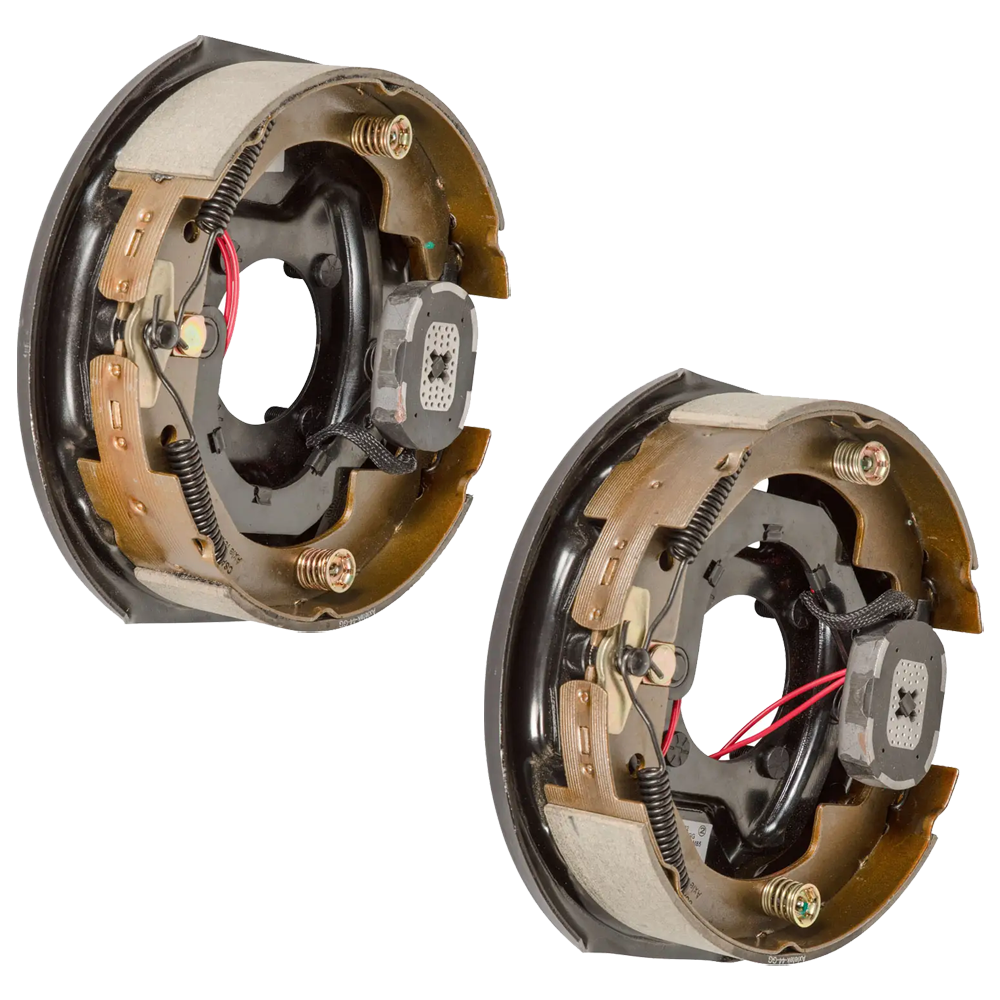

QTY (1): Electric Trailer Brake Assembly — Driver (Left) Side, 10″ × 2-1/4″
- Rated for 4,400-lb axles
- Manual-adjuster screw sets accurate shoe clearance
- Pre-wired magnet leads for quick hook-up
- Durable friction lining for consistent braking
- Dexter compatible PN: K23-462-00 | 023-462-00
-
QTY (1): Electric Trailer Brake Assembly — Passenger (Right) Side, 10″ × 2-1/4″
- Rated for 4,400-lb axles
- Mirror-image shoe orientation for perfect fit
- Manual-adjust design minimizes wear & noise
- Factory-balanced shoe/drum interface
- Dexter compatible PN: K23-463-00 | 023-463-00
-

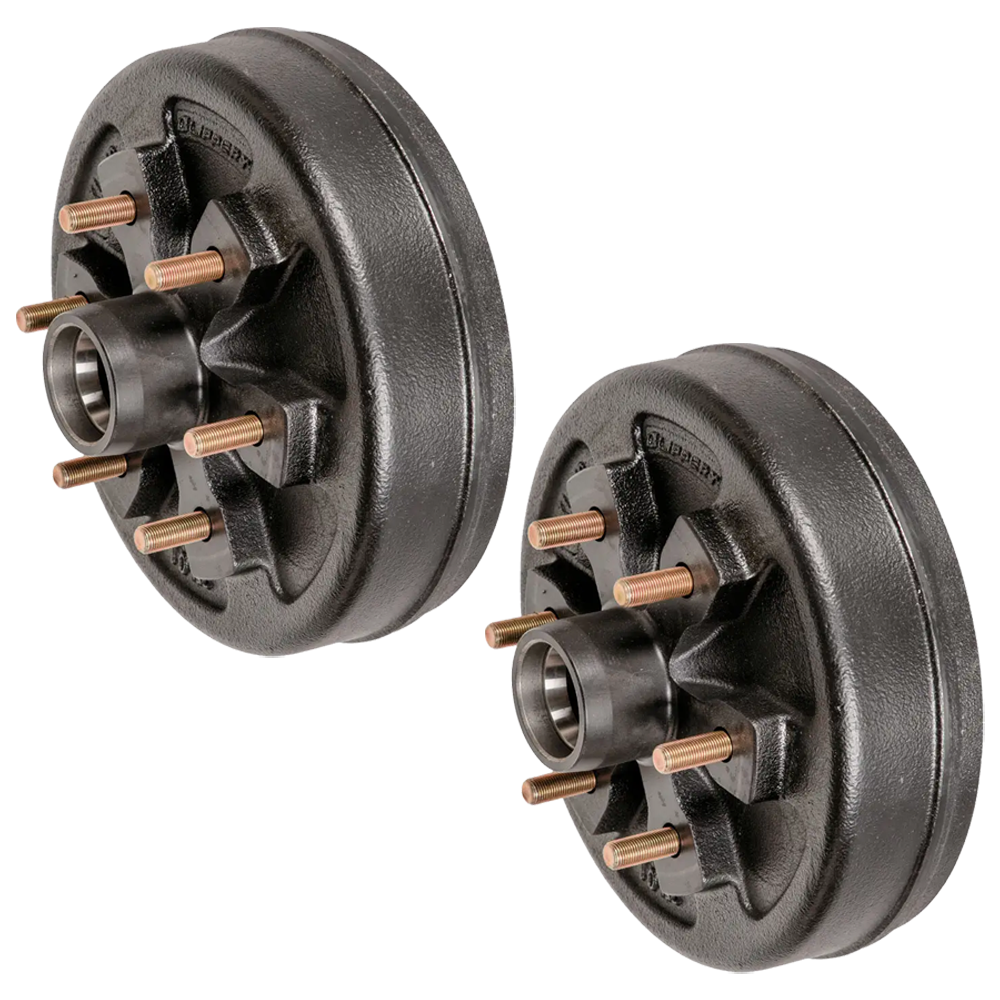

QTY (2): 10″ Bare Hub/Drum – 6 on 5.5″, 1/2″ Stud
- Hub only – full assembly not included
- Bare casting — reuse existing bearings, races & seal
- Fits 14.5″–16.5″ wheels
- SAE-grade cast iron for strength & heat dissipation
- One-year Lippert warranty
Recommendation: Confirm your axle rating, bolt pattern and bearing sizes before ordering. Inspect brakes and hubs every 12,000 miles or 12 months (whichever comes first) and adjust shoes as needed for safe, even braking.
| Specifications: | |
|---|---|
| Kit Type | Complete Manual-Adjust Brake & Bare Hub/Drum Kit |
| Axle Rating | 4,400 lbs (single axle) |
| Brake Drum Dimensions | 10″ × 2-1/4″ |
| Brake Mounting Pattern | 4-bolt (10″ brakes) |
| Hub Bolt Pattern | 6 on 5.5″ |
| Hub Type | Hub with integrated drum (bare casting) |
| Stud Size | 1/2″ |
| Type of Adjustment | Manual screw |
| Brake Location | Left & Right assemblies |
| Wheel Size Compatibility | 14.5″, 15″, 16″, 16.5″ wheels |
Order today or call us at 877-869-6690 for expert advice and personalized service.
