Lippert 10? Manual-Adjust Electric Brake & Fully Assembled Pre-Greased Hub Kit � 4,400-lb Single Axle, 6-on-5.5 Pattern � Fits Dexter, AL-KO, Rockwell

Lippert 10″ Electric Brake & Pre-Greased Hub Kit – 4,400-lb Single-Axle Overhaul

Refresh your trailer’s stopping power in one shot. This Lippert bundle pairs matching manual-adjust 10″ electric brakes with two fully assembled, pre-greased 6-lug hub-and-drum assemblies, giving you everything required to service a single 4,400-lb axle (Lippert, Dexter, AL-KO, Rockwell and more). Each component arrives ready to bolt on—saving shop time and keeping you safely on the road.

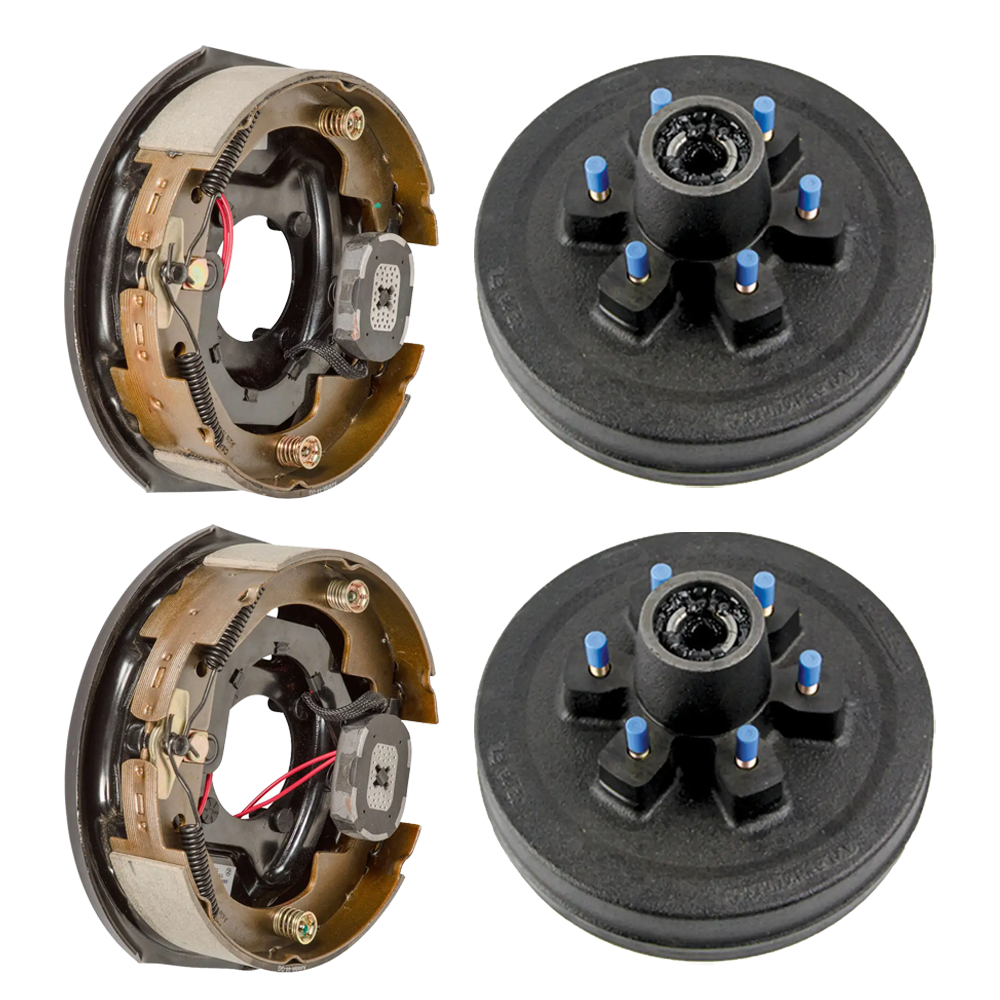

Bundle Contents:

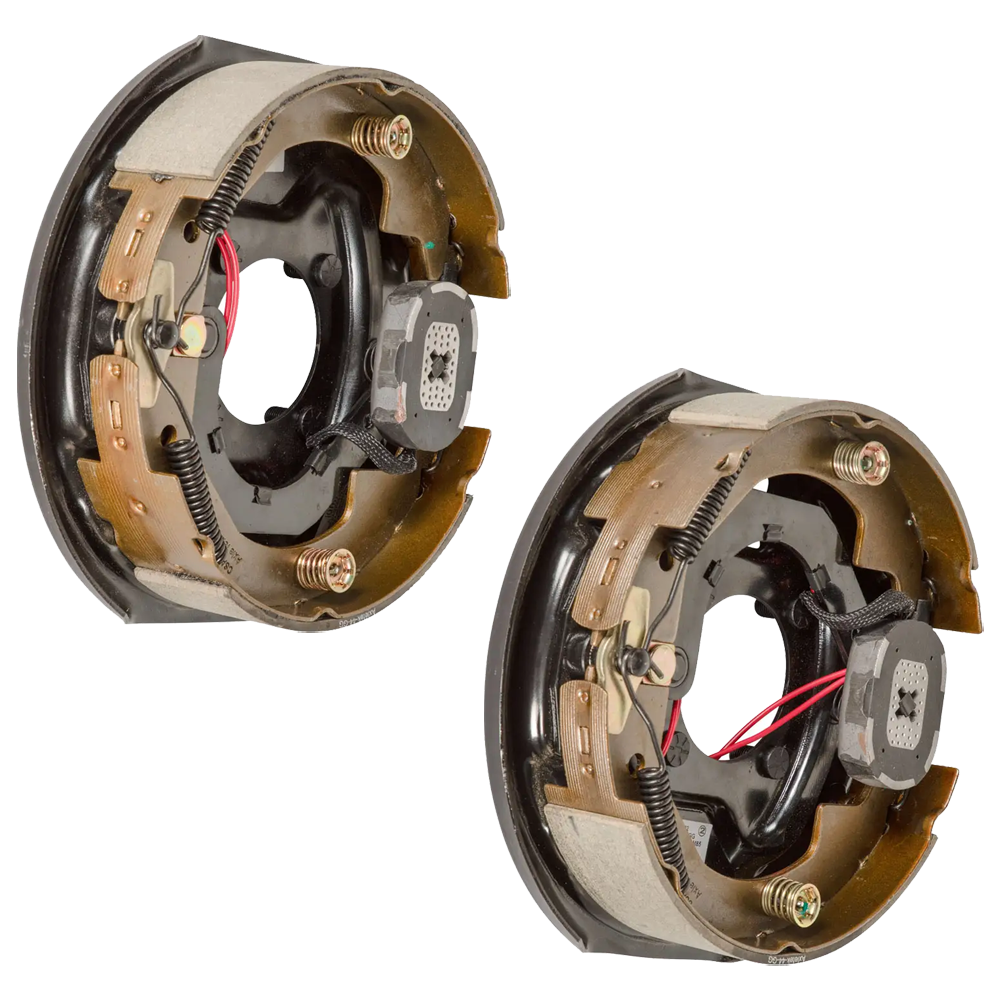

• QTY (1): Electric Trailer Brake Assembly – Driver Side, 10″ × 2-1/4″, 4,400 lb
  • Manual-adjust, self-contained backing plate
  • Fits 4-bolt brake flange on 4,400-lb axles
  • Pre-wired magnet & bonded shoes installed
  • Left-hand (driver) orientation
  • Dexter Compatible Part Number: K23-462-00 | 023-462-00
• QTY (1): Electric Trailer Brake Assembly – Passenger Side, 10″ × 2-1/4″, 4,400 lb
  • Mirror-image right-hand unit
  • Manual-adjust design for consistent braking
  • 4-bolt mounting; fits Lippert/Dexter/AL-KO
  • Factory-assembled magnet & shoes
  • Dexter Compatible Part Number: K23-463-00 | 023-463-00

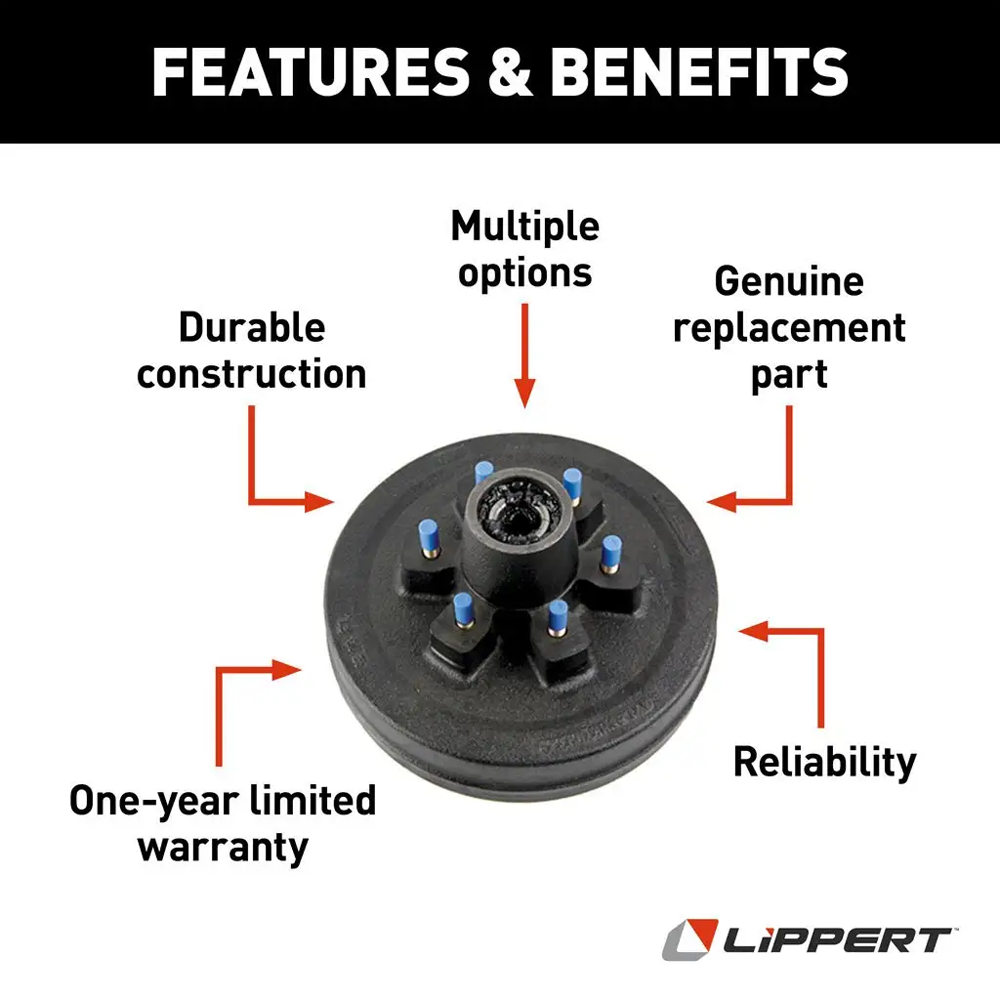

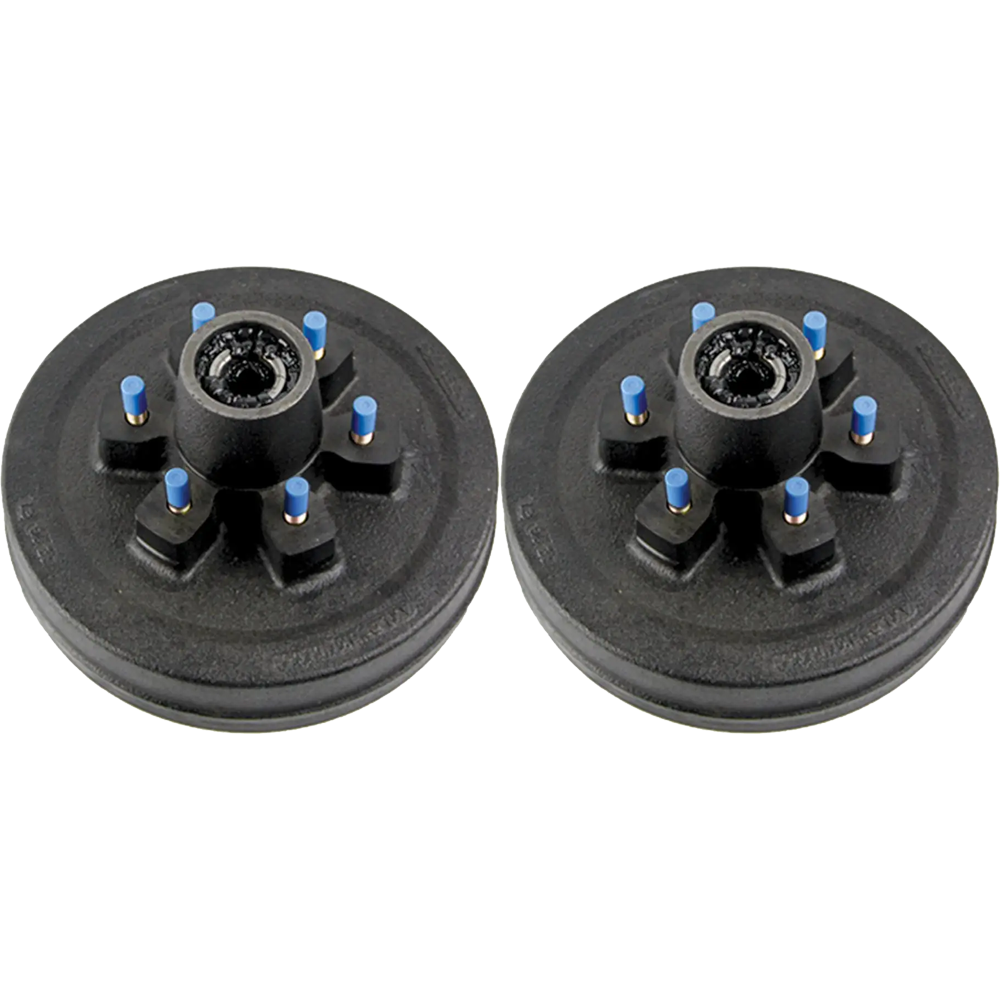

• QTY (2): 10″ Fully Assembled Pre-Greased Hub & Drum – 6 on 5.5″, 1/2″ Stud
  • Cast-iron hub/drum rated for 4,400-lb axles
  • 6-lug (6 × 5.5″) bolt circle, 1/2″ pressed studs
  • Bearings, seal & high-temp grease factory-installed
  • Accepts 14.5″–16.5″ wheels; fully assembled & ready to install

Always verify your existing axle rating, bolt pattern and brake-flange style before ordering. Perform regular inspections and bearing maintenance for maximum safety and longevity.
